HGF052R4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> HGF052R4

HGF052R4: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 12W, Hybrid; CategoryPower/power management The power supply circuit; File Size81KB，2 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

HGF052R4 Overview

DC-DC Regulated Power Supply Module, 1 Output, 12W, Hybrid

HGF052R4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHINDENGEN
package instruction	DIP, DIP14,1.6,200
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ALSO OPERATES WITH 48V NOMINAL INPUT
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	60 V
Minimum input voltage	20 V
Nominal input voltage	24 V
JESD-30 code	R-XDMA-P9
JESD-609 code	e0
Maximum load regulation	5%
Humidity sensitivity level	2
Number of functions	1
Output times	1
Number of terminals	9
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Maximum output current	2.4 A
Maximum output voltage	5.15 V
Minimum output voltage	4.85 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,1.6,200
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	5.08 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	12 W
Fine-tuning/adjustable output	NO

HGF052R4 Preview

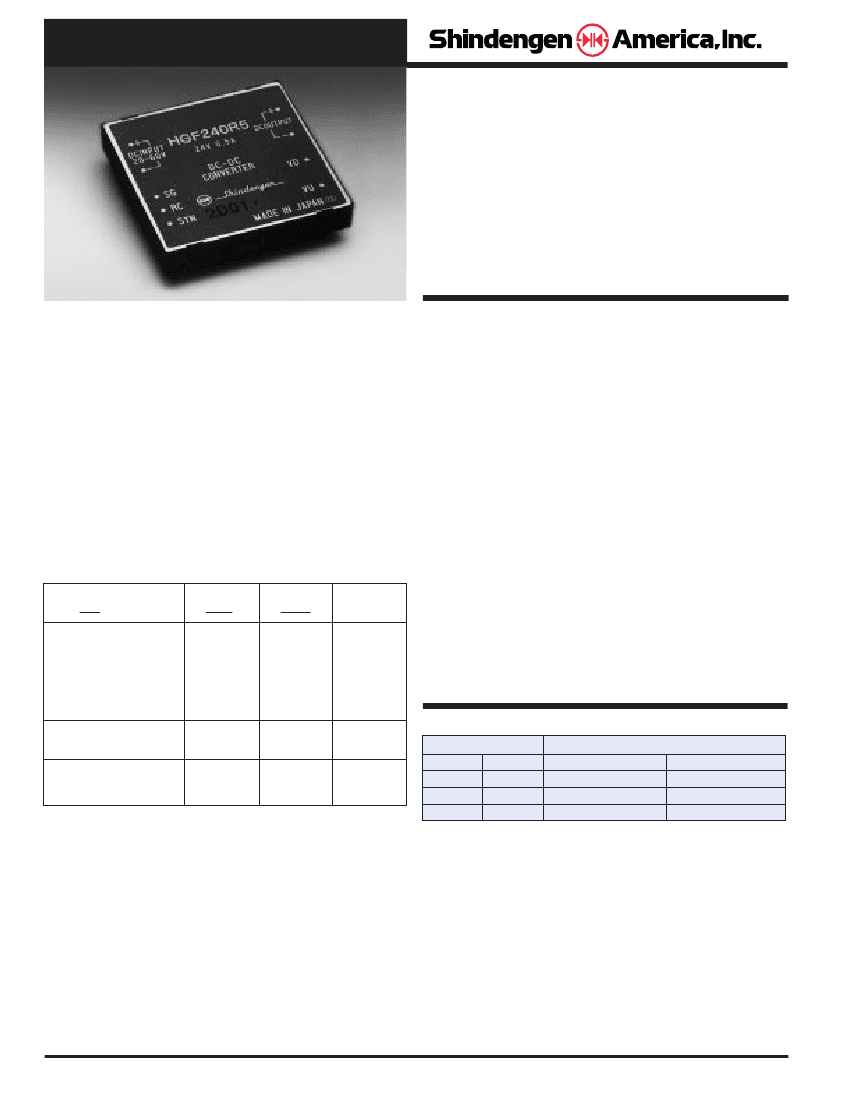

12 Watt

HG Series

FEATURES

Remote Sense

Remote ON/OFF

Switching Frequency Synchronization

Parallel Operation

Series Operation

Compact Footprint/Low Profile

SPECIFICATIONS

INPUT

Voltage Range

See Model Selection Table

Output Current

Isolation

Dielectric Strength

See Model Selection Table

>100 M

500 VDC for one minute

Insulation Resistance >100 M (@ 500 VDC)

OUTPUT

Output Voltage

Adjustment

Regulation

Total

Set Point

± 5% max.

± 3% max.

MECHANICAL

Regulation

Line (typ.)

Load (typ.)

Temp Drift (typ.)

Noise & Ripple

(peak-to-peak)

Overvoltage

Protection (max.)

10 mV

20 mV

10 mV

200 mV

7V15.5V

20 mV

25 mV

20 mV

300 mV

30 mV

40 mV

50 mV

400 mV

32V

12V

24V

Shock

Vibration

20G max., any side

Amplitude 1.5 mm, 10 - 55 Hz scan in 1 minute;

X, Y, Z direction for 2 hours each (non-operating).

See Model Selection Table

± 10% – See Engineering Data for details

ENVIRONMENTAL

Operating Ambient

Temp.

Storage Temp.

Cooling

–10 to +70°C

(see Engineering Data for derating)

–25 to +85°C

Convection; See Engineering Data for details.

MODEL SPECIFICATIONS

Output

Volts

Amps

0- 2.4

0 - 1.0

0 - 0.5

24/48 (20-60)VDC

Model

Efficiency

HGF052R4

HGF12001

HGF240R5

82/78%

1 -

- 6

- 3

6 5 4

12 Watt

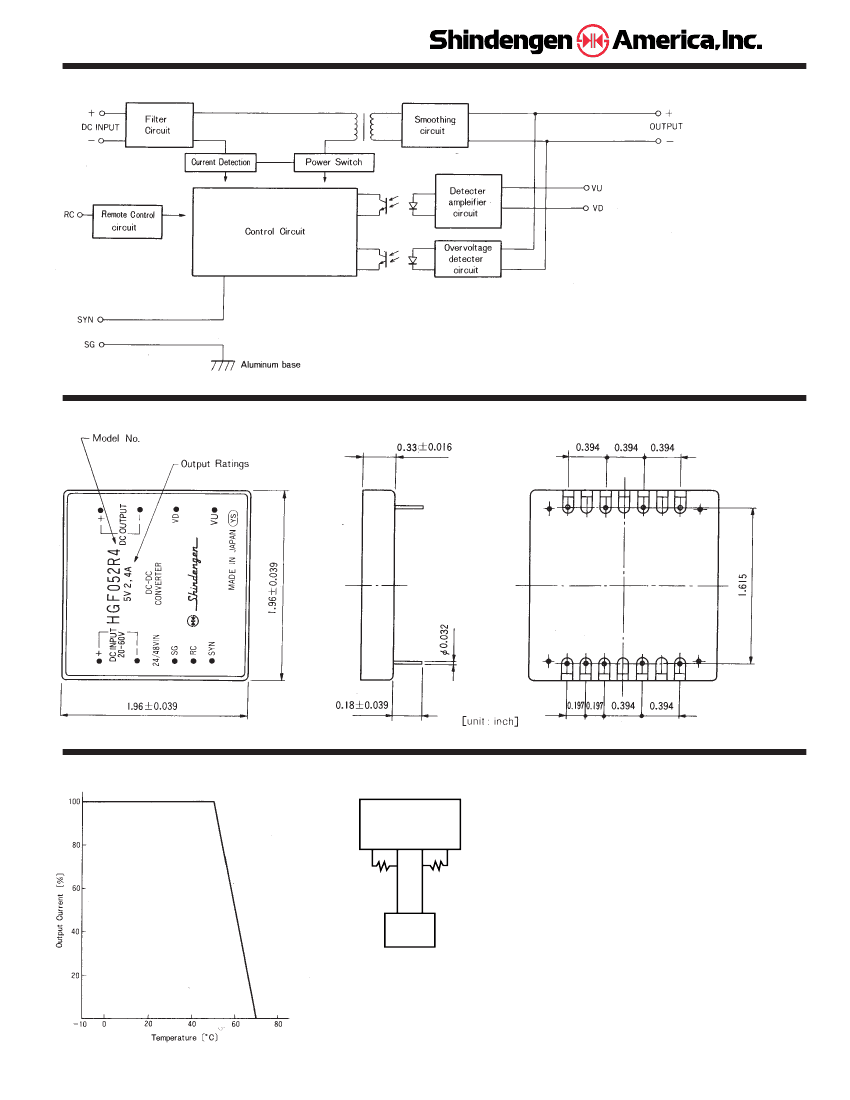

BLOCK DIAGRAM

HG Series

RC and SG need to be tied to –DC input

EXTERNAL DIAGRAM

DERATING CHART

VOLTAGE ADJUSTMENT

MECHANICAL SPECIFICATIONS

Size (W x D x H)

Weight

1.96 x 1.96 x 0.33 inches

( 49.8 x 49.8 x 8.5 mm)

0.9 oz (26 g)

–V

LOAD

Connect either R1 to lower

ouput voltage, or R2 to raise

output voltage

Dimensions in inches; ( ) Dimensions in mm.

- 6

- 3 6 5 4

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

HGF052R4 Related Products

	HGF052R4	HGF12001	HGF240R5
Description	DC-DC Regulated Power Supply Module, 1 Output, 12W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 12W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 12W, Hybrid
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	SHINDENGEN	SHINDENGEN	SHINDENGEN
package instruction	DIP, DIP14,1.6,200	DIP, DIP14,1.6,200	DIP, DIP14,1.6,200
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	ALSO OPERATES WITH 48V NOMINAL INPUT	ALSO OPERATES WITH 48V NOMINAL INPUT	ALSO OPERATES WITH 48V NOMINAL INPUT
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	60 V	60 V	60 V
Minimum input voltage	20 V	20 V	20 V
Nominal input voltage	24 V	24 V	24 V
JESD-30 code	R-XDMA-P9	R-XDMA-P9	R-XDMA-P9
JESD-609 code	e0	e0	e0
Maximum load regulation	5%	5%	5%
Humidity sensitivity level	2	2	2
Number of functions	1	1	1
Output times	1	1	1
Number of terminals	9	9	9
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C
Maximum output current	2.4 A	1 A	0.5 A
Maximum output voltage	5.15 V	12.36 V	24.72 V
Minimum output voltage	4.85 V	11.64 V	23.28 V
Nominal output voltage	5 V	12 V	24 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,1.6,200	DIP14,1.6,200	DIP14,1.6,200
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	240	240	240
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	5.08 mm	5.08 mm	5.08 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	12 W	12 W	12 W
Fine-tuning/adjustable output	NO	NO	NO
