PROPORTIONAL OUTPUT THUMBWHEEL
3 MILLION CYCLE ROTATIONAL LIFE
HTW
HALL EFFECT
THUMBWHEEL
HALL EFFECT
Standard Characteristics/Ratings:
Paddle
Wheel Style
MECHANICAL:
Mechanical Life:
3,000,000 full forward to full back
Mechanical Detent Cycle Life Per Detent:
100,000 (detent @ +/- 21°, full travel is +/- 30° max)
Max Allowable Radial Load:
30.0 lbs.
Drop:
3 feet max to concrete
ELECTRICAL RATINGS: Rated at Vcc = 5V @ 25°C
Load = 1mA (4–7KΩ)
Electrical
Supply Voltage
Units
VDC
VDC
@ 5V Vcc
VDC
@ 5V Vcc
VDC
@ 5V Vcc
mA
-5VDC max
Min
4.5
-0.15
-0.25
-0.25
N/A
Typ
5
N/A
N/A
N/A
N/A
Max
5.5
+0.15
+0.25
+0.25
10
Knurled
Wheel Style
Output Voltage Tolerance
at Center

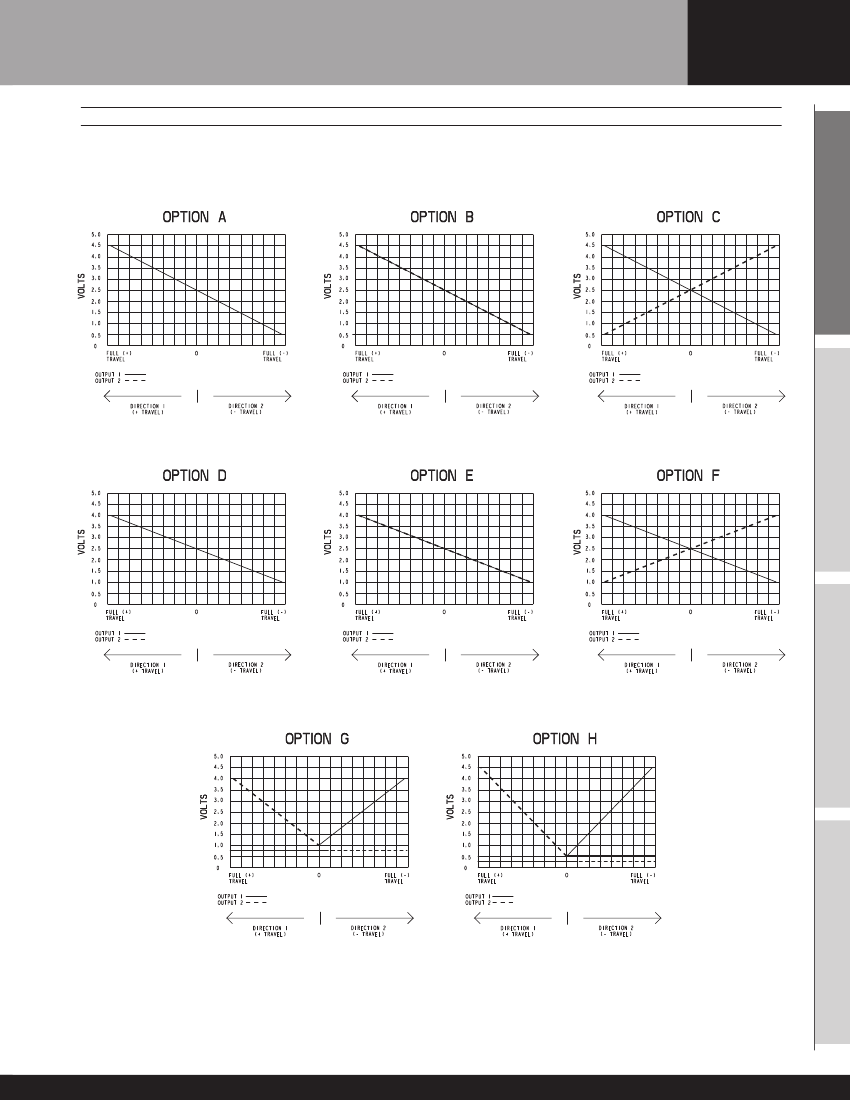

(see graph for output values)
Output Voltage Tolerance
at Center
(for detent version A only)

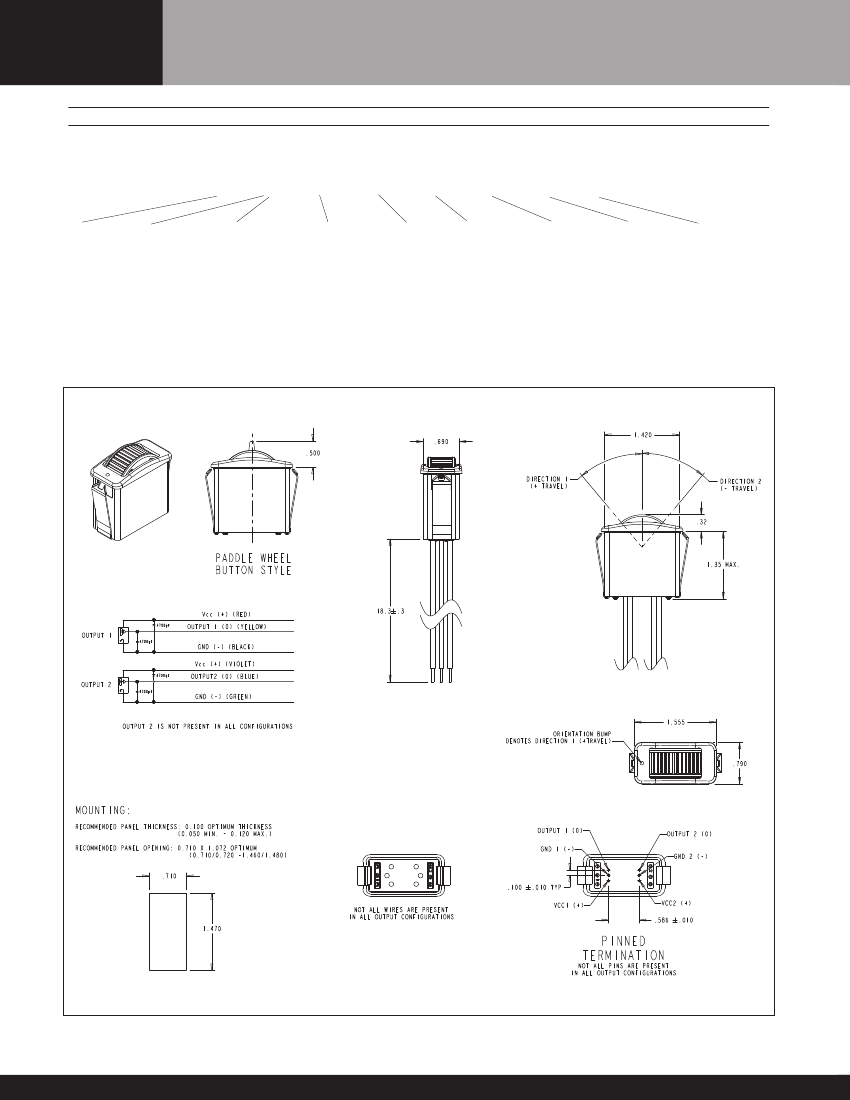

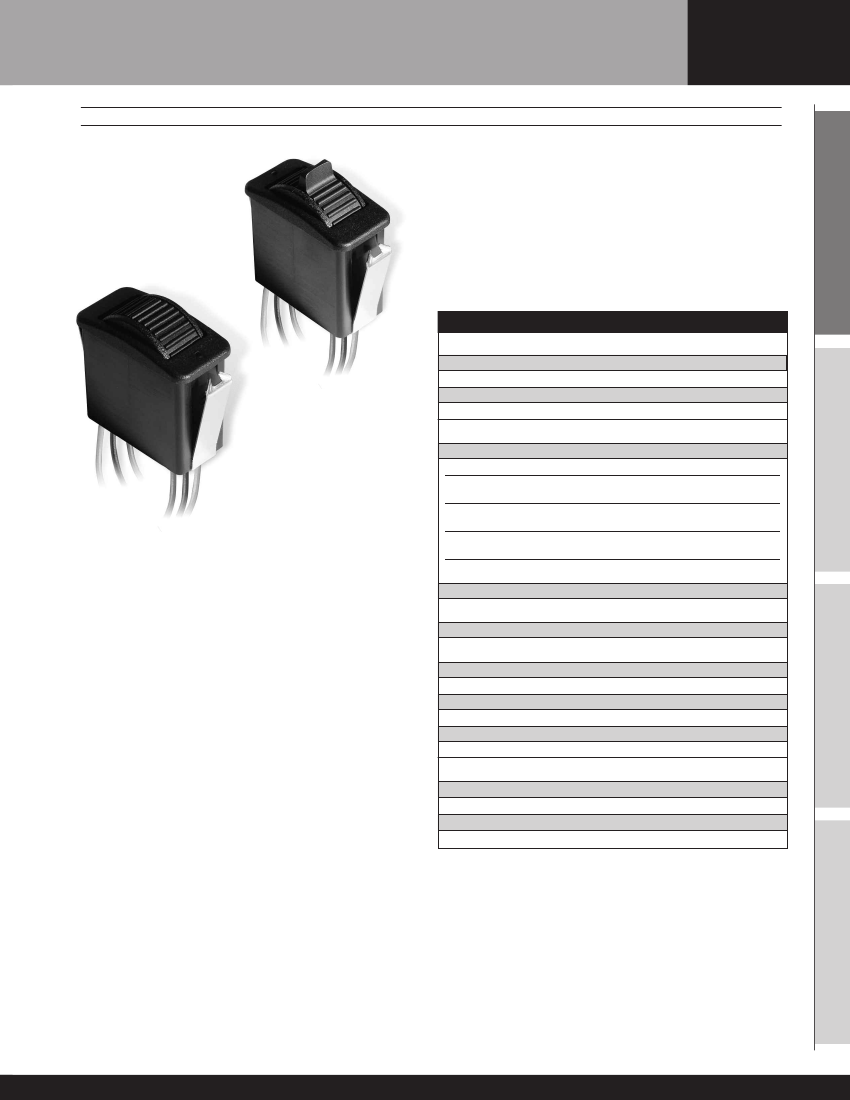

The HTW Hall Effect Proportional Output Thumbwheel is a self-
centering, single axis thumbwheel with an actuator that
provides linear change in voltage output in either direction
from the center. Available with eight output options, including
increasing and decreasing voltage output from the center
position to the full travel position and single or dual (redundant)
outputs. The HTW snaps into a 1.47” x 0.710” panel opening
with rocker switch style mounting. A durable switch providing
3 million cycle rotational life, sealed to IP68S and excellent EMI
immunity per MIL-STD-46 ID/SAE J1113-22, and will withstand
RFI of 100V/M 14Hz to 1GHz.
Output Voltage Tolerance
Full Travel
(see graph for output values)
Supply Current Per Sensor
Reverse Voltage Protection:
ELECTRONICS:
Seal Integrity:
Electronics IP68S
ENVIRONMENTAL:
Operating Temp Range:
-40°C to +85°C
Humidity:
Vibration:
Sand/Dust:
EMI:
RFI:
96% RH, 70°C, 96 hours
Per MIL-810F minimum integrity
Per SAE J1455
Withstand per MIL-STD-461D/SAE J1113-22
Withstand 100V/M 14Hz to 1GHz
Features:
•
•
•
•
•
•
•
•
•
Eight output options
Self-centering single axis actuator
Snaps into 1.47” x 0.710” panel opening
Rocker switch style mounting
3 million cycle rotational life
Electronics sealed to IP68S
Excellent EMI/RFI immunity
Detent options available
RoHS & WEEE compliant
MATERIALS:
Button:
Bezel:
Snap Arms:
Mounting Hardware:
Thermoplastic
Thermoplastic
Stainless steel
None provided
Specifications Subject To Change Without Notice
