PE-53117 datasheet, PDF - EEWORLD Datasheet

PE-53117: DescriptionGeneral Purpose Inductor, 292uH, 20%, 1 Element,; CategoryPassive components inductor; File Size129KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

PE-53117 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PE-53117	-	-	View	Buy Now

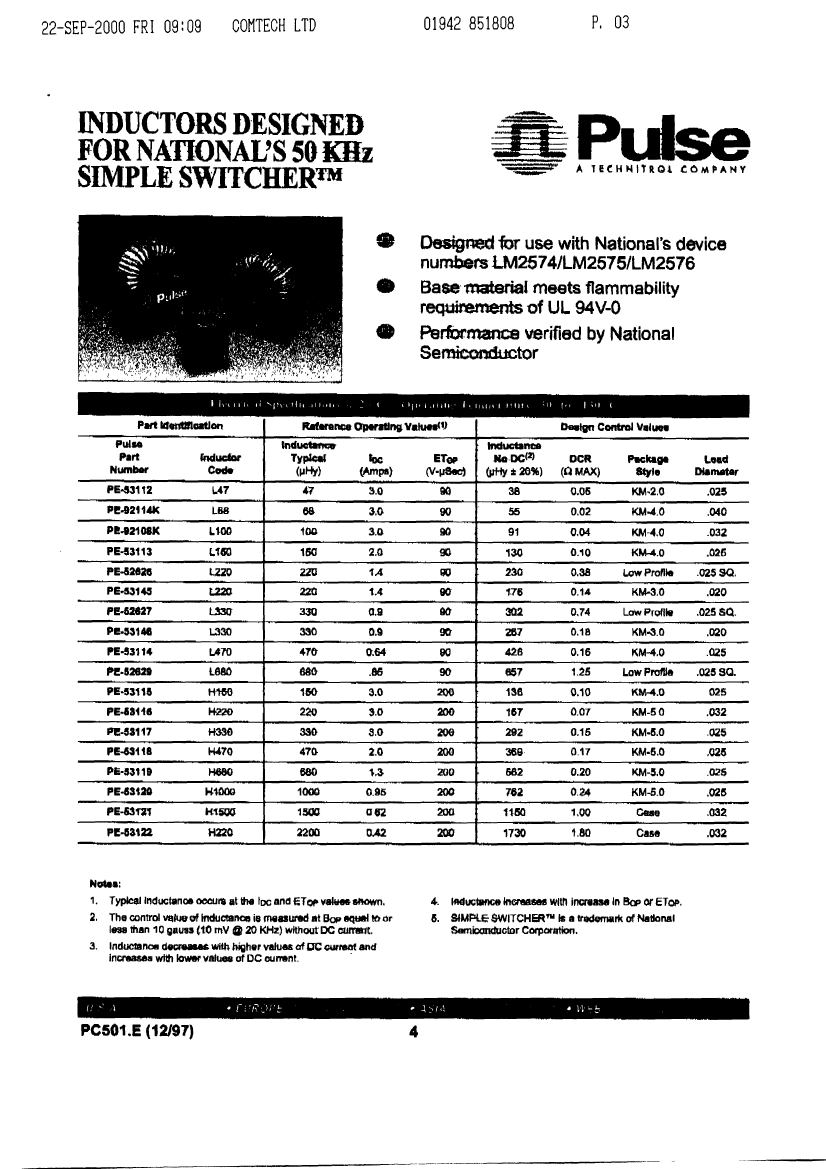

General Purpose Inductor, 292uH, 20%, 1 Element,

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Semi-Encapsulated
DC Resistance	0.15 Ω
Nominal inductance(L)	292 µH
Inductor Applications	FILTER CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	0.635 mm
Lead length	0.508 mm
lead spacing	12.7 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C

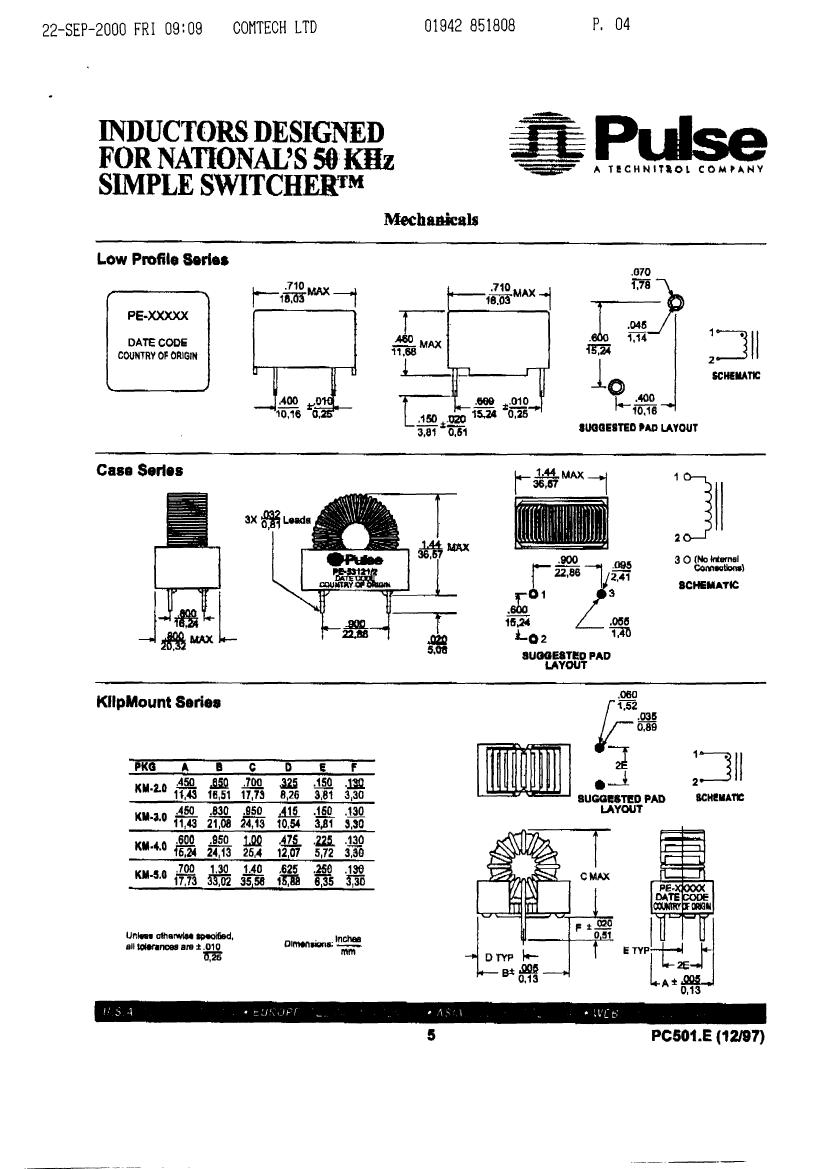

Package height	35.56 mm
Package length	33.02 mm
Package form	Toroidal
Package width	17.73 mm
method of packing	Tray
Maximum rated current	3 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	SIMPLE SWITCHER
surface mount	NO
Terminal location	DUAL ENDED
Terminal shape	WIRE
Test frequency	0.02 MHz
Tolerance	20%

	PE-53117	PE-53119	PE-53115	PE-53116	PE-53146	PE-53113
Description	General Purpose Inductor, 292uH, 20%, 1 Element,	General Purpose Inductor, 562uH, 20%, 1 Element	General Purpose Inductor, 136uH, 20%, 1 Element, 9560	General Purpose Inductor, 167uH, 20%, 1 Element	General Purpose Inductor, 267uH, 20%, 1 Element	General Purpose Inductor, 130uH, 20%, 1 Element, 9560
Maker	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.15 Ω	0.2 Ω	-	-	0.18 Ω	0.1 Ω
Nominal inductance(L)	292 µH	562 µH	-	-	267 µH	130 µH
Inductor Applications	FILTER CHOKE	FILTER CHOKE	-	-	FILTER CHOKE	FILTER CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	-	-	1	1
Number of terminals	2	2	-	-	2	2
Maximum operating temperature	130 °C	130 °C	-	-	130 °C	130 °C
Minimum operating temperature	-40 °C	-40 °C	-	-	-40 °C	-40 °C
Maximum rated current	3 A	1.3 A	-	-	0.9 A	2 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	-	-	NO	NO
special characteristics	SIMPLE SWITCHER	SIMPLE SWITCHER	-	-	SIMPLE SWITCHER	SIMPLE SWITCHER
surface mount	NO	NO	-	-	NO	NO
Terminal location	DUAL ENDED	DUAL ENDED	-	-	DUAL ENDED	DUAL ENDED
Terminal shape	WIRE	WIRE	-	-	WIRE	WIRE
Test frequency	0.02 MHz	0.02 MHz	-	-	0.02 MHz	0.02 MHz
Tolerance	20%	20%	-	-	20%	20%
