N74F06N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> N74F06N

N74F06N: DescriptionInverter, F/FAST Series, 6-Func, 1-Input, TTL, PDIP14; Categorylogic logic; File Size56KB，2 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

N74F06N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	N74F06N	-	-	View	Buy Now

N74F06N Overview

Inverter, F/FAST Series, 6-Func, 1-Input, TTL, PDIP14

N74F06N Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-PDIP-T14
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	43 mA
propagation delay (tpd)	6 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

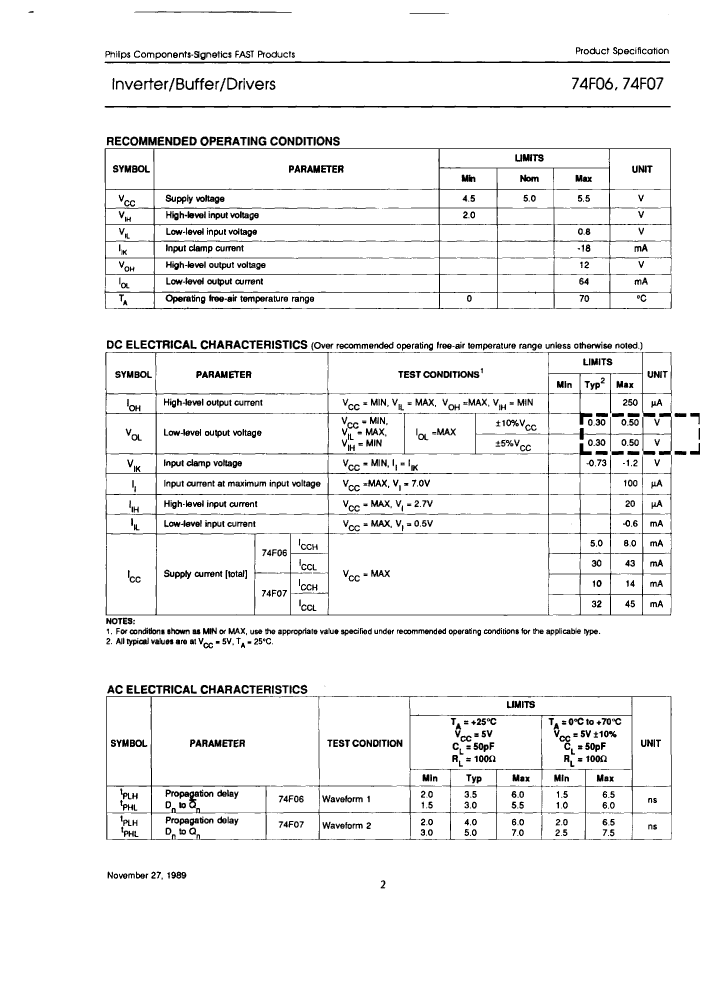

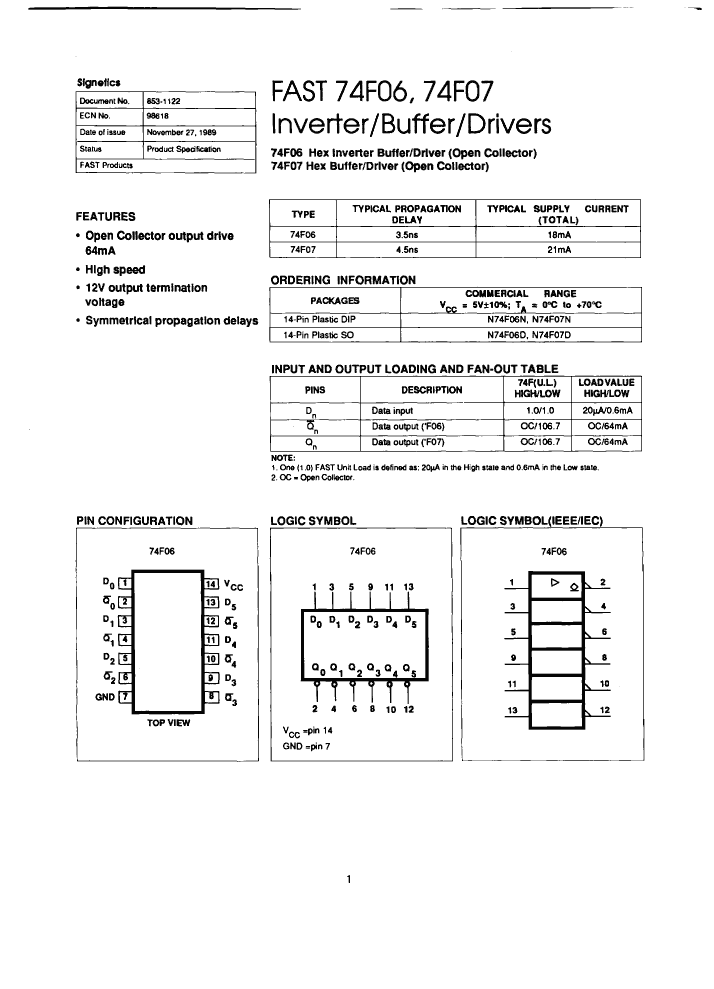

N74F06N Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

N74F06N Related Products

	N74F06N	N74F06D	N74F06D-T	N74F07D	N74F07D-T	N74F07N
Description	Inverter, F/FAST Series, 6-Func, 1-Input, TTL, PDIP14	Inverter, F/FAST Series, 6-Func, 1-Input, TTL, PDSO14	Inverter, F/FAST Series, 6-Func, 1-Input, TTL, PDSO14	Buffer, F/FAST Series, 6-Func, 1-Input, TTL, PDSO14	Buffer, F/FAST Series, 6-Func, 1-Input, TTL, PDSO14	Buffer, F/FAST Series, 6-Func, 1-Input, TTL, PDIP14
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	BUFFER	BUFFER	BUFFER
Number of functions	6	6	6	6	6	6
Number of entries	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Maximum supply current (ICC)	43 mA	43 mA	43 mA	45 mA	45 mA	45 mA
propagation delay (tpd)	6 ns	6 ns	6 ns	7.5 ns	7.5 ns	7.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
