KSC2335J69Z

Description
Power Bipolar Transistor, 7A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size51KB,4 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric View All

KSC2335J69Z Overview

Power Bipolar Transistor, 7A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN

KSC2335J69Z Parametric

Parameter NameAttribute value
MakerFairchild
Parts packaging codeSFM
package instructionTO-220, 3 PIN
Contacts3
Reach Compliance Codeunknown
Maximum collector current (IC)7 A
Collector-emitter maximum voltage400 V
ConfigurationSINGLE
Minimum DC current gain (hFE)10
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
Number of components1
Number of terminals3
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
transistor applicationsSWITCHING
Transistor component materialsSILICON

KSC2335J69Z Preview

KSC2335
KSC2335
High Speed, High Voltage Switching
Industrial Use
NPN Epitaxial Silicon Transistor
Absolute Maximum Ratings
T
C
=25°C unless otherwise noted
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CP
I
B
P
C
P
C
T
J
T
STG
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current (DC)
*Collector Current (Pulse)
Base Current (DC)
Collector Dissipation (T
a
=25°C)
Collector Dissipation (T
C
=25°C)
Junction Temperature
Storage Temperature
Parameter
1
TO-220
2.Collector
3.Emitter
1.Base
Value
500
400
7
7
15
3.5
1.5
40
150
- 55 ~ 150
Units
V
V
V
A
A
A
W
W
°C
°C
* PW≤300µs, Duty Cycle≤10%
Electrical Characteristics
T
C
=25°C unless otherwise noted
Symbol
V
CEO
(sus)
V
CEX
(sus)1
V
CEX
(sus)2
I
CBO
I
CER
I
CEX1
I
CEX2
I
EBO
h
FE
1
h
FE2
h
FE3
V
CE
(sat)
V
BE
(sat)
t
ON
t
STG
t
F
Parameter
Collector-Emitter Sustaining Voltage
Collector-Emitter Sustaining Voltage
Collector-Emitter Sustaining Voltage
Collector Cut-off Current
Collector Cut-off Current
Collector Cut-off Current
Collector Cut-off Current
Emitter Cut-off Current
* DC Current Gain
Test Condition
I
C
= 3A, I
B1
= 0.6A, L = 1mH
I
C
= 3A, I
B1
= -I
B2
= 0.6A
V
BE
(off) = -5V, L = 180µH, Clamped
I
C
= 6A,I
B1
= 2A, I
B2
= -0.6A
V
BE
(off) = -5V, L = 180µH, Clamped
V
CB
= 400V, I
E
= 0
V
CE
= 400V, R
BE
= 51Ω @ T
C
=125°C
V
CE
= 400V, V
BE
(off)= -1.5V
V
CE
= 400V, V
BE
(off)= -1.5V @
T
C
=125°C
V
EB
= 5V, I
C
= 0
V
CE
= 5V, I
C
= 0.1A
V
CE
= 5V, I
C
= 1A
V
CE
= 5V, I
C
= 3A
I
C
= 3A, I
B
= 0.6A
I
C
= 3A, I
B
= 0.6A
V
CC
=150V, I
C
= 3A
I
B1
= -I
B2
= 0.6A
R
L
= 50Ω
20
20
10
Min.
400
450
400
10
1
10
1
10
80
80
1
1.2
1
2.5
1
V
V
µs
µs
µs
Max.
Units
V
V
V
µA
mA
µA
mA
µA
* Collector-Emitter Saturation Voltage
* Base-Emitter Saturation Voltage
Turn ON Time
Storage Time
Fall Time
* Pulse Test: PW≤350µs, Duty Cycle≤2% Pulsed
h
FE
Classification
Classification
h
FE2
©2000 Fairchild Semiconductor International
R
20 ~ 40
O
30 ~ 60
Y
40 ~ 80
Rev. A, February 2000
KSC2335

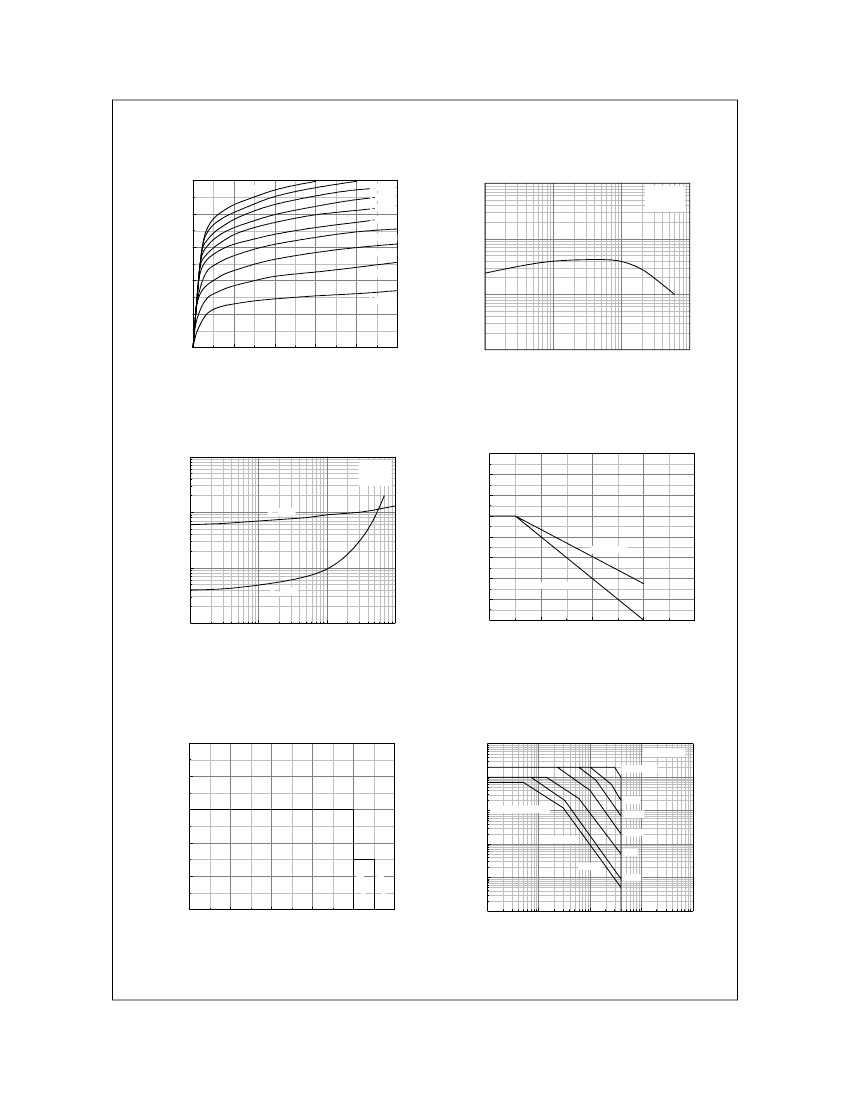

Typical Characteristics
I
B
=0.45A
I
B
=0.50A
I
B
=0.40A
I
B
=0.35A
I
B
=0.30A
I
B
=0.25A
I
B
=0.20A
3
1000
5
V
CE
= 5 V
Pulsed
I
C
[mA], COLLECTOR CURRENT
4
h
FE
, DC CURRENT GAIN
100
I
B
=0.15A
I
B
=0.10A
2
10
I
B
=0.05A
1
0
0
1
2
3
4
5
1
0.01
0.1
1
10
V
CE
[V], COLLECTOR-EMITTER VOLTAGE
Ic[A], COLLECTOR CURRENT
Figure 1. Static Characteristic
Figure 2. DC current Gain
V
CE
(SAT) [V], V
BE
(SAT) [V], SATURATION VOLTAGE
10
160
I
C
= 5 I
B
Pulsed
140
120
1
V
BE
(SAT)
dT [%], I
C
DERATING
100
80
S/b Limited
60
0.1
40
V
CE
(SAT)
20
Dissipation Limited
0.01
0.01
0
0.1
1
10
0
50
o
100
150
200
V
CB
[V], COLLECTOR-BASE VOLTAGE
T
C
[ C], CASE TEMPERATURE
Figure 3. Base-Emitter Saturation Voltage
Collector-Emitter Saturation Voltage
Figure 4. Derating Curve of Safe Operating Areas
10
100
Single Pulse
PW = 10 us
I
C
[A], COLLECTOR CURRENT
I
C
[A], COLLECTOR CURRENT
8
10
50 us
1
6
Dissipation Limoted
0.1 ms
0.3 ms
4
0.1
S/b Limited
1 ms
100 ms
V
CEO
(SUS)
2
V
CEX
(SUS)
0.01
10 ms
0
0
100
200
300
400
500
1E-3
1
10
100
1000
10000
V
CE
[V], COLLECTOR-EMITTER VOLTAGE
V
CE
[V], COLLECTOR-EMITTER VOLTAGE
Figure 5. Reverse Bias Safe Operating Area
Figure 6. Forward Bias Safe Operating Area
©2000 Fairchild Semiconductor International
Rev. A, February 2000
KSC2335
Package Demensions
TO-220
9.90
±0.20
1.30
±0.10
2.80
±0.10
4.50
±0.20
(8.70)
ø3.60
±0.10
(1.70)
1.30
–0.05
+0.10
9.20
±0.20
(1.46)
13.08
±0.20
(1.00)
(3.00)
15.90
±0.20
1.27
±0.10
1.52
±0.10
0.80
±0.10
2.54TYP
[2.54
±0.20
]
2.54TYP
[2.54
±0.20
]
10.08
±0.30
18.95MAX.
(3.70)
)
(45
°
0.50
–0.05
+0.10
2.40
±0.20
10.00
±0.20
Dimensions in Millimeters
©2000 Fairchild Semiconductor International
Rev. A, February 2000
