KC7050B25.0000C3QA00 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> KC7050B25.0000C3QA00

KC7050B25.0000C3QA00: DescriptionXO, Clock, CRYSTAL OSCILLATOR, CLOCK, 25 MHz, CMOS OUTPUT; CategoryPassive components oscillator; File Size134KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric Compare View All

KC7050B25.0000C3QA00 Overview

XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 25 MHz, CMOS OUTPUT

KC7050B25.0000C3QA00 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kyocera
Reach Compliance Code	unknown
Other features	ENABLE/DISABLE FUNCTION
maximum descent time	16 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	KC7050B
Installation features	SURFACE MOUNT
Nominal operating frequency	25 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Oscillator type	CMOS
Output load	15 pF
physical size	7mm x 5mm x 1.8mm
longest rise time	16 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

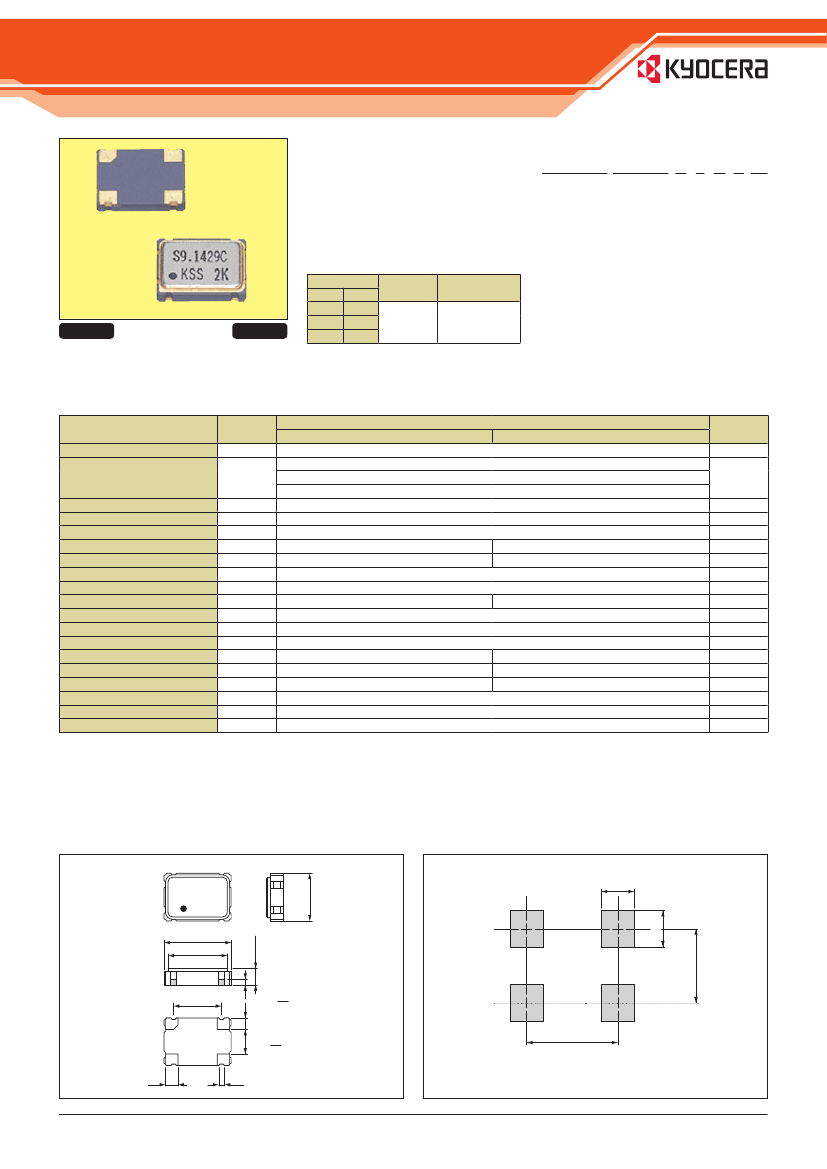

Clock Crystal Oscillators Surface Mount Type

KC7050B Series (FXO-34F Series)

CMOS/ 3.3V/ 5.0V/ 7.0×5.0mm

Features

• This crystal oscillator has a built-in

high-precision CMOS IC suitable for a wide

range of temperature

• Lower noise and lower current for reduced

power consumption

• Supply voltage V

=3.3/

5.0V available

How to Order

KC7050B 25.0000 C 3 Q B 00

①

②

③④⑤⑥ ⑦

①

Type

②

Output Frequency

③

Output Type (CMOS)

④

Supply Voltage 5=5.0V, 3=3.3V

⑤

Frequency Tolerance (See Table at Left)

⑥

Symmetry/ Enable Function

A: 40/ 60%, Disable

B: 40/ 60%, Stand-by

⑦

Customer Special Model Sufﬁx

(STD Speciﬁcation is “00”)

Frequency Tolerance (Overall)

Operating

Freq. Tol.

Temperature

Note

Code

−6

Range (°C)

100

−30

+85

1.8 to 33MHz

(Standard)

Pb Free

RoHS Compliant

Speciﬁcations

Item

Output Frequency Range

Frequency Tolerance (Overall)

Storage Temperature Range

Operating Temperature Range

Max. Supply Voltage

Supply Voltage

Current Consumption

Stand-by Current

Symmetry

Rise/ Fall Time

Low Level Output Voltage

High Level Output Voltage

Output Load

Input Voltage Range

Low Level Input Voltage

High Level Input Voltage

Disable Time

Enable Time

Start-up Time

Symbol

_tol

_stg

_use

—

_std

SYM

tr/ tf

dis

ena

str

Speciﬁcations

KC7050Bxx.xxxxC5xB00 (FXO-34F)

KC7050Bxx.xxxxC3xB00 (FXO-34FL)

1.8 to 33

±30

±50

±100

−40

+85

−10

+85

7 max.

5±5%

3.3±5%

12 max.

10 max.

8 max.

40 to 60@50%V

12 max.

16 max.

10% V

max.

90% V

min.

15 max.

0 to V

0.8 max.

0.3 max.

2.2 min.

150 max.

5 max.

10 max.

Units

MHz

×10

−6

°C

µA

Note: All electrical characteristics are defined at the maximum load and operating temperature range.

Please contact us for inquiries about operating temperature range, available frequencies and other conditions.

Dimensions

½½

½½½½½½

½½

½½½½½½

½½

½½½½½½

½½

½½½½½½

(Unit: mm)

Recommended Land Pattern

½½½½

(Unit: mm)

½½½

½½½ ½½½

½½½½½½½

½½½½½½½½½½

½½½½½½

½½½½½½½½½

½½½½

½½

½½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½

½½½½

½½½

½½½½½½ ½½ ½½½½½½½½½½ ½½½ ½½½½½½ ½½½½½½ ½½½½½½½½ ½

½½

½½½½½½½½½½½½½½½½½½½½½½½

½½½
