KC7050BFREQC31B00: DescriptionXO, Clock, CRYSTAL OSCILLATOR, CLOCK, 40 MHz - 50 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size128KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric Compare View All

KC7050BFREQC31B00 Overview

XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 40 MHz - 50 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4

KC7050BFREQC31B00 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kyocera
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; STANDBY
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Manufacturer's serial number	KC7050B
Installation features	SURFACE MOUNT
Maximum operating frequency	50 MHz
Minimum operating frequency	40 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	20 pF
physical size	7.0mm x 5.0mm x 1.8mm
longest rise time	10 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

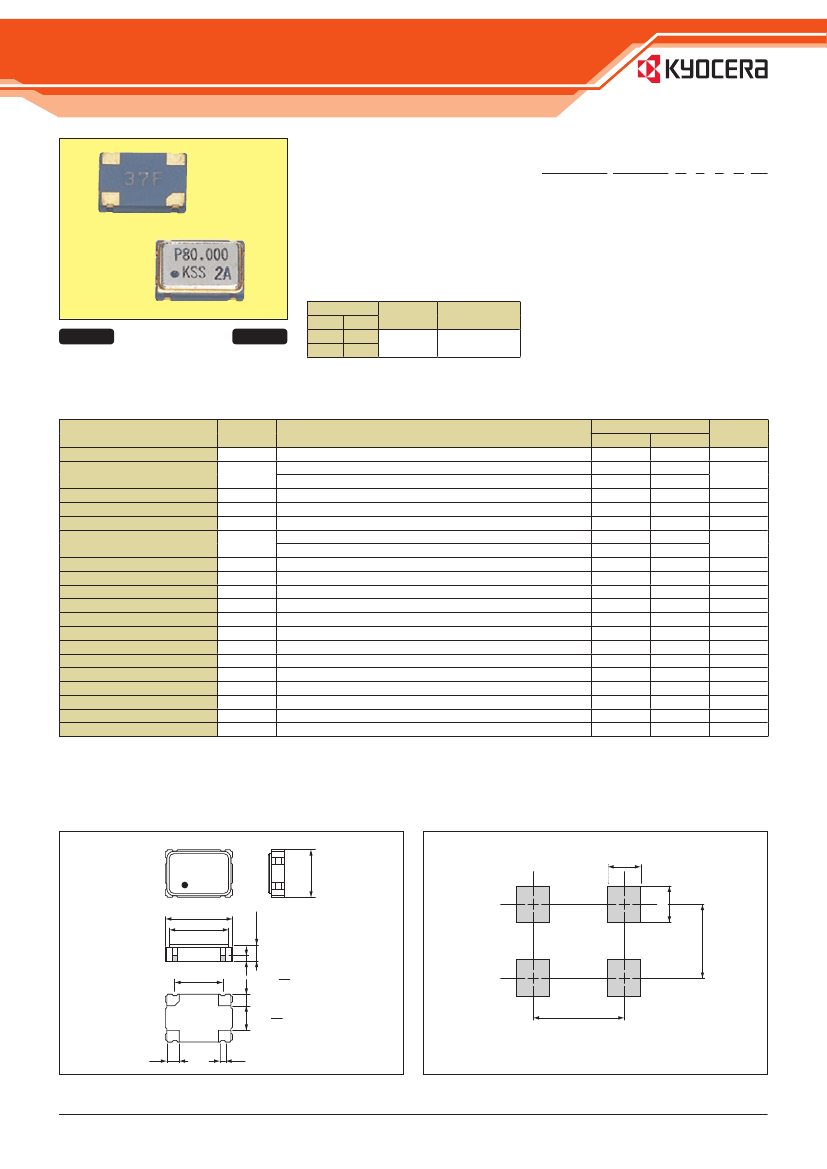

Clock Crystal Oscillators Surface Mount Type

KC7050B Series (FXO-37FN Series)

CMOS/ 3.3V/ 5.5V/ 7.0×5.0mm

Features

• Surface mount type suitable for auto

pick-and-place

• Reﬂow compatible

• CMOS, TTL IC direct drive is possible

• With tri-state function

• Broad frequency range from 80MHz to

125MHz, (PLL circuit is built in)

• Supply voltage V

CC

=3.3/

5.0V available

How to Order

KC7050B 80.0000 C 3 0 B 00

①

②

③④⑤⑥ ⑦

①

Type

②

Output Frequency

③

Output Type (CMOS)

④

Supply Voltage 5=5.0V, 3=3.3V

⑤

Frequency Tolerance (See Table at Left)

⑥

Symmetry/ Enable Function (40/ 60%, INH)

⑦

Customer Special Model Sufﬁx

(STD Speciﬁcation is “00”)

Frequency Tolerance (Overall)

Pb Free

RoHS Compliant

Operating

Freq. Tol.

Temperature

Note

−6

Code

×

10

Range (°C)

1

±

100

−10

to

+70

80 to 125MHz

0

±

50 (Standard)

Speciﬁcations

Item

Output Frequency Range

Frequency Tolerance (Overall)

Storage Temperature Range

Operating Temperature Range

Max. Supply Voltage

Supply Voltage

Current Consumption

Stand-by Current

Symmetry

Rise/ Fall Time

Low Level Output Voltage

High Level Output Voltage

Output Load

Input Voltage Range

Low Level Input Voltage

High Level Input Voltage

Disable Time

Enable Time

Start-up Time

Symbol

F

O

F

_tol

T

_stg

T

_use

—

V

CC

I

CC

I

_std

SYM

tr/ tf

V

OL

V

OH

CL

V

IN

V

IL

V

IH

t_

dis

t_

ena

t_

str

3.3V Type

5.5V Type

Conditions

Speciﬁcations

Min.

Max.

80

125

−50

+50

−100

+100

−20

+80

−10

+70

—

6

3.135

3.465

4.75

5.25

—

50

—

60

40

60

—

7

—

10% V

CC

90% V

CC

—

15

V

SS

V

CC

—

30% V

CC

70% V

CC

—

1

3

—

10

Units

MHz

×10

−6

°C

V

mA

µA

%

nS

V

pF

V

mS

@50% V

CC

Note: All electrical characteristics are defined at the maximum load and operating temperature range.

Please contact us for inquiries about operating temperature range, available frequencies and other conditions.

Dimensions

½½

½½½½½½½

½½½½½½

½½

½½½½½½

½½

½½½½½½

½½

½½½½½½

(Unit: mm)

Recommended Land Pattern

½½½½

(Unit: mm)

½½½

½½½ ½½½

½½½½½½½

½½½½½½½½½½

½½½½½½

½½½½½½½½½

½½½½

½½

½½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½

½½½

½½½½

½½½

½½½½½½ ½½ ½½½½½½½½½½ ½½½ ½½½½½½ ½½½½½½ ½½½½½½½½ ½

½½

½

½½½½½½½½½½½½½½½½½½½½½½½

½½½

KC7050BFREQC31B00 Related Products

	KC7050BFREQC31B00	KC7050BFREQC30B00	KC7050B125.0000C31B00	KC7050BFREQC51B00	KC7050B125.0000C50B00	KC7050BFREQC50B00
Description	XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 40 MHz - 50 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4	CMOS Output Clock Oscillator, 80MHz Min, 125MHz Max, ROHS COMPLIANT PACKAGE-4	XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 125 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4	XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 80 MHz - 125 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4	XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 125 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4	XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 80 MHz - 125 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4
Maker	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; STANDBY	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	10 ns	7 ns	7 ns	7 ns	7 ns	7 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO
frequency stability	100%	50%	100%	100%	50%	50%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Oscillator type	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Output load	20 pF	15 pF	15 pF	15 pF	15 pF	15 pF
physical size	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm
longest rise time	10 ns	7 ns	7 ns	7 ns	7 ns	7 ns
Maximum supply voltage	3.6 V	3.465 V	3.465 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	3 V	3.135 V	3.135 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
maximum symmetry	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %
Is it Rohs certified?	conform to	conform to	-	conform to	-	conform to
Manufacturer's serial number	KC7050B	KC7050B	-	KC7050B	-	KC7050B
Maximum operating frequency	50 MHz	125 MHz	125 MHz	125 MHz	-	125 MHz
Minimum operating frequency	40 MHz	80 MHz	80 MHz	80 MHz	-	80 MHz

Recommended Resources

Single line control indicator light circuit a

27MHz simple receiver circuit with external crystal oscillator

Measuring circuit using silicon temperature sensor

High gain broadband combination amplifier circuit

Computer motherboard circuit diagram 440BX_07
