KT5032P19200DEW30T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> KT5032P19200DEW30T

KT5032P19200DEW30T: DescriptionTCXO, Sine, TCXO, SINE OUTPUT, 19.2 MHz, ROHS COMPLIANT, ULTRA MINIATURE, SMD, 6 PIN; CategoryPassive components oscillator; File Size172KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric View All

KT5032P19200DEW30T Overview

TCXO, Sine, TCXO, SINE OUTPUT, 19.2 MHz, ROHS COMPLIANT, ULTRA MINIATURE, SMD, 6 PIN

KT5032P19200DEW30T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kyocera
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	2%
Installation features	SURFACE MOUNT
Nominal operating frequency	19.2 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Oscillator type	SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	5.0mm x 3.2mm x 1.5mm
Nominal supply voltage	3 V
surface mount	YES

Preview

Download Datasheet

View All

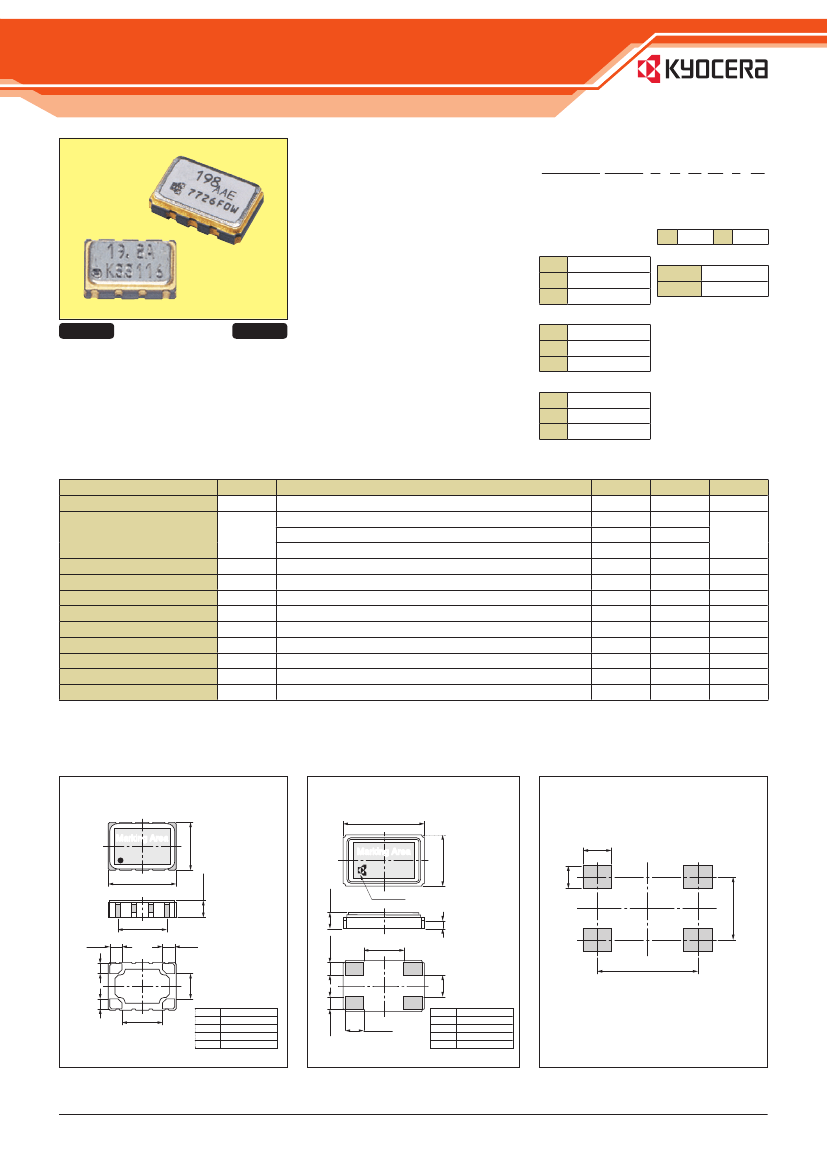

Temperature Compensated Crystal Oscillators (TCXO)

Surface Mount Type TCXO (LSI Type) KT5032 Series

5.0×3.2mm

Features

• Ultra-miniature SMD type

(5.0×3.2×1.5mm)

• Reﬂow compatible

• AFC function available

• 2.3 to 5.5V drive available

• Frequency stability

: ±2.0×10

−6

−30

+85°C

How to Order

KT5032N 26000 D C W 28 T xx

①

②

③ ④ ⑤ ⑥ ⑦ ⑧

①

Series

⑥

Supply Voltage

②

Output Frequency

2.8V

3.0V

③

Frequency Tolerance

⑦

Voltage Control Range

±1.0×10

−6

±1.5×10

−6

±2.0×10

−6

−30°C

−20°C

−10°C

+85°C

+80°C

+75°C

TCXO

VCTCXO

Customer Spec.

Applications

• PDC, GSM, CDMA

④

Lower Operating Temp.

⑧

Option Code

Pb Free

RoHS Compliant

⑤

Upper Operating Temp.

Speciﬁcations

Item

Output Frequency Range

Frequency Tolerance

Frequency Aging

Storage Temperature Range

Operating Temperature Range

Voltage Control Range

Supply Voltage

Output Level

Current Consumption

Symmetry

Harmonics

Symbol

_tol

_aging

_stg

_use

_cont

Vpp

SYM

—

Conditions

Standard Frequency: 13, 19.2, 26, 38.4

vs Temperature

vs Load

vs Voltage

Per Year

Min.

−2

−0.2

−0.3

−1

−40

−30

±8

2.3

0.8

—

Max.

+0.2

+0.3

+85

±15

5.5

—

−5

Units

MHz

×10

−6

×10

−6

°C

×10

−6

Vp-p

dBc

Positive

10k ohm / / 10pF

@50% V

Dimensions

½½½½½½½

½½½½½½½

(Unit: mm)

Dimensions

½½½½½½½

½½½½½½

(Unit: mm)

Recommended Land Pattern

(Unit: mm)

½½½½½½½½½½½½

½½½½½½

½½½½½½½½½½½½

½½½½½½½

½½½½

½½½½½½½

½½½½½½½

½½½½½½½½½½½

½½½½

½½½½½

½½½½½½

½½½½½½½½

½½

½½½

½½½½

½½½½½

½½

½½½

½½

½½½½½½

½½

½½½½

½ ½

½½½½½½½

½½½½½½½½½½½½½½½½½

½½½½

½½½

½½

½½½½½½½

½ ½

½½½½½½½

½½½½½½½½½½½½½½½½½

½½½½

½½½

½½½½

½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½

½½

½½½½½½½½½½½½½½½½½½½½½½½½

½½½½
