520-40-130SM-02-103 datasheet, PDF

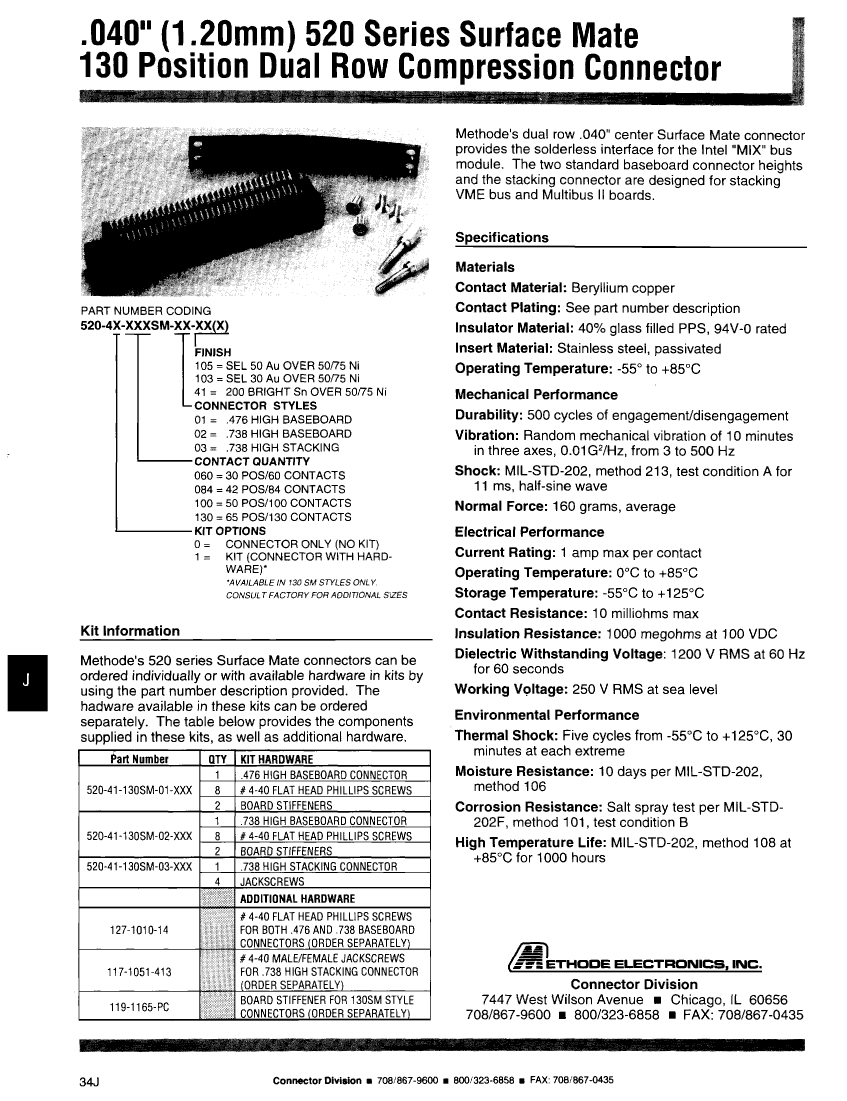

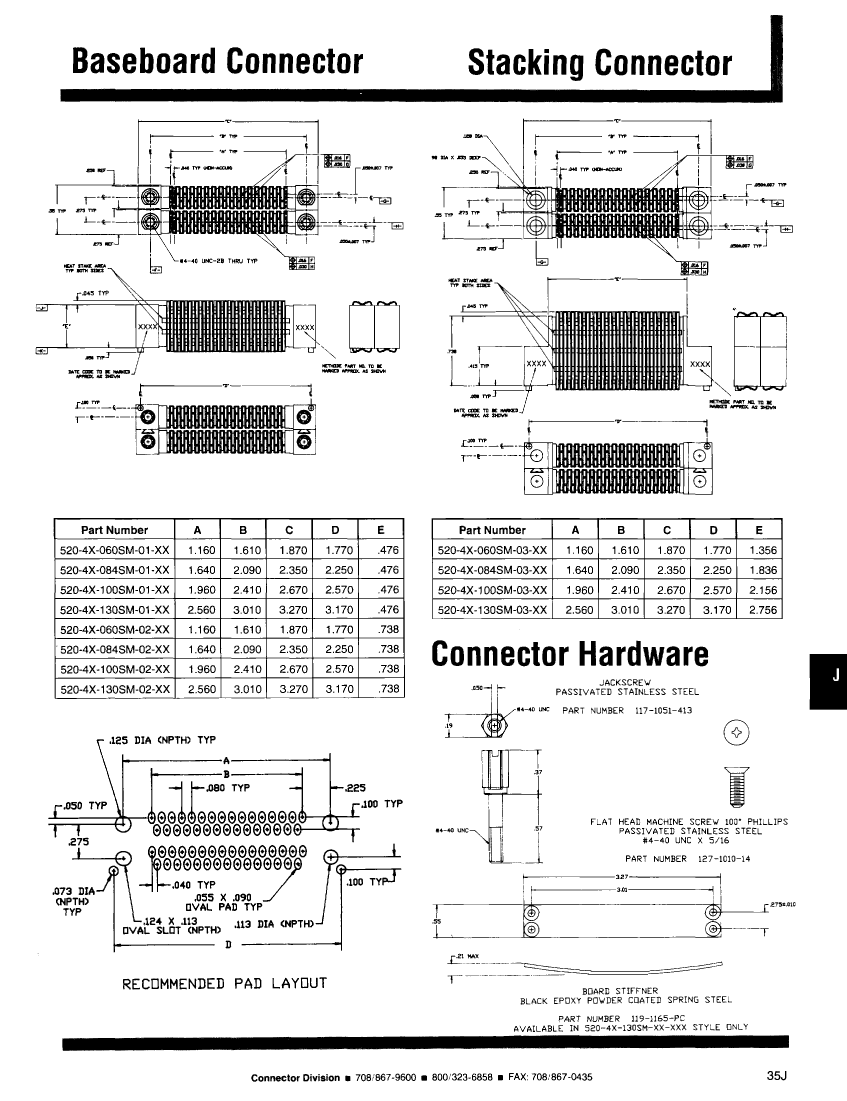

520-40-130SM-02-103: DescriptionBoard Connector, 130 Contact(s), 2 Row(s), Male, Straight, 0.04 inch Pitch, Black Insulator, Receptacle; CategoryThe connector The connector; File Size210KB，2 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

520-40-130SM-02-103 Overview

Board Connector, 130 Contact(s), 2 Row(s), Male, Straight, 0.04 inch Pitch, Black Insulator, Receptacle

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	CONNECTOR ONLY
Board mount options	HOLE .125 DIA.TYP
body width	0.55 inch
subject depth	0.738 inch
body length	3.27 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD (30) OVER NICKEL
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.04 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Total number of contacts	130
UL Flammability Code	94V-0
