ZTACS12.00MX: DescriptionCeramic Resonator, 12MHz Nom,; CategoryPassive components Crystal/resonator; File Size388KB，1 Pages; ManufacturerAEL [AEL Crystals Ltd]; Environmental Compliance

Download Datasheet Parametric Compare View All

ZTACS12.00MX Overview

Ceramic Resonator, 12MHz Nom,

ZTACS12.00MX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AEL [AEL Crystals Ltd]
Reach Compliance Code	compliant
Crystal/Resonator Type	CERAMIC RESONATOR
frequency stability	0.3%
frequency tolerance	5000 ppm
Installation features	SURFACE MOUNT
Nominal operating frequency	12 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
surface mount	YES

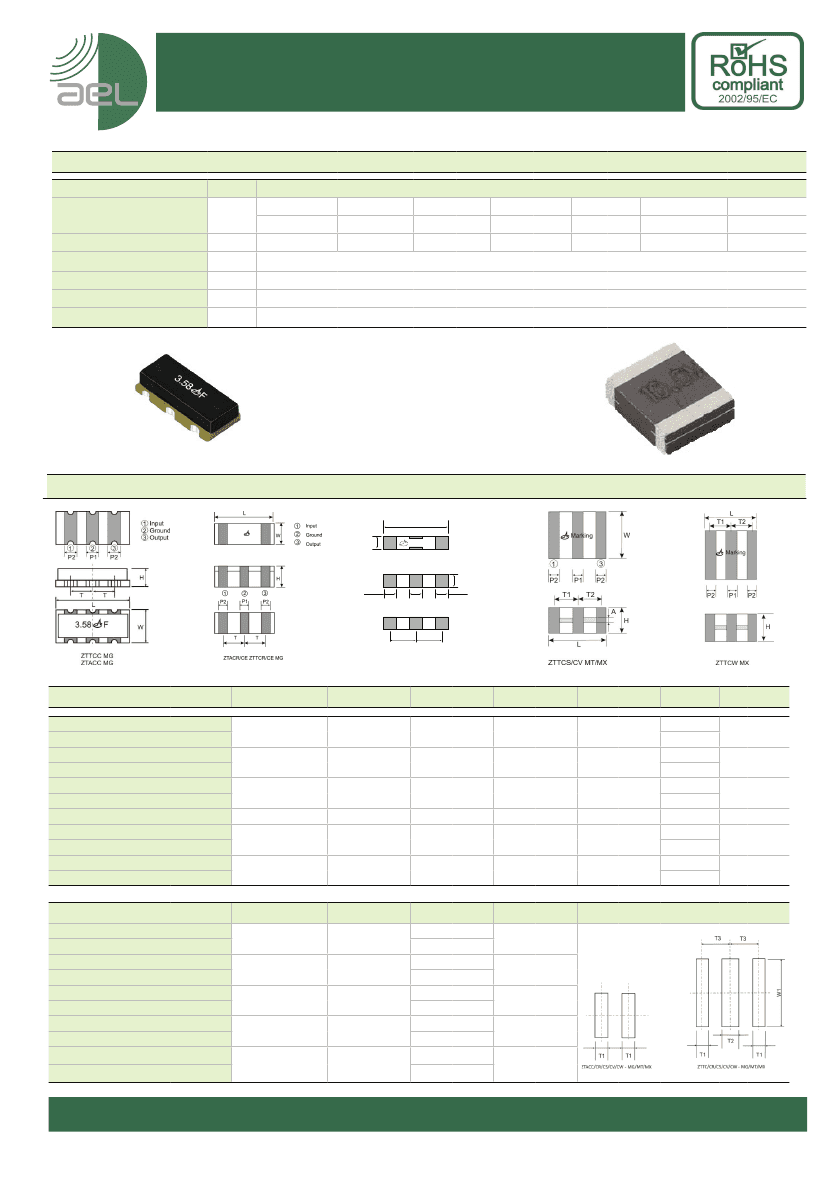

ZTACS12.00MX Preview

Piezo-Ceramic Devices

Frequency Control

Products

ZTTCC-Type With Built-In Capacitor ZTACC-Type Without Built-In Capacitor

MHz Range Surface Mounted (Chip-Type) Ceramic Resonators

Current part - Recommended for new designs

High temperature solder excemption

In accordance with RoHS 2002/95/EC Annex 7

Standard Specifications

Parameter

Model Type

Frequency Range (MHz)

Frequency Tol. at 25

o

C

Frequency Stability

Ageing for 10 Years

Op. Temperature Range

f

0

∆ f/f

OTR

%

T

OPR

Symbol

ZTACC

ZTTCC

1.79 to 8.00

Specification

ZTACW

ZTACR

ZTA/ZTTCS

ZTACS

ZTTCQ

ZTACV

ZTTCW

ZTTCR

ZTA/ZTTCV

ZTTCS

ZTTCV

3.0 to 8.00 6.0 to 13.00 12.0 to 60.00 6.0 to 13.0 16.00 to 60.00

20.00 - 60.00

±0.5%

±0.3%

-40

o

C to +85

o

C

Dimensions (mm)

6.0 ±0.2

Pad 1

Pad 2

Pad 3

*

Input

Ground

Output

EIAJ Date Code

1.6 ±0.2

12.00

*

1.2 ±0.2

2.4 ±0.2

ZTTCQ - MG

2.4 ±0.2

Part Number

ZTACC

ZTTCC

ZTACR

ZTTCR

ZTACS

ZTTCS

ZTTCQ

ZTACV

ZTTCV

ZTACW

ZTTCW

MG

MT/MX

MG

MT/MX

MX

L

7.4 ±0.2

4.5 ±0.2

4.7±0.2

6.0 ±0.2

3.7±0.2

2.5±0.2

T1

1.5 ±0.3

0.8 ±0.2

0.7 ±0.2

0.5 ±0.2

W

3.4±0.2

2.0±0.2

4.1±0.2

6.0 ±0.2

3.1±0.2

2.0±0.2

T2

1.7 ±0.3

0.8 ±0.2

1.3 ±0.2

1.0 ±0.2

0.5 ±0.2

H

1.8±0.2

1.2 Max

(1.2+A)±0.2

1.6 Max

(1.0+A)±0.2

1.5 Max

T3

5.0 ±0.3

2.5 ±0.3

3.0 ±0.2

1.5 ±0.2

3.9 ±0.2

1.95 ±0.2

3.0 ±0.2

1.5 ±0.2

2.0 ±0.2

1.0 ±0.2

1.2 ±0.2

P1

1.2±0.2

0.8±0.2

1.0±0.2

1.2 ±0.2

0.9±0.2

0.5±0.2

W1

4.0 ±

0.3

2.6 ±

0.2

5.1 ±

0.2

4.1 ±

0.2

2.6 ±

0.2

P2

1.2±0.2

0.8±0.2

1.2 ±0.2

0.7±0.2

0.4±0.2

T

5.0±0.2

2.5±0.2

3.0±0.2

1.5±0.2

3.9±0.2

1.95±0.2

2.4 ±0.2

3.0±0.2

1.5±0.2

2.0±0.2

1.0±0.2

Reflow

230

o

C

230

o

C

230

o

C

230

o

C

230

o

C

230

o

C

Land Pattern Dimensions

ZTACC

ZTTCC

ZTACR

ZTTCR

ZTACS

ZTTCS

ZTACV

ZTTCV

ZTACW

ZTTCW

MG

MT/MX

MX

Land Pattern

©

AEL Crystals Ltd

Tel: +44 (0) 1293 789200 Fax: +44 (0) 1293 789490

81

email: sales@aelcrystals.co.uk

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
