OHD2805S datasheet, PDF - EEWORLD Datasheet

OHD2805S: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid,; CategoryPower/power management The power supply circuit; File Size120KB，4 Pages; ManufacturerOmnirel Corp.

Download Datasheet Parametric Compare View All

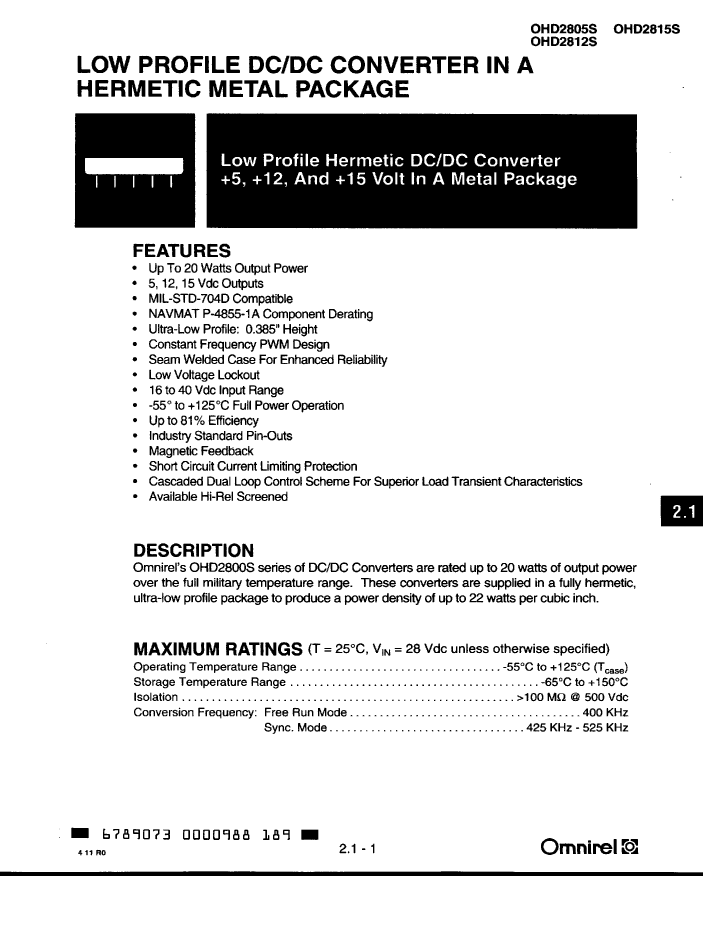

OHD2805S Overview

DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid,

Parameter Name	Attribute value
Maker	Omnirel Corp.
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	79%
Maximum input voltage	40 V
Minimum input voltage	16 V
Nominal input voltage	28 V
JESD-30 code	R-MDIP-P10
Maximum grid adjustment rate	0.2%
Maximum load regulation	0.3%
Number of functions	1
Output times	1
Number of terminals	10
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Nominal output voltage	5 V
Package body material	METAL
Package shape	RECTANGULAR
Package form	IN-LINE
Protect	CURRENT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	15 W
Fine-tuning/adjustable output	YES

This Material Copyrighted By Its Respective Manufacturer

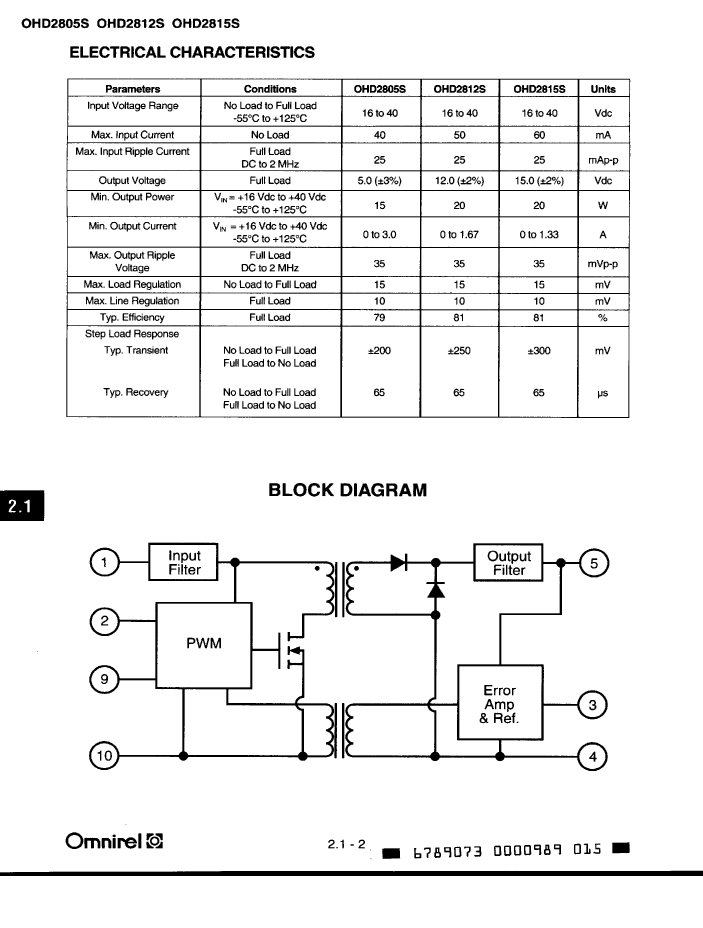

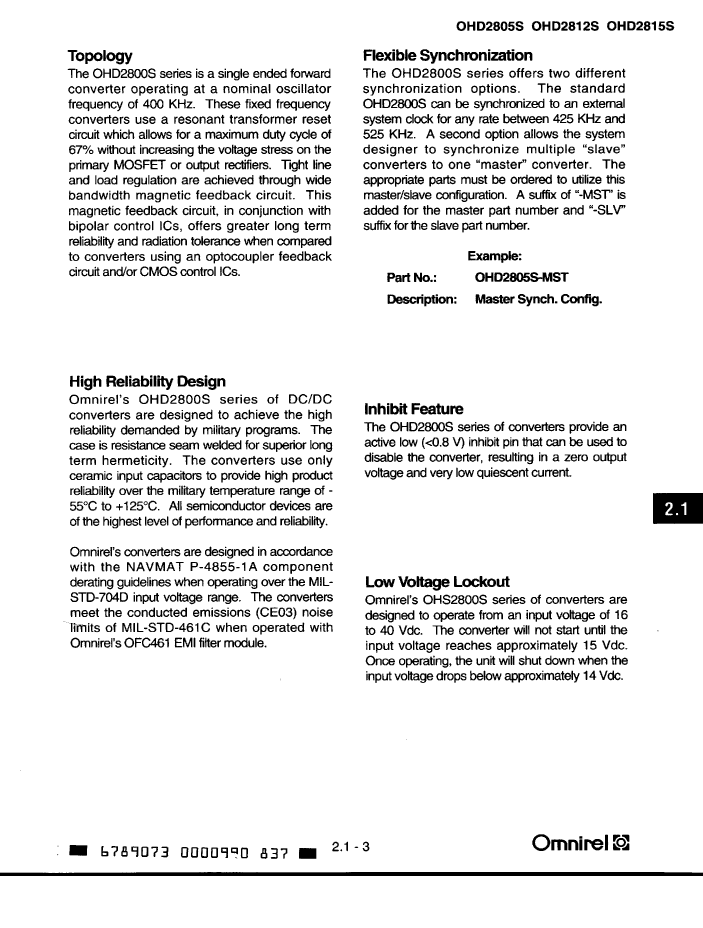

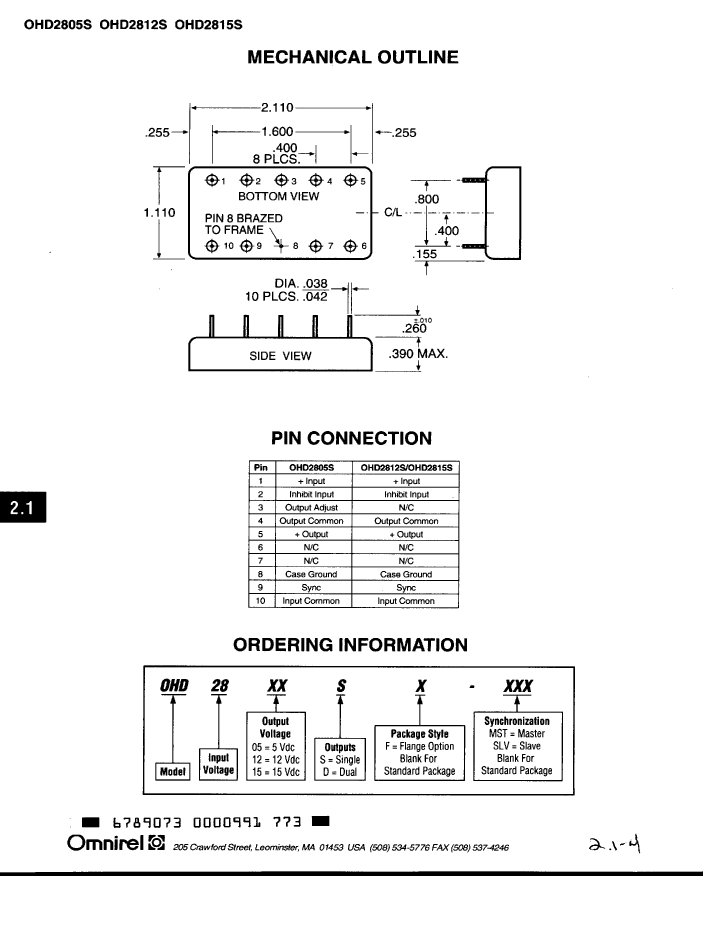

	OHD2805S	OHD2815S	OHD2812S
Description	DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 20W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 20W, Hybrid,
Maker	Omnirel Corp.	Omnirel Corp.	Omnirel Corp.
Reach Compliance Code	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	79%	81%	81%
Maximum input voltage	40 V	40 V	40 V
Minimum input voltage	16 V	16 V	16 V
Nominal input voltage	28 V	28 V	28 V
JESD-30 code	R-MDIP-P10	R-MDIP-P10	R-MDIP-P10
Maximum grid adjustment rate	0.2%	0.067%	0.083%
Maximum load regulation	0.3%	0.1%	0.125%
Number of functions	1	1	1
Output times	1	1	1
Number of terminals	10	10	10
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Nominal output voltage	5 V	15 V	12 V
Package body material	METAL	METAL	METAL
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Protect	CURRENT	CURRENT	CURRENT
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL
Maximum total power output	15 W	20 W	20 W
Fine-tuning/adjustable output	YES	NO	NO
Maximum output voltage	-	14.7 V	11.76 V
Minimum output voltage	-	15.3 V	12.24 V
