RN6521 Overview

Wide Band Low Power Amplifier, 5MHz Min, 500MHz Max, SM-19, 4 PIN

RN6521 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	28 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

RN6521 Preview

Cross Reference Guide

RN6521 / SRN6521*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

5.0 - 500.0 MHz

30.0 dB Typical

28.0 dB Min

3.0 dB Typical

4.0 dB Max

9.0 dBm Typical

7.0 dBm Min

22.0 dBm Typical

30.0 dBm Typical

1.2/2.0 Input Typ/Max

1.5/2.0 Output Typ/Max

-34.0 dB Typical

-33.0 dB Min

15.0 Volts

36.0 mA

-55.0 - 85.0 °C

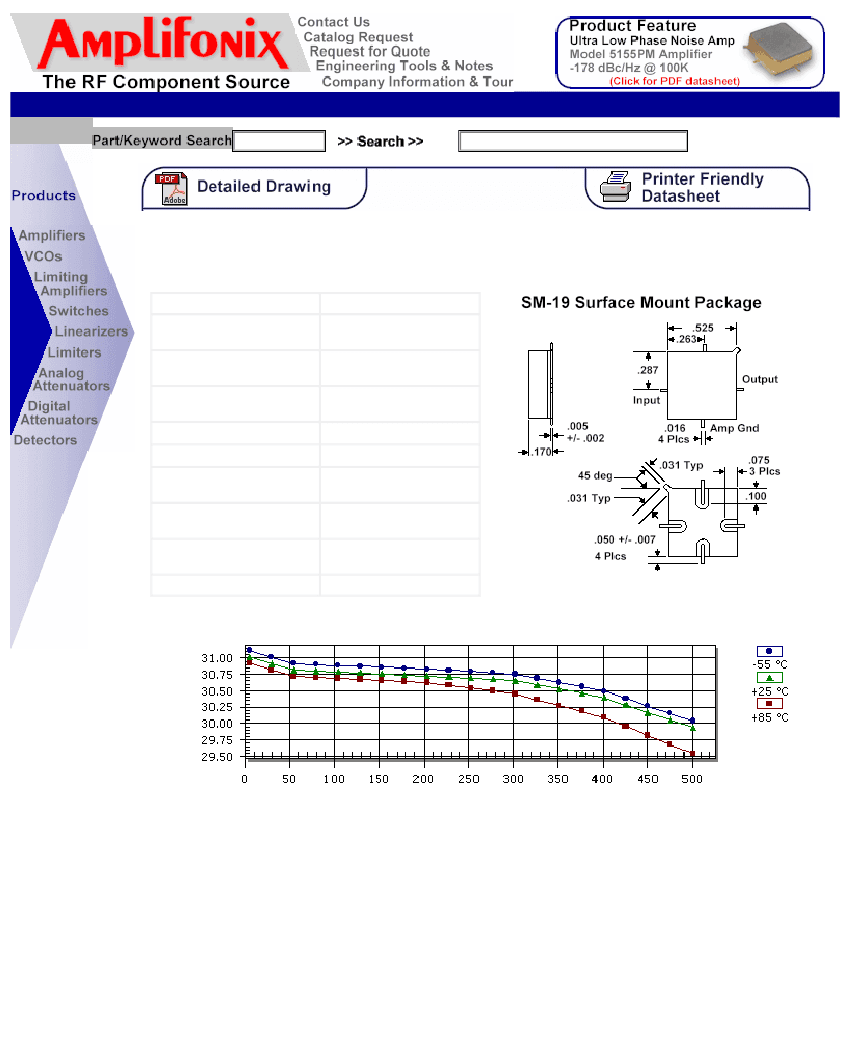

Package Drawing

Gain

Frequency (MHz)

Noise Figure

Frequency (MHz)

1dB

Compression Point

dBm

Frequency (MHz)

Reverse Isolation

Frequency (MHz)

Input VSWR

Frequency (MHz)

Output VSWR

Frequency (MHz)

S-Parameters

Frequency S11 Mag S11 Ang S21 Mag S21 Ang S12 Mag S12 Ang S22 Mag S22 Ang

5.0

50.0

100.0

200.0

300.0

400.0

500.0

0.030

0.020

0.030

0.050

0.060

0.080

-113.00

-150.00

-161.00

160.00

112.00

40.00

-65.00

35.560

34.770

34.640

34.410

34.100

33.100

31.400

3.00

-24.00

-48.00

-96.00

-146.00

162.00

106.00

0.010

0.020

5.00

0.00

5.00

-3.00

-5.00

-7.00

-22.00

0.180

0.190

0.200

0.210

0.190

0.170

0.200

-172.00

-176.00

-174.00

-179.00

174.00

177.00

160.00

Absolute Maximum Conditions

Maximum Operating Temperature

Maximum Case Temperature

Continuous RF Input Power

Maximum Peak Power

(3 µsec max)

-55.0 - 100.0 °C

125.0 °C

13.0 dBm

0.5 W

Maximum Storage Temperature

Maximum Supply Voltage

Short Term RF Input Power

(1 minute max)

-62.0 - 125.0 °C

18.0 Volts

50.0 mW

Amplifonix | 2707 Black Lake Place | Philadelphia, PA 19154

Tel: 215.464.4000 | FAX: 215.464.4001 | Email:

info@amplifonix.com

i2 Technologies US, Inc.

15445 Innovation Drive

San Diego, CA 92128

i2 Technologies US, Inc.

HTML Pages converted to PDF Document

This document contain component information from the

manufacturer's website which are not available in a revision

controlled document from the manufacturer. To facilitate the

addition of these parts into the Electronics Database, we are

converting the HTML pages related to that part, from the

manufacturer's website into Adobe PDF format. The contents of this

document is based on the information provided on the

manufacturer's website, therefore the information may have been

changed by the manufacturer since this was created.

Powering the Bottom Line ®
