KS74HCTLS4050J datasheet, PDF - EEWORLD Datasheet

KS74HCTLS4050J: DescriptionBuffer, CMOS, CDIP16; Categorylogic logic; File Size318KB，5 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

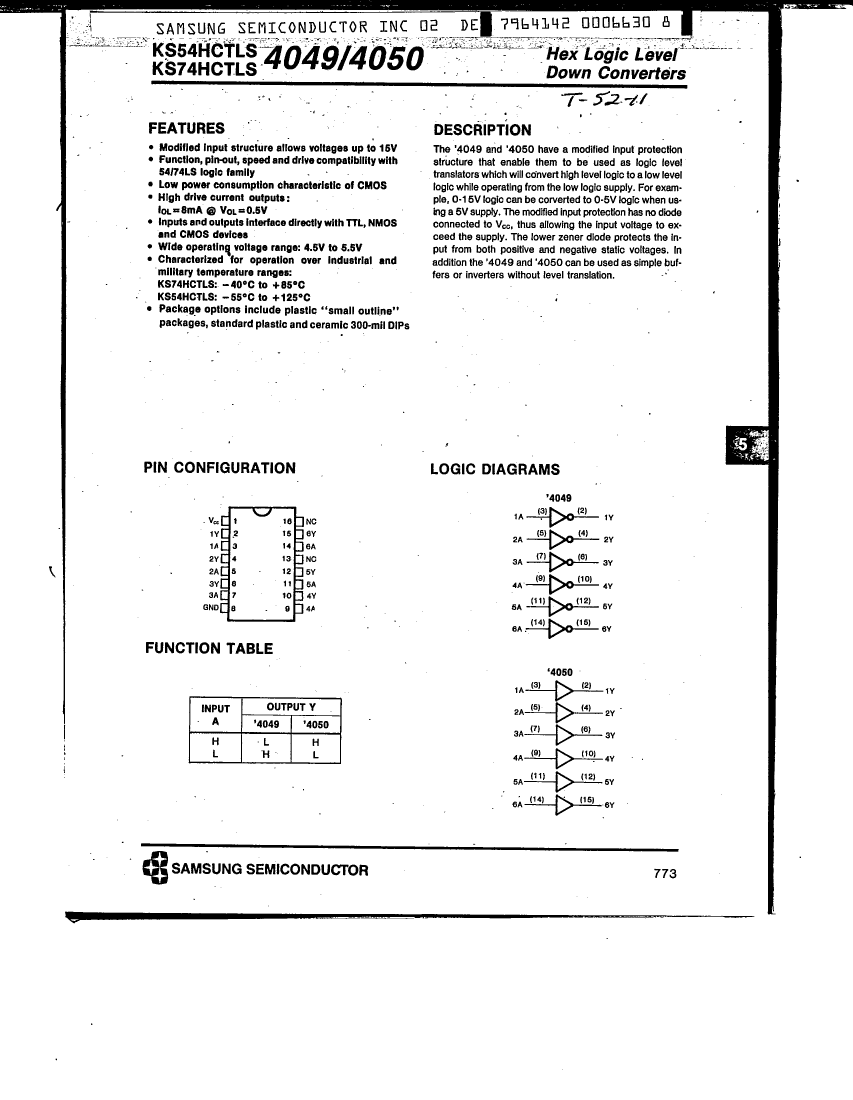

KS74HCTLS4050J Overview

Buffer, CMOS, CDIP16

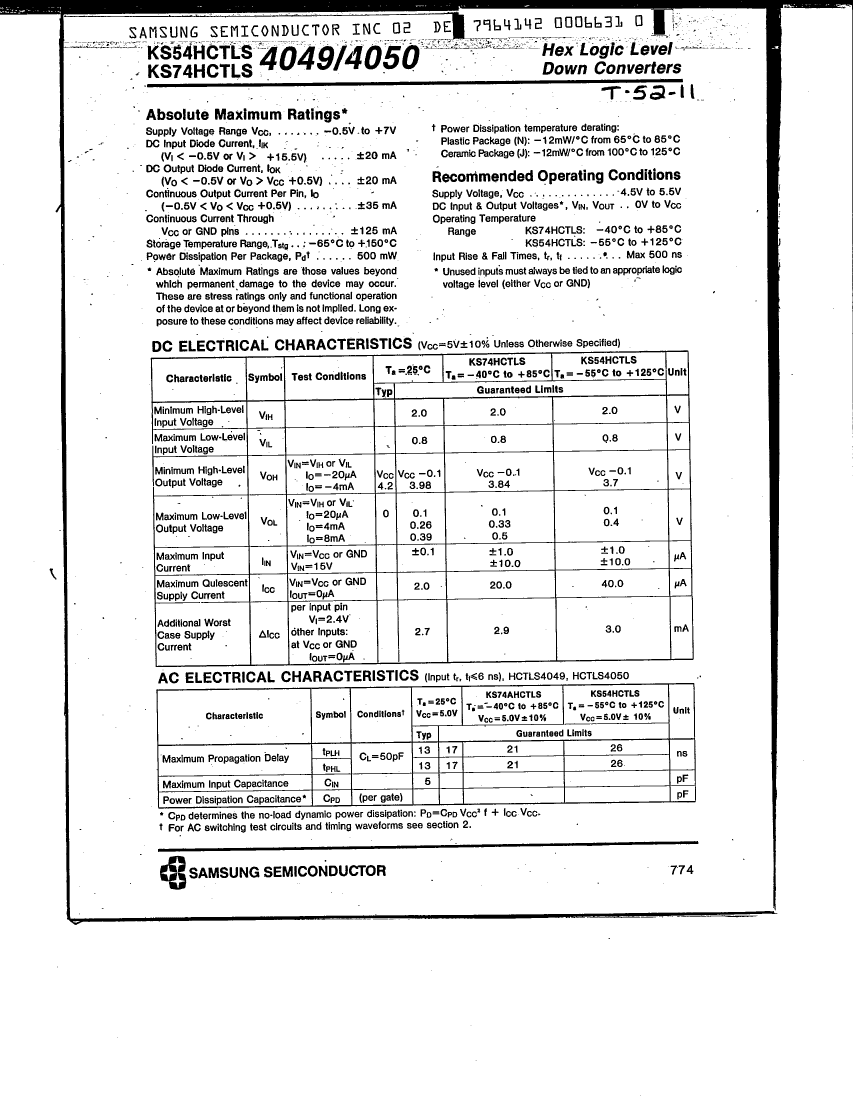

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SAMSUNG
package instruction	DIP, DIP16,.3
Reach Compliance Code	compliant
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUFFER
MaximumI(ol)	0.008 A
Humidity sensitivity level	3
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C

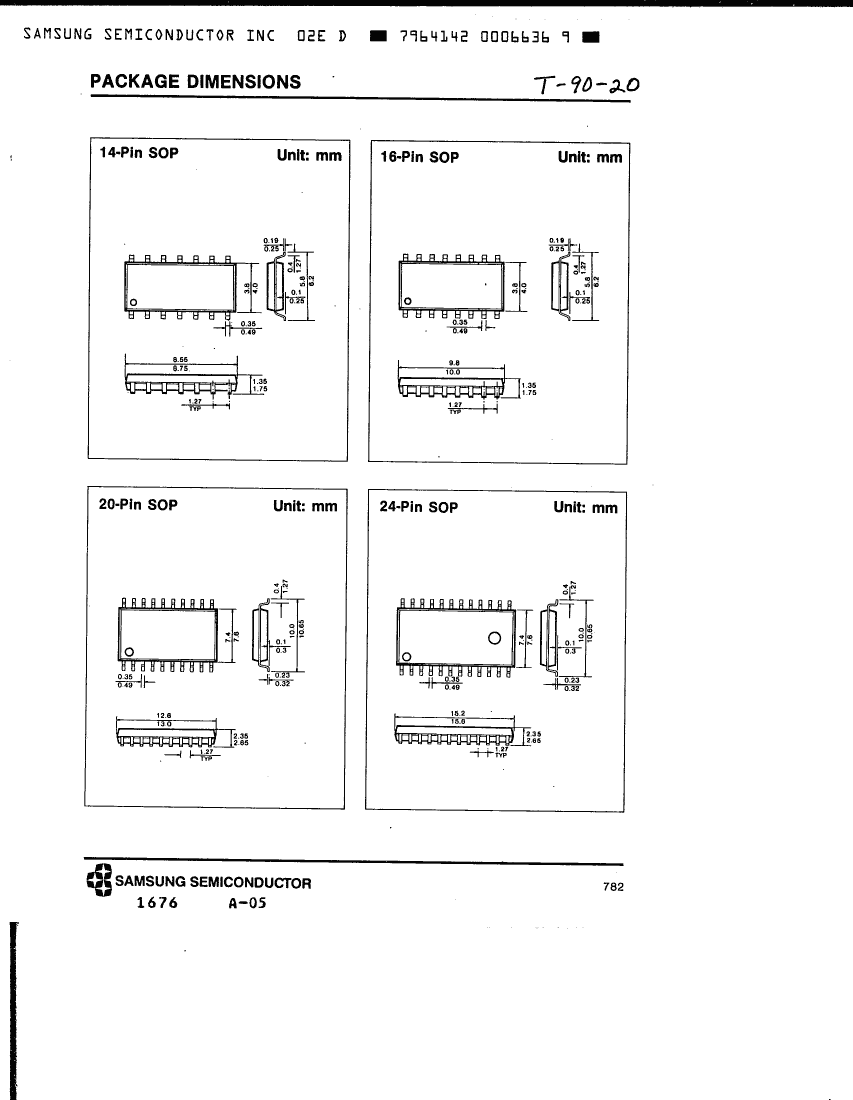

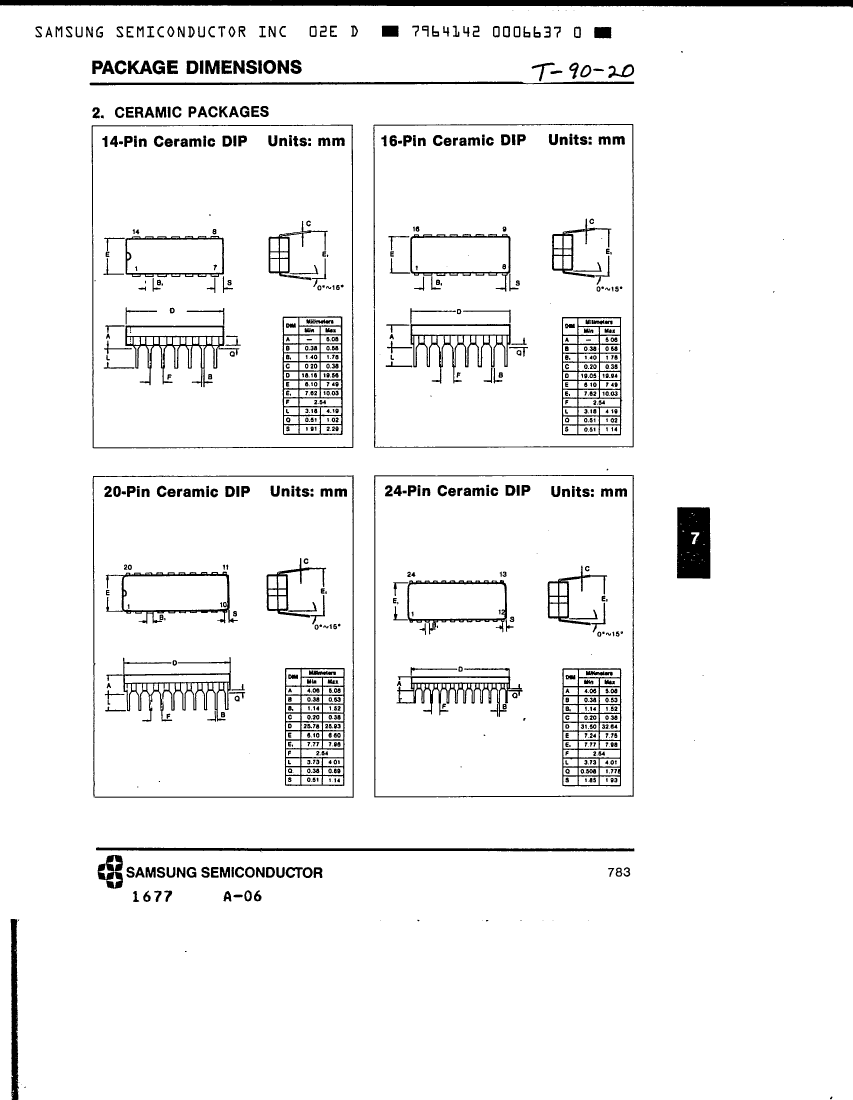

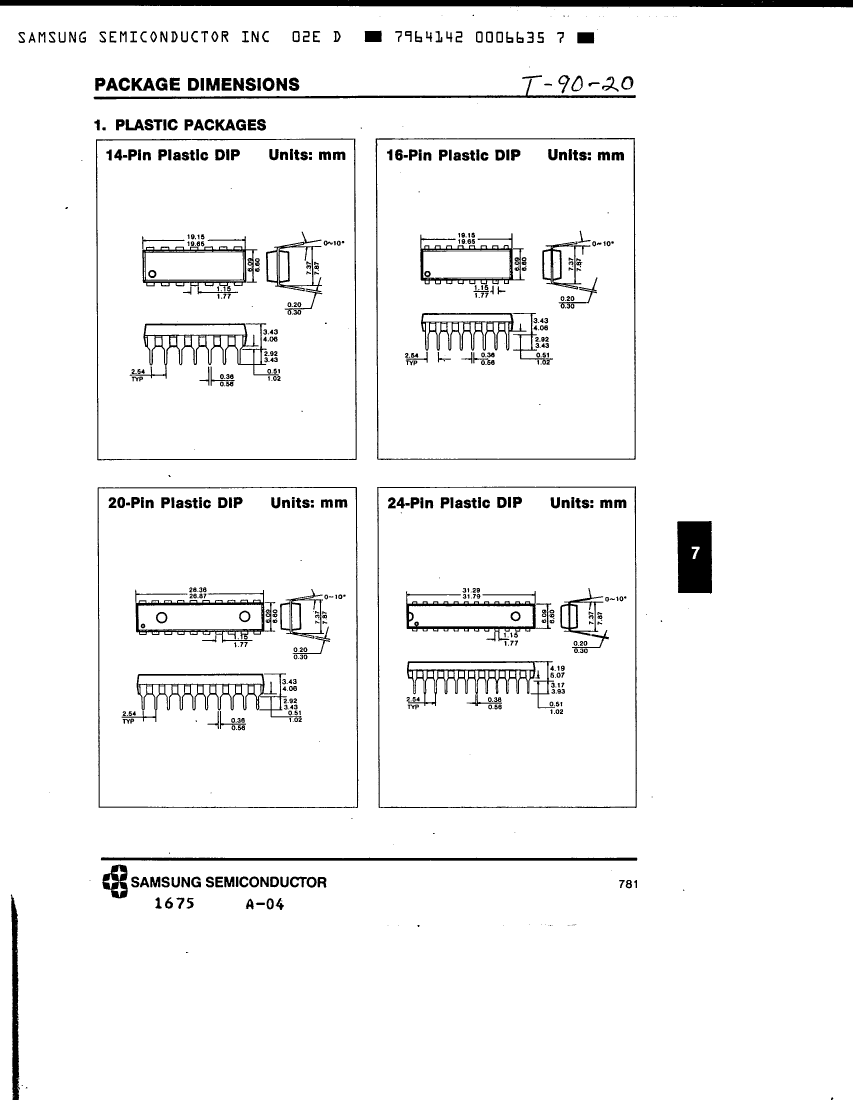

Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Prop。Delay @ Nom-Sup	21 ns
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40

	KS74HCTLS4050J	KS54HCTLS4050J
Description	Buffer, CMOS, CDIP16	Buffer, CMOS, CDIP16
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	SAMSUNG	SAMSUNG
package instruction	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	compliant	compliant
JESD-30 code	R-XDIP-T16	R-XDIP-T16
JESD-609 code	e0	e0
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	BUFFER	BUFFER
MaximumI(ol)	0.008 A	0.008 A
Humidity sensitivity level	3	3
Number of terminals	16	16
Maximum operating temperature	85 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	260	260
power supply	5 V	5 V
Prop。Delay @ Nom-Sup	21 ns	26 ns
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	40	40
