PTZTE252.2A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> PTZTE252.2A

PTZTE252.2A: DescriptionZener Diode, 2.2V V(Z), 1W, Silicon, Unidirectional,; CategoryDiscrete semiconductor diode; File Size43KB，1 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PTZTE252.2A Overview

Zener Diode, 2.2V V(Z), 1W, Silicon, Unidirectional,

PTZTE252.2A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	R-PDSO-C2
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	R-PDSO-C2
JESD-609 code	e1
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Nominal reference voltage	2.2 V
Maximum reverse current	200 µA
surface mount	YES
technology	ZENER
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Working test current	40 mA

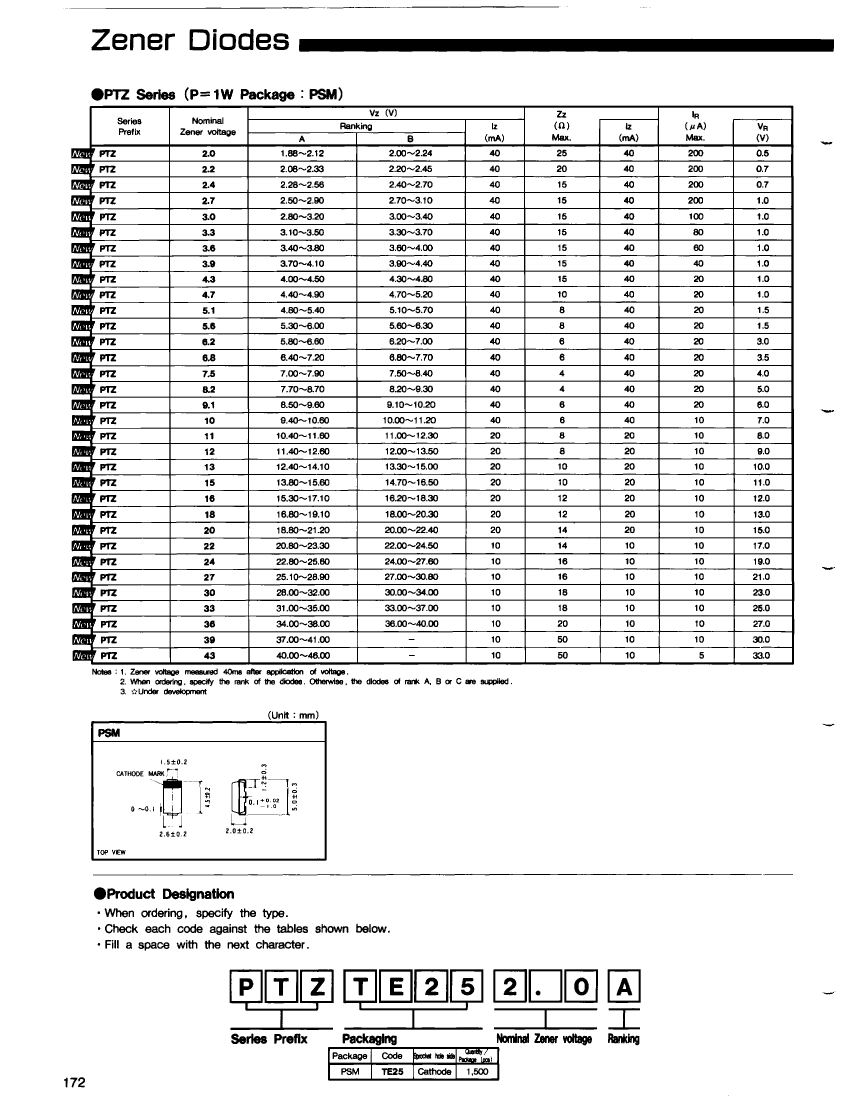

Preview

Download Datasheet

View All

PTZTE252.2A Related Products

	PTZTE252.2A	PTZTE252.4B	PTZTE252.2B	PTZTE252.0A	PTZTE253.3B	PTZTE253.0B	PTZTE253.0A	PTZTE253.3A	PTZTE252.7B	PTZTE252.4A
Description	Zener Diode, 2.2V V(Z), 1W, Silicon, Unidirectional,	Zener Diode, 1W, Silicon, Unidirectional,	Zener Diode, 1W, Silicon, Unidirectional,	Zener Diode, 2V V(Z), 1W, Silicon, Unidirectional,	Zener Diode, 1W, Silicon, Unidirectional,	Zener Diode, 1W, Silicon, Unidirectional,	Zener Diode, 3V V(Z), 1W, Silicon, Unidirectional,	Zener Diode, 3.3V V(Z), 1W, Silicon, Unidirectional,	Zener Diode, 1W, Silicon, Unidirectional,	Zener Diode, 2.4V V(Z), 1W, Silicon, Unidirectional
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	1 W	1 W	1 W	1 W	1 W	1 W	1 W	1 W	1 W	1 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	200 µA	200 µA	200 µA	200 µA	80 µA	100 µA	100 µA	80 µA	200 µA	200 µA
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Working test current	40 mA	40 mA	40 mA	40 mA	40 mA	40 mA	40 mA	40 mA	40 mA	40 mA
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	-
Maker	ROHM Semiconductor	-	-	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
package instruction	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	-
JESD-609 code	e1	e1	e1	e1	e1	e1	e1	e1	e1	-
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260	260	-
Nominal reference voltage	2.2 V	-	-	2 V	-	-	3 V	3.3 V	2.9 V	2.4 V
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	-
Maximum time at peak reflow temperature	10	10	10	10	10	10	10	10	10	-
