PJ2MJS10.0000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> PJ2MJS10.0000MHZ

PJ2MJS10.0000MHZ: DescriptionSeries - Fundamental Quartz Crystal, 10MHz Nom, ROHS COMPLIANT PACKAGE-4; CategoryPassive components Crystal/resonator; File Size326KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

PJ2MJS10.0000MHZ Overview

Series - Fundamental Quartz Crystal, 10MHz Nom, ROHS COMPLIANT PACKAGE-4

PJ2MJS10.0000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MtronPTI
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	unknown
Other features	AT-CUT CRYSTAL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.003%
frequency tolerance	50 ppm
Manufacturer's serial number	PJ
Installation features	SURFACE MOUNT
Nominal operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L11.7XB5.5XH2.2 (mm)/L0.461XB0.217XH0.087 (inch)
Series resistance	80 Ω
surface mount	YES

Preview

Download Datasheet

View All

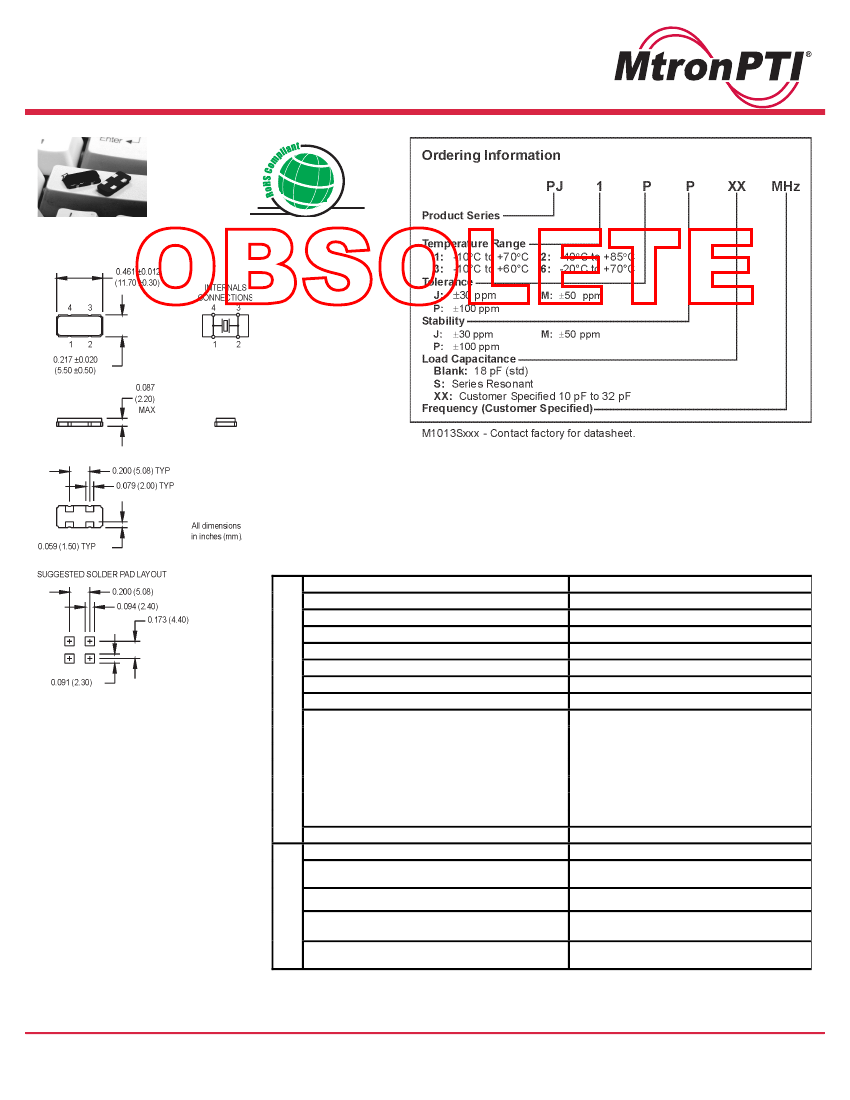

PJ Surface Mount Crystals

5.5 x 11.7 x 2.2 mm

OBSOLETE

PARAMETERS

Frequency Range*

Tolerance @ +25°C

Stability

Aging

Shunt Capacitance

Load Capacitance

Standard Operating Conditions

Equivalent Series Resistance (ESR), Max.

Fundamental (AT-cut)

3.579 to 3.999 MHz

4.000 to 7.999 MHz

8.000 to 9.999 MHz

10.000 to 19.999 MHz

20.000 to 30.000 MHz

Drive Level

Mechanical Shock

Vibration

Thermal Cycle

Max Soldering Conditions

VALUE

3.579545 to 30.000 MHz

See Table

±5 ppm/yr. Max.

7 pF Max.

18 pF Std.

See Table

Electrical Specifications

200 Ω

150 Ω

100 Ω

80 Ω

50 Ω

100 µW Max., 50 µW Typ., 10 µW Min.

MIL-STD-202, Method 213, C

MIL-STD-202, Method 201 & 204

MIL-STD-883, Method 1010, B

See solder profile, Figure 1

Environmental

* Because this product is based on AT-strip technology, not all frequencies in the range stated are available.

Contact the factory for availability of specific frequencies.

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 11-4-10
