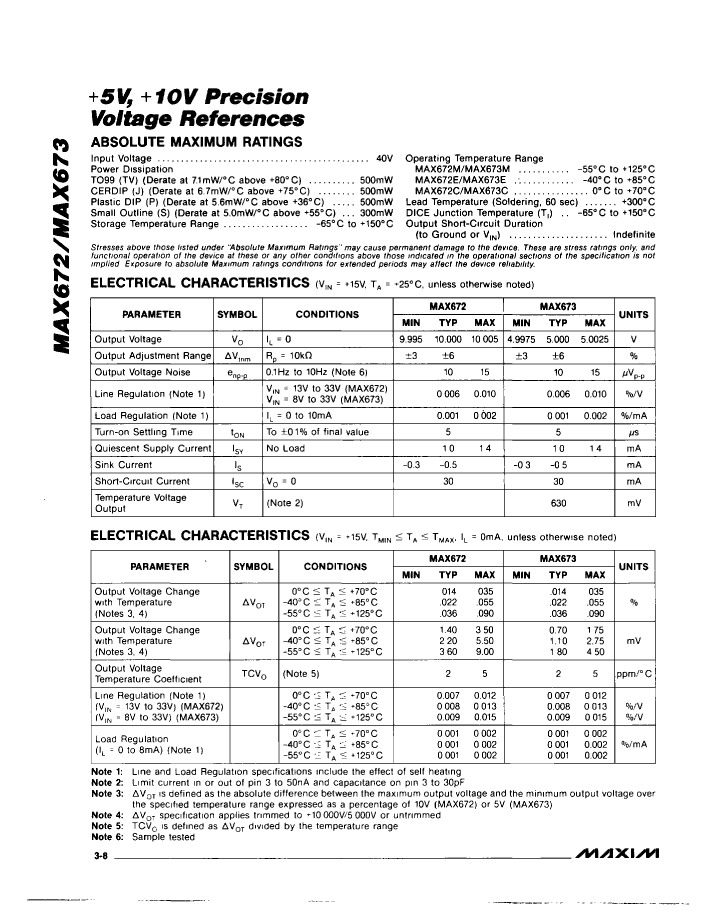

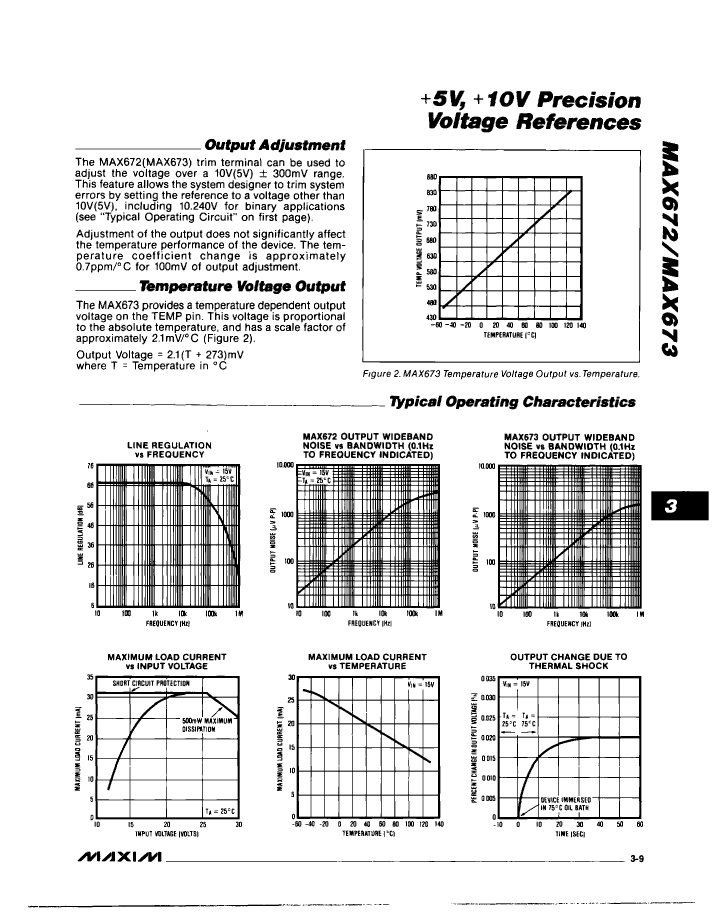

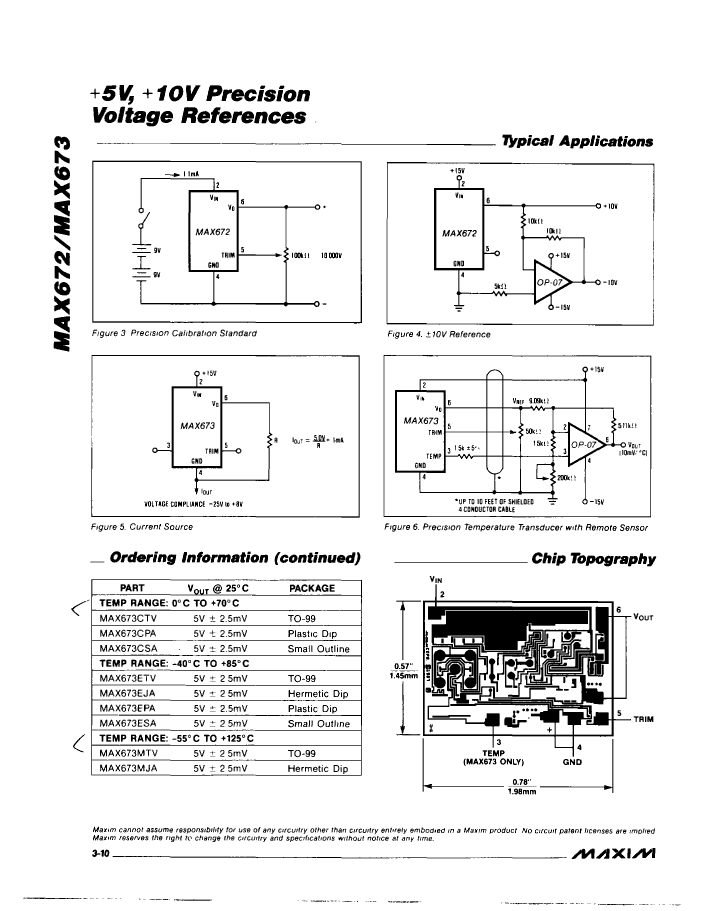

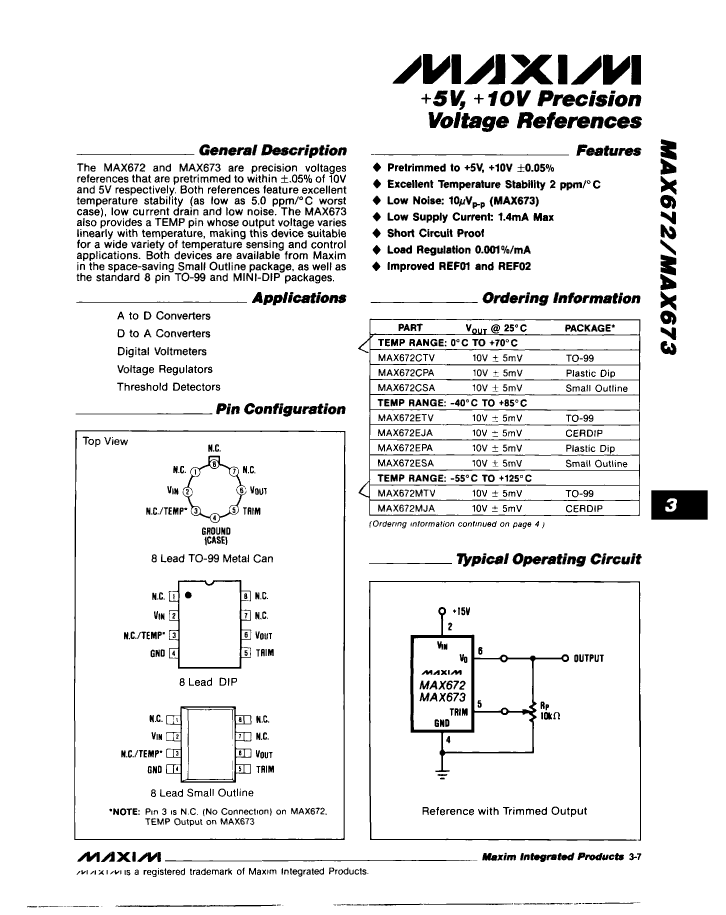

Three Terminal Voltage Reference, 1 Output, 5V, Trim/Adjustable, PDIP8, PLASTIC, DIP-8
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Maxim |
| Parts packaging code | DIP |
| package instruction | DIP, DIP8,.3 |
| Contacts | 8 |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Analog Integrated Circuits - Other Types | THREE TERMINAL VOLTAGE REFERENCE |
| JESD-30 code | R-PDIP-T8 |
| JESD-609 code | e0 |
| length | 9.375 mm |
| Number of functions | 1 |
| Output times | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Maximum output voltage | 5.0025 V |
| Minimum output voltage | 4.9975 V |
| Nominal output voltage | 5 V |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP8,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum seat height | 4.572 mm |
| Maximum supply current (Isup) | 1.4 mA |
| Maximum supply voltage (Vsup) | 33 V |
| Minimum supply voltage (Vsup) | 8 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| Maximum voltage temperature coefficient | 5 ppm/°C |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Fine-tuning/adjustable output | YES |
| Maximum voltage tolerance | 0.05% |
| width | 7.62 mm |
| MAX673EPA | MAX673CPA | MAX673CSA | MAX673CTV | MAX673EJA | MAX673ESA | MAX673ETV | MAX673MJA | MAX673MTV | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Three Terminal Voltage Reference, 1 Output, 5V, Trim/Adjustable, PDIP8, PLASTIC, DIP-8 | Three Terminal Voltage Reference, 1 Output, 5V, Trim/Adjustable, PDIP8, PLASTIC, DIP-8 | Three Terminal Voltage Reference, 1 Output, 5V, Trim/Adjustable, PDSO8, SO-8 | Three Terminal Voltage Reference, 1 Output, 5V, Trim/Adjustable, MBCY8, METAL CAN, TO-99, 8 PIN | Three Terminal Voltage Reference, 1 Output, 5V, Trim/Adjustable, CDIP8, CERDIP-8 | Three Terminal Voltage Reference, 1 Output, 5V, Trim/Adjustable, PDSO8, SO-8 | Three Terminal Voltage Reference, 1 Output, 5V, Trim/Adjustable, MBCY8, METAL CAN, TO-99, 8 PIN | Three Terminal Voltage Reference, 1 Output, 5V, Trim/Adjustable, CDIP8, CERDIP-8 | Three Terminal Voltage Reference, 1 Output, 5V, Trim/Adjustable, MBCY8, METAL CAN, TO-99, 8 PIN |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Maxim | Maxim | Maxim | Maxim | Maxim | Maxim | Maxim | Maxim | Maxim |
| Parts packaging code | DIP | DIP | SOIC | TO-99 | DIP | SOIC | TO-99 | DIP | TO-99 |
| package instruction | DIP, DIP8,.3 | DIP, DIP8,.3 | SOP, SOP8,.25 | METAL CAN, TO-99, 8 PIN | DIP, DIP8,.3 | SOP, SOP8,.25 | METAL CAN, TO-99, 8 PIN | DIP, DIP8,.3 | METAL CAN, TO-99, 8 PIN |
| Contacts | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Reach Compliance Code | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Analog Integrated Circuits - Other Types | THREE TERMINAL VOLTAGE REFERENCE | THREE TERMINAL VOLTAGE REFERENCE | THREE TERMINAL VOLTAGE REFERENCE | THREE TERMINAL VOLTAGE REFERENCE | THREE TERMINAL VOLTAGE REFERENCE | THREE TERMINAL VOLTAGE REFERENCE | THREE TERMINAL VOLTAGE REFERENCE | THREE TERMINAL VOLTAGE REFERENCE | THREE TERMINAL VOLTAGE REFERENCE |
| JESD-30 code | R-PDIP-T8 | R-PDIP-T8 | R-PDSO-G8 | O-MBCY-W8 | R-GDIP-T8 | R-PDSO-G8 | O-MBCY-W8 | R-GDIP-T8 | O-MBCY-W8 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output times | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 85 °C | 70 °C | 70 °C | 70 °C | 85 °C | 85 °C | 85 °C | 125 °C | 125 °C |
| Minimum operating temperature | -40 °C | - | - | - | -40 °C | -40 °C | -40 °C | -55 °C | -55 °C |
| Maximum output voltage | 5.0025 V | 5.0025 V | 5.0025 V | 5.0025 V | 5.0025 V | 5.0025 V | 5.0025 V | 5.0025 V | 5.0025 V |
| Minimum output voltage | 4.9975 V | 4.9975 V | 4.9975 V | 4.9975 V | 4.9975 V | 4.9975 V | 4.9975 V | 4.9975 V | 4.9975 V |
| Nominal output voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | METAL | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY | METAL | CERAMIC, GLASS-SEALED | METAL |
| encapsulated code | DIP | DIP | SOP | TO-99 | DIP | SOP | TO-99 | DIP | TO-99 |
| Encapsulate equivalent code | DIP8,.3 | DIP8,.3 | SOP8,.25 | CAN8,.2 | DIP8,.3 | SOP8,.25 | CAN8,.2 | DIP8,.3 | CAN8,.2 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | ROUND | RECTANGULAR | RECTANGULAR | ROUND | RECTANGULAR | ROUND |
| Package form | IN-LINE | IN-LINE | SMALL OUTLINE | CYLINDRICAL | IN-LINE | SMALL OUTLINE | CYLINDRICAL | IN-LINE | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | 240 | NOT SPECIFIED | NOT SPECIFIED | 240 | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply current (Isup) | 1.4 mA | 1.4 mA | 1.4 mA | 1.4 mA | 1.4 mA | 1.4 mA | 1.4 mA | 1.4 mA | 1.4 mA |
| Maximum supply voltage (Vsup) | 33 V | 33 V | 33 V | 33 V | 33 V | 33 V | 33 V | 33 V | 33 V |
| Minimum supply voltage (Vsup) | 8 V | 8 V | 8 V | 8 V | 8 V | 8 V | 8 V | 8 V | 8 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | YES | NO | NO | YES | NO | NO | NO |
| Maximum voltage temperature coefficient | 5 ppm/°C | 5 ppm/°C | 5 ppm/°C | 5 ppm/°C | 5 ppm/°C | 5 ppm/°C | 5 ppm/°C | 5 ppm/°C | 5 ppm/°C |
| Temperature level | INDUSTRIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | GULL WING | WIRE | THROUGH-HOLE | GULL WING | WIRE | THROUGH-HOLE | WIRE |
| Terminal location | DUAL | DUAL | DUAL | BOTTOM | DUAL | DUAL | BOTTOM | DUAL | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Fine-tuning/adjustable output | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Maximum voltage tolerance | 0.05% | 0.05% | 0.05% | 0.05% | 0.05% | 0.05% | 0.05% | 0.05% | 0.05% |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | - | Contains lead | Contains lead | - | Contains lead |
| Maximum seat height | 4.572 mm | 4.572 mm | 1.75 mm | - | 5.08 mm | 1.75 mm | - | 5.08 mm | - |
| Terminal pitch | 2.54 mm | 2.54 mm | 1.27 mm | - | 2.54 mm | 1.27 mm | - | 2.54 mm | - |
| width | 7.62 mm | 7.62 mm | 3.9 mm | - | 7.62 mm | 3.9 mm | - | 7.62 mm | - |
