KM48RC2H-A60 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> KM48RC2H-A60

KM48RC2H-A60: DescriptionRambus DRAM, 2MX8, CMOS, PDSO36, PLASTIC, HORIZONTAL SMT-36; Categorystorage storage; File Size2MB，34 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM48RC2H-A60 Overview

Rambus DRAM, 2MX8, CMOS, PDSO36, PLASTIC, HORIZONTAL SMT-36

KM48RC2H-A60 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SAMSUNG
Parts packaging code	SOIC
package instruction	LSSOP, SSOP72,.5
Contacts	36
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	BLOCK ORIENTED PROTOCOL
Maximum clock frequency (fCLK)	600 MHz
I/O type	COMMON
JESD-30 code	R-PDSO-G36
JESD-609 code	e0
length	25.1 mm
memory density	16777216 bit
Memory IC Type	RAMBUS DRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	36
word count	2097152 words
character code	2000000
Operating mode	SYNCHRONOUS
organize	2MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	SSOP72,.5
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
Maximum seat height	1.7 mm
Maximum standby current	0.001 A
Maximum slew rate	0.5 mA
Maximum supply voltage (Vsup)	3.45 V
Minimum supply voltage (Vsup)	3.15 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

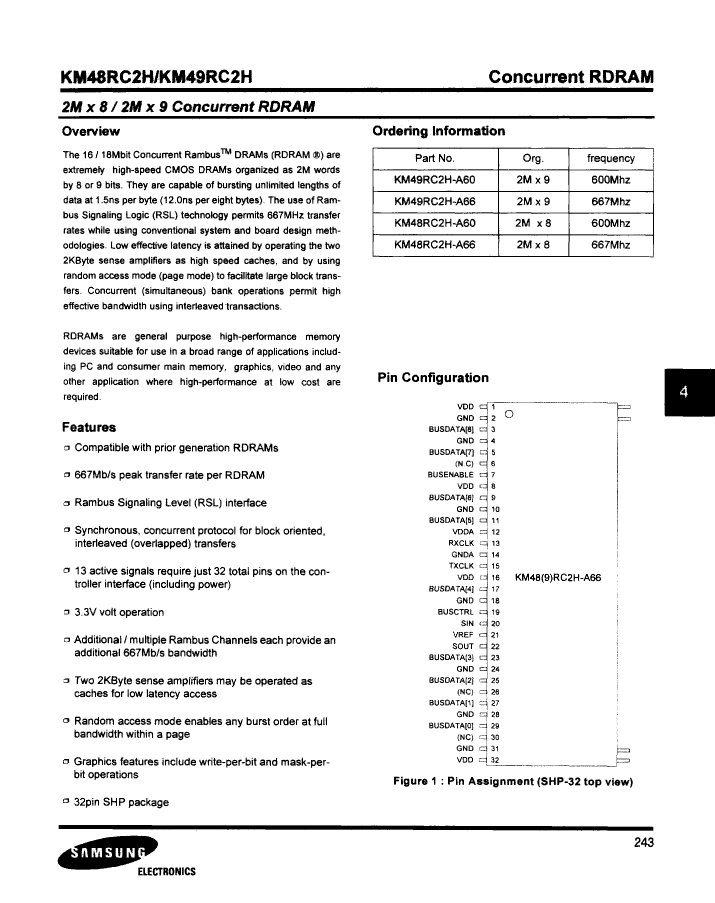

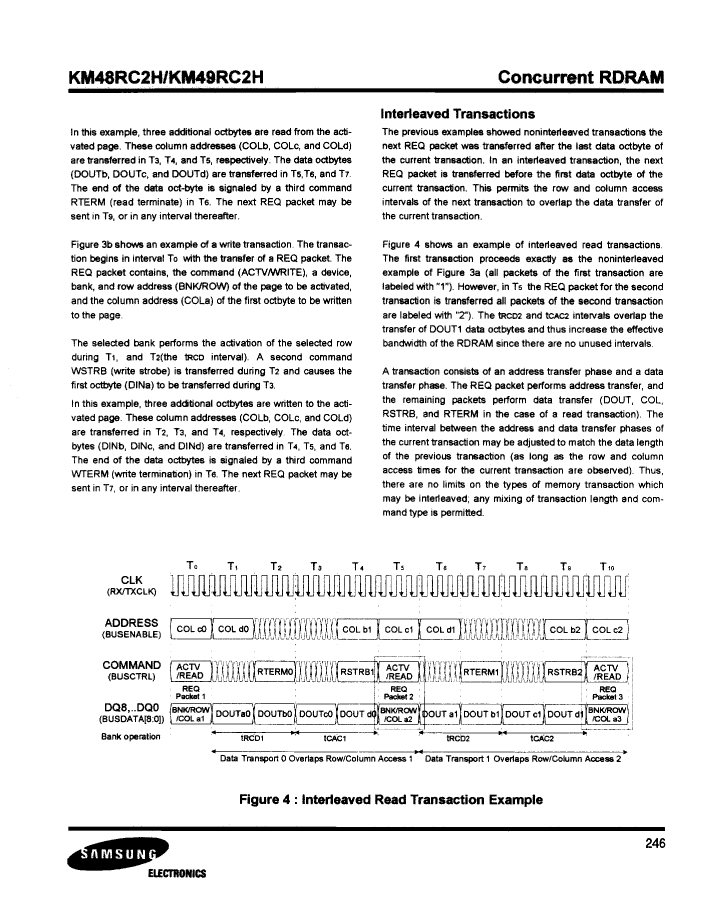

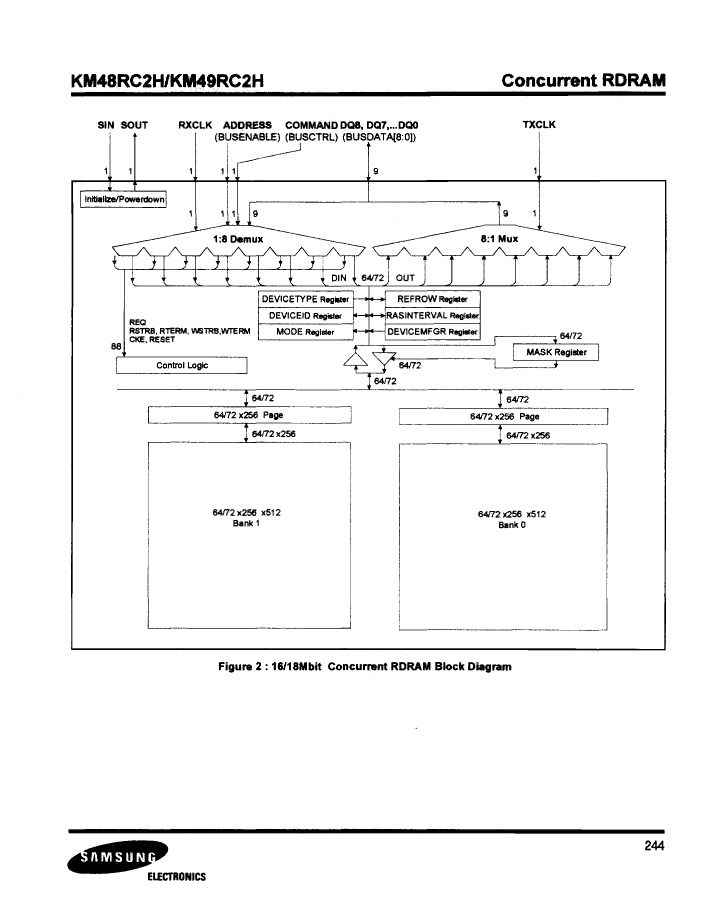

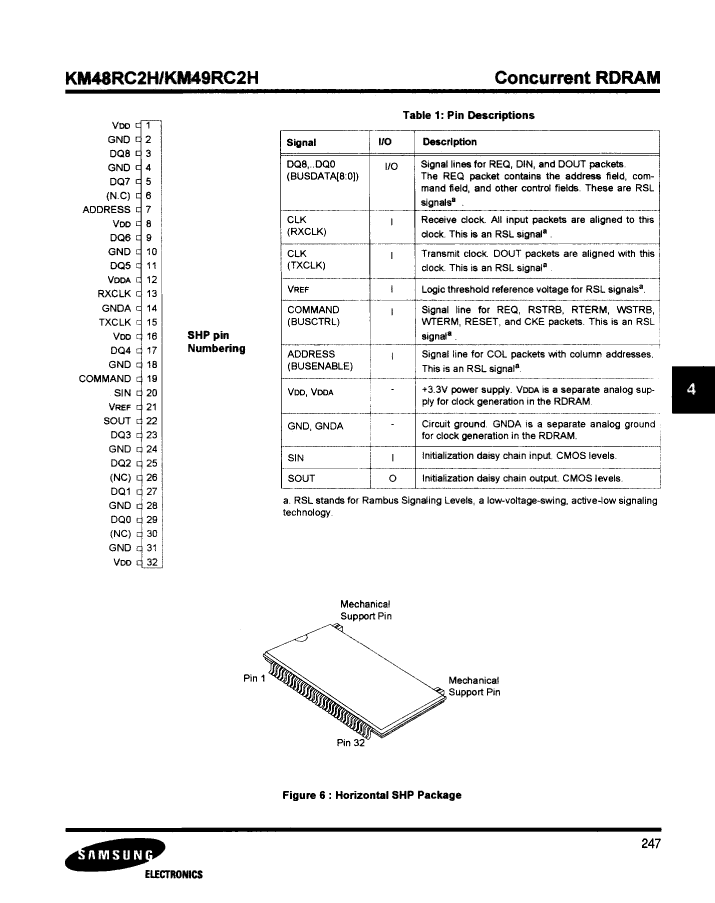

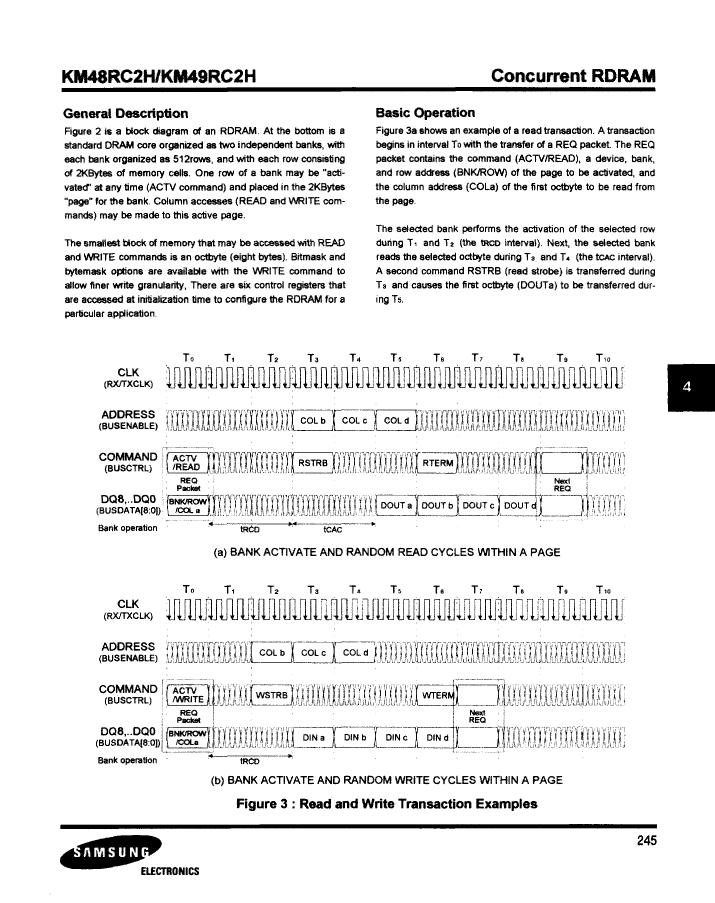

Preview

Download Datasheet

View All

KM48RC2H-A60 Related Products

	KM48RC2H-A60	KM48RC2H-A66	KM49RC2H-A60	KM49RC2H-A66
Description	Rambus DRAM, 2MX8, CMOS, PDSO36, PLASTIC, HORIZONTAL SMT-36	Rambus DRAM, 2MX8, CMOS, PDSO36, PLASTIC, HORIZONTAL SMT-36	Rambus DRAM, 2MX9, CMOS, PDSO36, PLASTIC, HORIZONTAL SMT-36	Rambus DRAM, 2MX9, CMOS, PDSO36, PLASTIC, HORIZONTAL SMT-36
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
Parts packaging code	SOIC	SOIC	SOIC	SOIC
package instruction	LSSOP, SSOP72,.5	LSSOP, SSOP72,.5	LSSOP, SSOP72,.5	LSSOP, SSOP72,.5
Contacts	36	36	36	36
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
access mode	BLOCK ORIENTED PROTOCOL	BLOCK ORIENTED PROTOCOL	BLOCK ORIENTED PROTOCOL	BLOCK ORIENTED PROTOCOL
Maximum clock frequency (fCLK)	600 MHz	667 MHz	600 MHz	667 MHz
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G36	R-PDSO-G36	R-PDSO-G36	R-PDSO-G36
JESD-609 code	e0	e0	e0	e0
length	25.1 mm	25.1 mm	25.1 mm	25.1 mm
memory density	16777216 bit	16777216 bit	18874368 bit	18874368 bit
Memory IC Type	RAMBUS DRAM	RAMBUS DRAM	RAMBUS DRAM	RAMBUS DRAM
memory width	8	8	9	9
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	36	36	36	36
word count	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
organize	2MX8	2MX8	2MX9	2MX9
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP	LSSOP	LSSOP
Encapsulate equivalent code	SSOP72,.5	SSOP72,.5	SSOP72,.5	SSOP72,.5
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	1.7 mm	1.7 mm	1.7 mm
Maximum standby current	0.001 A	0.001 A	0.001 A	0.001 A
Maximum slew rate	0.5 mA	0.5 mA	0.5 mA	0.5 mA
Maximum supply voltage (Vsup)	3.45 V	3.45 V	3.45 V	3.45 V
Minimum supply voltage (Vsup)	3.15 V	3.15 V	3.15 V	3.15 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
