PAL16L8AML/883B datasheet, PDF

PAL16L8AML/883B: DescriptionOT PLD, 30ns, PAL-Type, TTL, CQCC20, CERAMIC, LCC-20; CategoryProgrammable logic devices Programmable logic; File Size1MB，45 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

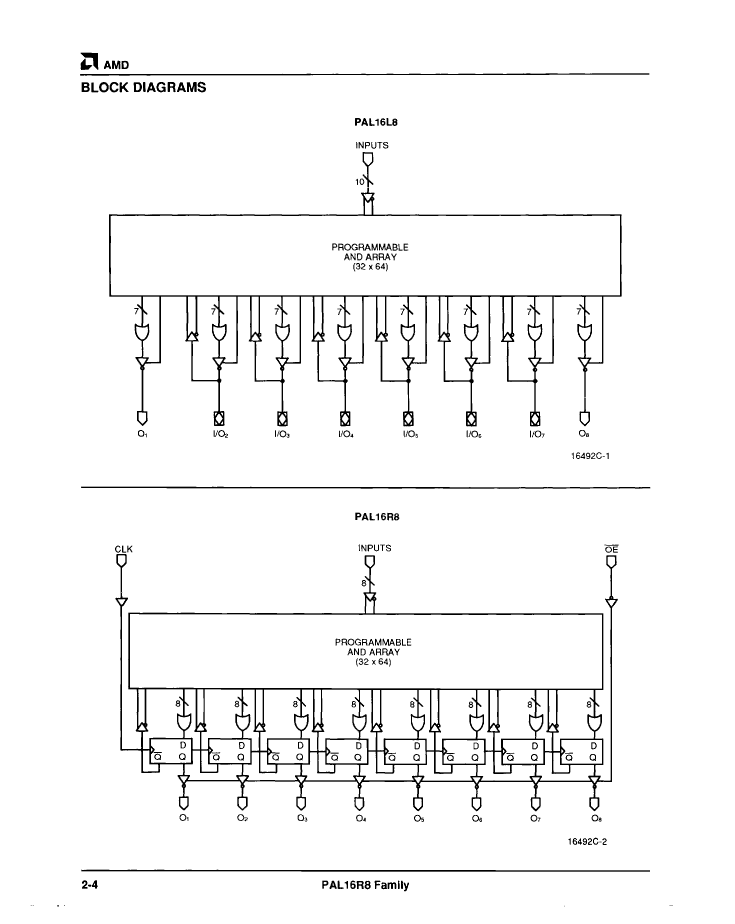

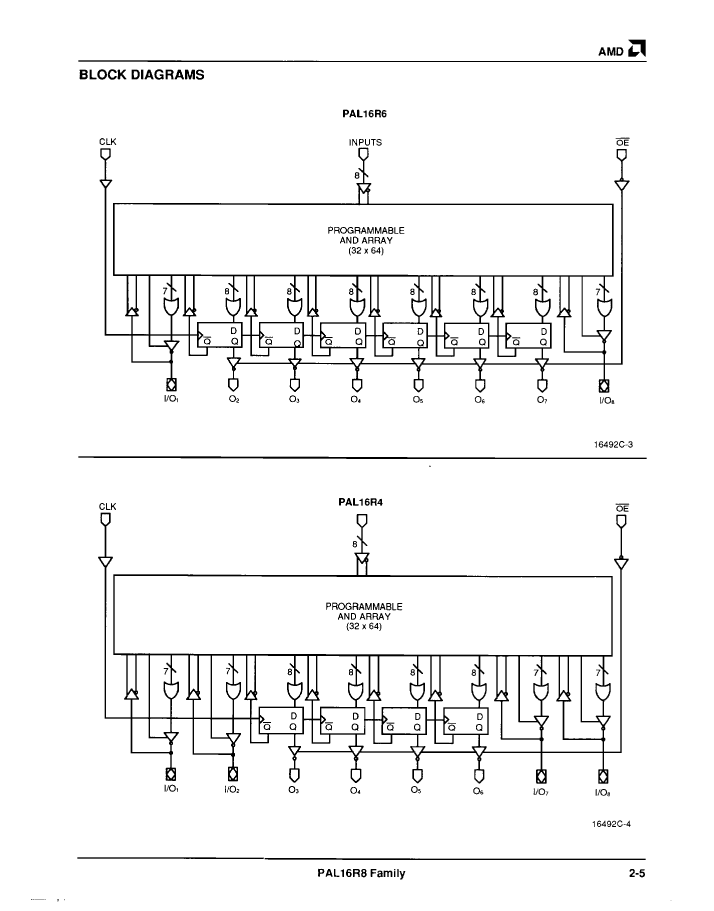

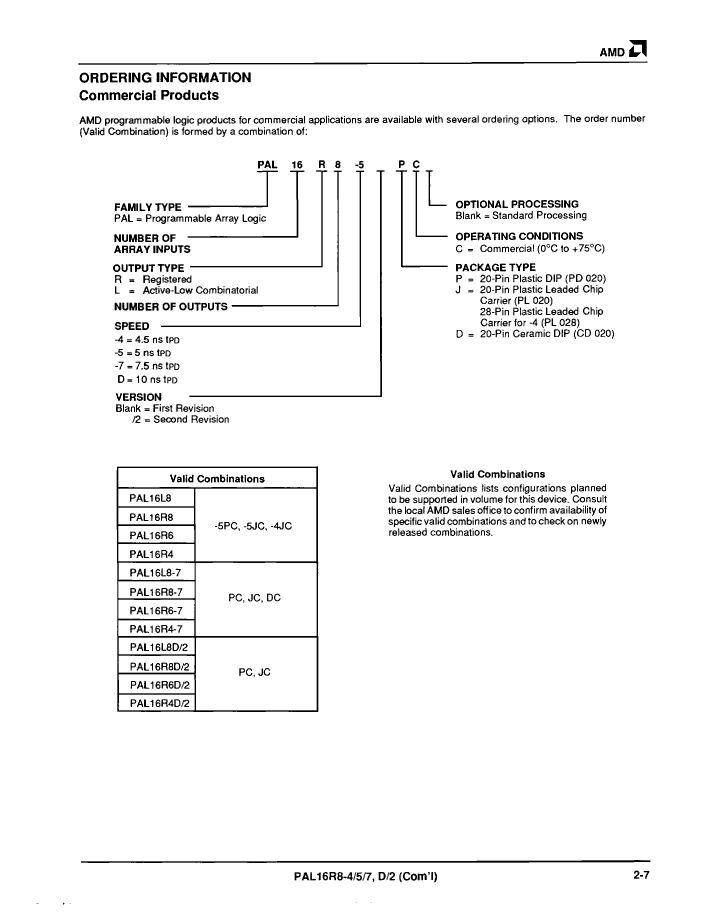

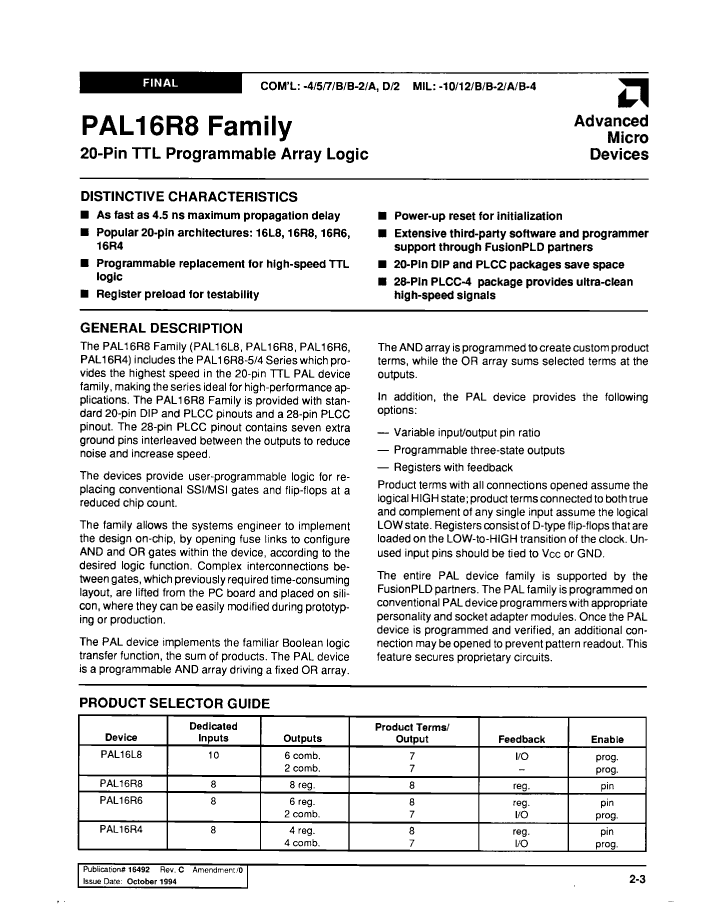

PAL16L8AML/883B Overview

OT PLD, 30ns, PAL-Type, TTL, CQCC20, CERAMIC, LCC-20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD

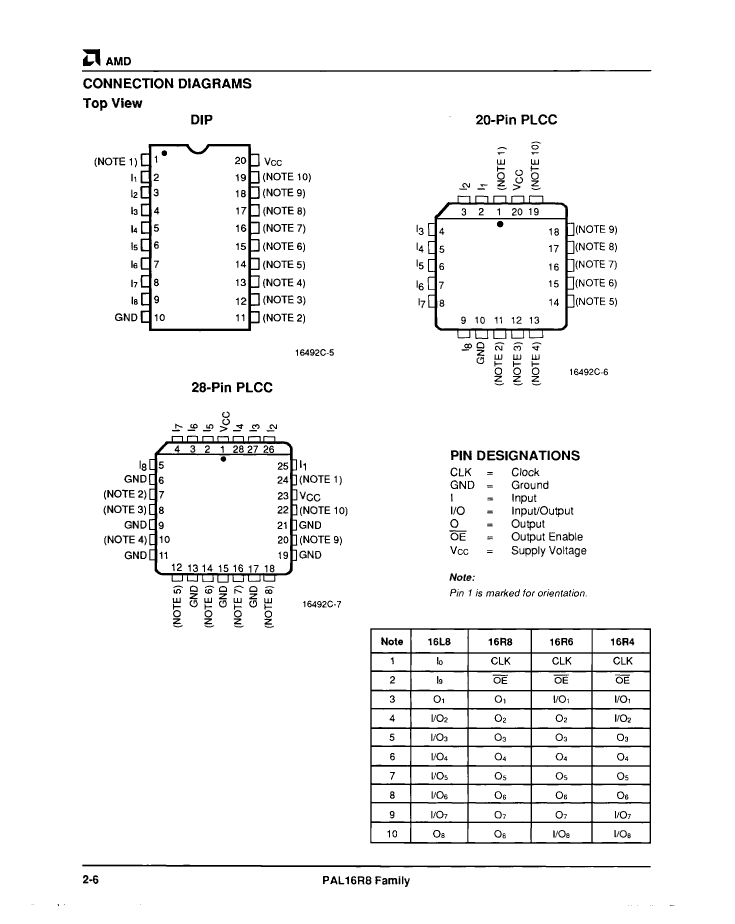

Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	PAL
Architecture	PAL-TYPE
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Dedicated input times	10
Number of I/O lines	6
Number of entries	16
Output times	8
Number of product terms	64
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	10 DEDICATED INPUTS, 6 I/O
Output function	COMBINATORIAL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programmable logic type	OT PLD
propagation delay	30 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.54 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.89 mm
