SHD2255B datasheet, PDF - EEWORLD Datasheet

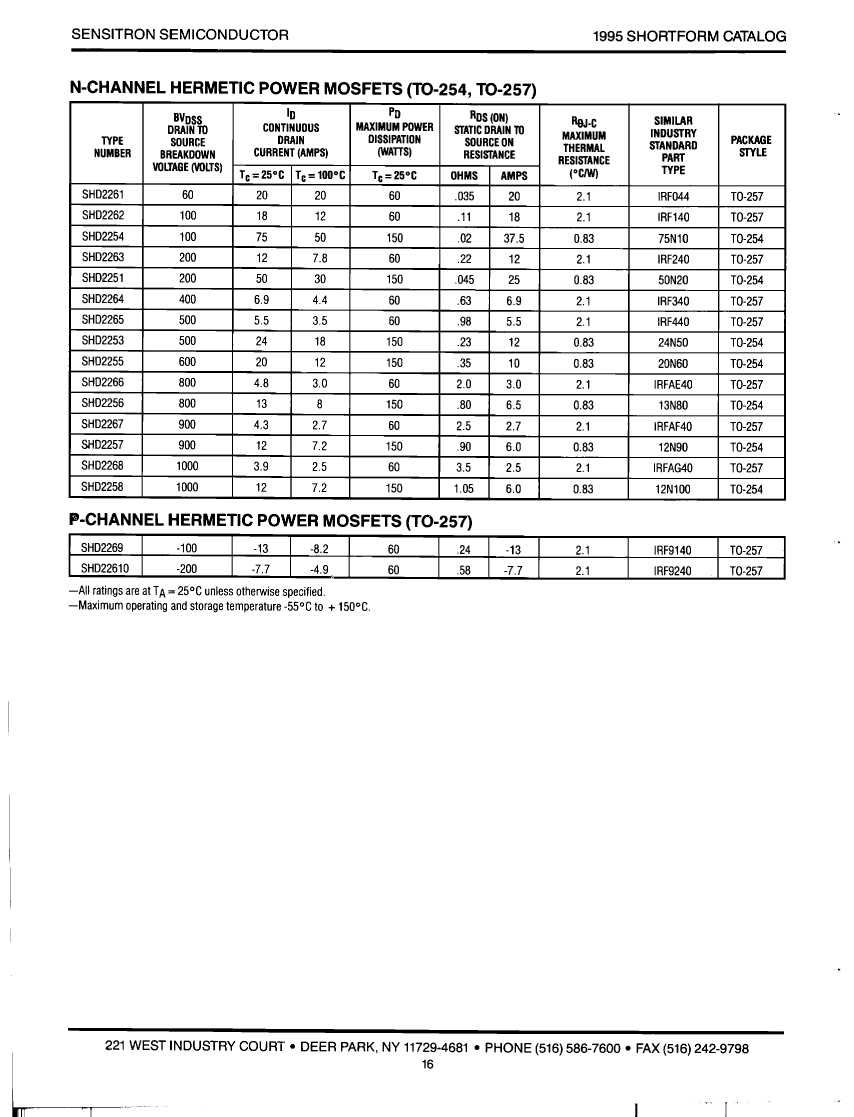

SHD2255B: DescriptionPower Field-Effect Transistor, 20A I(D), 600V, 0.35ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA, TO-254, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size32KB，1 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric View All

SHD2255B Overview

Power Field-Effect Transistor, 20A I(D), 600V, 0.35ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA, TO-254, 3 PIN

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SENSITRON
Parts packaging code	TO-254AA
package instruction	FLANGE MOUNT, S-MSFM-P3
Contacts	3
Reach Compliance Code	compliant
Configuration	SINGLE
Minimum drain-source breakdown voltage	600 V
Maximum drain current (ID)	20 A
Maximum drain-source on-resistance	0.35 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-254AA
JESD-30 code	S-MSFM-P3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	METAL
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	150 W
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
