ME010-50806 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> ME010-50806

ME010-50806: Description16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK; CategoryThe connector; File Size91KB，1 Pages; ManufacturerMulticomp

Download Datasheet Parametric Compare View All

ME010-50806 Overview

16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK

ME010-50806 Parametric

Parameter Name	Attribute value
Rated current	16 A
Rated voltage	300 V
state	Active
erminal_and_terminal_block_type	STRIP TERMINAL BLOCK
Fastening method	PLUG IN
Manufacturer Series	ME010-508
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	6
safety certificate	UL; VDE
dditional_feature	PA; 94V-0

Preview

Download Datasheet

View All

mult comp

RoHS

Compliant

12.0 (0.472")

Items No.

ME010-50802

A(mm)

10.2

A(inch)

0.400

8.3 (0.327")

Specifications

4.5 (0.177")

CUL

Rated Voltage

VDE

5.08 (0.200")

AC 300V

Rated Current

AC 400V

1.8 (0.071")

16A

Housing Material

Solder Pin

Operating Temperature

PCB Hole Diameter

E167040

12.0 (0.472")

16A

1.0 (0.039")

Polyamide66(UL94V-0)

1.0mm, Brass, Tin plated

-40°C to +105°C

Ø1.5mm

1.8 (0.071")

Ø1.5 (Ø0.059")

5.08 (0.200")

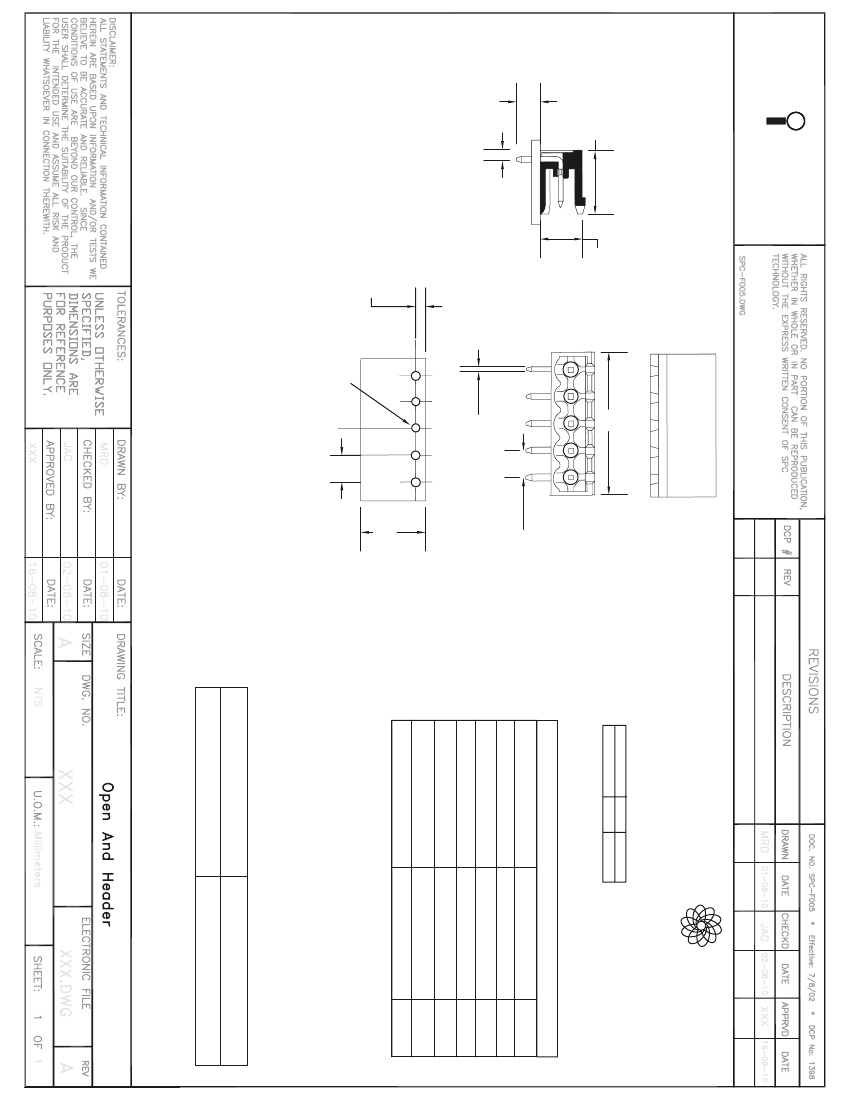

Part Number Table

Dimensions : Inches (mm)

Description

Open And Header

Part Number

ME010-50802

ME010-50806 Related Products

	ME010-50806	ME010-50802	ME010-50804	ME010-50805	ME010-50808	ME010-50810	ME010-50812
Description	16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK
Rated current	16 A	16 A	16 A	16 A	16 A	16 A	16 A
Rated voltage	300 V	300 V	300 V	300 V	300 V	300 V	300 V
state	Active	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE
Fastening method	PLUG IN	Plug IN	Plug IN	Plug IN	Plug IN	Plug IN	Plug IN
Manufacturer Series	ME010-508	ME010-508	ME010-508	ME010-508	ME010-508	ME010-508	ME010-508
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of layers	1	1	1	1	1	1	1
Rows	1	1	1	1	1	1	1
Number of channels	6	2	2	2	2	2	2
safety certificate	UL; VDE	UL; VDE	UL; VDE	UL; VDE	UL; VDE	UL; VDE	UL; VDE
contact surface	-	tin	tin	tin	tin	tin	tin
Terminal module type	-	STRIP	STRIP	STRIP	STRIP	STRIP	STRIP
