ME030-50005: DescriptionPIN HEADER 5POS 5MM; Connector Type:Pl; File Size104KB，1 Pages; ManufacturerMulticomp

Download Datasheet Compare View All

ME030-50005 Overview

PIN HEADER 5POS 5MM; Connector Type:Pl

Preview

Download Datasheet

View All

mult comp

MC 030- 500

500

030

MC

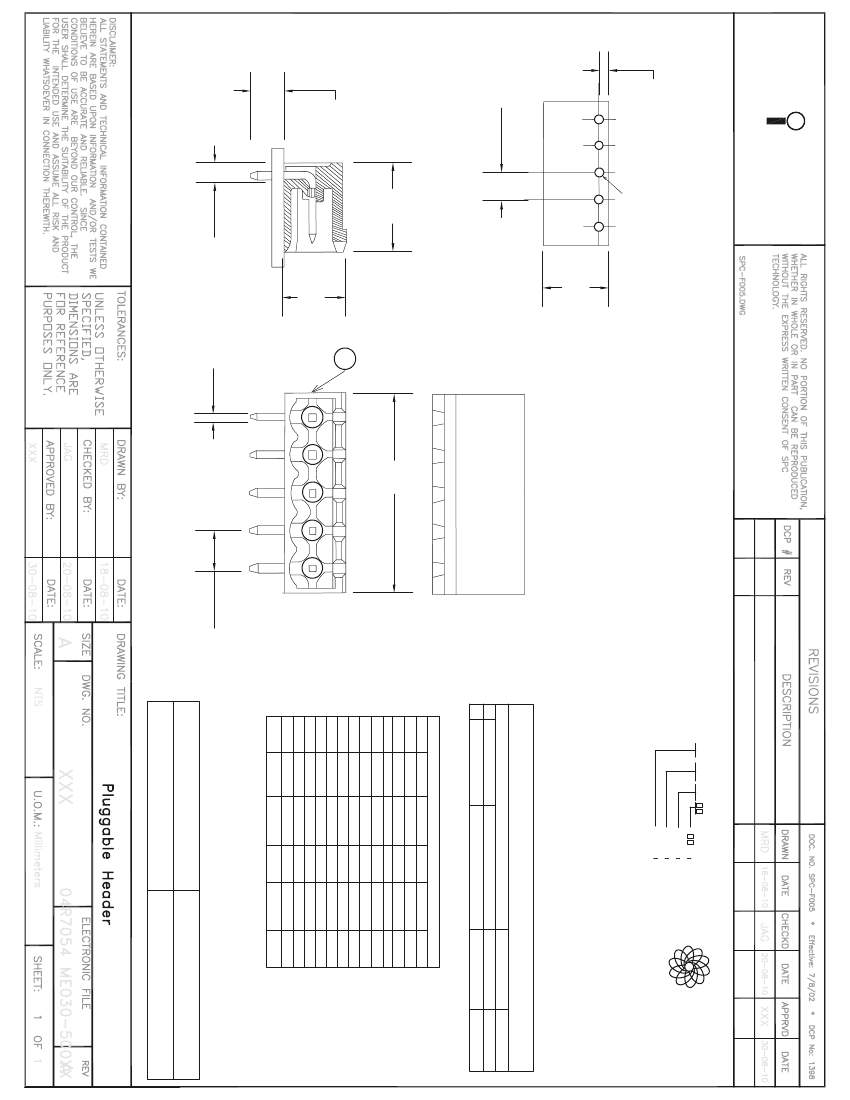

Specifications

m

c

1.8±0.3 (0.071')

Ø1.5 (Ø0.059')

Poles

Pitch 5.00mm

Standard

Type

RoHS

Compliant

12±0.3 (0.472')

Current rating

: 6amp AC 300V

Insulation withstands volt : AC2000V min

Insulation resistance

: >2000M

Ω

DC 500 V

Operation temperature

: -40°c to +105°c

5±0.1 (0.197'')

CONFIRMED & ACCEPTED BY:

Material

1

2

Plating/Finish

Insulating body

Solder pin

Polyamide 66(UL94V-0)

Brass

Remarks

Green

Tin plated

PCB Layout

Pitch : 3.81mm(0.150inch)

Poles

A(mm)

A(in)

11.60

2

0.457

16.60

3

0.654

21.60

4

0.850

26.60

5

1.047

31.60

6

1.244

36.60

7

1.441

41.60

8

1.638

46.60

9

1.835

51.60

10

2.031

56.60

11

2.228

61.60

12

2.245

66.60

13

2.622

71.60

14

2.819

A±0.5

0.8591

4.5±0.3 (0.177')

1

8.3±0.3 (0.327')

Poles

15

16

17

18

19

20

21

22

23

24

25

A(mm)

76.60

81.60

86.60

91.60

96.60

101.60

106.60

111.60

116.60

121.60

126.60

A(in)

3.016

3.213

3.409

3.606

3.803

4.000

4.197

4.394

4.591

4.787

4.984

Dimensions : Inches (mm)

1.8±0.3 (0.071')

Ø1±0.1(0.039')

5±0.1 (0.197')

Part Number Table

Description

Part Number

Pluggable Header

Dimensions : Millimeters

ME030-50003

ME030-50005 Related Products

	ME030-50005	ME030-50003	ME030-50006	ME030-50007	ME030-50008	ME030-50010	ME030-50012
Description	PIN HEADER 5POS 5MM; Connector Type:Pl	PIN HEADER 3POS 5MM; Connector Type:Pl	PIN HEADER 6POS 5MM; Connector Type:Pl	PIN HEADER 7POS 5MM; Connector Type:Pl	PIN HEADER 8POS 5MM; Connector Type:Pl	PIN HEADER 10POS 5MM; Connector Type:P	PIN HEADER 12POS 5MM; Connector Type:P
