PCSD19-06516-2D datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PCSD19-06516-2D

PCSD19-06516-2D: DescriptionBase Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 17.7dB Gain, 65deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size128KB，2 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

PCSD19-06516-2D Overview

Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 17.7dB Gain, 65deg 3dB Beamwidth

PCSD19-06516-2D Parametric

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
Beam Width-E	6.5 deg
Beamwidth-H	65 deg
Characteristic impedance	50 Ω
front to back ratio	25 dB
Gain	17.7 dB
Omnidirectional	NO
Maximum operating frequency	1990 MHz
Minimum operating frequency	1850 MHz
Maximum operating temperature	65 °C
Minimum operating temperature	-40 °C
polarization	DUAL POLARIZED
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	300 W
Maximum voltage standing wave ratio	1.4
Commentary	125 mph

PCSD19-06516-2D Preview

Base Station Antennas

ANTENNA SPECIFICATIONS

ANTENNA TYPE:

Description:

Electrical Specifications

Frequency Band, MHz

Gain, dBd (dBi)

Azimuth Beamwidth, degrees

Elevation Beamwidth, degrees

Front-to-Back Ratio, dB

Return Loss, dB (VSWR)

Impedance, ohms

Intermodulation, dBc

Port to Port Isolation, dB

Polarization Type

Electrical Downtilt, degrees

Maximum Input Power, watts

Lightning Protection

Connector Type

Connector Position

Number of Connectors

PCSD19-06516-2D

1850-1990 MHz, dual polarized, 65 degree azimuth beamwidth,

16 dBd gain panel antenna with 2 degrees of electrical downtilt

PerforMax

1850-1990

15.5 (17.7)

6.5

>25

>15.5 (<1.4)

<-150

>30

Dual, Slant 45

300

DC Ground

7-16 DIN Female

Bottom

Mechanical Specifications

Antenna Dimensions - L x W x D, mm (in)

Antenna Weight, kg (lb)

Radome Color

Radome Material

1473 (58) x 173 (6.8) x 89 (3.5)

6.8 (15.0)

Gray

UV Protected PVC

Environmental Specifications

Survival Wind Speed, km/h (mph)

Wind Load - frontal, N (lbf)*

Wind Load - lateral, N (lbf)*

Wind Load - rear, N (lbf)*

Temperature Range, degrees C

Humidity, %

* Based on 100 mph (161 km/h)

201 (125)

483 (109)

118 (27)

483 (109)

-40 to +65

Up to 100

Shipping Specifications

Shipping Dimensions - L x W x D, mm (in)

Shipping Weight, kg (lb)

1607 (63) x 300 (11.8) x 254 (10)

11.0 (24.3)

Mounting Hardware Specifications

Mounting Bracket Part Number

Mount Description

Mount Weight, kg (lb)

To include mounting bracket with antenna,

order part number:

Shipping Dimensions - mount with antenna -

L x W x D, mm (in)

Shipping Weight - mount with antenna, kg (lb)

Customer Support Center:

From North America: 1-800-255-1479

International: +1-708-873-2307

15.3 (33.8)

600691A-2

Adjustable downtilt, 0 - 14 degrees

1.0 (2.2)

PCSD19-06516-2DM

1612 (63.3) x 300 (11.8) x 254 (10)

This Specification Sheet is for reference only and is subject to change without notice.



2001 Andrew Corporation, Printed in the U.S.A.

Bulletin # 94124 - Rev. 9/17/2001

www.andrew.com

Base Station Antennas

ANTENNA SPECIFICATIONS

ANTENNA TYPE:

PCSD19-06516-2D

PerforMax

110

120

130

140

150

160

170

180

190

200

210

220

230

240

250

100

350

340

330

320

310

300

290

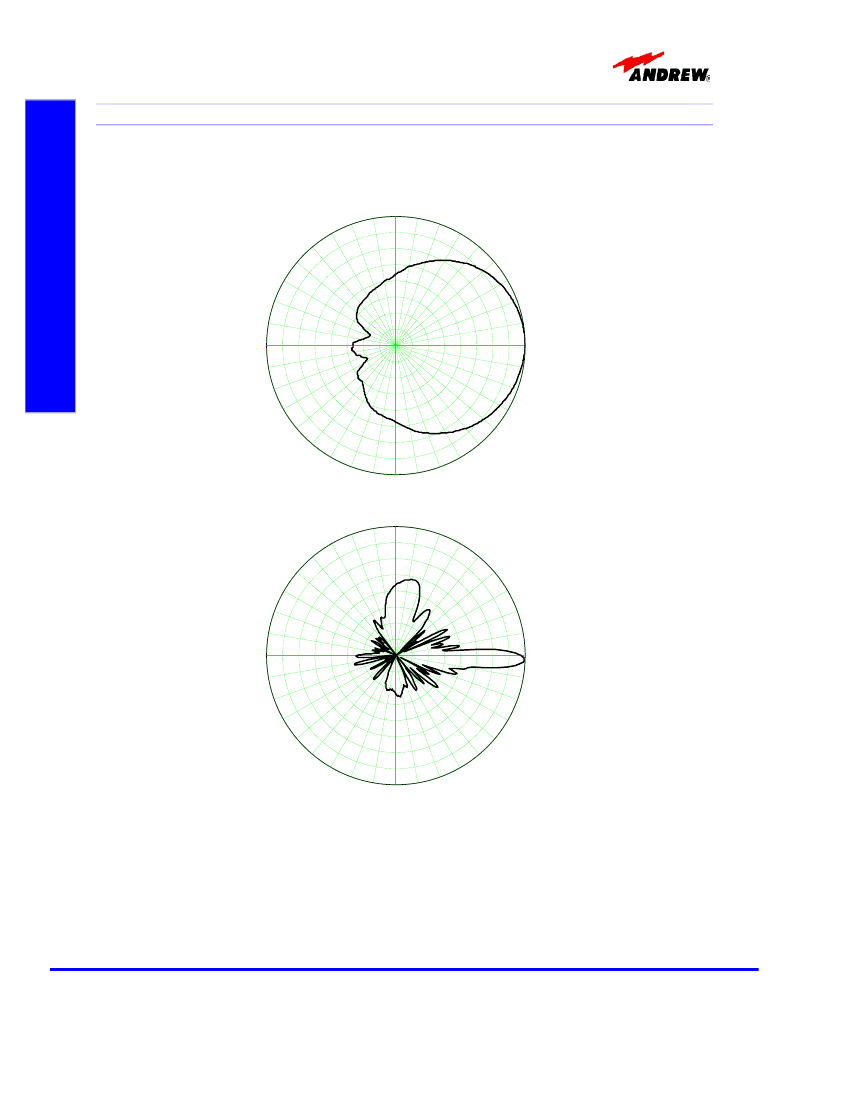

Azimuth Pattern

Polar Plot Center = -40dB

5 dB / radial division

10 degree / angular division

260

270

280

110

120

130

140

150

160

170

180

190

200

210

220

230

240

250

100

350

340

330

320

310

300

290

Elevation Pattern

Polar Plot Center = -40dB

5 dB / radial division

10 degree / angular division

260

270

280

Pattern File 6401141a

Measured at 1920 MHz

Page 2

Customer Support Center:

From North America: 1-800-255-1479

International: +1-708-873-2307

www.andrew.com

This Specification Sheet is for reference only and is subject to change without notice.



2001 Andrew Corporation, Printed in the U.S.A.

Bulletin # 94124 - Rev. 9/17/2001
