ME040-50811: Description16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK; CategoryThe connector; File Size104KB，1 Pages; ManufacturerMulticomp

Download Datasheet Parametric Compare View All

ME040-50811 Overview

16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK

ME040-50811 Parametric

Parameter Name	Attribute value
Rated current	16 A
Rated voltage	300 V
state	ACTIVE
contact surface	TIN
Manufacturer Series	ME040-508
Fastening method	PLUG IN
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	2
safety certificate	UL; VDE
Terminal module type	STRIP

Preview

Download Datasheet

View All

mult comp

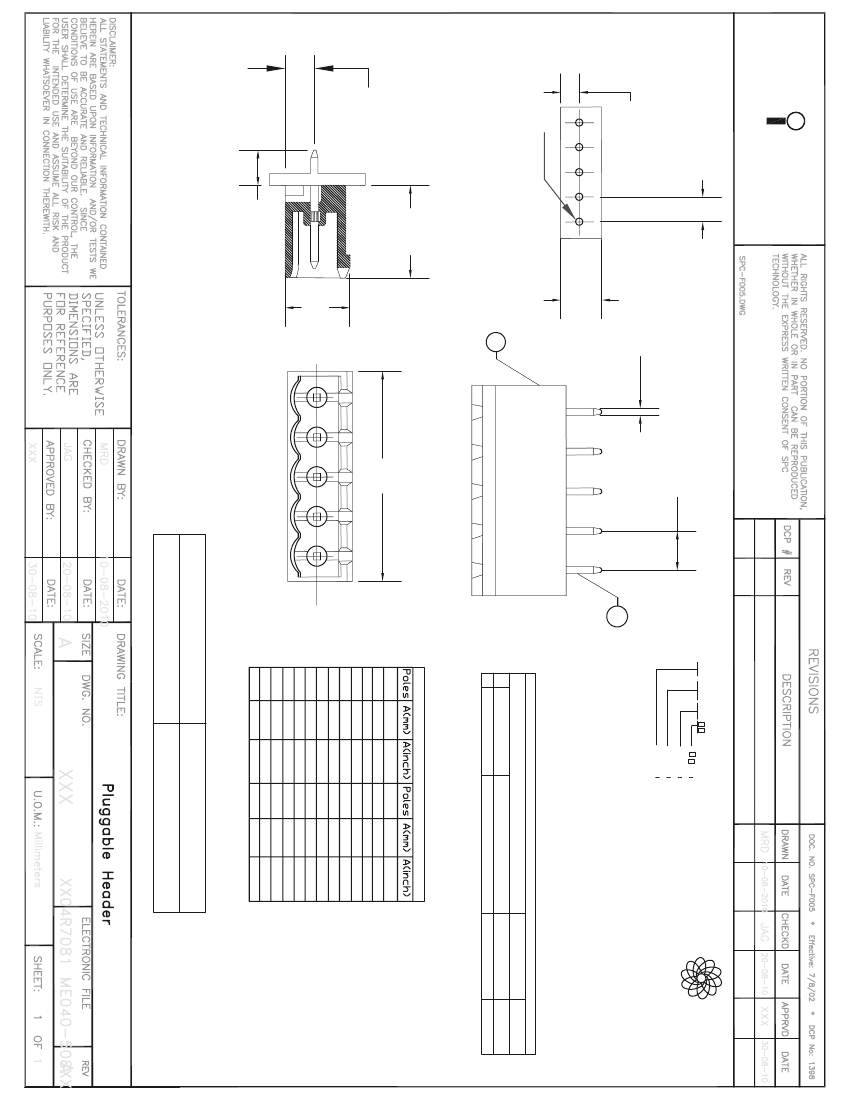

5.08 ±0.1 (0.200")

m

c

ME 040- 508

5.08 ±0.1 (0.200")

508

040

ME

Poles

Pitch 5.08mm

Standard

Type

RoHS

Compliant

1 0.1(0.039")

3.8 ±0.3 (0.150")

2

8.3 ± 0.3 (0327")

Specifications

Current rating

Insulation withstands volt

Insulation resistance

Operation temperature

: 16Amp AC300V

: AC2000V min

: >2000MΩ DC200V

: -40°C to +105°C

CONFIRMED & ACCEPTED BY

Material

ø1.5 (ø0.059")

PCB Layout

Plating/Finish

1

2

Insulating boby

Solder pin

Remarks

1

Polyamide 66(UL94V-0)

Brass

Green

Tin plated

All Materials are lead

free according to EU

Patch : 5.08mm(0.200inch)

12 ±0.3 (0.472")

A ±4.5

3.8 ±0.3 (0.149")

8.3 ±0.3 (0.326")

4.5 ±0.3 (0.177")

2

3

4

5

6

7

8

9

10

11

12

13

14

11.76

16.84

21.92

27.00

32.08

37.16

42.24

47.32

52.40

57.48

62.56

67.64

72.72

0.463

0.663

0.863

1.063

1.263

1.463

1.663

1.863

2.063

2.263

2.463

2.663

2.863

15

16

17

18

19

20

21

22

23

24

25

77.80

82.88

87.96

93.04

98.12

103.20

108.28

113.36

118.44

123.52

128.60

3.063

3.263

3.463

3.663

3.863

4.063

4.263

4.463

4.863

5.063

Part Number Table

Dimensions : Inches (mm)

Description

Pluggable Header

Part Number

ME040-50802

ME040-50811 Related Products

	ME040-50811	ME040-50802	ME040-50803	ME040-50805	ME040-50806	ME040-50807	ME040-50808	ME040-50810	ME040-50812
Description	16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK
Rated current	16 A	16 A	16 A	16 A	16 A	16 A	16 A	16 A	16 A
Rated voltage	300 V	300 V	300 V	300 V	300 V	300 V	300 V	300 V	300 V
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	Active	ACTIVE	ACTIVE
Manufacturer Series	ME040-508	ME040-508	ME040-508	ME040-508	ME040-508	ME040-508	ME040-508	ME040-508	ME040-508
Fastening method	PLUG IN	PLUG IN	PLUG IN	PLUG IN	PLUG IN	PLUG IN	PLUG IN	PLUG IN	PLUG IN
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of layers	1	1	1	1	1	1	1	1	1
Rows	1	1	1	1	1	1	1	1	1
Number of channels	2	2	2	2	2	2	8	2	2
safety certificate	UL; VDE	UL; VDE	UL; VDE	UL; VDE	UL; VDE	UL; VDE	UL; VDE	UL; VDE	UL; VDE
contact surface	TIN	TIN	TIN	TIN	TIN	TIN	-	TIN	TIN
Terminal module type	STRIP	STRIP	STRIP	STRIP	STRIP	STRIP	-	STRIP	STRIP

Recommended Resources

Nickel-cadmium battery charging circuit 13 examples 1

Refrigerator operation monitor

Using HA1451 as a dual-channel preamplifier

555 electronic rolling ring game machine circuit

Constant current source using integrated voltage stabilizing circuit

Hitachi CMT2988 pillow calibration circuit
