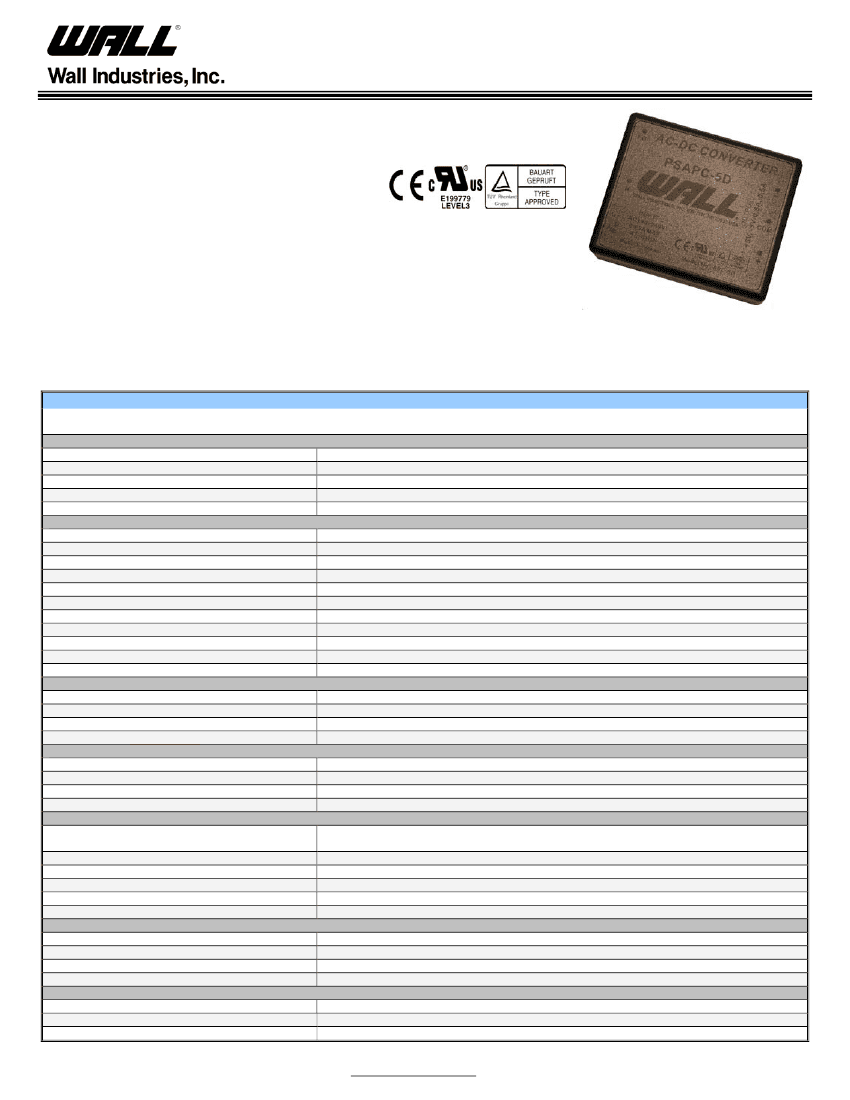

Rev. D

PSAPC Series

Single and Dual Outputs

5 Watt AC/DC Switching Power Supply

Encapsulated PCB Mount and Chassis Mount

FEATURES

●

High Efficiency

●

Regulated Output

●

Low Ripple and Noise

●

CE, UL, TUV Approvals

●

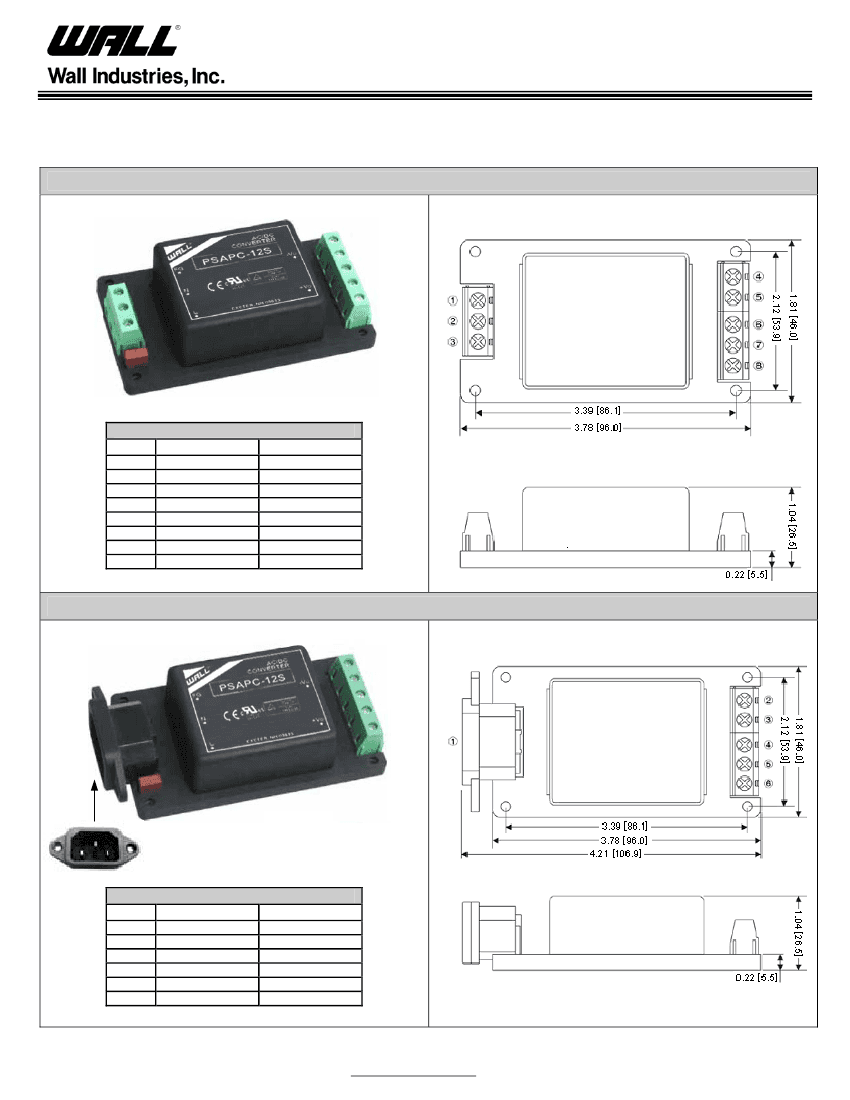

4 Mechanical Options Available

●

Fully Encapsulated Plastic Case

●

Switching Power Module for PCB Mounting

●

Universal Input Range 90-264VAC, 47-440 Hz

●

-40°C to +71°C Operating Temperature Available

●

Over Power, Over Voltage, and Short Circuit Protected

●

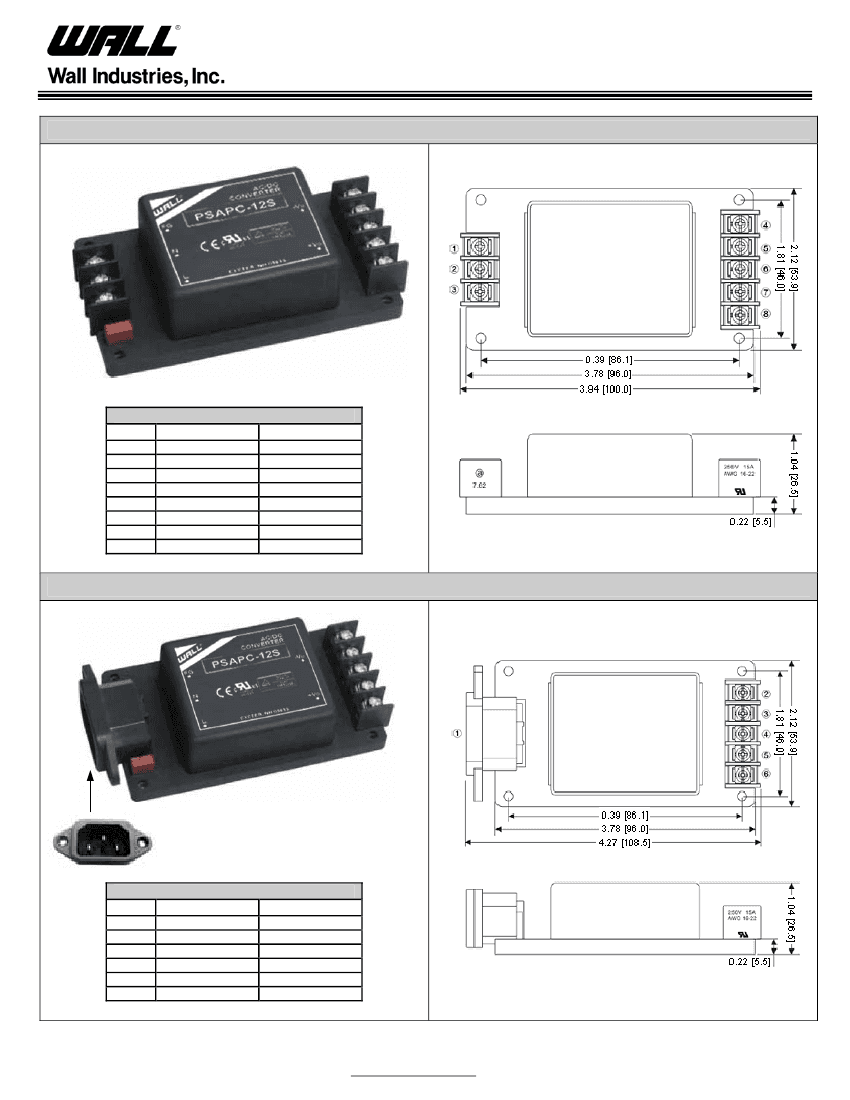

Removable DIN Rail Mounting Bracket Option Available

DESCRIPTION

The PSAPC series of AC/DC power supplies offers 5 watts in an encapsulated design. Models are available with single or dual outputs with

a universal input range. Some features include low ripple and noise, regulated outputs, high efficiency, and -40°C to +71°C operating

temperature option. All supplies are over power, over voltage, and short circuit protected. This series is ideal for PCB mounting and has 4

mechanical options available. This series also has a DIN Rail mounting bracket option. Please call factory for ordering details.

SPECIFICATIONS:

PSAPC Series

All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.

We reserve the right to change specifications based on technological advances.

INPUT SPECIFICATIONS

Input Voltage Range

90 ~ 264VAC or 120 ~ 370VDC

Input Frequency

47 to 440Hz

Input Current (full load)

110mA max @ 115VAC

70mA max @ 230VAC

Inrush Current (<2ms)

10A max @ 115VAC

20A max @ 230VAC

Leakage Current

0.75mA max

OUTPUT SPECIFICATIONS

Output Voltage

See Table

Output Power

5 Watts max.

Voltage Accuracy

±2%

Line Regulation (LL – HL)

±0.3% typical

Load Regulation (5% to 100%)

±0.5% typical

Output Current

See Table

Minimum Load

See Table

Ripple

< 0.2% Vout +40mV max (Vp-p)

Noise

< 0.5% Vout +50mV max (Vp-p)

Maximum Capacitive Load

470 - 23,000µF depending on model

Hold-Up Time

15ms min.

PROTECTION

Over Power Protection

Hiccup technique, auto-recovery

Over Voltage Protection

Zener diode clamp

Short Circuit Protection

Hiccup mode, indefinite (automatic recovery)

Input Fuse Recommendation

1.5A slow blow type

GENERAL SPECIFICATIONS

Switching Frequency

100KHz

Efficiency

See Table

Isolation Voltage

3000VAC (input to output), 1500VAC (input to FG), 500VAC (output to FG)

Isolation Resistance

100MΩ (input to output)

ENVIRONMENTAL SPECIFICATIONS

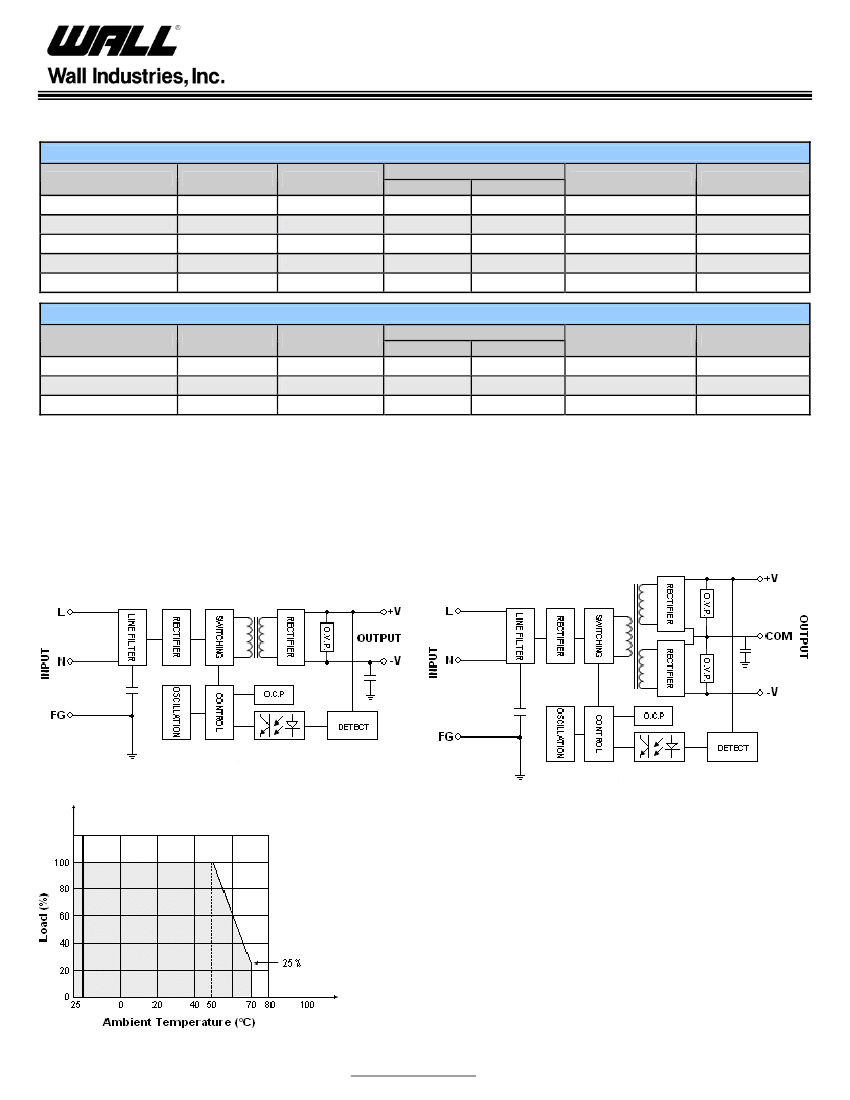

-25°C to +70°C (with derating)

Operating Temperature

-40°C to +71°C (add suffix “- E1” to the part number)

Storage Temperature

-40°C to +85°C

Humidity

95% RH

Cooling

Free air convection

Temperature Coefficient

±0.02%/°C

MTBF

> 300,000 hours @ 25°C (MIL-HDBK-217F)

PHYSICAL SPECIFICATIONS

Weight

80g

Case Material

Plastic resin with fiberglass (flammability to UL 94V-0)

Dimensions (L x W x H)

2.17 x 1.77 x 0.81 inches [55.0 x 45.0 x 20.5 mm]

Warranty

2 years

SAFETY & EMC

Agency Approvals

UL/cUL, CE, TUV

EMI (Conducted & Radiated Emission)

EN 55022 class B

EMS (Noise Immunity)

EN 50082-1

Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833

603-778-2300 www.wallindustries.com Fax 603-778-9797

Page 1 of 6
