56479-144A0T-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 56479-144A0T-R

56479-144A0T-R: DescriptionCard Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size228KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

56479-144A0T-R Overview

Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal

56479-144A0T-R Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	POLARIZED
Connector type	CARD EDGE CONNECTOR
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	56479
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	144
UL Flammability Code	94V-0

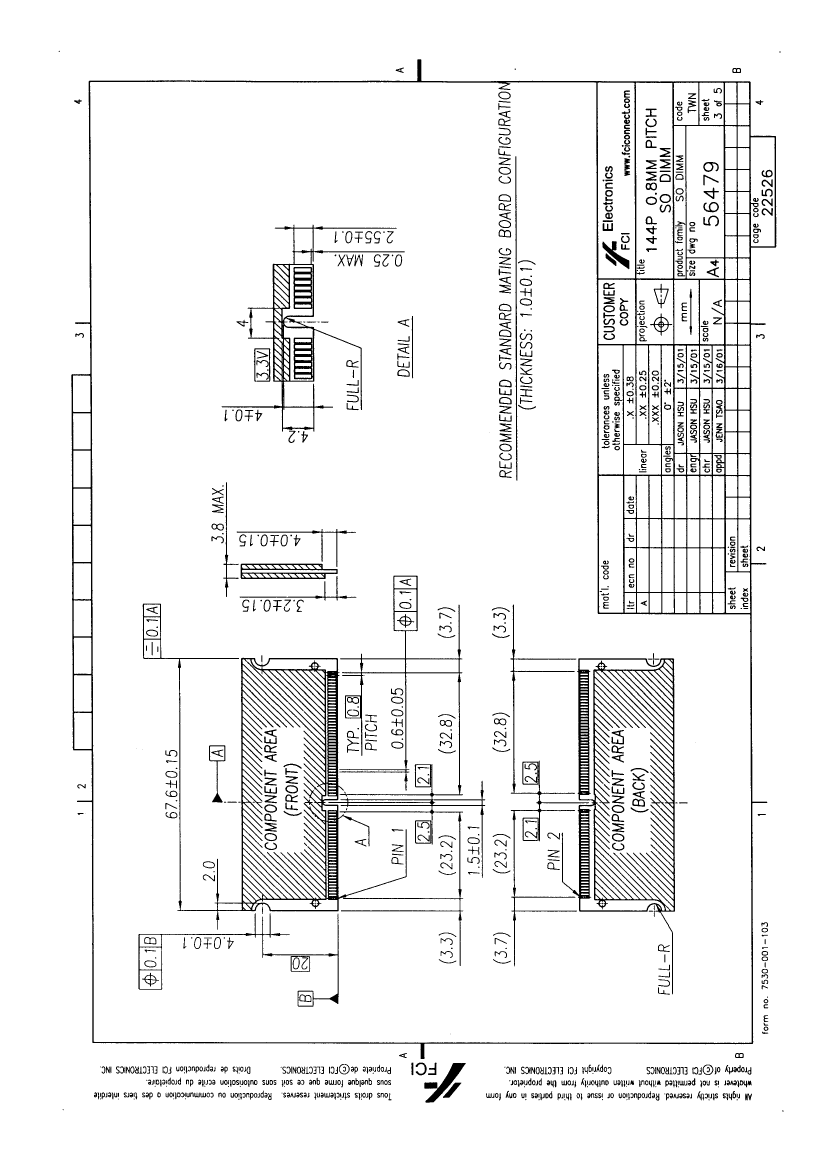

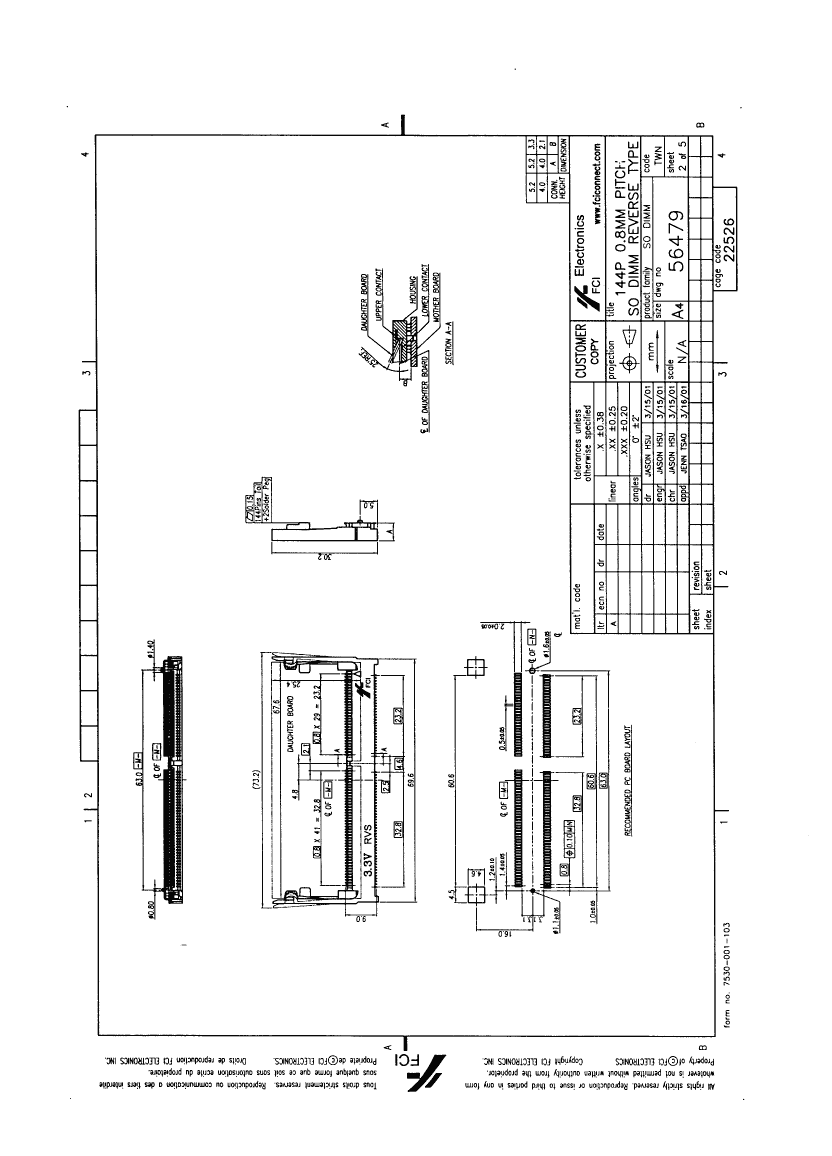

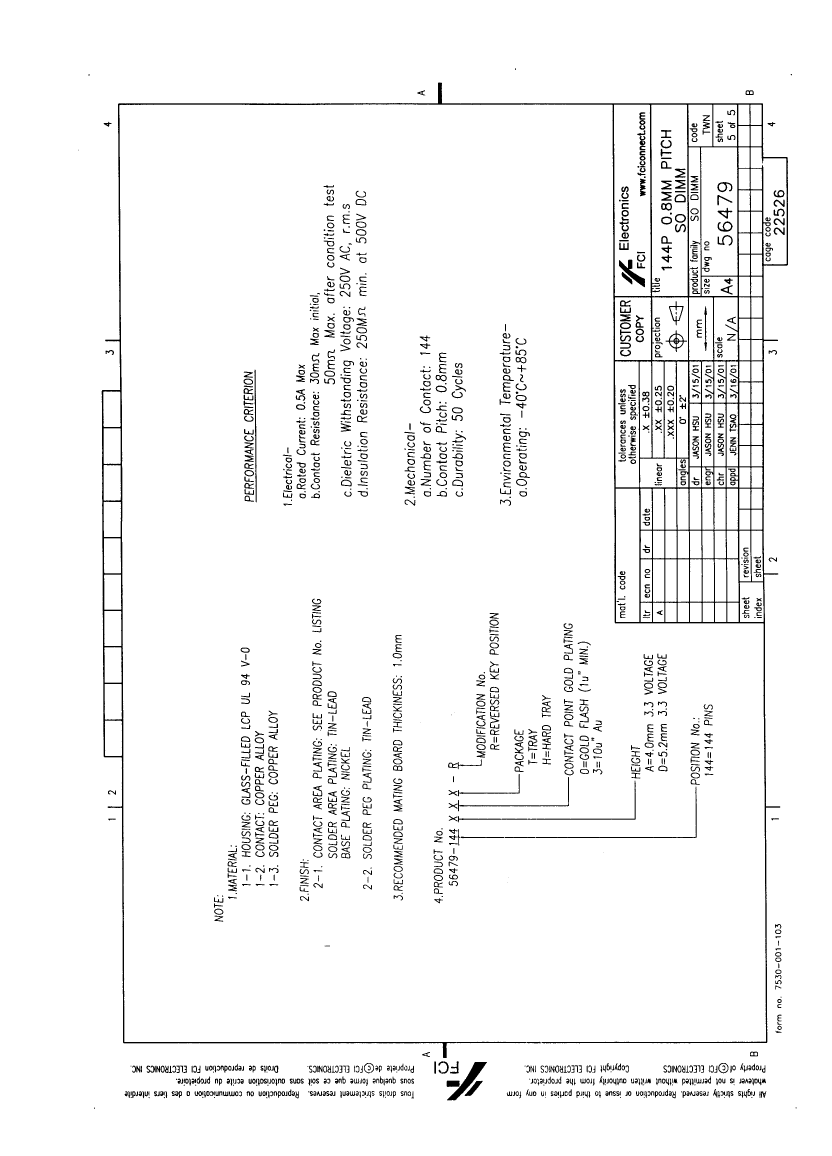

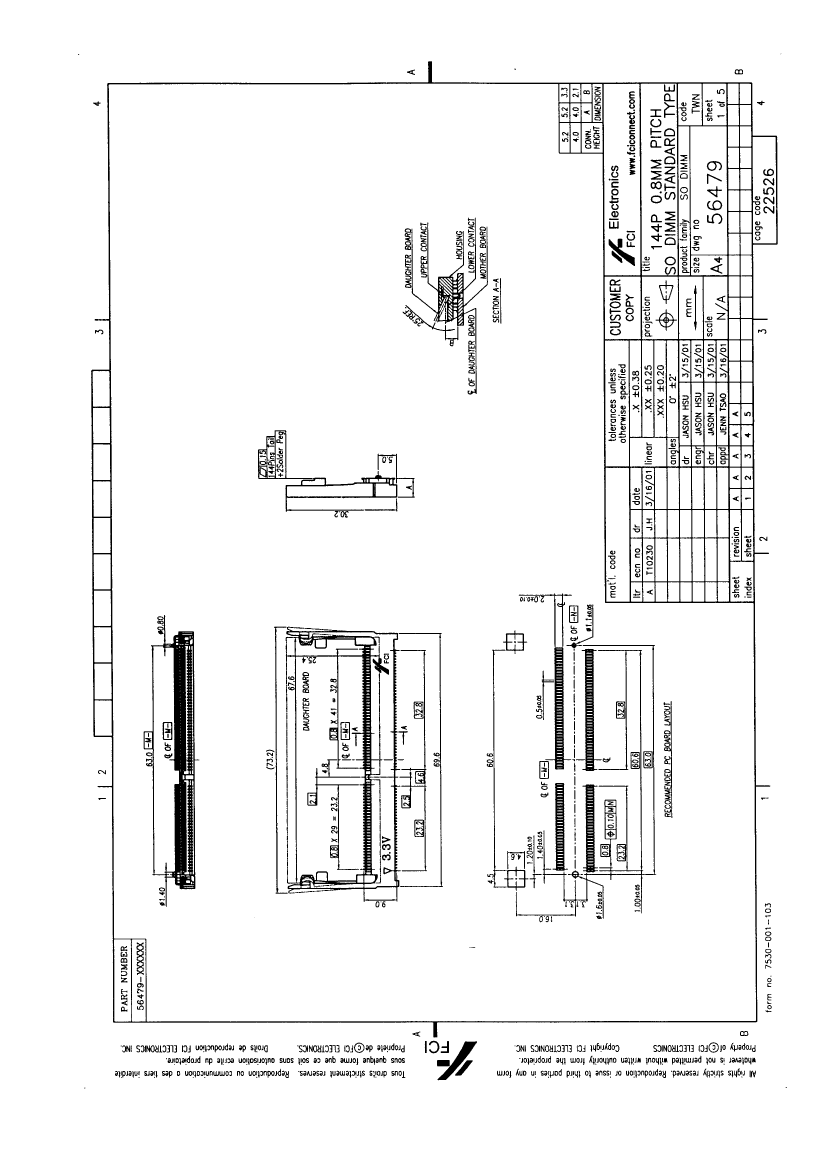

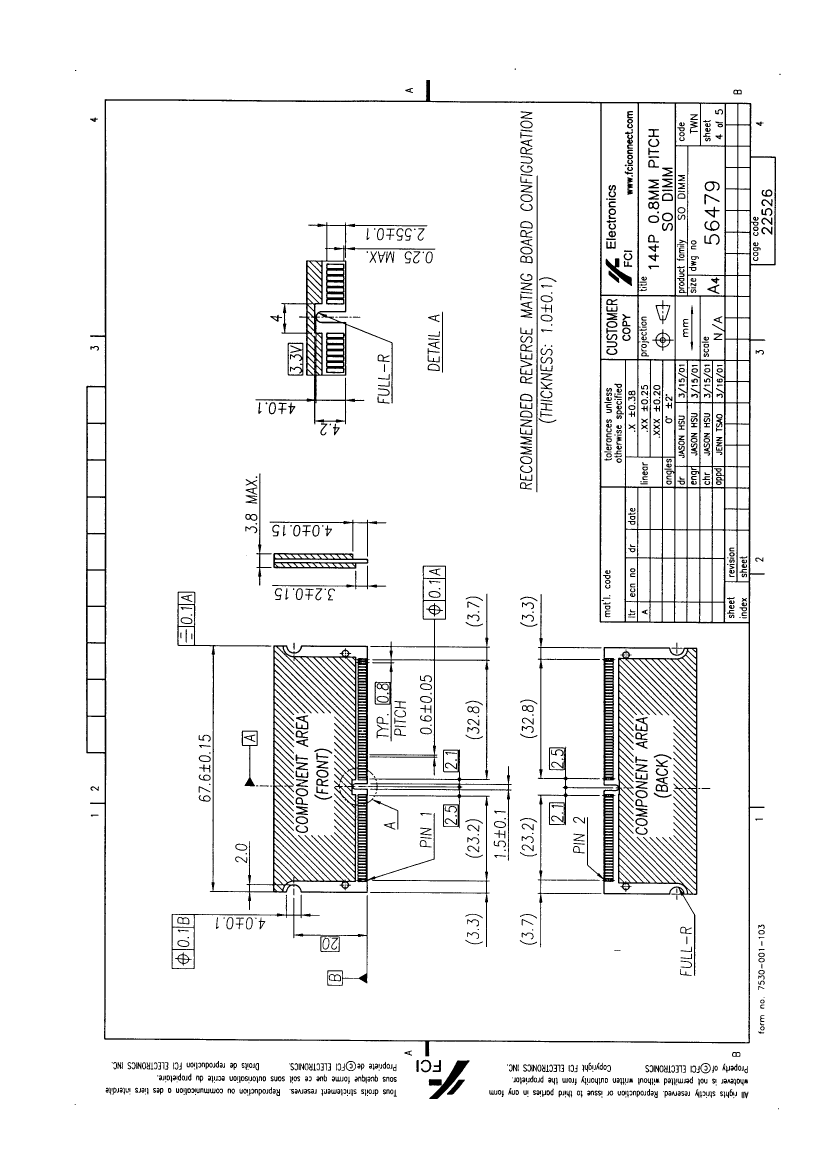

56479-144A0T-R Preview

PDM: Rev:A

STATUS:

Released

Printed: May 18, 2009

PDM: Rev:A

STATUS:

Released

Printed: May 18, 2009

PDM: Rev:A

STATUS:

Released

Printed: May 18, 2009

PDM: Rev:A

STATUS:

Released

Printed: May 18, 2009

PDM: Rev:A

STATUS:

Released

Printed: May 18, 2009

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

56479-144A0T-R Related Products

	56479-144A0T-R	56479-144A0H-R	56479-144A3H-R	56479-144A3T-R	56479-144D0H-R	56479-144D0T-R	56479-144D3H-R	56479-144D3T-R
Description	Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	56479	56479	56479	56479	56479	56479	56479	56479
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	144	144	144	144	144	144	144	144
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
