Dual Output
BMP Models
High-Efficiency, Smaller-Package
25-40 Watt, DC/DC Converters
Features
■
■
■
Higher operating temperatures
Fully potted
Designed to meet UL1950 and
EN60950 (basic insulation)
mark available (75V-input models)
Fully isolated, 1500Vdc guaranteed
25/30/35/40W output power
Standard pinout! Smaller size!
New 2" x 3" package fits 3" x 3" footprint
±5V, ±12V or ±15V outputs
Four input voltage ranges:
10-36V, 18-36V
18-75V, 36-75V
High efficiencies (to 88%)
Fully I/O protected
V
OUT
trim and on/off control
Modifications and customs for OEM’s
■
■
■
■
■
■
■
■
■
■
■
DATEL’s BMP Models are fully potted, 25-40 Watt, dual-output DC/DC converters
designed to meet UL1950 and EN60950 safety standards. The
combination the BMP’s higher efficiencies and thermally conductive potting compound
enables these devices to achieve higher operating temperatures
without derating. The 2" x 3" BMP "footprint" conforms to the standard pinout
and pin geometries of most 3" x 3" devices (a 33% space savings) while
delivering 60% more power (40W vs. 25W).
Applicable to a wide range of telecom, computer and other OEM applications, BMP
Model DC/DC’s offer ±5V, ±12V and ±15V outputs. They operate from four different input
voltage ranges with total available output being a function of the selected range. "Q12"
models operate from 10-36V and deliver 25W. "Q48" models operate from 18-75V and
deliver 30W. For "D24" and "D48" models, the input ranges and output powers are 18-
36V at 35W and 36-75V at 40W, respectively.
These devices employ corrosion-resistant metal cases with plastic headers.
Heat-generating transformer cores and power semiconductors are mounted directly to
the cases, which have threaded inserts for optional add-on heat sinks or pcb mounting.

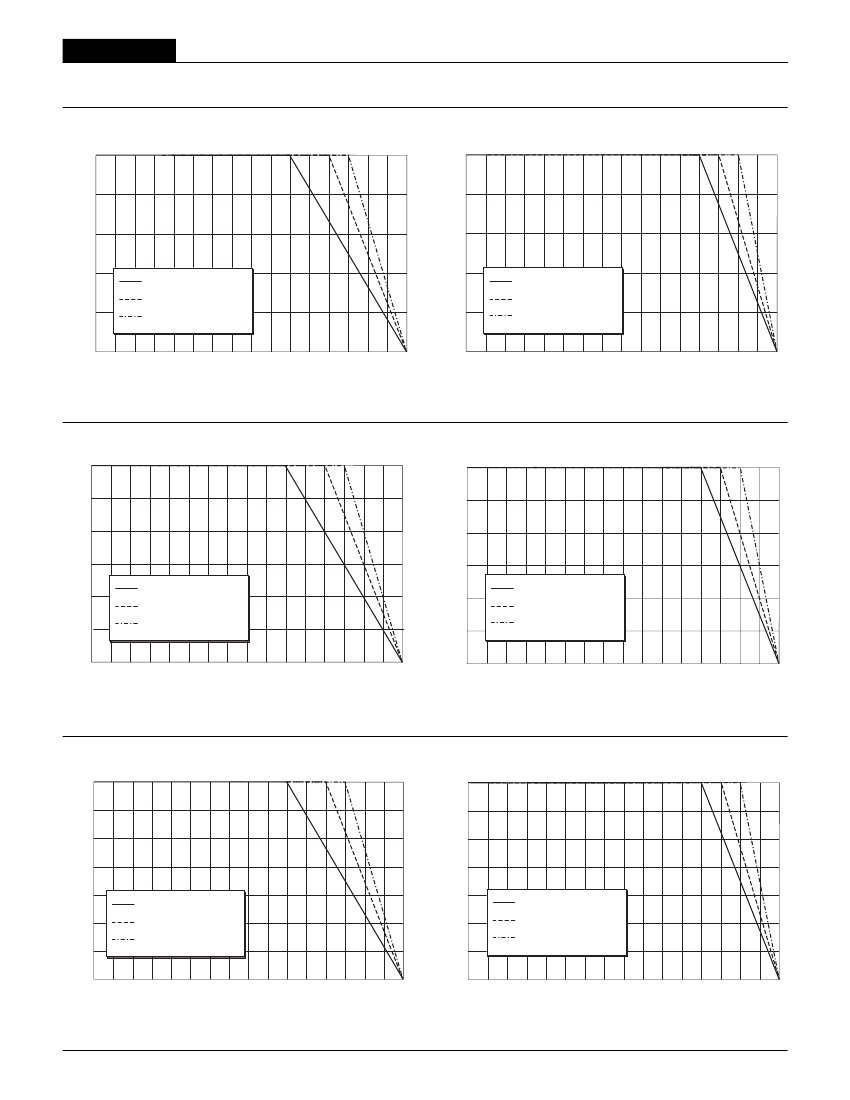

Temperature derating information is provided for operation with and without heat sinks
and forced air flow.
All devices feature input pi filters, input overvoltage shutdown, output overvoltage
protection, output current limiting, and thermal shutdown. UL, CSA, EN and IEC
compliance testing is currently in progress (75V-input devices will be CE marked) as
are full EMI/EMC characterizations. Contact DATEL for the latest available information.
+V
IN
+V
OUT
PWM
–
V
IN
COMMON
–
V
IN
–
V
OUT
CASE
ON/OFF
CONTROL
(SYNC)
REFERENCE &
ERROR
AMPLIFIER
PWM
CONTROLLER
OPTO
ISOLATION
TRIM

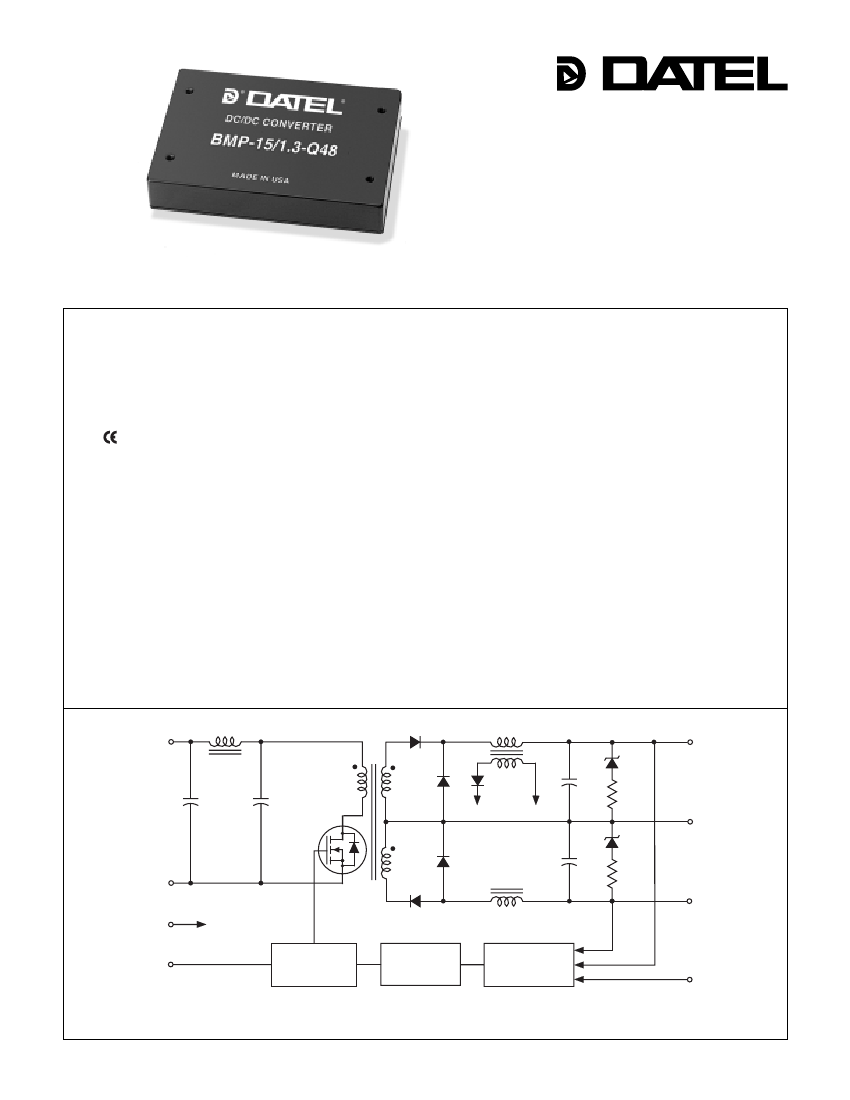

Figure 1. Simplified Schematic
DATEL, Inc., Mansfield, MA 02048 (USA)
•
Tel: (508)339-3000, (800)233-2765 Fax: (508)339-6356
•
Email: sales@datel.com
•
Internet: www.datel.com
XMP Series
Performance Specifications and Ordering Guide
Output
Model
BMP-5/4-Q12
BMP-5/4-D24
BMP-5/4-Q48
BMP-5/4-D48
BMP-12/1.65-Q12
BMP-12/1.65-D24
BMP-12/1.65-Q48
BMP-12/1.65-D48
BMP-15/1.3-Q12
BMP-15/1.3-D24
BMP-15/1.3-Q48
BMP-15/1.3-D48
2 5 - 4 0 W,
DUAL
OUTPUT
DC/DC
CONVERTERS
➀
Input
Regulation (Max.)
Load
➂
Line
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
V
OUT
(Volts)
±5
±5
±5
±5
±12
±12
±12
±12
±15
±15
±15
±15
I
OUT
(Amps)
±4
±4
±4
±4
±1.65
±1.65
±1.65
±1.65
±1.3
±1.3
±1.3
±1.3
R/N (mVp-p)
➁
Typ.
Max.
60
75
75
75
60
60
60
75
60
60
60
60
120
125
125
125
100
100
100
125
125
125
125
125
V
IN
Nom.
(Volts)
24
24
48
48
24
24
48
48
24
24
48
48
Range
(Volts)
10-36
18-36
18-75
36-75
10-36
18-36
18-75
36-75
10-36
18-36
18-75
36-75
I
IN
➃
(mA)
15/1225
15/1696
25/735
20/980
20/1224
15/1667
15/727
15/948
20/1225
15/1648
15/735
20/934
Efficiency
Min.
Typ.
82%
84%
82%
83%
83%
85%
84%
85%
83%
85%
83%
84%
85%
86%
85%
85%
85%
87%
86%
87%
85%
88%
85%
87%
Package
(Case,
Pinout)
C11, P15
C11, P15
C11, P15
C11, P15
C11, P15
C11, P15
C11, P15
C11, P15
C11, P15
C11, P15
C11, P15
C11, P15
➀
Typical at T
A
= +25°C under nominal line voltage and balanced "full-load" conditions unless otherwise noted.
For BMP devices, "full load" is a function of each device's input voltage range. See Output Power Considerations and Technical Notes for more details.
➁
Ripple/Noise (R/N) measured over a 20MHz bandwidth.
➂
Balanced loads, 10% to 100% load.
➃
Nominal line voltage, no-load/full-load conditions.
PART NUMBER STRUCTURE
O U T P U T P OW E R C O N S I D E R AT I O N S
B MP
-
5
/
4
-
D48
Output Configuration:
B
= Bipolar
Fully Potted Metal Package
Nominal Output Voltages:
±5, ±12 or ±15 Volts
Input Voltage Range:
Q12
= 10-36 Volts (24V nominal)
D24
= 18-36 Volts (24V nominal)
Q48
= 18-75 Volts (48V nominal)
D48
= 36-75 Volts (48V nominal)
Maximum Output Current
in Amps from each output
As shown below, BMP Model DC/DC Converters are classified by output
power. For dual-output devices, the total output power from the two outputs
can not exceed the rated power. For example, "Q48" models have a
maximum output power of 30W. Therefore, if the +Output is sourcing 20
Watts, the –Output is limited to sourcing 10 Watts ensuring the total output
power does not exceed 30 Watts.
Model
Q12
Q48
D24
D48
Maximum Output Power
25 Watts
30 Watts
35 Watts
40 Watts
M E C H A N I C A L S P E C I F I C AT I O N S
I/O Connections
3.04
(77.22)
METAL
CASE
INSULATED
BASE
0.040 ±0.002 DIA.
(1.016 ±0.051)
2.500
(63.50)
0.27
(6.86)
Optional Heat Sink
(Part Number HS-23)
3.00
(76.20)
0.20
(5.08)
2.600
(66.04)
0.40
(10.16)
0.55
(13.97)
0.20 MIN
(5.08)
Case C11
0.42
(10.67)
1
6
2
1.200
(30.48)
7
1.600
2.04
(40.64)
4 EQ. SP. @ (51.82)
0.400 (10.16)
Pin Function P15
No Pin
1
–Input
2
+Input
3
Case
4
5
On/Off Control*
–Output
6
No Pin
7
Common
8
+Output
9
Trim
10
* See note 4 on next page.
1.200
(30.48)
2.00
(50.80)
3
(4) THREADED INSERTS
#4-40 THD THRU
8
TOP VIEW
4
9
10
BOTTOM VIEW
0.120 DIA. (3.048)
(4 PLACES)
5
0.10
(2.54)
0.50
(12.70)
0.22
(5.59)
2.600
(66.04)
DIMENSIONS ARE IN INCHES (MM)
0.22
(5.59)
MATERIAL: BLACK ANODIZED ALUMINUM
4 MOUNTING SCREWS AND 0.009 (0.229) THERMAL PAD INCLUDED
2
2 5 - 4 0 W,
DUAL
OUTPUT
DC/DC
CONVERTERS
BMP Models
Performance/Functional Specifications
Typical @ T
A
= +25°C under nominal line voltage and "full-load" conditions, unless noted.
➀
➁
Input
Input Voltage Range:
Q12 Models
D24 Models
Q48 Models
D48 Models
Input Current
Input Filter Type
➂
Overvoltage Shutdown:
Q12 and D24 Models
Q48 and D48 Models
Reverse-Polarity Protection
On/Off Control
(Pin 5)
➃
V
OUT
Accuracy
(50% load)
Temperature Coefficient
Ripple/Noise
(20MHz BW)
➂
Line/Load Regulation
Efficiency
Isolation Voltage
➄
Isolation Capacitance
Current Limiting
Overvoltage Protection
Transient Response
(50% load step)
Switching Frequency
Operating Temperature
(ambient):
Without Derating
With Derating
Maximum Case Temperature
Storage Temperature
Dimensions
Shielding
Case Connection
Case Material
Pin Material
Weight
10-36 Volts (24V nominal)
18-36 Volts (24V nominal)
18-75 Volts (48V nominal)
36-75 Volts (48V nominal)
See Ordering Guide
Pi
40 Volts
80 Volts
Yes (Instantaneous, 6A maximum)
TTL high (or open) = on, low = off
Storage Temperature
Input Voltage:
Q12/D24 Models
Q48/D48 Models
Absolute Maximum Ratings
44 Volts
88 Volts
Current must be <6A. Brief
duration only. Fusing recommended.
6.8 Volts, limited duration
15 Volts, limited duration
18 Volts, limited duration
Current limited. Max. current and
short-circuit duration are model
dependent.
–40 to +105°C
+300°C
Input Reverse-Polarity Protection
Output Overvoltage Protection
±5V Outputs
±12V Outputs
±15V Outputs
Output Current
Output
±1%, maximum
±0.02% per °C
See Ordering Guide
See Ordering Guide
See Ordering Guide
1500Vdc, minimum
620pF
Continuous, auto-recovery
Zener/transorb clamps, magnetic feedback
Lead Temperature
(soldering, 10 sec.)
These are stress ratings. Exposure of devices to any of these conditions may adversely
affect long-term reliability. Proper operation under conditions other than those listed in the
Performance/Functional Specifications Table is not implied.
TECHNICAL NOTES
Floating Outputs
Since these are isolated DC/DC converters, their outputs are "floating." Any
BMP model may be configured to produce an output of 10V, 24V or 30V (for
±
5V,
±
12V or
±
15V models, respectively) by applying the load across the
+Output and –Output (pins 9 and 6), with either output grounded. The
Common (pin 8) should be left open. Minimum 20% loading is recom-
mended under these conditions. The total output voltage span may be
externally trimmed as described below.
Filtering and Noise Reduction
All BMP 25-40 Watt DC/DC Converters achieve their rated ripple and noise
specifications without the use of external input/output capacitors. In critical
applications, input/output ripple and noise may be further reduced by
installing electrolytic capacitors across the input terminals and/or low-ESR
tantalum or electrolytic capacitors across the output terminals. Output
capacitors should be connected between their respective output pin (pin 6 or
9) and Common (pin 8). See Figure 7. The caps should be located as close
to the converters as possible. Typical values are listed in the below. In many
applications, using values greater than those listed will yield better results.
To Reduce Input Ripple
"Q12, D24" Models
"Q48, D48" Models
To Reduce Output Ripple
±5V Outputs
±12/15V Outputs
47µF, 50V
10µF, 100V
47µF, 10V, Low ESR
22µF, 20V, Low ESR
Dynamic Characteristics
300µsec max. to ±1.5% of final value
125kHz (±10%)
Environmental
–40 to +60°C (Model dependent)
to +90°C (See Derating Curves)
+90°C
–40 to +105°C
Physical
2.04" x 3.04" x 0.55" (51.8 x 77.2 x 14mm)
5-sided
Pin 4
Aluminum, black anodized finish
with plastic header
Brass, solder coated
6 ounces (170 grams)
➀
These converters require a minimum 10% loading on each output to maintain
specified regulation. Operation under no-load conditions will not damage these devices;
however they may not meet all listed specifications.
➁
"Full load" varies by part number and is determined by the input voltage range as indicated by
the part number suffix. See Technical Notes and Output Power Considerations.
➂
Application-specific input/output filtering can be recommended or perhaps added internally
upon request. Contact DATEL Applications Engineering for details.
➃
Applying a voltage to the On/Off Control pin when no input power is applied to the converter
can cause permanent damage to the converter. If desired, the On/Off Control function can be
replaced with a Sync function. See page 6 of this data sheet for more details.
➄
Listed specification is for input-to-output isolation. Input-to-case and output-to-case
isolation is 1000Vdc, minimum.
In critical, space-sensitive applications, DATEL may be able to tailor the
internal input/output filtering of these devices to meet your specific require-
ments. Contact our Applications Engineering Group for additional details.
Input Fusing
V
IN
Range
Fuse Value
Q12
4A
D24
4A
Q48
3A
D48
2A
3
XMP Series
2 5 - 4 0 W,
DUAL
OUTPUT
DC/DC
CONVERTERS
Temperature Derating and Electrical Performance Curves
Q12 Models (25 Watts)
25
25
20
20
Output Power (Watts)
Output Power (Watts)
15
15
10
Natural Convection Cooling
150 Linear Feet Per Minute
5
300 Linear Feet Per Minute
10
Natural Convection Cooling
150 Linear Feet Per Minute
5
300 Linear Feet Per Minute
0
–40
0
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
0
–40
0
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
Ambient Temperature (°C)
Ambient Temperature (°C)
Figure 2a. Temperature Derating Without Heat Sink
Figure 2b. Temperature Derating With Heat Sink
Q48 Models (30 Watts)
30
30
25
25
Output Power (Watts)
20
Output Power (Watts)
20
15
Natural Convection Cooling
10
150 Linear Feet Per Minute
5
300 Linear Feet Per Minute
15
Natural Convection Cooling
10
150 Linear Feet Per Minute
300 Linear Feet Per Minute
5
0
–40
0
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
0
–40
0
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
Ambient Temperature (°C)
Ambient Temperature (°C)
Figure 3a. Temperature Derating Without Heat Sink
Figure 3b. Temperature Derating With Heat Sink
D24 Models (35 Watts)
35
35
30
30
Output Power (Watts)
20
Output Power (Watts)
25
25
20
15
Natural Convection Cooling
10
150 Linear Feet Per Minute
300 Linear Feet Per Minute
5
15
Natural Convection Cooling
10
150 Linear Feet Per Minute
300 Linear Feet Per Minute
5
0
–40
0
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
0
–40
0
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
Ambient Temperature (°C)
Ambient Temperature (°C)
Figure 4a. Temperature Derating Without Heat Sink
Figure 4b. Temperature Derating With Heat Sink
4
2 5 - 4 0 W,
DUAL
OUTPUT
DC/DC
CONVERTERS
BMP Models
Temperature Derating and Electrical Performance Curves
D48 Models (40 Watts)
40
35
30
40
35
30
Output Power (Watts)
Output Power (Watts)
25
20
15
10
5
0
–40
0
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
25
20
15
10
5
0
–40
0
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
Natural Convection Cooling
150 Linear Feet Per Minute
300 Linear Feet Per Minute
Natural Convection Cooling
150 Linear Feet Per Minute
300 Linear Feet Per Minute
Ambient Temperature (°C)
Ambient Temperature (°C)
Figure 5a. Temperature Derating Without Heat Sink
Figure 5b. Temperature Derating With Heat Sink
Output Power
BMP Model, dual-output DC/DC converters incorporate a design tradeoff
between total available output power and input voltage range. The total
available power is a function of both the nominal input voltage and the
"width" of the input voltage range. For a given nominal input (24V or 48V),
narrower ranges (2:1 vs. 4:1) have more available power. For a given "width"
of input range (2:1 or 4:1), higher nominal inputs (48V vs. 24V) have more
available power. Each device, as indicated by its part-number suffix (Q12, Q48,
D24 or D48) has a total output power limitation of 25, 30, 35 or 40 Watts,
respectively. Observing these power limitations is the user's responsibility.
As indicated by its Part Number Structure, each ±5V, ±12V or ±15V BMP
device is capable of sourcing up to ±4, ±1.65 or ±1.3 Amps, respectively.
Users have the flexibility of loading either output up to these limits; however
you must be extremely careful not to exceed the total output power rating of
any given device. If, for example, a ±5V device with a 30W power rating
(BMP-5/4-Q48) is sourcing 4A from its +5V output (representing 20W of
+Output power), that device can only supply an additional 10W (2 Amps)
from its –Output.
As a consequence of this "power-allocation" flexibility, the definition of "full
load," as the condition under which performance specifications are tested and
listed, is ambiguous. The following table lists the positive and negative output
currents that DATEL uses to define each device’s "full load."
Model Number
BMP-5/4-Q12
BMP-5/4-Q48
BMP-5/4-D24
BMP-5/4-D48
BMP-12/1.65-Q12
BMP-12/1.65-Q48
BMP-12/1.65-D24
BMP-12/1.65-D48
BMP-15/1.3-Q12
BMP-15/1.3-Q48
BMP-15/1.3-D24
BMP-15/1.3-D48
Voltage
Range
10-36V
18-75V
18-36V
36-75V
10-36V
18-75V
18-36V
36-75V
10-36V
18-75V
18-36V
36-75V
Output
Power
25 Watts
30 Watts
35 Watts
40 Watts
25 Watts
30 Watts
35 Watts
40 Watts
25 Watts
30 Watts
35 Watts
40 Watts
Definition of "Full Load" for Specification Purposes
±5V Currents
±2.5A (25W)
±3A (30W)
±3.5A (35W)
±4A (40W)
–
–
–
–
–
–
–
–
±12V Currents
–
–
–
–
±1.04A (24.96W)
±1.25A (30W)
±1.46A (35W)
±1.67A (40.1W)
–
–
–
–
±15V Currents
–
–
–
–
–
–
–
–
±833mA (24.99W)
±1A (30W)
±1.17A (35.1W)
±1.33A (39.9W)
Table 1. Output Currents Comprising "Full Load"
5
Embedded System
京公网安备 11010802033920号
EEWORLD
