DOMINANT
Innovating Illumination
TM
DATA SHEET:
Opto Technologies
Right Angle DomiLED
TM
InGaN White : DSW-NSG
DomiLED
TM
TM
Synonymous with function and performance, the
DomiLED
series is
perfectly suited for a variety of cross-industrial applications due to its
small package outline, durability and superior brightness.
Features:
>
>
>
>
>
>

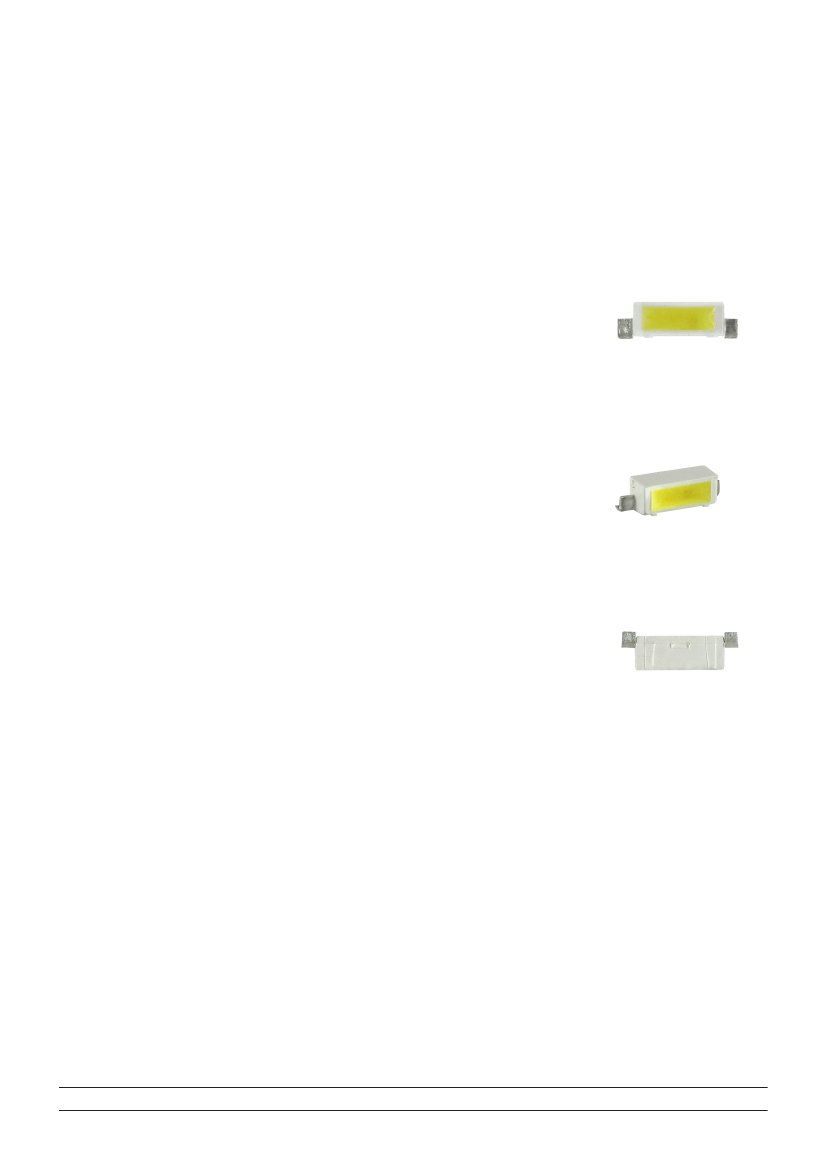

High brightness surface mount LED.
Designed for sideway illumination.
120° viewing angle.
Small package outline.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to IR reflow soldering.
Applications:
>
>
>
>
Automotive: interior applications, eg: switches, telematics,
climate control system, dashboard, etc.
Consumer Appliances: LCD illumination as in PDAs, LCD TV.
Display: full color display video notice board.
Industry: white goods (eg: Oven, microwave, etc.).
© 2005 DomiLED is a trademark of DOMINANT Opto Technologies.
All rights reserved. Product specifications are subject to change without notice.
1
21/06/2012 V7.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
InGaN White : DSW-NSG
Optical Characteristics at Tj=25˚C
Part Ordering
Number
DSW-NSG-V2W-1
Color
White
Viewing
Angle˚
120
Luminous Intensity @ 20mA IV (mcd)
Min.
Typ.
Max.
900.0
1400.0
1800.0
NOTE
1. All part number above comes in a quantity of 2500 units per reel.
2. Luminous intensity is measured with an accuracy of ± 11%.
3. Color binning is carried for all units as per the color-binning table. Only one color group is allowed for each reel.
Electrical Characteristics at Tj=25˚C
Vf @ If = 20mA
Part Number
DSW-NSG
Vr @ Ir = 10uA
Max. (V)
3.8
Typ. (V)
2.9
Typ. (V)
3.2
Min. (V)
5.0
Forward voltage, Vf is measured with an accuracy of ± 0.1 V.
Absolute Maximum Ratings
Maximum Value
DC forward current
Peak pulse current; (tp ≤ 10µs, Duty cycle = 0.005)
Reverse voltage; Ir (max) = 10uA
ESD threshold (HBM)
LED junction temperature
Operating temperature
Storage temperature
Power dissipation (at room temperature)
Thermal resistance
- Junction / ambient, R
th JA
- Junction / solder point, R
th JS
460
240
K/W
K/W
20
100
5
2000
125
-40 … +100
-40 … +100
80
Unit
mA
mA
V
V
˚C
˚C
˚C
mW
(Mounting on FR4 PCB, pad size >= 5 mm
2 per pad)
2
21/06/2012 V7.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
InGaN White : DSW-NSG
White Color Grouping
Dominant White Bin Structure
0.44
0.42
0.40
0.38
0.36
0.34
0.32
0.30
0.28
0.26
0.24
0.26
0.27
•
•
•
0.28
A1
A2
•
•
•
0.29
A3
A4
•
•
•
C1
C2
•
•
•
C3
C4
•
•
•
0.30
0.31
0.32
0.33
0.34
0.35
Chromaticity coordinate groups are measured with an accuracy of ± 0.01.
Bin
A1
A2
A3
A4
C1
C2
C3
C4
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
0.2775
0.2732
0.2775
0.2557
0.2900
0.2939
0.2900
0.2764
0.3025
0.3146
0.3025
0.2971
0.3150
0.3354
0.3150
0.3179
W
0.2900
0.2939
0.2900
0.2764
0.3025
0.3146
0.3025
0.2971
0.3150
0.3354
0.3150
0.3179
0.3275
0.3561
0.3275
0.3386
0.2900
0.3114
0.2900
0.2939
0.3025
0.3321
0.3025
0.3146
0.3150
0.3529
0.3150
0.3354
0.3275
0.3736
0.3275
0.3561
0.2775
0.2907
0.2775
0.2732
0.2900
0.3114
0.2900
0.2939
0.3025
0.3321
0.3025
0.3146
0.3150
0.3529
0.3150
0.3354
Dominant color coordinate is measured with an accuracy of ± 0.01.
3
21/06/2012 V7.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
InGaN White : DSW-NSG
Characteristics
Symbol
Temperature coefficient of V
F (typ)
I
F
= 20mA; 0 ˚C <= T <= 100 ˚C
Temperature coefficient of I
V (typ)
I
F
= 20mA; 0 ˚C <= T <= 100 ˚C
Temperature coefficient of Cx
(typ)
I
F
= 20mA; 0 ˚C <= T <= 100 ˚C
Temperature coefficient of Cy
(typ)
I
F
= 350mA; 0 ˚C <= T <= 100 ˚C
TC
V
Part Number
DSW-NSG
Value
-3.20
Unit
mV / K
TC
IV
DSW-NSG
-3.0
mcd / K
TC
Cx
DSW-NSG
-0.0002
TC
Cy
DSW-NSG
-0.0002
4
21/06/2012 V7.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
InGaN White : DSW-NSG
White Color Grouping
0.40
0.38
0.36
0.34
0.32
10,000K
7,000K
5,650K
6,300K
White Bin Structure
4,500K
5,000K
UU
UL
VU
WU
VL
XU
YU
YL
XL
WL
0.30
0.28
0.26
0.24
0.24
0.26
0.28
0.30
0.32
0.34
0.36
0.38
Chromaticity coordinate groups are measured with an accuracy of ± 0.01.
Bin
YU
YL
XU
XL
WU
WL
VU
VL
UU
UL
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
1
0.274
0.301
0.283
0.284
0.303
0.333
0.307
0.316
0.315
0.343
0.317
0.325
0.329
0.354
0.329
0.336
0.347
0.368
0.345
0.350
2
0.283
0.284
0.290
0.270
0.307
0.316
0.310
0.299
0.317
0.325
0.319
0.310
0.329
0.336
0.329
0.319
0.345
0.350
0.343
0.331
3
0.307
0.316
0.310
0.299
0.317
0.325
0.319
0.310
0.329
0.336
0.329
0.319
0.345
0.350
0.343
0.331
0.361
0.365
0.357
0.343
4
0.303
0.333
0.307
0.316
0.315
0.343
0.317
0.325
0.329
0.354
0.329
0.336
0.347
0.368
0.345
0.350
0.364
0.383
0.361
0.365
Dominant color coordinate is measured with an accuracy of ± 0.01.
5
21/06/2012 V7.0
