DDY-GRS-LM2-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> DDY-GRS-LM2-1

DDY-GRS-LM2-1: DescriptionSingle Color LED, Yellow, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size893KB，13 Pages; ManufacturerDOMINANT; Websitehttp://www.dominant-semi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DDY-GRS-LM2-1 Overview

Single Color LED, Yellow, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2

DDY-GRS-LM2-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DOMINANT
package instruction	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown
Other features	SUPPORTS INFRARED
color	YELLOW
color@wavelength	Yellow
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.6 V
Nominal luminous intensity	18.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.8 mm
method of packing	TAPE AND REEL 7\"
peak wavelength	587 nm
Maximum reverse voltage	5 V
shape	ROUND
size	2.4 mm
surface mount	YES
Terminal pitch	4.5 mm
perspective	120 deg

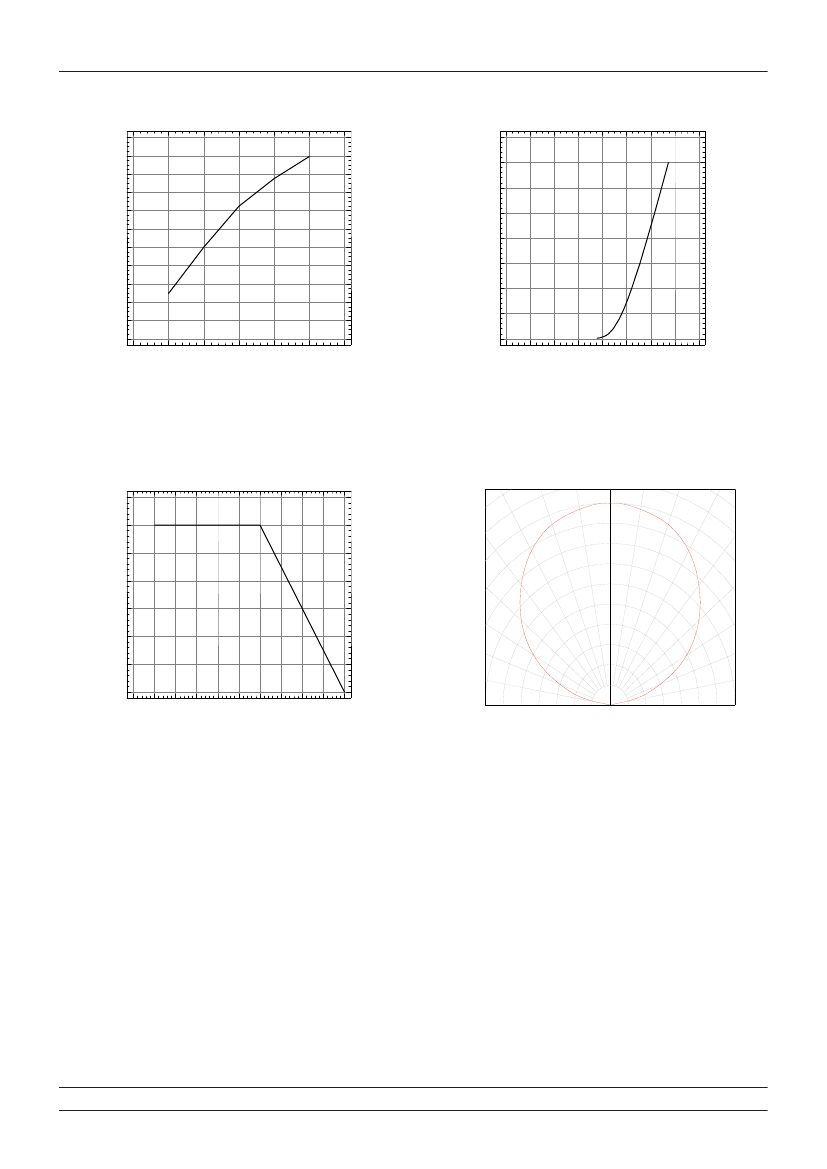

Preview

Download Datasheet

View All

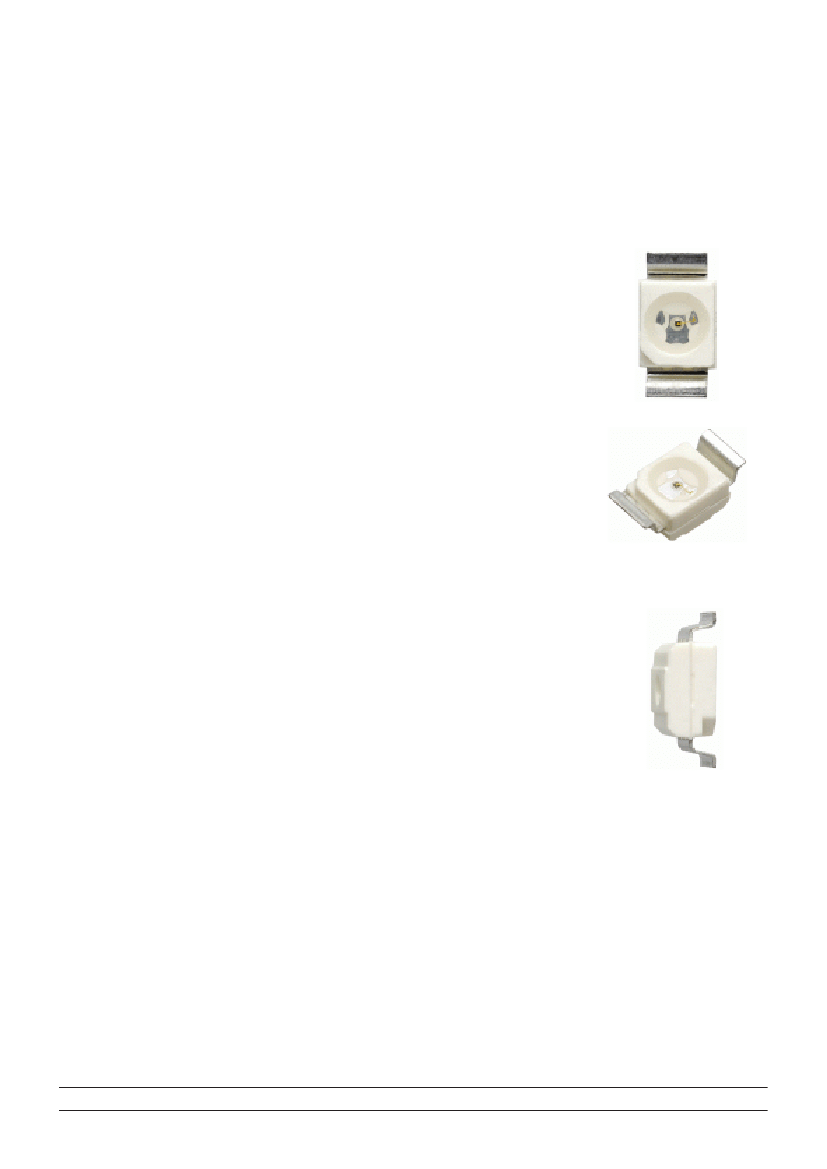

DOMINANT

Innovating Illumination

DATA SHEET:

Opto Technologies

DomiLED

GaP : DDx-GRS

DomiLED

Synonymous with function and performance, the

DomiLED

series is

perfectly suited for a variety of cross-industrial applications due to its

small package outline, durability and superior brightness.

Features:

Surface mount LED.

120° viewing angle.

Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.

Qualified according to JEDEC moisture sensitivity Level 2.

Compatible to IR reflow soldering.

Environmental friendly; RoHS compliance.

Applications:

> Automotive:

Interior applications, eg: switches, telematics, climate control system,

dashboard, etc.

Exterior applications, eg: signal lighting, Center High Mounted Stop Light

(CHMSL)

> Consumer Appliances: Backlighting illumination as in PDAs, LCD TV.

> Communication: indicator and backlight in mobile phone, flash light.

> Signage: full colour display video notice board, signage, special effect

lighting.

> Industrial: white goods (eg: Oven, microwave, etc.), light bar, illuminated

advertising.

22/06/2012 V5.0

DDY-GRS-LM2-1 Related Products

	DDY-GRS-LM2-1	DDO-GRS-LM2-1	DDR-GRS-LM2-1	DDY-GRS-MN2-1	DDR-GRS-MN2-1	DDG-GRS-MN2-1
Description	Single Color LED, Yellow, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Orange, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Red, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Yellow, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Red, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Green, 2.4mm, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
package instruction	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED
color	YELLOW	ORANGE	RED	YELLOW	RED	GREEN
color@wavelength	Yellow	Amber	Orange	Yellow	Orange	Green
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Maximum forward voltage	2.6 V	2.6 V	2.6 V	2.6 V	2.6 V	2.6 V
Nominal luminous intensity	18.0 mcd	18.0 mcd	18.0 mcd	28.5 mcd	28.5 mcd	28.5 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm
method of packing	TAPE AND REEL 7\"	TAPE AND REEL 7"	TAPE AND REEL 7"	TAPE AND REEL 7\"	TAPE AND REEL 7\"	TAPE AND REEL 7\"
peak wavelength	587 nm	605 nm	625 nm	587 nm	625 nm	570 nm
Maximum reverse voltage	5 V	5 V	5 V	5 V	5 V	5 V
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	2.4 mm	2.4 mm	2.4 mm	2.4 mm	2.4 mm	2.4 mm
surface mount	YES	YES	YES	YES	YES	YES
Terminal pitch	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm
perspective	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg
Is it Rohs certified?	conform to	conform to	-	-	conform to	conform to
Maker	DOMINANT	-	-	DOMINANT	DOMINANT	DOMINANT
