DG601DY-T1 datasheet, PDF - EEWORLD Datasheet

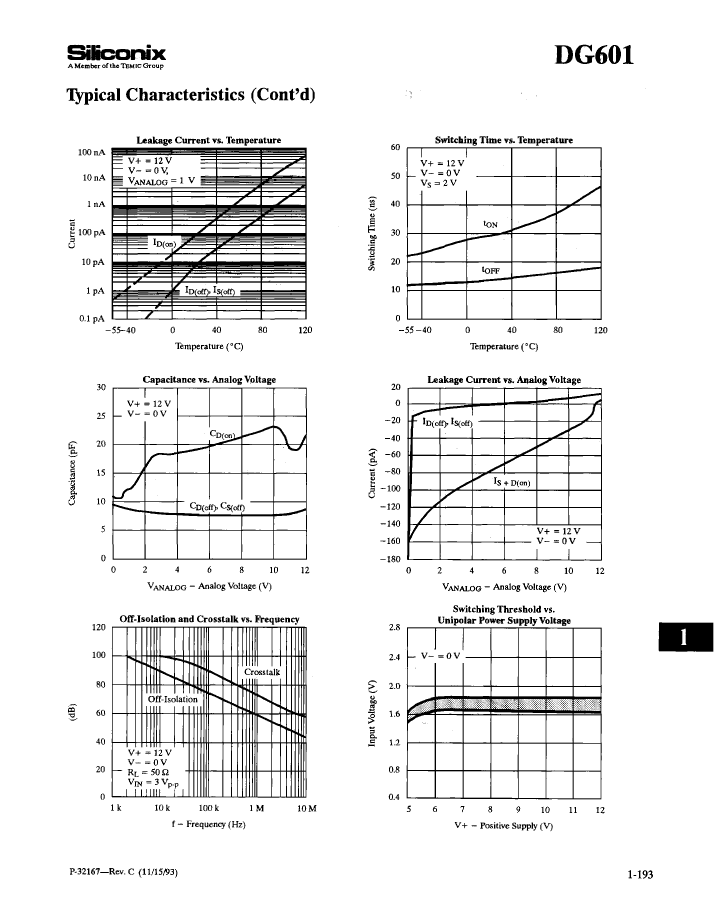

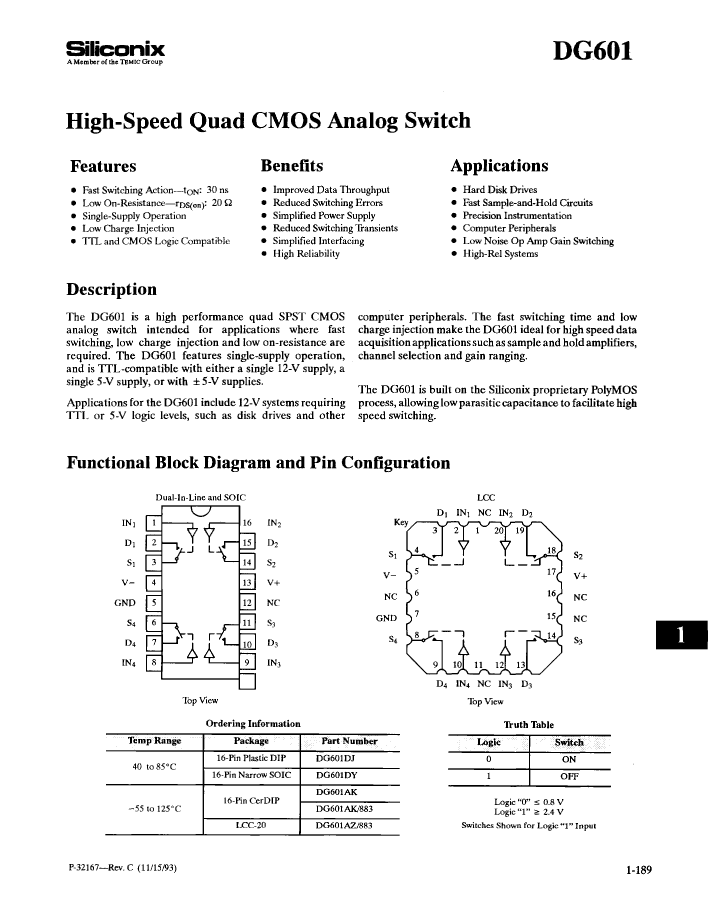

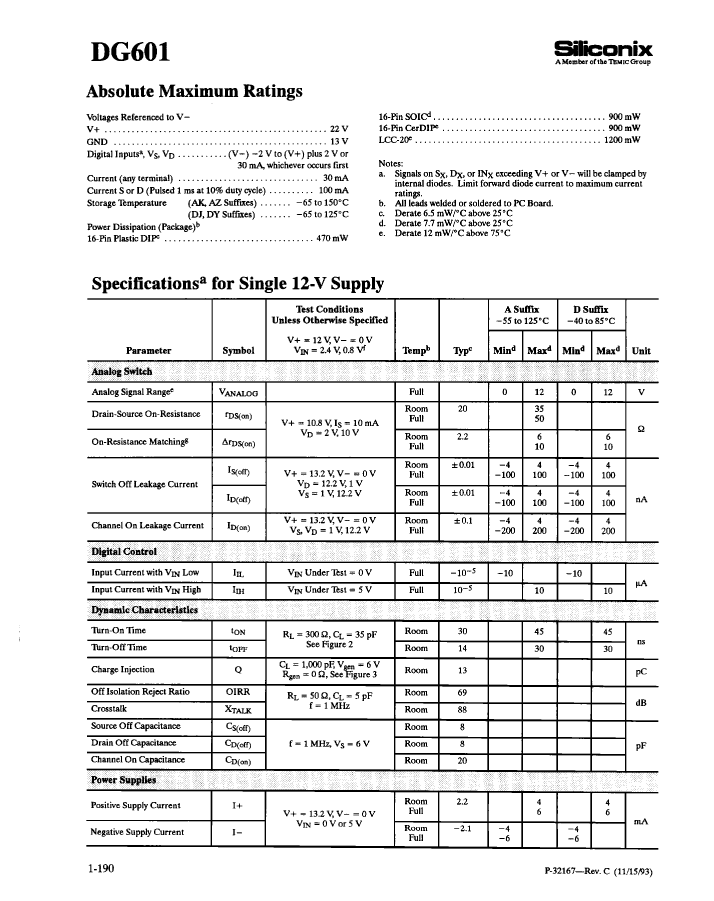

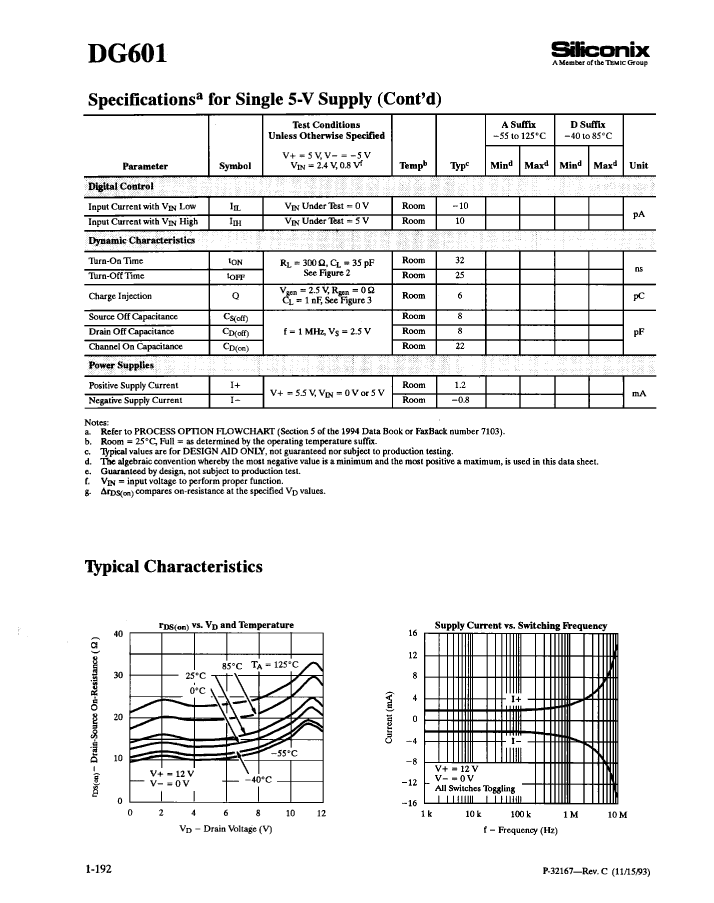

DG601DY-T1: DescriptionIC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, SOIC-16, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size365KB，11 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

DG601DY-T1 Overview

IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, SOIC-16, Multiplexer or Switch

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Vishay
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	9.9 mm
Nominal Negative Supply Voltage (Vsup)
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	69 dB
On-state resistance matching specifications	2.2 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply current (Isup)	6 mA
Nominal supply voltage (Vsup)	12 V
surface mount	YES
Maximum disconnect time	30 ns
Maximum connection time	45 ns
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3.9 mm

	DG601DY-T1	5962-9089101M2X	5962-9089101MEX	5962-9089101MEA
Description	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, SOIC-16, Multiplexer or Switch	SPST, 4 Func, 1 Channel, CMOS, CQCC20, CERAMIC, LCC-20	SPST, 4 Func, 1 Channel, CMOS, CDIP16, CERAMIC, DIP-16	SPST, 4 Func, CMOS, CDIP16
Parts packaging code	SOIC	QLCC	DIP	DIP
Contacts	16	20	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST
JESD-30 code	R-PDSO-G16	S-CQCC-N20	R-GDIP-T16	R-XDIP-T16
Number of functions	4	4	4	4
Number of terminals	16	20	16	16
Maximum operating temperature	85 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC
encapsulated code	SOP	QCCN	DIP	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	CHIP CARRIER	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	NO	NO
Maximum connection time	45 ns	45 ns	45 ns	45 ns
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	MILITARY	MILITARY
Terminal form	GULL WING	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	QUAD	DUAL	DUAL
Maker	Vishay	-	Vishay	Vishay
package instruction	SOP,	QCCN,	DIP,	-
JESD-609 code	e0	e0	-	e0
Number of channels	1	1	1	-
Nominal supply voltage (Vsup)	12 V	12 V	12 V	-
Maximum disconnect time	30 ns	30 ns	30 ns	-
Terminal surface	TIN LEAD	TIN LEAD	-	Tin/Lead (Sn/Pb) - hot dipped
Maximum on-state resistance (Ron)	-	35 Ω	35 Ω	140 Ω
