M58MR016D120ZC6T datasheet, PDF

Datasheet> All Categories > storage> storage> M58MR016D120ZC6T

M58MR016D120ZC6T: Description1MX16 FLASH 1.8V PROM, 20ns, PBGA48, 0.50 MM PITCH, TFBGA-48; Categorystorage storage; File Size385KB，51 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M58MR016D120ZC6T Overview

1MX16 FLASH 1.8V PROM, 20ns, PBGA48, 0.50 MM PITCH, TFBGA-48

M58MR016D120ZC6T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Parts packaging code	BGA
package instruction	0.50 MM PITCH, TFBGA-48
Contacts	48
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	20 ns
startup block	BOTTOM
command user interface	YES
Universal Flash Interface	YES
Data polling	NO
JESD-30 code	R-PBGA-B48
JESD-609 code	e1
length	10.53 mm
memory density	16777216 bit
Memory IC Type	FLASH
memory width	16
Number of functions	1
Number of departments/size	8,31
Number of terminals	48
word count	1048576 words
character code	1000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	1MX16
Package body material	PLASTIC/EPOXY
encapsulated code	TFBGA
Encapsulate equivalent code	BGA48,8X14,40/20
Package shape	RECTANGULAR
Package form	GRID ARRAY, THIN PROFILE, FINE PITCH
page size	4 words
Parallel/Serial	PARALLEL
power supply	1.8 V
Programming voltage	1.8 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Department size	4K,32K
Maximum standby current	0.000005 A
Maximum slew rate	0.05 mA
Maximum supply voltage (Vsup)	2 V
Minimum supply voltage (Vsup)	1.7 V
Nominal supply voltage (Vsup)	1.8 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
Terminal form	BALL
Terminal pitch	0.5 mm
Terminal location	BOTTOM
switch bit	NO
type	NOR TYPE
width	6.29 mm

Preview

Download Datasheet

View All

M58MR016C

M58MR016D

16 Mbit (1Mb x16, Mux I/O, Dual Bank, Burst)

1.8V Supply Flash Memory

PRELIMINARY DATA

SUPPLY VOLTAGE

– V

= V

DDQ

= 1.7V to 2.0V for Program,

Erase and Read

– V

= 12V for fast Program (optional)

MULTIPLEXED ADDRESS/DATA

SYNCHRONOUS / ASYNCHRONOUS READ

– Burst mode Read: 40MHz

– Page mode Read (4 Words Page)

– Random Access: 100ns

FBGA

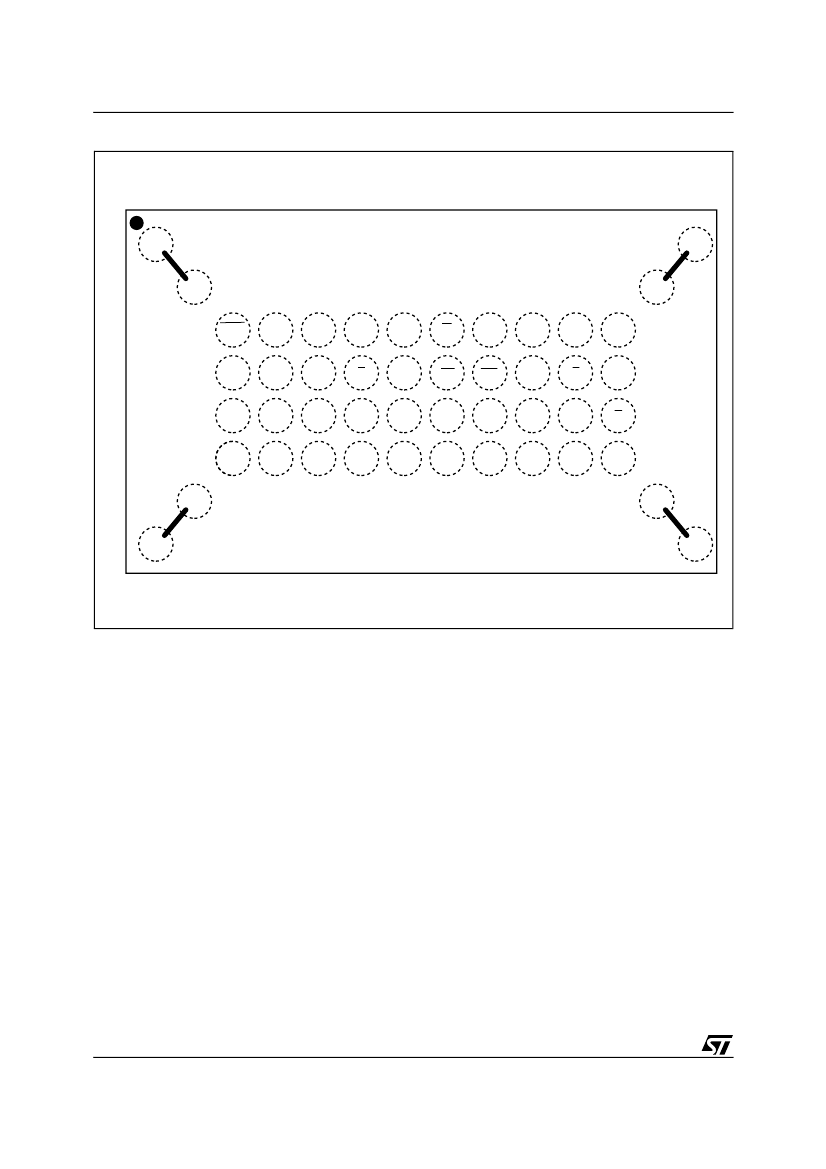

TFBGA48 (ZC)

10 x 4 ball array

PROGRAMMING TIME

– 10µs by Word typical

– Two or four words programming option

MEMORY BLOCKS

– Dual Bank Memory Array: 4/12 Mbit

– Parameter Blocks (Top or Bottom location)

Figure 1. Logic Diagram

VDD VDDQ VPP

A16-A19

ADQ0-ADQ15

M58MR016C

M58MR016D

BINV

WAIT

DUAL OPERATIONS

– Read within one Bank while Program or

Erase within the other

– No delay between Read and Write operations

PROTECTION/SECURITY

– All Blocks protected at Power-up

– Any combination of Blocks can be protected

– 64 bit unique device identifier

– 64 bit user programmable OTP cells

– One parameter block permanently lockable

COMMON FLASH INTERFACE (CFI)

100,000 PROGRAM/ERASE CYCLES per

BLOCK

ELECTRONIC SIGNATURE

– Manufacturer Code: 20h

– Top Device Code, M58MR016C: 88DEh

– Bottom Device Code, M58MR016D: 88E0h

VSS

AI05228

August 2002

This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change without notice.

1/51

M58MR016D120ZC6T Related Products

	M58MR016D120ZC6T	M58MR016D100ZC6T	M58MR016C120ZC6T	M58MR016C100ZC6T
Description	1MX16 FLASH 1.8V PROM, 20ns, PBGA48, 0.50 MM PITCH, TFBGA-48	1MX16 FLASH 1.8V PROM, 20ns, PBGA48, 0.50 MM PITCH, TFBGA-48	1MX16 FLASH 1.8V PROM, 20ns, PBGA48, 0.50 MM PITCH, TFBGA-48	1MX16 FLASH 1.8V PROM, 20ns, PBGA48, 0.50 MM PITCH, TFBGA-48
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	BGA	BGA	BGA	BGA
package instruction	0.50 MM PITCH, TFBGA-48	0.50 MM PITCH, TFBGA-48	0.50 MM PITCH, TFBGA-48	0.50 MM PITCH, TFBGA-48
Contacts	48	48	48	48
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	20 ns	20 ns	20 ns	20 ns
startup block	BOTTOM	BOTTOM	TOP	TOP
command user interface	YES	YES	YES	YES
Universal Flash Interface	YES	YES	YES	YES
Data polling	NO	NO	NO	NO
JESD-30 code	R-PBGA-B48	R-PBGA-B48	R-PBGA-B48	R-PBGA-B48
JESD-609 code	e1	e1	e1	e1
length	10.53 mm	10.53 mm	10.53 mm	10.53 mm
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH
memory width	16	16	16	16
Number of functions	1	1	1	1
Number of departments/size	8,31	8,31	8,31	8,31
Number of terminals	48	48	48	48
word count	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
organize	1MX16	1MX16	1MX16	1MX16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TFBGA	TFBGA	TFBGA	TFBGA
Encapsulate equivalent code	BGA48,8X14,40/20	BGA48,8X14,40/20	BGA48,8X14,40/20	BGA48,8X14,40/20
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	GRID ARRAY, THIN PROFILE, FINE PITCH	GRID ARRAY, THIN PROFILE, FINE PITCH	GRID ARRAY, THIN PROFILE, FINE PITCH	GRID ARRAY, THIN PROFILE, FINE PITCH
page size	4 words	4 words	4 words	4 words
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	1.8 V	1.8 V	1.8 V	1.8 V
Programming voltage	1.8 V	1.8 V	1.8 V	1.8 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm
Department size	4K,32K	4K,32K	4K,32K	4K,32K
Maximum standby current	0.000005 A	0.000005 A	0.000005 A	0.000005 A
Maximum slew rate	0.05 mA	0.05 mA	0.05 mA	0.05 mA
Maximum supply voltage (Vsup)	2 V	2 V	2 V	2 V
Minimum supply voltage (Vsup)	1.7 V	1.7 V	1.7 V	1.7 V
Nominal supply voltage (Vsup)	1.8 V	1.8 V	1.8 V	1.8 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)	Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)	Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)	Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
Terminal form	BALL	BALL	BALL	BALL
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
switch bit	NO	NO	NO	NO
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
width	6.29 mm	6.29 mm	6.29 mm	6.29 mm
