DG306AAK/883 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG306AAK/883

DG306AAK/883: DescriptionDPST, 2 Func, CMOS, CDIP14; CategoryAnalog mixed-signal IC The signal circuit; File Size557KB，8 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

DG306AAK/883 Overview

DPST, 2 Func, CMOS, CDIP14

DG306AAK/883 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Reach Compliance Code	not_compliant
Analog Integrated Circuits - Other Types	DPST
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NO
Number of functions	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
output	SEPARATE OUTPUT
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	15 V
surface mount	NO
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

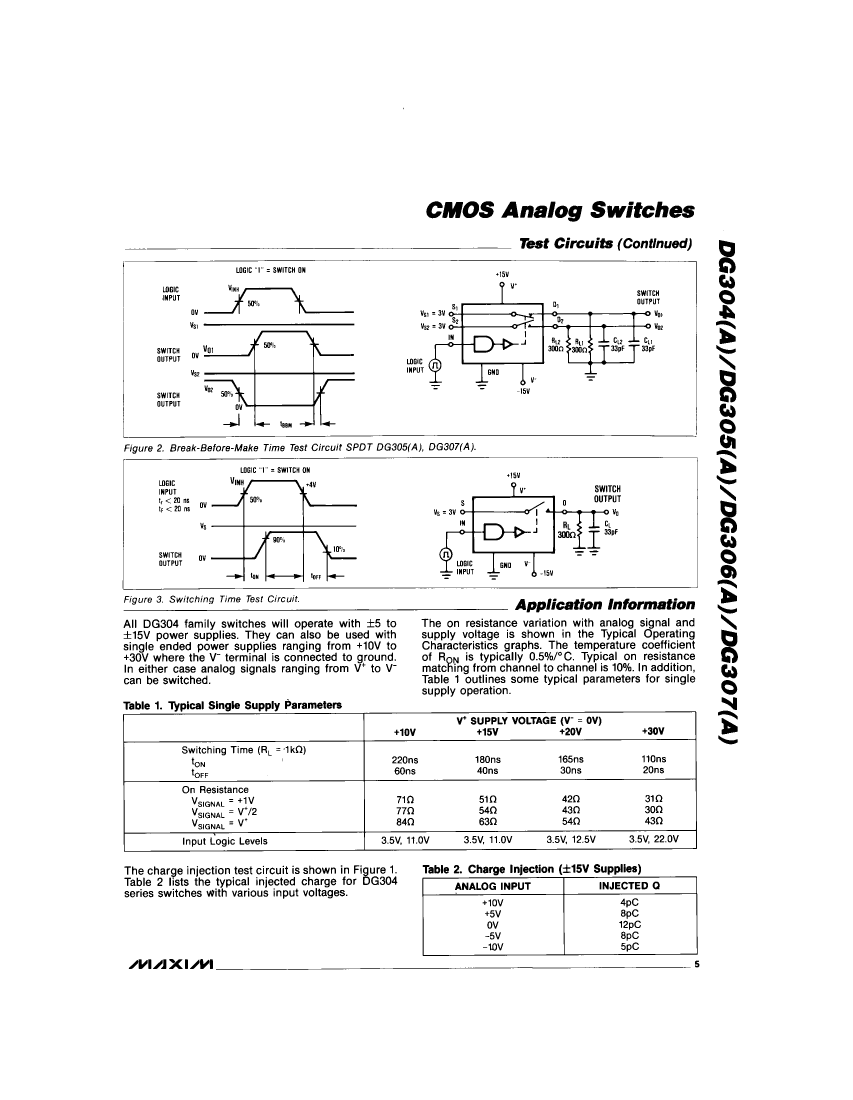

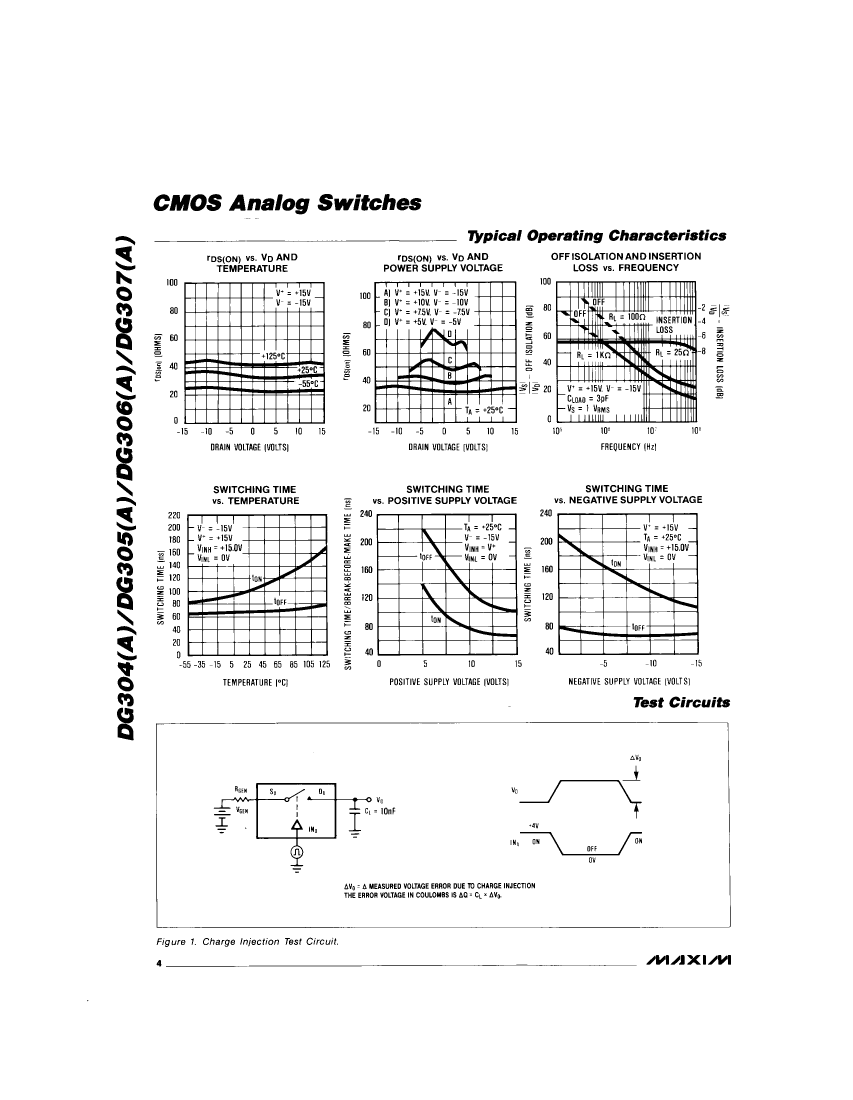

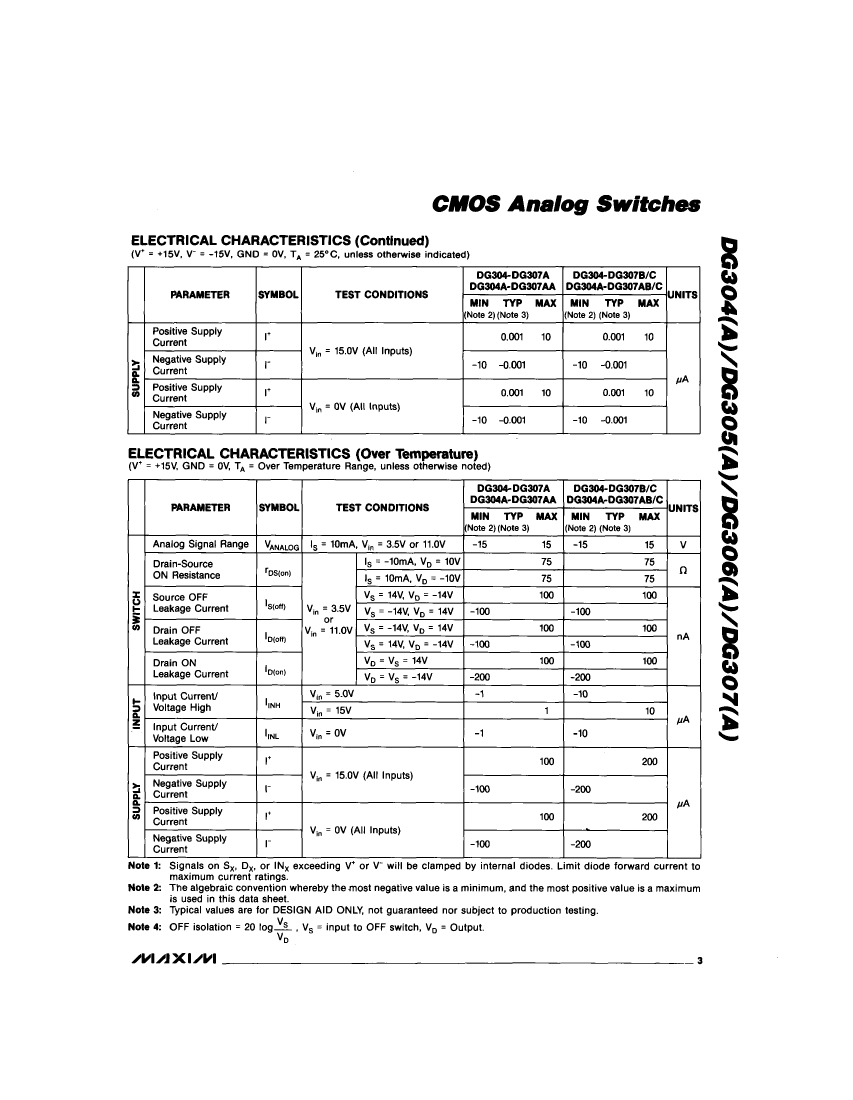

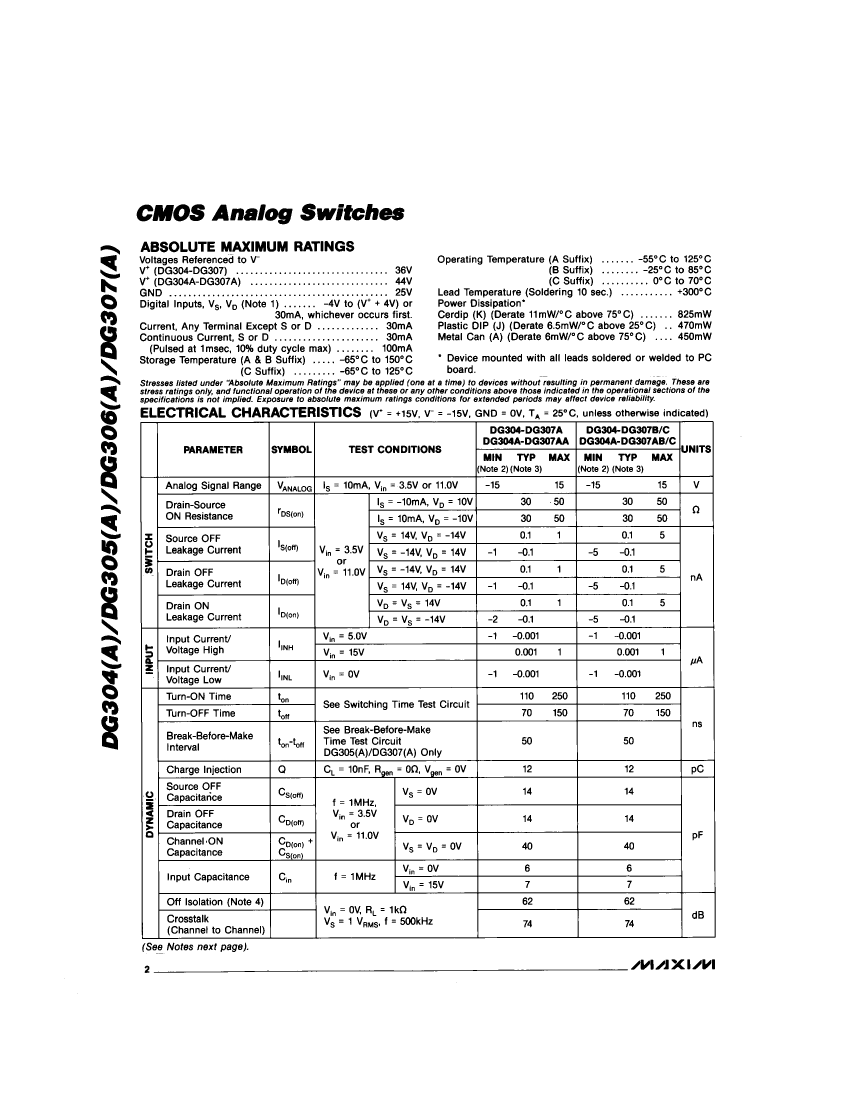

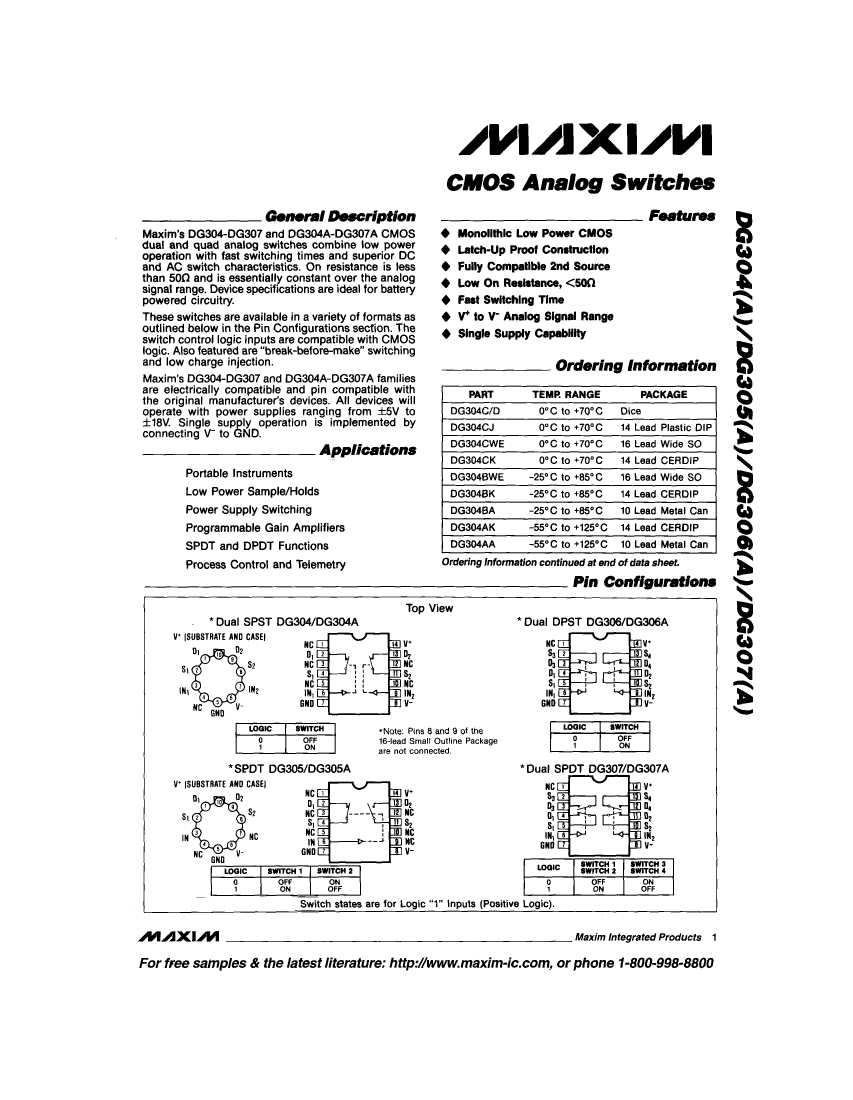

Preview

Download Datasheet

View All

DG306AAK/883 Related Products

	DG306AAK/883	DG305AAA/HR	DG305AAA/883	DG305AAK/HR	DG304CA	DG304AAA/HR	DG304AAK/883	DG307AAK/883	DG307AAZ/883	DG304ACA
Description	DPST, 2 Func, CMOS, CDIP14	SPDT, 1 Func, CMOS, MBCY10	SPDT, 1 Func, CMOS, MBCY10	SPDT, 1 Func, CMOS, CDIP14	SPST, 2 Func, CMOS, MBCY10	SPST, 2 Func, CMOS, MBCY10	SPST, 2 Func, CMOS, CDIP14	SPDT, 2 Func, CMOS, CDIP14	SPDT, 2 Func, CMOS, CQCC20	SPST, 2 Func, CMOS, MBCY10, CAN-10
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Analog Integrated Circuits - Other Types	DPST	SPDT	SPDT	SPDT	SPST	SPST	SPST	SPDT	SPDT	SPST
JESD-30 code	R-XDIP-T14	O-MBCY-W10	O-MBCY-W10	R-XDIP-T14	O-MBCY-W10	O-MBCY-W10	R-XDIP-T14	R-XDIP-T14	S-XQCC-N20	O-MBCY-W10
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	2	1	1	1	2	2	2	2	2	2
Number of terminals	14	10	10	14	10	10	14	14	20	10
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	70 °C	125 °C	125 °C	125 °C	125 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-
Package body material	CERAMIC	METAL	METAL	CERAMIC	METAL	METAL	CERAMIC	CERAMIC	CERAMIC	METAL
Encapsulate equivalent code	DIP14,.3	CAN10,.23	CAN10,.23	DIP14,.3	CAN10,.23	CAN10,.23	DIP14,.3	DIP14,.3	LCC20,.35SQ	CAN10,.23
Package shape	RECTANGULAR	ROUND	ROUND	RECTANGULAR	ROUND	ROUND	RECTANGULAR	RECTANGULAR	SQUARE	ROUND
Package form	IN-LINE	CYLINDRICAL	CYLINDRICAL	IN-LINE	CYLINDRICAL	CYLINDRICAL	IN-LINE	IN-LINE	CHIP CARRIER	CYLINDRICAL
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	WIRE	WIRE	THROUGH-HOLE	WIRE	WIRE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	WIRE
Terminal location	DUAL	BOTTOM	BOTTOM	DUAL	BOTTOM	BOTTOM	DUAL	DUAL	QUAD	BOTTOM
output	SEPARATE OUTPUT	-	-	-	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Filter level	38535Q/M;38534H;883B	MIL-STD-883 Class B (Modified)	38535Q/M;38534H;883B	MIL-STD-883 Class B (Modified)	-	MIL-STD-883 Class B (Modified)	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-
