ST486DX266PS datasheet, PDF - EEWORLD Datasheet

ST486DX266PS: Description32-BIT, 66MHz, MICROPROCESSOR, PPGA168, PLASTIC, PGA-168; CategoryThe embedded processor and controller Microcontrollers and processors; File Size541KB，23 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

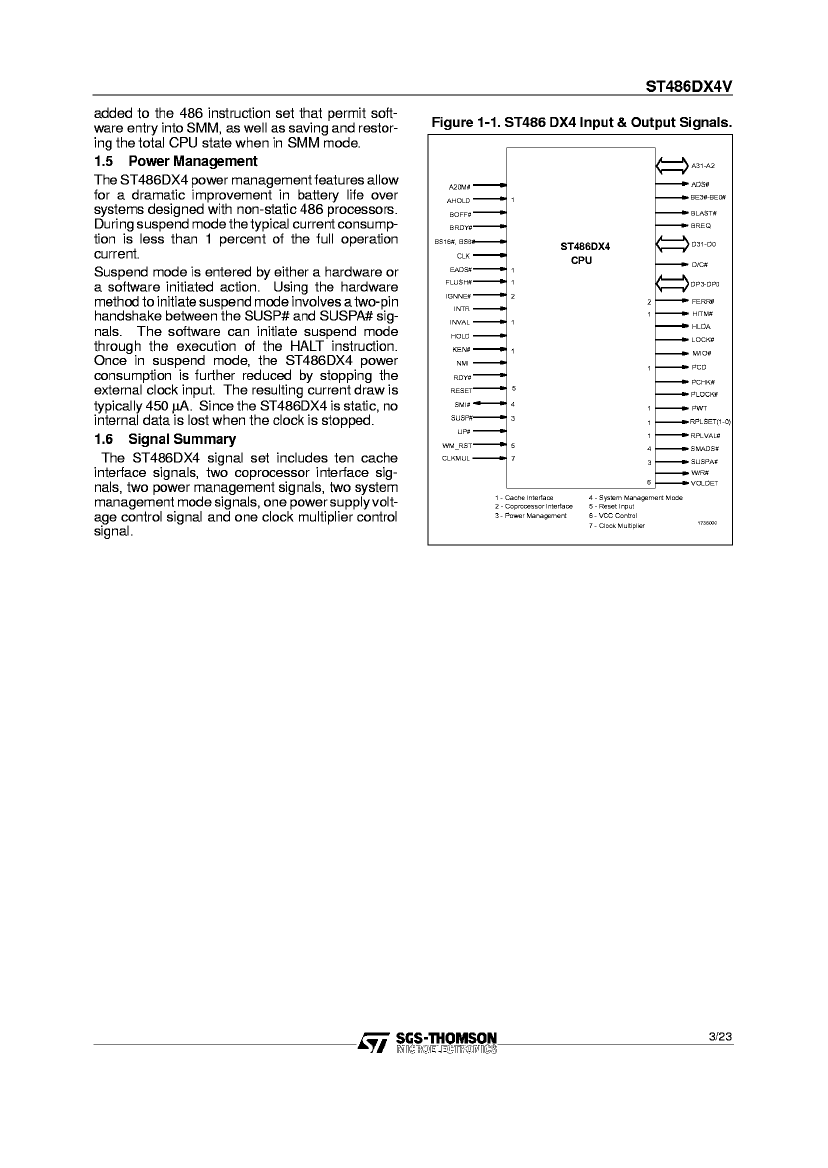

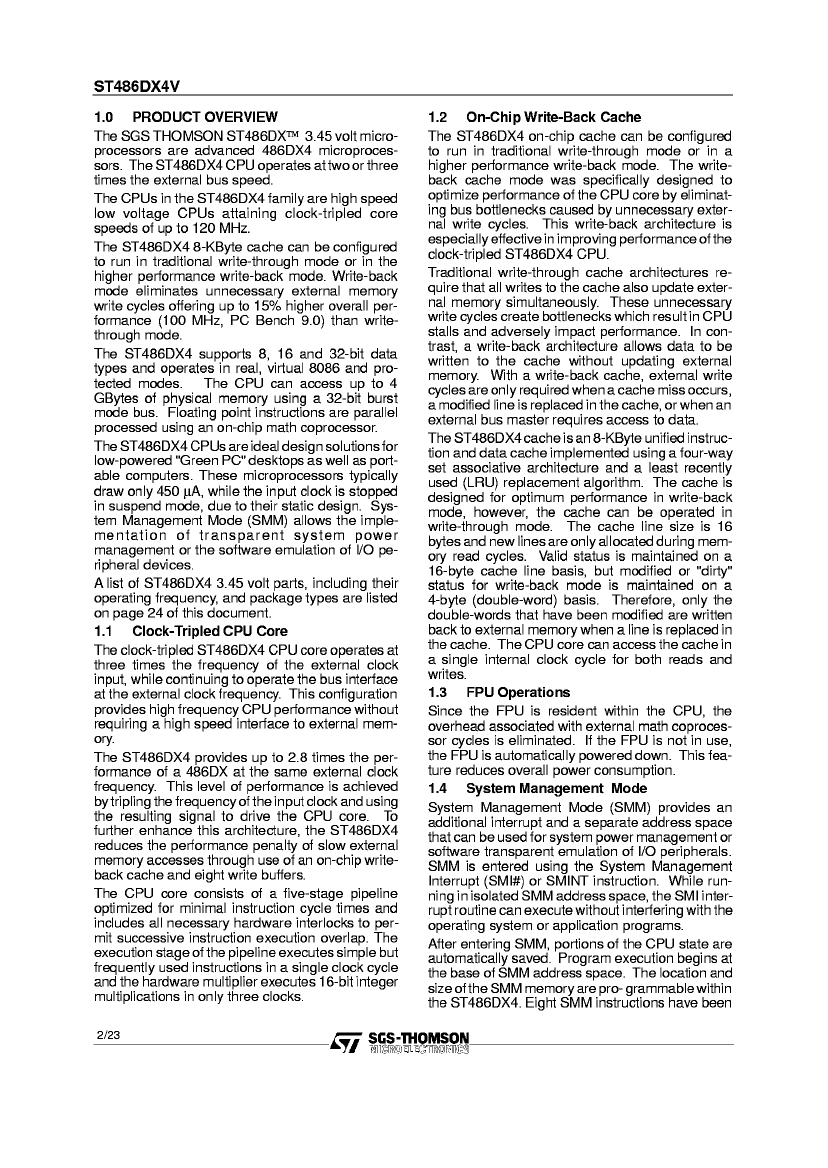

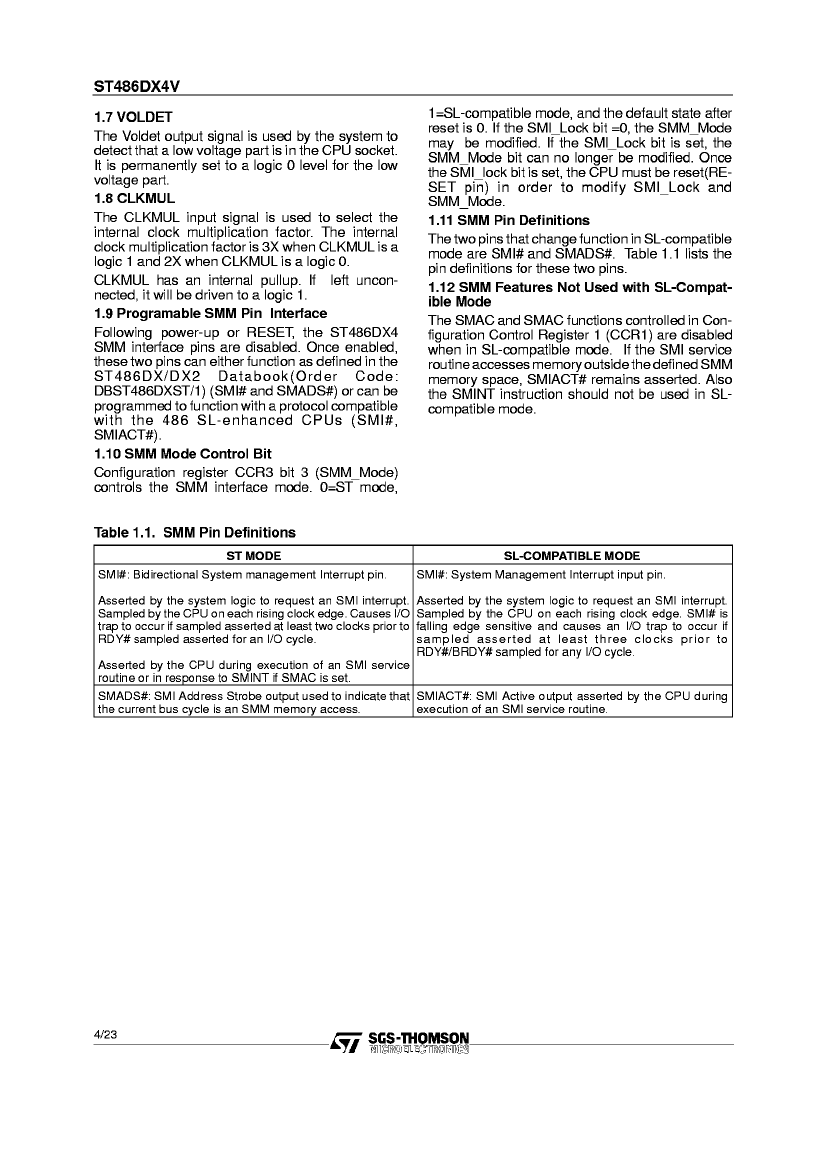

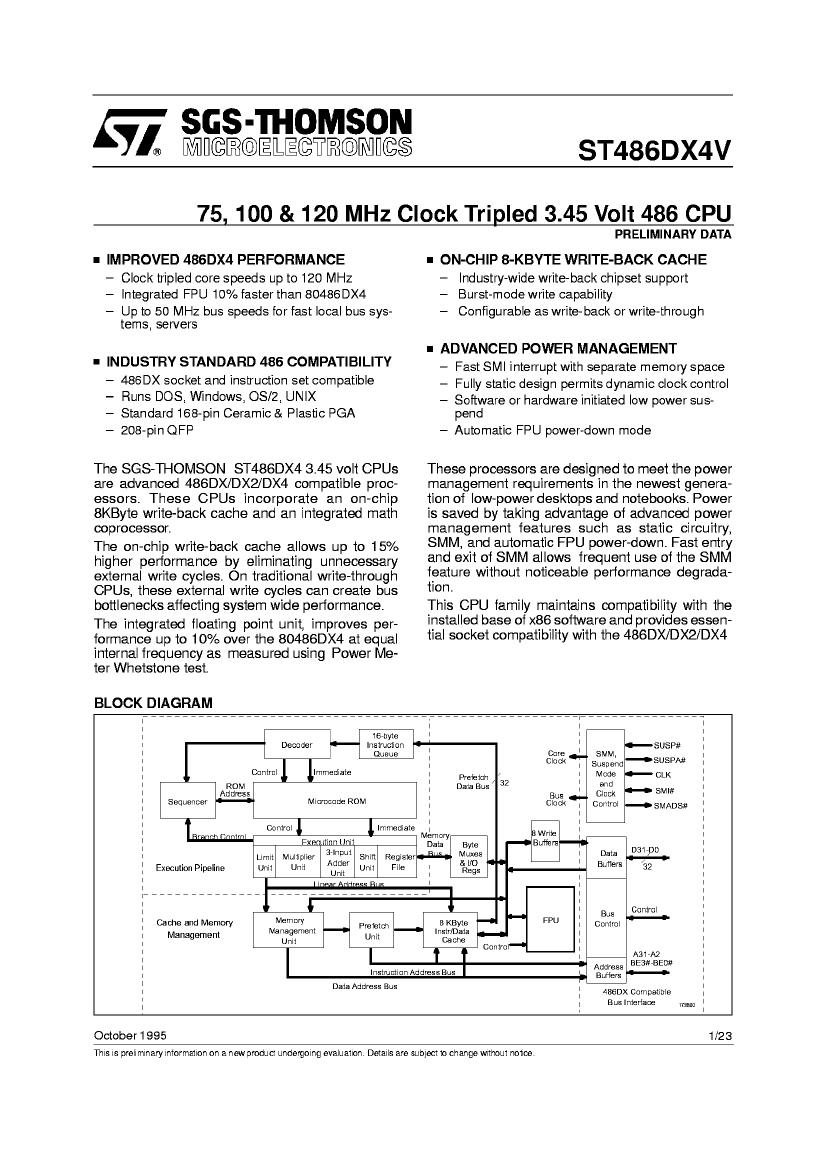

ST486DX266PS Overview

32-BIT, 66MHz, MICROPROCESSOR, PPGA168, PLASTIC, PGA-168

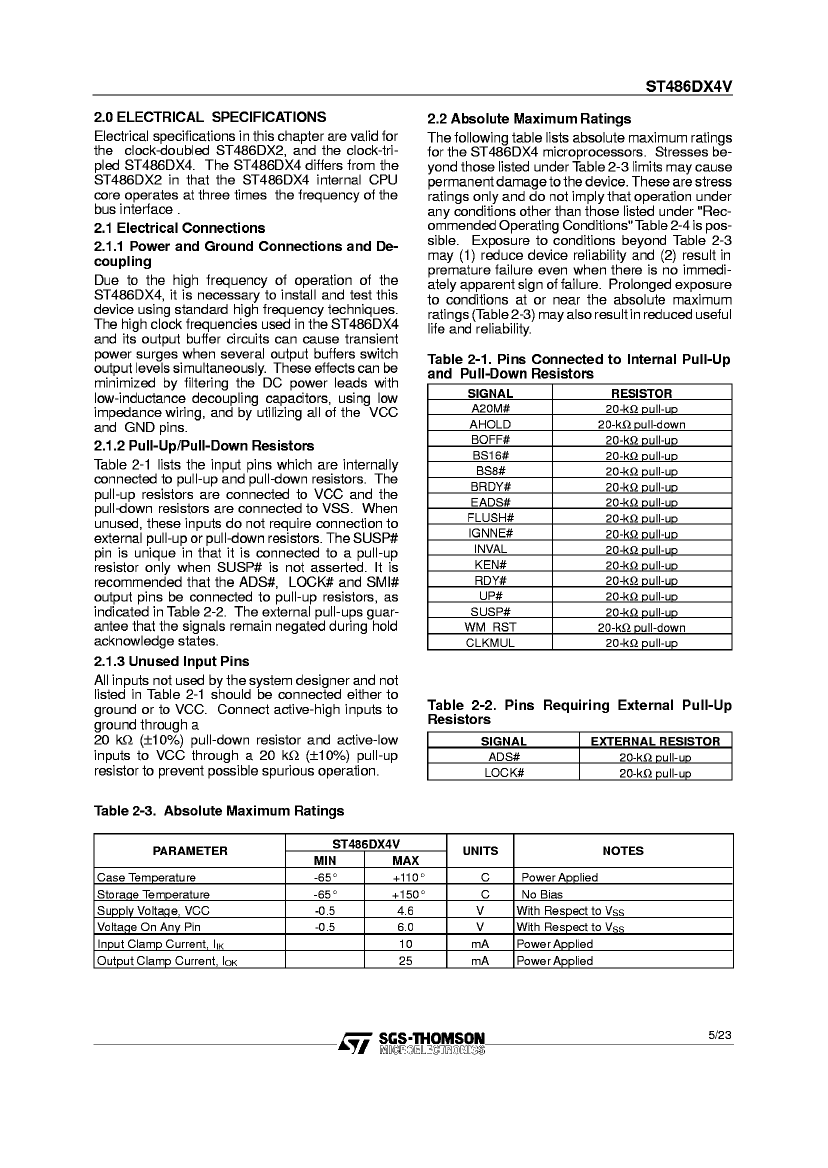

Parameter Name	Attribute value
Maker	STMicroelectronics
Parts packaging code	PGA
package instruction	PGA,
Contacts	168
Reach Compliance Code	unknown
Address bus width	32
bit size	32
boundary scan	NO
maximum clock frequency	33 MHz
External data bus width	32
Format	FLOATING POINT
Integrated cache	YES
JESD-30 code	S-PPGA-P168
length	44.45 mm
low power mode	YES
Number of terminals	168
Maximum operating temperature	85 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	PGA
Package shape	SQUARE
Package form	GRID ARRAY
Certification status	Not Qualified
Maximum seat height	4.57 mm
speed	66 MHz
Nominal supply voltage	5 V
surface mount	NO
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
width	44.45 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR
