SMC6SB37F6 datasheet, PDF - EEWORLD Datasheet

SMC6SB37F6: DescriptionIC,MICROCONTROLLER,4-BIT,E0C6200/SMC6200 CPU,CMOS,QFP,60PIN,PLASTIC; CategoryThe embedded processor and controller Microcontrollers and processors; File Size6MB，129 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

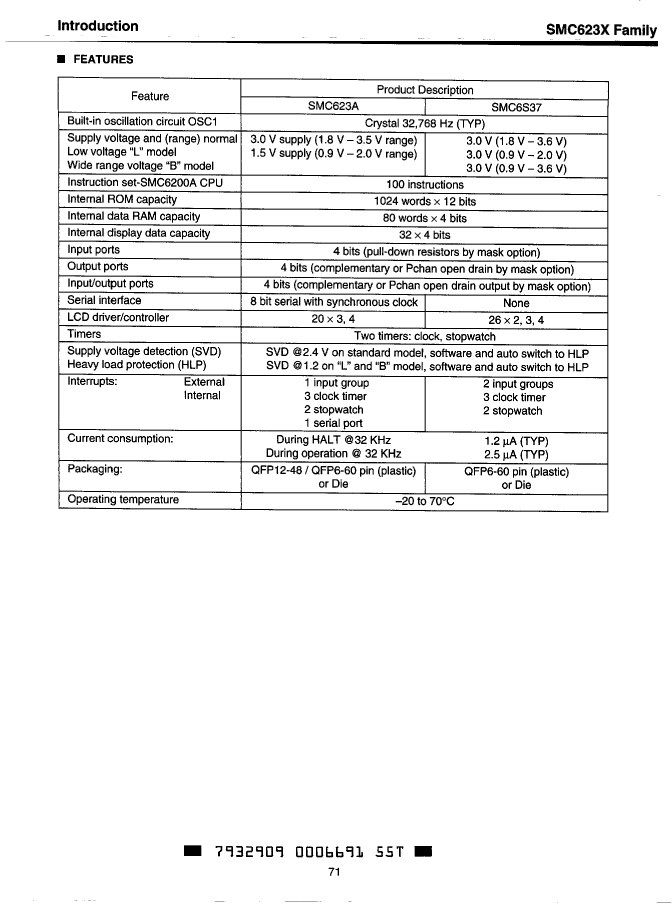

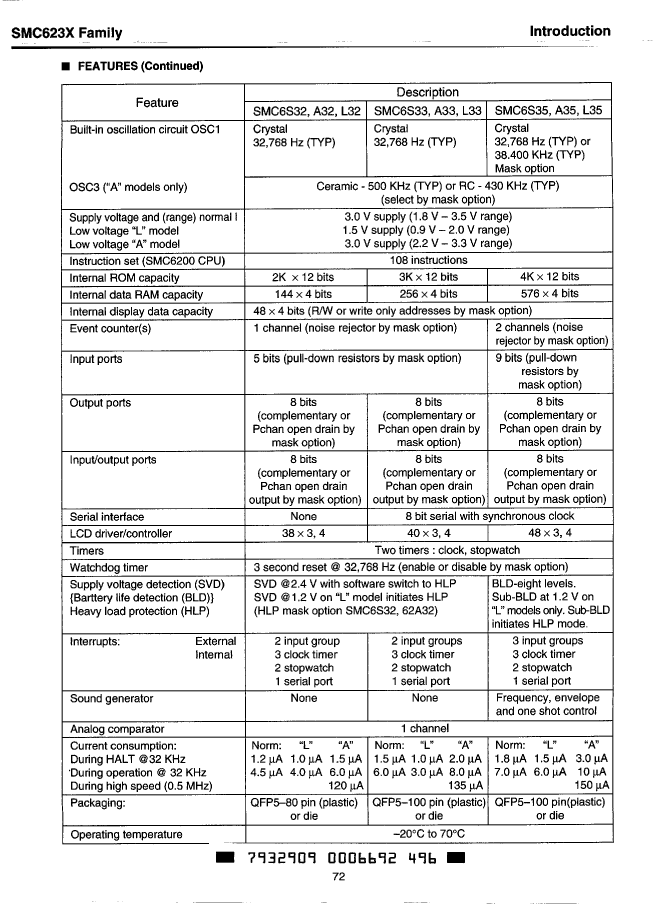

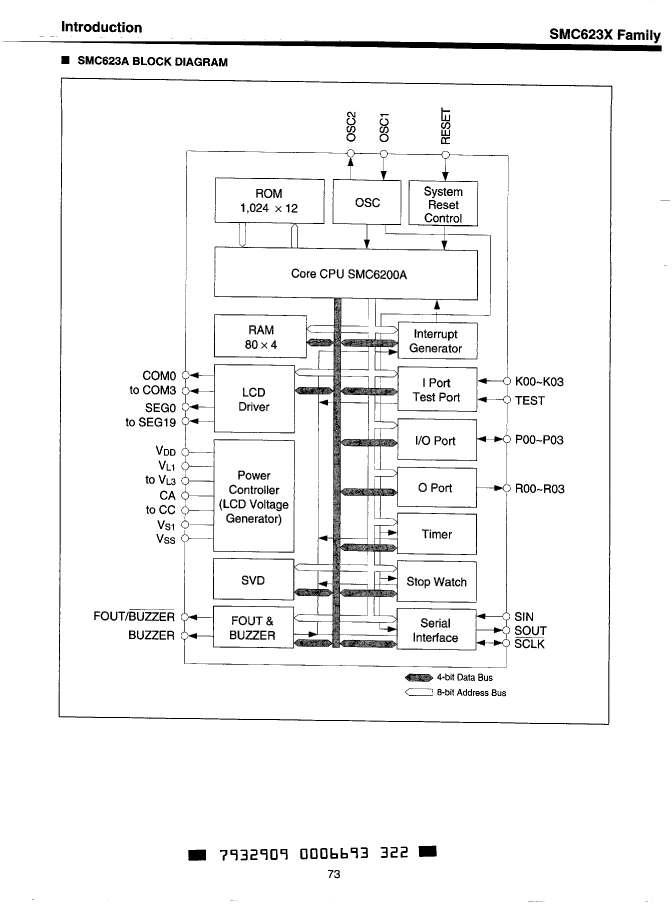

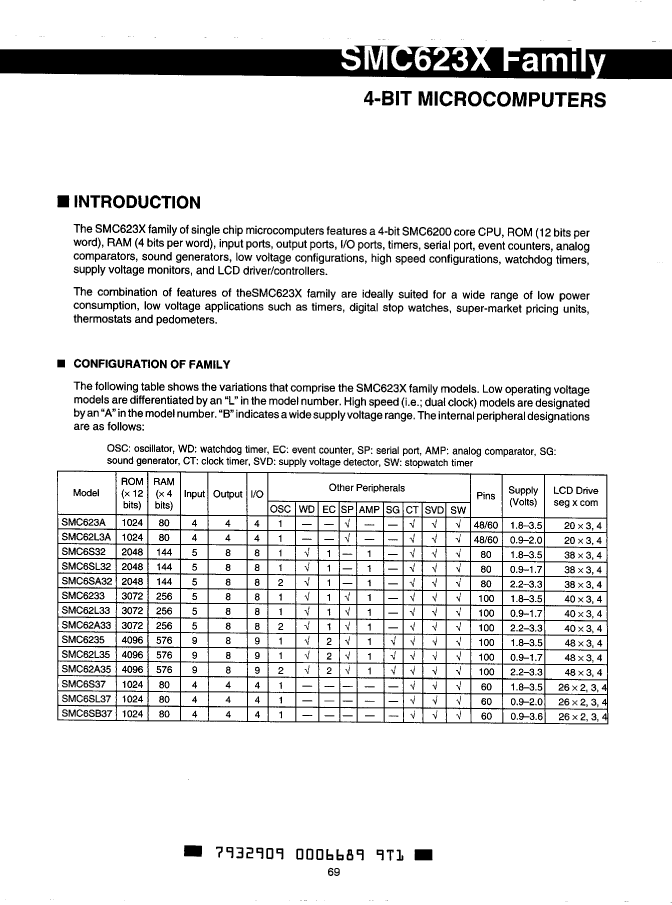

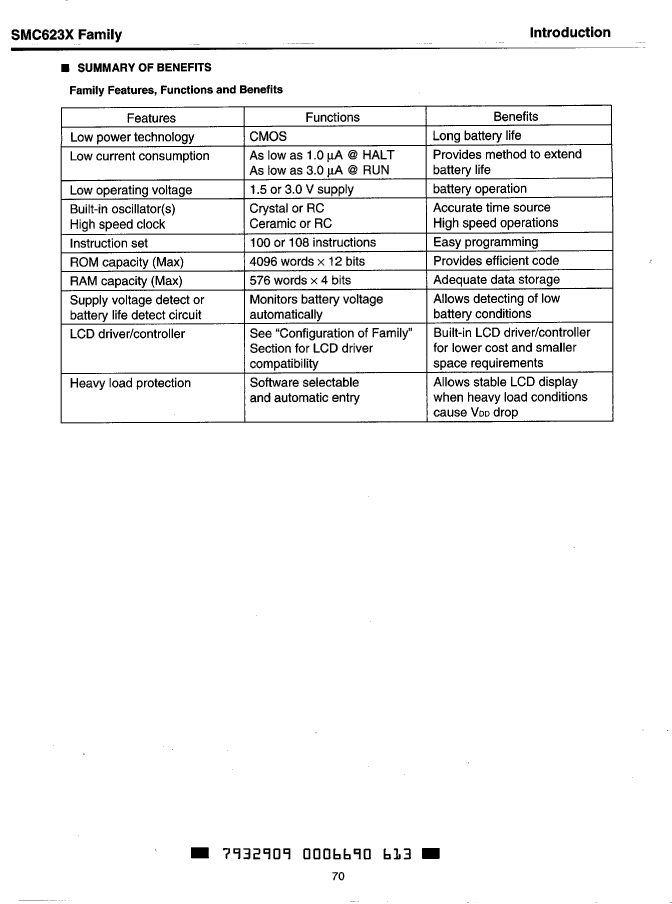

SMC6SB37F6 Overview

IC,MICROCONTROLLER,4-BIT,E0C6200/SMC6200 CPU,CMOS,QFP,60PIN,PLASTIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Seiko Epson Corporation
package instruction	LQFP, QFP60,.7SQ,32
Reach Compliance Code	compliant
Has ADC	NO
Address bus width	8
bit size	4
CPU series	E0C6200/SMC6200
DAC channel	NO
DMA channel	NO
External data bus width	4
JESD-30 code	S-PQFP-G60
JESD-609 code	e0
Negative supply voltage rating	-1.5 V
Number of I/O lines	4
Number of terminals	60
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Encapsulate equivalent code	QFP60,.7SQ,32
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE
power supply	-1.5 V
Certification status	Not Qualified
RAM (bytes)	40
rom(word)	1024
ROM programmability	MROM
speed	0.08 MHz
Maximum supply voltage	3.6 V
Minimum supply voltage	0.9 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULLWING
Terminal pitch	0.8 mm
Terminal location	QUAD

	SMC6SB37F6	SMC6SL37F6
Description	IC,MICROCONTROLLER,4-BIT,E0C6200/SMC6200 CPU,CMOS,QFP,60PIN,PLASTIC	IC,MICROCONTROLLER,4-BIT,E0C6200/SMC6200 CPU,CMOS,QFP,60PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible
package instruction	LQFP, QFP60,.7SQ,32	QFP, QFP60,.7SQ,32
Reach Compliance Code	compliant	compliant
bit size	4	4
CPU series	E0C6200/SMC6200	E0C6200/SMC6200
JESD-30 code	S-PQFP-G60	S-PQFP-G60
JESD-609 code	e0	e0
Negative supply voltage rating	-1.5 V	-1.5 V
Number of terminals	60	60
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LQFP	QFP
Encapsulate equivalent code	QFP60,.7SQ,32	QFP60,.7SQ,32
Package shape	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE	FLATPACK
power supply	-1.5 V	-1.5 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	40	40
rom(word)	1024	1024
ROM programmability	MROM	MROM
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULLWING	GULL WING
Terminal pitch	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD
