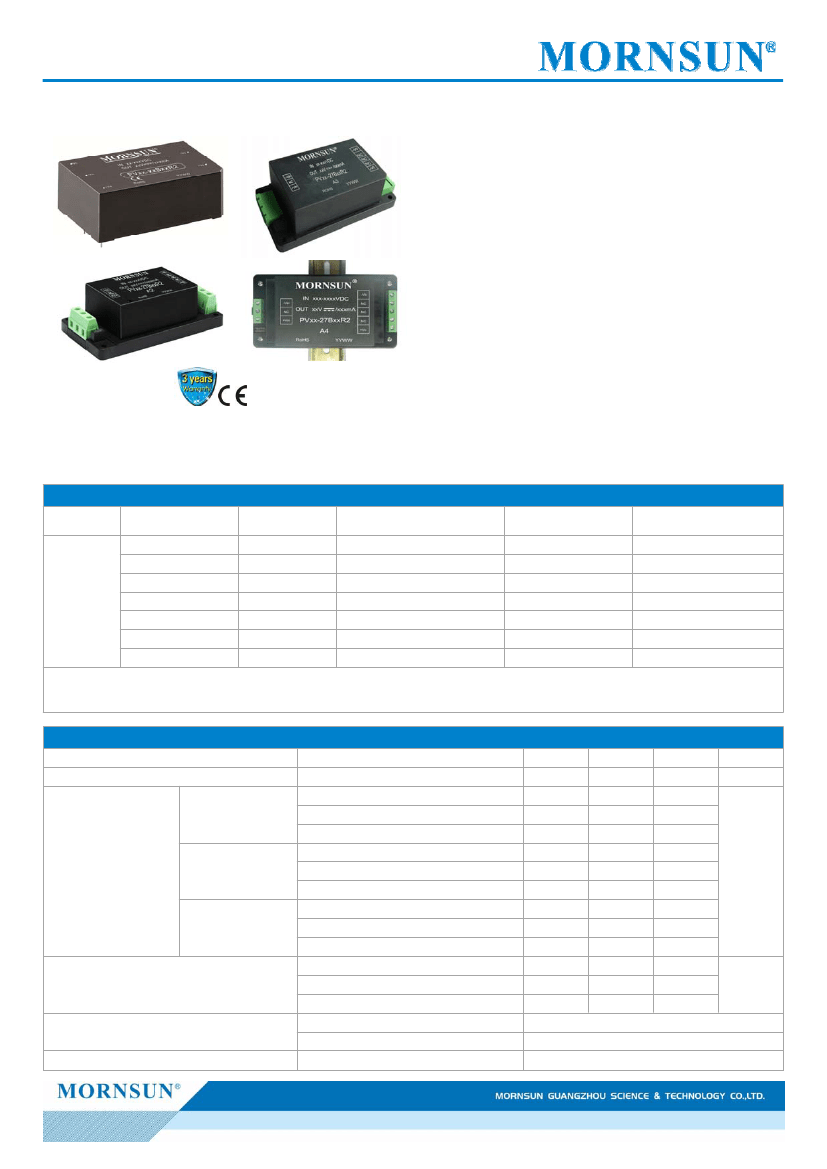

PVxx-27BxxR2 Series
New energy isolation converter with
Ultra-wide & ultra-high input voltage of 100-1000VDC
FEATURES
Input voltage up to 1000VDC
10:1 ultra-wide input voltage range: 100 ~ 1000VDC
Industrial grade operating temperature: -40℃~70℃
4000VAC high isolation voltage
High efficiency, Low ripple& noise
Output over-voltage, short circuit protection
(automatic recovery), Input against reverse
protection
Meet CE
certification standards
High reliability, long life, three years warranty
RoHS
PVxx-27BxxR2 series are regulated output DC/DC converters with features of 100-1000VDC ultra-wide and ultra-high voltage input, high
efficiency and high reliability. They can be widely used in photovoltaic power generation, high-voltage inverter and so on, which provide
stable operating voltage to the equipment and improve the power and the load's safety performance with multiple protection when
working under abnormal conditions.
Selection Guide
Certification
Model*
PV05-27B05R2
PV10-27B05R2
PV10-27B09R2
CE
PV10-27B24R2
PV15-27B12R2
PV15-27B15R2
PV15-27B24R2
Output Power
5W
10W
10W
10W
15W
15W
15W
Nominal Output Voltage and
Current(Vo/Io)
5V/1A
5V/2A
9V/1.11A
24V/0.42A
12V/1.25A
15V/1A
24V/0.625A
Efficiency
(200VDC, %/Typ.)
72
72
76
80
77
78
80
Max. Capacitive Load(μF)
(Full load)
6000
6000
4000
470
2000
1200
470
Note:*Part No. with suffix of “A2” means chassis mounting, suffix of “A3” means chassis mounting and suffix of “A4” means DIN-Rail mounting (e.g.
PV05-27B05R2A2 means chassis mounting; PV05-27B05R2A2 means chassis mounting; PV05-27B05R2A4 means DIN-Rail mounting), chassis mounting and DIN-Rail
mounting don’t have CE certification.
Input Specifications
Item
Input Voltage Range
200VDC
PV05 model
600VDC
1000VDC
200VDC
Input Current
PV10 model
600VDC
1000VDC
200VDC
PV15 model
600VDC
1000VDC
200VDC
Inrush Current
External Input Fuse(
chassis mounting and DIN-Rail
mounting
package series include fuse
)
Operating Conditions
Min.
100
--
--
--
--
--
--
--
--
--
--
--
--
Typ.
--
--
--
--
--
--
--
--
--
--
7
20
30
Max.
1000
38
15
10
75
25
16
120
40
22
--
--
--
Unit
VDC
mA
600VDC
1000VDC
PV05/ PV10 model
PV15 model
A
Necessary, 1A Slow fusing
Necessary, 2A Slow fusing
Unavaliable
Hot Plug
2015.02.27-A/1
Page 1 of 7
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
