TL(RE,RME,SE,OE,YE)16TP(F)
TOSHIBA LED Lamp
TLRE16TP(F),TLRME16TP(F),TLSE16TP(F),
TLOE16TP(F),TLYE16TP(F)
Panel Circuit Indicator
•
•
•
•
•
•
•
φ5mm
package
InGaAℓP technology
Transparent lens
High intensity light emission
Excellent low current light output
Applications: Various types of information panels, backlightings, etc.
Stopper lead type is also available
TLRE16T(F), TLRME16T(F), TLSE16T(F), TLOE16T(F),
TLYE16T(F)

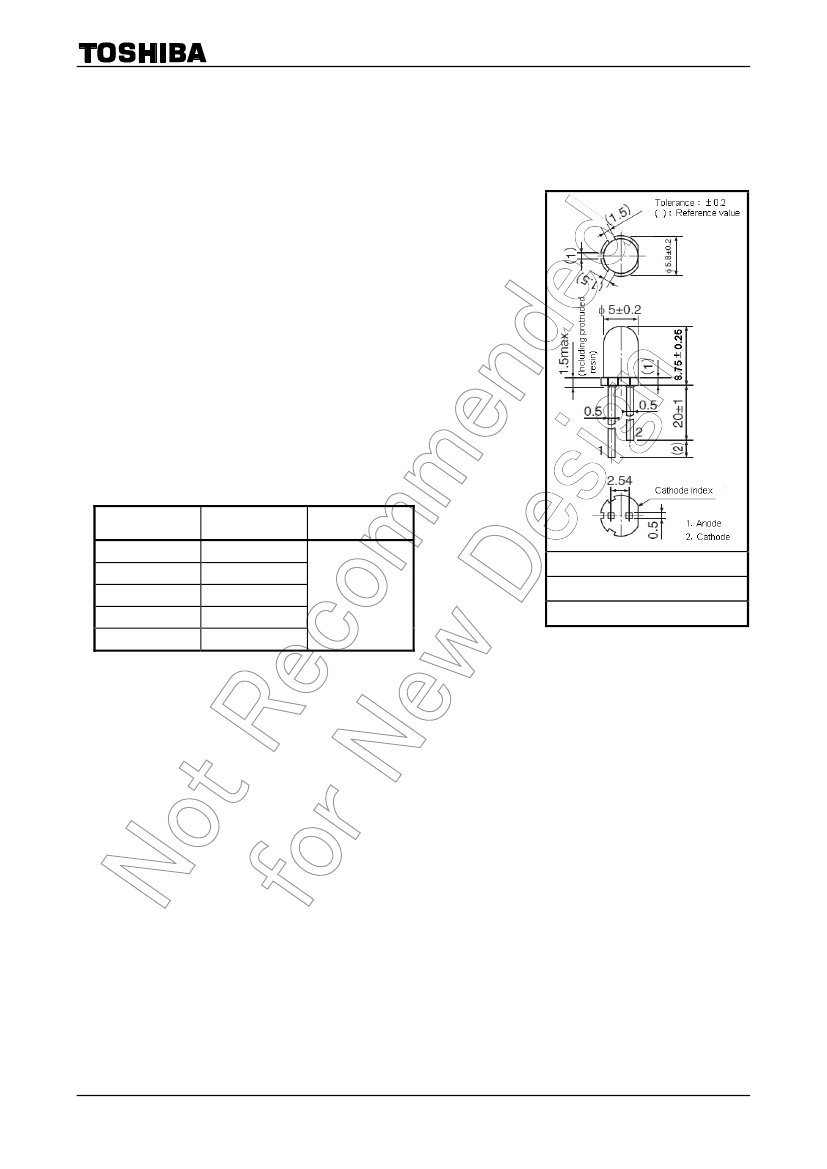

Unit: mm
Lineup
Product Name
TLRE16TP(F)
TLRME16TP(F)
TLSE16TP(F)
TLOE16TP(F)
TLYE16TP(F)
Color
Red
Red
Red
Orange
Yellow
InGaAlP
Material
JEDEC
JEITA
TOSHIBA
―
―
4-5AH2
Weight: 0.31 g (typ.)
1
2009-11-30
TL(RE,RME,SE,OE,YE)16TP(F)
Absolute Maximum Ratings
(Ta
=
25°C)
Product Name
TLRE16TP(F)
TLRME16TP(F)
TLSE16TP(F)
TLOE16TP(F)
TLYE16TP(F)
Forward Current
I
F
(mA) (Note 1)
50
50
50
50
50
Reverse Voltage
V
R
(V)
4
4
4
4
4
Power Dissipation
P
D
(mW)
120
120
120
120
120
−40
to 100
−40
to 120
Operating
Temperature
T
opr
(°C)
Storage
Temperature
T
stg
(°C)
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).

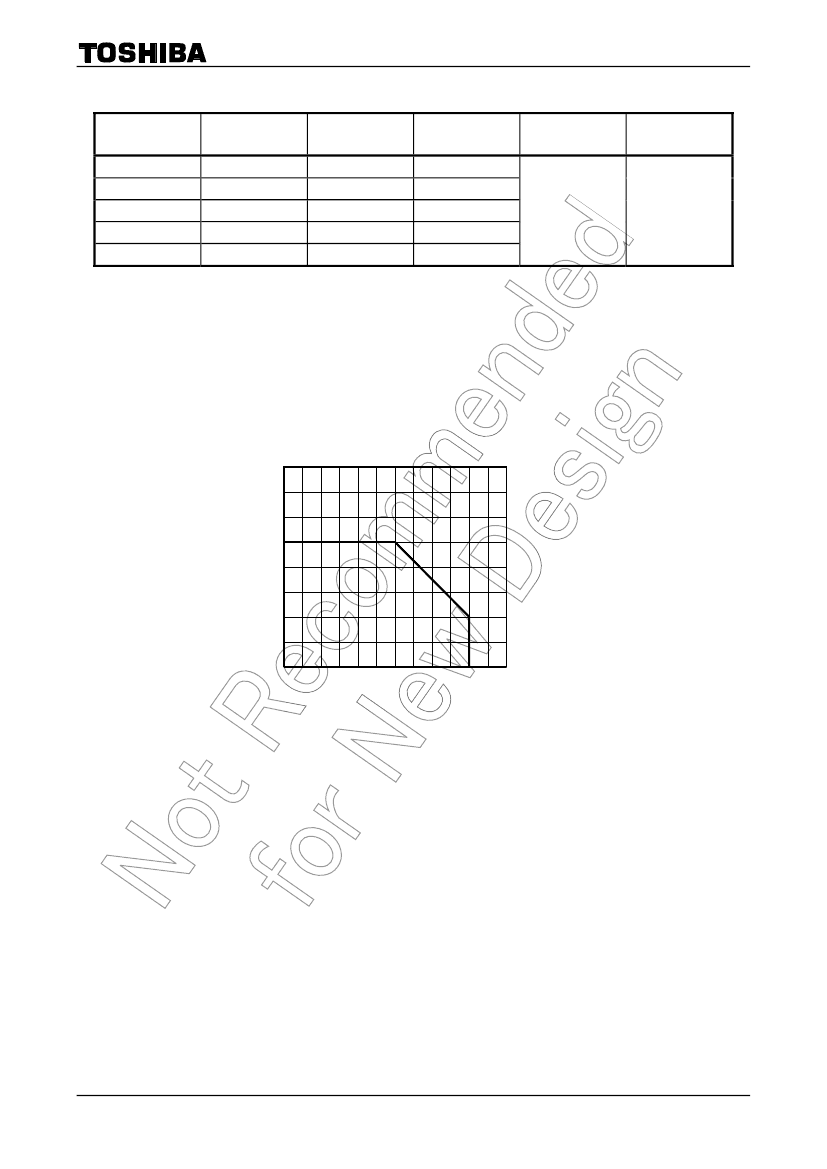

Note 1: Forward current derating
I
F
– Ta
80
IF (mA)
Allowable forward current
60
40
20
0
0
20
40
60
80
100
120
Ambient temperature Ta (°C)
2
2009-11-30
TL(RE,RME,SE,OE,YE)16TP(F)
Electrical and Optical Characteristics
(Ta
=
25°C)
Product Name
Typ. Emission Wavelength
λ
d
TLRE16TP(F)
TLRME16TP(F)
TLSE16TP(F)
TLOE16TP(F)
TLYE16TP(F)
Unit
630
626
613
605
587
λ
P
644
636
623
612
590
nm
Δλ
20
23
20
20
17
I
F
20
20
20
20
20
mA
Luminous Intensity
I
V
Min
272
272
476
850
476
Typ.
800
1200
1500
2000
1500
mcd
I
F
20
20
20
20
20
mA
Forward Voltage
V
F
Typ.
1.9
1.9
1.9
2.0
2.0
V
Max
2.4
2.4
2.4
2.4
2.4
I
F
20
20
20
20
20
mA
Reverse Current
I
R
Max
50
50
50
50
50
μA
V
R
4
4
4
4
4
V
Precautions
Please be careful of the following:
•
Soldering temperature: 260°C max, soldering time: 3 s max
(soldering portion of lead: up to 1.6 mm from the body of the device)
•
•
If the lead is formed, the lead should be formed up to 1.6 mm from the body of the device without forming stress
to the resin. Soldering should be performed after lead forming.
This visible LED lamp also emits some IR light.
If a photodetector is located near the LED lamp, please ensure that it will not be affected by this IR light.
3
2009-11-30
TL(RE,RME,SE,OE,YE)16TP(F)

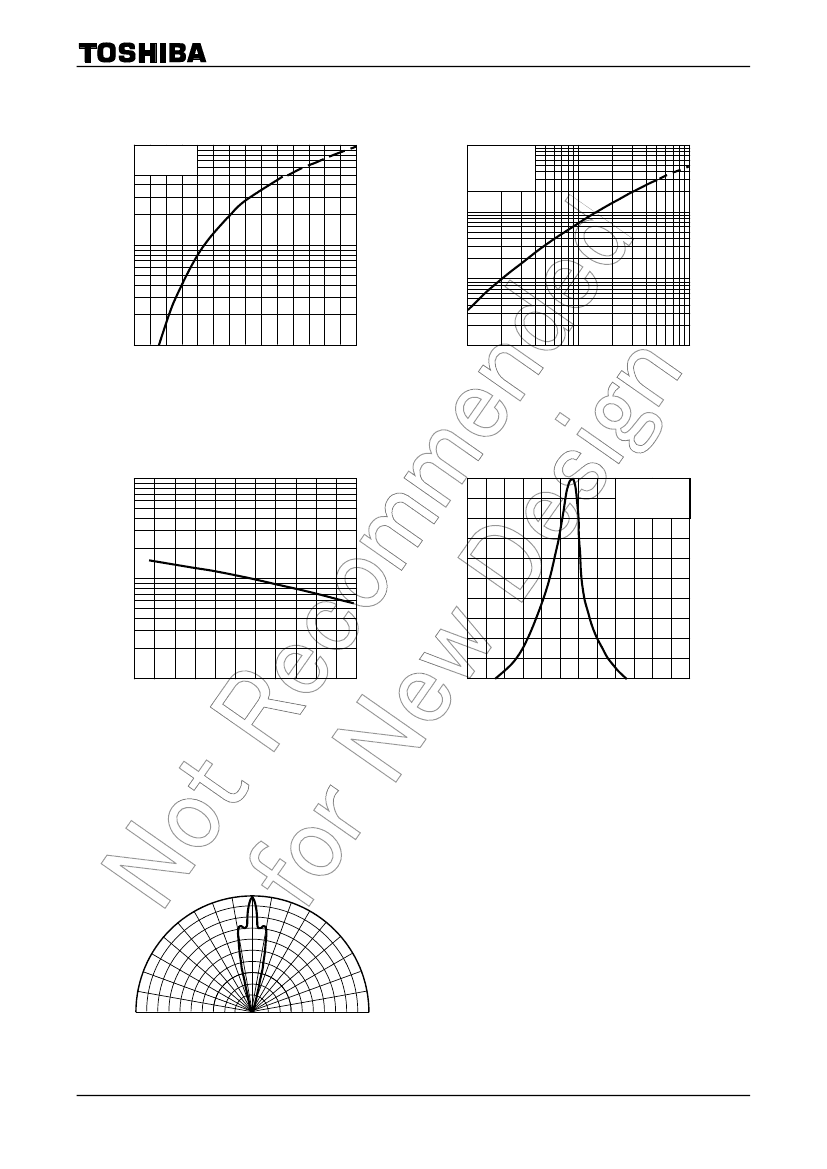

TLRE16TP(F)
I
F
– V
F
100
Ta
=
25°C
50
3000
Ta
=
25°C
I
V
– I
F
Luminous intensity IV (mcd)
1.7
1.8
1.9
2.0
2.1
2.2
(mA)
1000
30
Forward current IF
10
100
5
3
1
1.6
2.3
10
1
3
5
10
30
50
100
Forward voltage VF
(V)
Forward current I
F
(mA)
I
V
– Tc
3
1.0
Relative luminous intensity – Wavelength
IF
=
20 mA
Ta
=
25°C
Relative luminous intensity IV
1
Relative luminous intensity
−20
0
20
40
60
0.8
0.6
0.5
0.3
0.4
0.2
0.1
80
0
580
600
620
640
660
680
700
Case temperature Tc (°C)
Wavelength
λ
(nm)
Radiation pattern
Ta
=
25°C
20°
30°
40°
50°
60°
70°
80°
90°
10°
0°
10°
20°
30°
40°
50°
60°
70°
80°
90
°
1.0
0
0.2
0.4
0.6
0.8
4
2009-11-30
TL(RE,RME,SE,OE,YE)16TP(F)
TLRME16TP(F)
I
F
– V
F
100
Ta
=
25°C
50
10000
Ta
=
25°C
I
V
– I
F
(mA)
30
Luminous intensity I
V
(mcd)
1.7
1.8
1.9
2.0
2.1
2.2
1000
Forward current IF
10
5
3
100
1
1.6
2.3
10
1
3
5
10
30
50
100
Forward voltage VF
(V)
Forward current I
F
(mA)
I
V
– Tc
10
1.0
Relative luminous intensity – Wavelength
IF
=
20 mA
Ta
=
25°C
5
Relative luminous intensity IV
3
Relative luminous intensity
−20
0
20
40
60
0.8
0.6
1
0.4
0.5
0.3
0.2
0.1
80
0
580
600
620
640
660
680
700
Case temperature Tc (°C)
Wavelength
λ
(nm)
Radiation pattern
Ta
=
25°C
20°
30°
40°
50°
60°
70°
80°
90°
10°
0°
10°
20°
30°
40°
50°
60°
70°
80°
90
°
1.0
0
0.2
0.4
0.6
0.8
5
2009-11-30
