415-43-210-41-003000000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 415-43-210-41-003000000

Preview

415-43-210-41-003000000: DescriptionIC Socket, SIP10, 10 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size142KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

415-43-210-41-003000000 Overview

IC Socket, SIP10, 10 Contact(s), ROHS COMPLIANT

415-43-210-41-003000000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin (Sn)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP10
JESD-609 code	e3
Number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

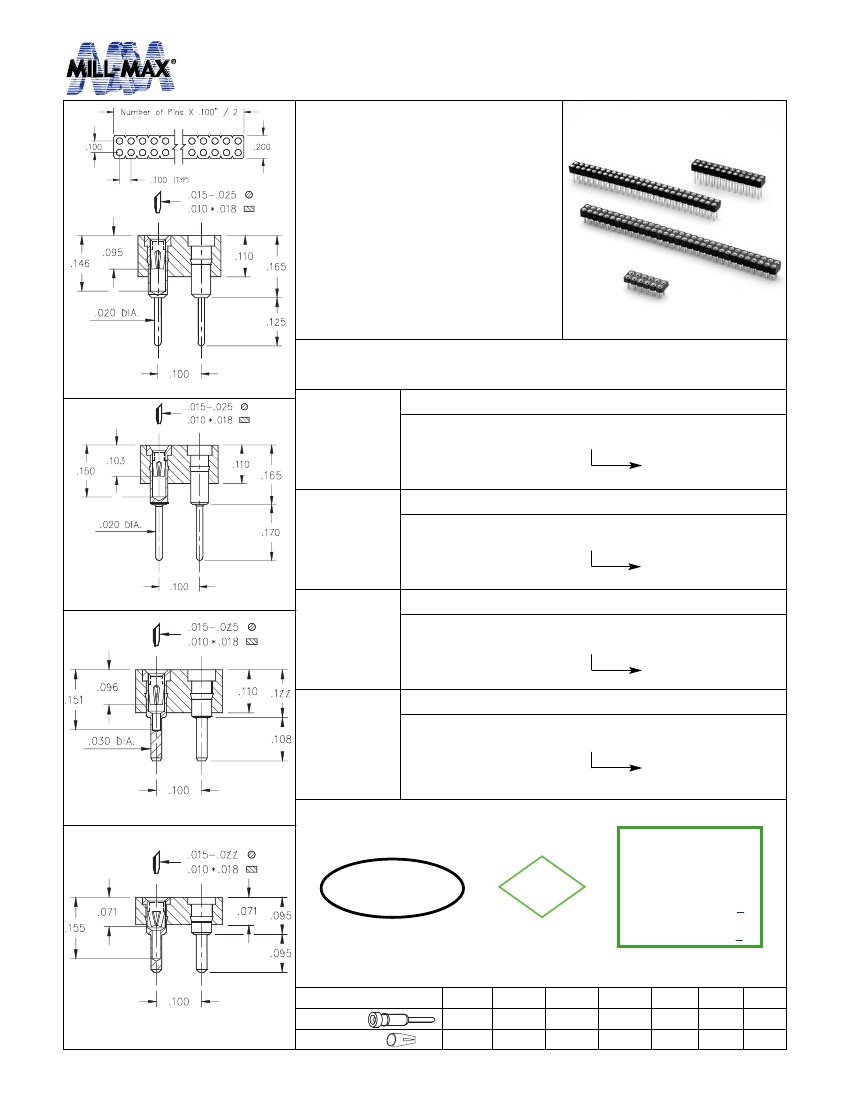

SINGLE-IN-LINE SOCKETS

Solder Tail

Double Row

•

Series 41X double row strip

sockets are on .100” grid.

•

Various solder pins available

(standard, long for multi-layer

boards, very low and ultra low).

Using Mill-Max pin #’s 1001, 0134,

0501 & 1534.

Hi-Rel, 4-finger BeCu #30 & #12

clips are rated at 3 amps.

See pages 207 & 208 for details.

Series 410, 411, 415

•

Ordering Information

Fig. 1

Series 410...001

Standard Solder Tail

Fig. 1

410-XX-2_ _-41-001000

Specify # of pins

Series 411...001

02-64

Long Solder Tail

Fig. 2

411-XX-2_ _-41-001000

Specify # of pins

Series 415...001

02-64

Very Low Profile

Fig. 3

415-XX-2_ _-41-001000

Specify # of pins

Series 415...003

02-64

Ultra Low Profile

Fig. 4

415-XX-2_ _-41-003000000

Specify # of pins

02-72

(Standard Insulator is High Temperature)

Fig. 3

For RoHS compliance,

select plating code.

For the all gold option

(XX=13) also change

part number from

41X-XX-2XX-41-00X000

to

41X-13-2XX-41-00X100

XX=Plating Code

See Below

SPECIFY PLATING CODE XX=

13

10µ” Au

30µ” Au

91

10µ” Au

93

30µ” Au

99

200µ”Sn/Pb

41

10µ” Au

43

44

Sleeve (Pin)

200µ” Sn/Pb

200µ”Sn/Pb 200µ”Sn

200µ”Sn

30µ” Au

200µ”Sn

Fig. 4

Contact (Clip)
