Secure Keypads
for access control
With rising
crime rates and
an increasing
incidence of
assaults on
personnel, the
need to control
access to
buildings or
work areas
has never
been greater.
It is essential
to provide free access to
authorised
personnel, whilst securing premises against those who
are not. The high risk practice of issuing
duplicate door keys is no longer
acceptable or economically viable.
Keys (or cards) are regularly lost, stolen or
copied. If a breach in security is suspected,
locks must be changed and new keys (or cards) issued.
This is not practical on a repeated or routine basis.
The fitting of a
STORM AXS Keypad
provides a secure,
efficient and cost effective solution. Authorised personnel can
be allocated a ‘Personal Identification Number’ (PIN) which,
when entered into the keypad, triggers an electrically operated
strike or lock. This permits instant access through a normally
locked door or barrier. PIN codes can be regularly changed to
maintain system security, or can be withdrawn at any time to
discontinue an individual’s access to the secured area.
Code holders can be given access to selected areas and
debarred from others. For example; an office worker’s PIN code
can be programmed to allow access to an administration centre
but prohibit access to a stores area; whereas the Store
Manager’s PIN code can be programmed to access both the
administration centre and the stores area. PIN codes can be
programmed to unlock a door and leave it unlocked (latched)
until the code is re-entered. Alternatively they can be
programmed to unlock the door for a pre-set time allowing just
one person to enter before the door re-locks.
Robust,
responsive
keypad
STORM AXS Keypads
provide rapid and
reliable access control in
technology,
professional ‘high-traffic’
proven in
applications. Constructed
to withstand hard use and
military,
abuse the keypads can
industrial
be fitted in exposed outdoor
locations. Available in both ‘general
and public
service’ and ‘vandal resistant’
environments.
specifications, complying with current
and forthcoming mandatory standards,
STORM AXS Keypads
are
ideal for use in all indoor
and outdoor installations.
Secure and simple
to install.
t orm
Secure Keypads
for access control
STORM AXS Keypads
include sophisticated
electronic controllers. These controllers,
utilising the latest developments in
microprocessor technology, are securely
housed within the keypad casing. The keypads
include high level protection against static
discharge damage. They can be selected to
achieve direct, local control of door locking
mechanisms (Strike Master) or to provide
electronic communication with centralised
alarm and access control systems (Code Master).
The
STORM AXS Strike Master
keypad includes
an electronic sensor that detects any attempt to
remove or tamper with the keypad.
This feature provides high level
system security whilst maintaining
the advantages of a self-contained,
compact, ‘one-box’ installation.
A CHOICE OF
ELECTRONIC INTERFACES
Strike Master
Secure, self-contained keypad
and controller for electrically
operated locks and strikes.
Authorised personnel can use their PIN code
to open either one or two normally locked doors. Up to 50
different 4, 5 or 6 digit codes can be individually
programmed. Each code can be set to trigger an electric
lock or strike for a pre-set time (allowing just one person
to access), or to ‘latch’ the door in an unlocked condition
(requiring the code to be re-entered to ‘unlatch’ or re-lock
the door). If the Strike Master keypad is used to control a
single door, the ‘forced door alarm’, ‘anti-tamper alarm’
and ‘duress alarm’ features can be enabled.
• Up to 50 user programmable PIN codes
• 4, 5 or 6 digit PIN codes
• Indexing permits the secure allocation and
re-allocation of PIN codes
• One or two door control
• Anti-tamper alarm
• PIN code entered under duress alarm
• Forced door alarm
• Timed release or latched door option for
each PIN code
• Fail (open) Fail (closed) option
• Timed lock out for repeated invalid code input
• Remote exit switch facility
• Hidden PIN code feature
• All weather resistant
• LED and audible tone status indication
• Requires 11 to 28V DC or 9 to 20V AC supply
• Quick and easy to install
• Three protection levels:
i) Anti-vandal keypad for exposed, unsupervised
hostile, public locations
ii) Vandal resistant keypad for unsupervised,
public, outdoor locations
iii) Robust keypad for outdoor/indoor location
Code Master
Converts codes entered via the
keypad into industry standard
(Weigand) data. Suitable for use as a
replacement for (or in conjunction
with) most standard card readers.
Intended for use with integrated access control / security
systems, the keypad’s electronic interface is user
programmable for 26 or 32 bit (Weigand) data output.
•
•
•
•
•
•
•
Selectable ‘keypress’ audible tone
Selectable ‘code accepted’ audible tone
All weather resistant
LED status indication
Requires 5V to 12V DC supply
Quick and easy to install
Three protection levels:
i) Anti-vandal keypad for exposed, unsupervised
hostile, public locations
ii) Vandal resistant keypad for unsupervised,
public, outdoor locations
iii) Robust keypad for outdoor/indoor location
-COM
A Secure, self contained, two
way voice communication
system in 1 and 4
doorbell/callbutton versions
Secure
Alternative
The
t orm

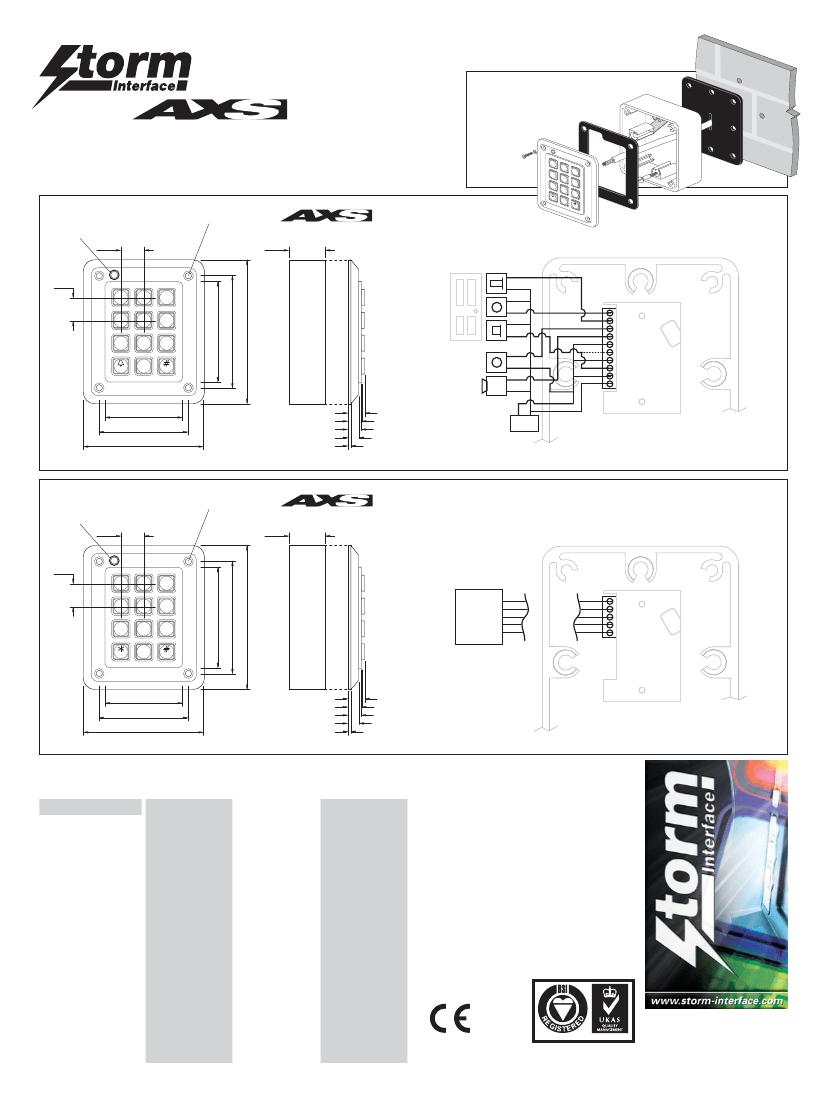

PRODUCT SPECIFICATIONS
Four
tamper-resistant
stainless steel
security screws
30.00
Secure Keypads
for access control
(Fixing hardware, sealing
gaskets and comprehensive
installation / operating
instructions supplied)
1
2
4
5
7
8
9
0
6
3
Twin diode (2 colour)
LED indicator
19.00
Strike Master
1
19.00
2
5
8
0
3
6
9
Door Sensor
1
4
7
2
5
8
0
3
6
118.50
82.50
93.00
Remote/
Exit Switch
Door
Strike
10. Remote Switch
- To open door 1 from within secure area
9. Door Sensor
- Used to monitor door 1 condition (open/closed)
8. Door/Call Bell
- Open collector gate
7. Alarm/Door 2 Release Relay
- Fully floating (volts free contact)
6. Alarm/Door 2 Release Relay
- Fully floating (volts free contact)
5. Door 1 Release Relay
- Relay output (normally closed)
4
7
9
Door/call Bell
Alarm Bell/
Klaxon
13.35 Overall
11.1
10.50
8
2.5
4. Common
- Relay common
3. Door 1 Release Relay
- Relay output (normally open)
2. Supply
- Range 11 to 28 volts dc or 9 to 20 volts ac.
1. Return
- Zero volts
63.50
74.00
99.50
Power
Supply
+V 0V
All dimensions in mm
Twin diode (2 colour)
LED indicator
19.00
Four
tamper-resistant
stainless steel
security screws
30.00
Code Master
1
19.00
2
5
8
0
3
6
9
1
4
7
2
5
8
0
3
6
118.50
82.50
93.00
5. Indicator input (LED)
4. Weigand data 1
4
7
System
3. Weigand data 0
2. Supply
- Range 5V to 12V DC
1. Return
- Zero volts
9
CLR
ENT
63.50
74.00
99.50
13.35 Overall
11.1
10.50
8
2.5
Connect to access
control / security system
(refer to manufacturer’s
instructions for
connection details).
All dimensions in mm
PRODUCT FEATURES
ANTI
VANDAL
K E Y P A D
VANDAL
RESISTANT
K E Y P A D
GENERAL
SERVICE
K E Y P A D
Strike Master
Code Master
Key Life (cycles)
Service Temp (Dry)
Keypad Material
Keypad Colour
Keytop Material
Keytop Colour
Keytop Legends
Legend Colour
Contact Materials
Weather Sealed
Resistance to
Static Discharge
DE1KT1
WE1KT1
> 4 Million
-20°C to +70°C
Chromed Zinc
Silver
Chromed Zinc
Silver
Engraved
Black
Carbon / Gold
IP65
> 12.5 KV
DEPLXT2
WEPLXT2
> 4 Million
-20°C to +70°C
Super Impact Polymer
Black
Chromed Zinc
Silver
Engraved
Black
Carbon / Gold
IP65
> 12.5 KV
DE2KT1
WE2KT1
> 4 Million
-20°C to +70°C
Super Impact Polymer
Mid Grey
Super Impact Polymer
Light Grey
Laser Marked
Dark Grey
Carbon / Gold
IP65
> 12.5 KV
All
STORM AXS Keypads
incorporate the proven
STORM
switching technology ensuring rapid,
reliable and responsive data entry. Specified to
survive in different service environments, ranging
from exposed, unsupervised public environments
to general service / indoor installations. Keypads
in the
STORM AXS
range are dimensionally and
electrically interchangeable. This allows users,
entering codes at all outdoor or indoor access
points, to establish and maintain familiarity with
the keypad features.
Whilst every effort is made
to ensure details are
correct at time of print,
specifications are subject
to change without notice.
Storm is a trademark of Keymat Technology Ltd
Storm Interface is a trading name of Keymat Technology Ltd
MAY 1999
AXS-LIT-01 1SS.3
003
FM 39602
Storm Interface products include
technology protected by international patents
and design registration. All rights reserved.
