About Switchcraft, Inc.
Switchcraft, Inc. was established in 1946 to
manufacture jacks, plugs, and switches. We
have since become the industry leader in
producing a wide variety of connectors, adapters,
jacks and plugs, patchbays, jackfields, and
switches. While our products cover a diverse
number of markets, this catalog focuses on our
line of audio and video products, typically found
in broadcast, recording, sound reinforcement,
and other pro audio applications.
Some of the new products you’ll find in this
catalog include our EZ Norm Series of audio
patchbays, where normal configurations can be
changed from the front of the patchbay, using a
standard screwdriver. Also found in this edition
are new combination audio/video patchbays
in both standard/long-frame and midsize/bantam
styles. In the connector section, we’re offering
a new line of connectors called our EH Series,
incorporating a wide range of connectors (Firewire,
USB, Category 6, BNC, RCA, and more) in a
standard XLR housing.
Please keep in mind that this is just a small
sampling of our complete product lines. For
more detailed information, we offer our “full
line” catalog, our Engineering Design Guide.
Our Engineering Design Guide includes over
5,000 part numbers covering all five major
product lines. If you don't see it here, chances
are you'll find it in the EDG. And again, keep in
mind that the EDG is also just a "snapshot" of
our capabilities. We manufacture over 30,000
part numbers, so if it's not in the EDG, please
contact us with your requirements. To keep up
on all the new products we have to offer, visit
our website at
www.switchcraft.com
and look
for the New Product Showcase.
1
Patchbay Series
4 – 43
Patchcords/Molded Cables
44 – 45
Connector Series
46 – 62
Audio Adapter Series
63 – 64
Jack Series
65 – 82
Plug Series
83 – 93
Switch Series
94 – 96
Index
98 – 100
Detailed Table of Contents — Pages 2 – 3
* Please visit the product pages on our website for the most up-to-date product information
2
Table of Contents
Patchbays
Professional Punchdown Terminal (PPT) ....................4
Audio Patchbay Series ............................................5–33
MTPH/TTPH Harness Series ..................................5-7
Front Access Series ................................................8–9
EZ Norm Patchbay Series..................................10–11
RS 422 Data Patchbay Series ............................12–13
MTP48K Wired Series ........................................14–15
TTPW96K Wired Series ......................................16–17
MTPBP/TTPBP Backpanel Series ......................18–19
TT96 EDAC Series ..............................................20–21
TTP96K Patchkit Series ......................................22–23
MT48K/MT52K Patchkit Series ..........................24–25
MT48/MT52 Patchbay Series ............................26–27
TTP96AS Patchbay Series..................................28–29
HPC Patchbay Series ..........................................30–31
Q-G
®
Patchbay Series ........................................32–33
Video/Audio Patchbay Series................................34–44
VPP Video Patchbay Series................................34–36
MVP Midsize Video Patchbay Series ................37–39
VAP Video/Audio Patchbay Series ....................40–41
MVEZN Audio/Midsize Patchbay Series....................42
MBPK Video/Audio Patchbay Series ......................43
Audio and Video Patchcords ................................44–45
Connectors
Q-G® Audio Connector Series ..............................46-48
A, AA, AAA Cord Style Series ................................46
B, C, D, E Panel Style Series....................................47
J, K, P, R, T Wallplate, Gooseneck,
Panel & Cord Style Series........................................48
Tini-Q-G® Connector Series ......................................49
Tini-Q-G® Cord & Panel Style Series ....................49
HPC Connector Series ............................................50-51
HPC Panel Style Series ............................................50
HPC Cord, & Adapter Style Series..........................51
EH Series Receptacles ................................................52
MIDI and 2500 Series ..................................................53
HP75BNC Series ..........................................................54
Connector Dimension Drawings ..........................55–62
HP75BNC Series, EH Series ....................................55
Q-G Audio - A, AA, AAA Series ..............................56
Q-G Audio - B, C, D, E Series ..................................57
Q-G Audio - J, K, P, R Series....................................58
Q-G Audio - T Series ................................................59
MIDI, Q-G Audio - P Series ......................................60
HPC Panel Style Series ......................................61–62
Audio Adapters
XLR to XLR, RCA, 1/4", TQ-G Adapter Series ..........63
1/4" to 1/4", RCA; RCA to RCA;
& Miscellaneous Adapter Series ................................64
* Please visit the product pages on our website for the most up-to-date product information
Table of Contents
Jacks & Plugs
Jack Series
Littel Phone, Hi-D, Right Angle PC Mount 1/4", 1/4"
Extension Jack Series ..............................................65
Thick Panel/Guitar, Locking 1/4", Tini, Tini-
Extension, Micro, 3.5mm ........................................67
Phono, Phono Extension, TT or Bantam, MT 1/4”
Jack Series ................................................................69
Power/Jacks Plugs Series – 700, S700,
800 Cord & Panel Style Series ................................71
Jack Series Dimension Drawings ........................72–82
Littel Phone, Hi-D, 1/4” Extension, 700 Panel Jack
Series ........................................................................72
Littel Phone, Hi-D, 1/4” Extension Jack Series ......73
Right Angle PC Mount 1/4” Jack Series ................74
Thick Panel/Guitar, Locking 1/4”, Tini, Tini
Extension Jack Series ..............................................75
Micro, 3.5mm Jack Series ......................................76
3.5mm Jack Series..............................................77–79
Phono and Phono Extension Jack Series ..............80
TT or Bantam Jack Series........................................81
MT 1/4” Jack Series..................................................82
Limited Lifetime Warranty
3
3
Littel Right Angle 1/4”, Silent, Super
Heavy Duty Plug Series ..........................................89
Tini, Micro Plug Series ............................................90
35HD 3.5mm Stereo Plug Series ............................91
Phono and Phone Right Angle Plug Series ..........92
TT or Bantam, Mil-Style 1/4” Plug Series ............93
Switches
Switch Series ..........................................................94–95
Switch Series Dimension Drawings ..........................96
Plug Series
Littel 1/4”, Right Angle 1/4”, Silent, Super Heavy
Duty Plug Series ......................................................83
Tini, Micro, 3.5mm Stereo, Right Angle 3.5mm
Stereo, Phono, Right Angle Phono Plugs Series ..85
TT or Bantam, Mil-Style 1/4” Plugs Series ............87
Plug Series Dimension Drawings ........................88–93
Littel Plug 1/4” Series ..............................................88
Switchcraft warrants all of its products to be of sound
design, good materials and workmanship at the time of
manufacture.
Switchcraft will repair or replace at its discretion any
product proven to be defective under normal use.
Switchcraft’s liability under the terms of this warranty
is limited to the repair or replacement of defective products
which have not been damaged through accident, abuse,
misuse or unauthorized repair. Switchcraft shall in no
case be liable for special or consequential damages of
any nature.
5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129
w
w
w
.
s
w
i
t
c
h
c
r
a
f
t
.
c
o
m
* Please visit the product pages on our website for the most up-to-date product information
PATCHBAYS
4
Our Patchbays Now Feature the New
Professional Punchdown Terminal (PPT)
Our Patchbays Have Just
Rounded A New Corner
Actually, the corners we rounded
belong to our patchbays’ revolutionary,
new Professional Punchdown Terminal
(PPT), making it perfectly compatible
with the industry standard. We realized
that achieving a new industry standard
meant we couldn’t cut any corners to
get there.

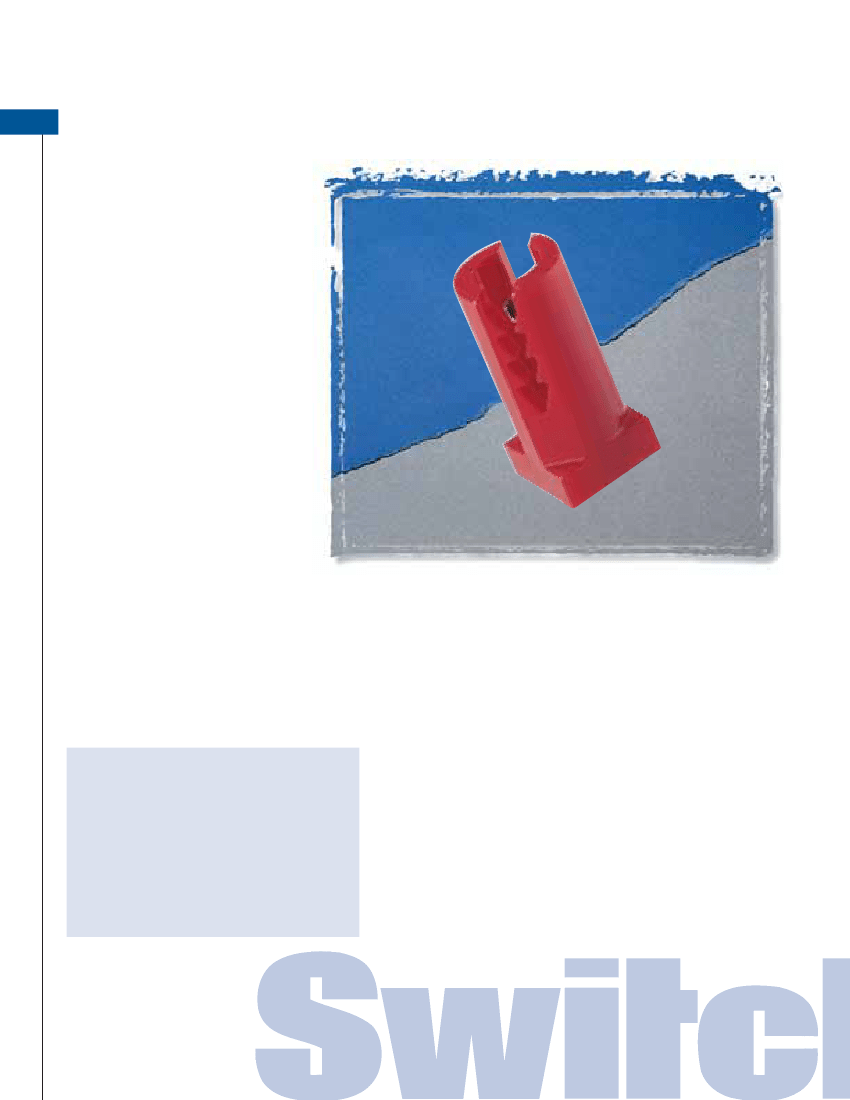

The PPT design incorporates a
split-barrel design and a more rugged,
thicker housing to minimize the
impact of repeated punchdowns.
The split-barrel design eliminates
the problems associated with the
old “V-shaped” terminal designs.
The PPT design distributes pressure
evenly across both sides of the
terminated wire, causing improved
wire retention plus more reliable
connections. The serrated teeth in
the plastic housing firmly grip the
wires, which also greatly improves
wire retention. With the PPT, multiple
wires can be terminated to a single
contact, and a wide range of wire
gauges can be used.
Look for Switchcraft’s PPT in our MTP and TTP Series of audio patchbays, and in our new Backpanel Series.
All Switchcraft audio patchbays incorporate heavy gauge materials and our high quality nickel-plated, steel framed
jacks. Gold-plated, crossbar contacts come standard!
Materials
Housing: Thermoplastic (UL 94V-0)
Contacts: High strength copper alloy, tin plated
Wire size: Accommodates #22, 24, or 26 AWG, stranded or solid
Accessories
Part Number
K459
K460
PT1LA
PT2B
Description
PPT replacement kit consists of
15 of each color* (IDC/IDC)
PPT replacement kit consists of
15 of each color (IDC/wirewrap)
PPT impact punchdown tool
Replacement bit for PT1LA tool
*Colors consist of red, black, white, yellow, blue, and
orange.
