PHA6UOAG003G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> PHA6UOAG003G

PHA6UOAG003G: DescriptionPUSHBUTTON SWITCH, 6PST, MOMENTARY, 0.1A, 30VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size231KB，4 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric View All

PHA6UOAG003G Overview

PUSHBUTTON SWITCH, 6PST, MOMENTARY, 0.1A, 30VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT

PHA6UOAG003G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.433 inch
Actuator material	POLYOXYMETHYLENE
Actuator stroke	2.4892 mm
Actuator type	PUSHBUTTON
Other features	ROHS, ROUND GRAY BUTTON
body width	7.4 mm
body height	7.5 mm
Body length or diameter	30 mm
center contact material	PHOSPHOR BRONZE
Center contact plating	SILVER
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@30VDC
Contact function	ON-(ON)
Contact resistance	0.04 mΩ
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	500VAC V
Electrical life	10000 Cycle(s)
End contact material	BRASS
End contact plating	SILVER
Insulation resistance	10000000000 Ω
JESD-609 code	e4
Manufacturer's serial number	PHA
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating force	3.92 N
PCB hole count	18
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	MOMENTARY
switch function	6PST
Switch type	PUSHBUTTON SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.138 inch
Terminal material	BRASS
Termination type	SOLDER

Preview

Download Datasheet

View All

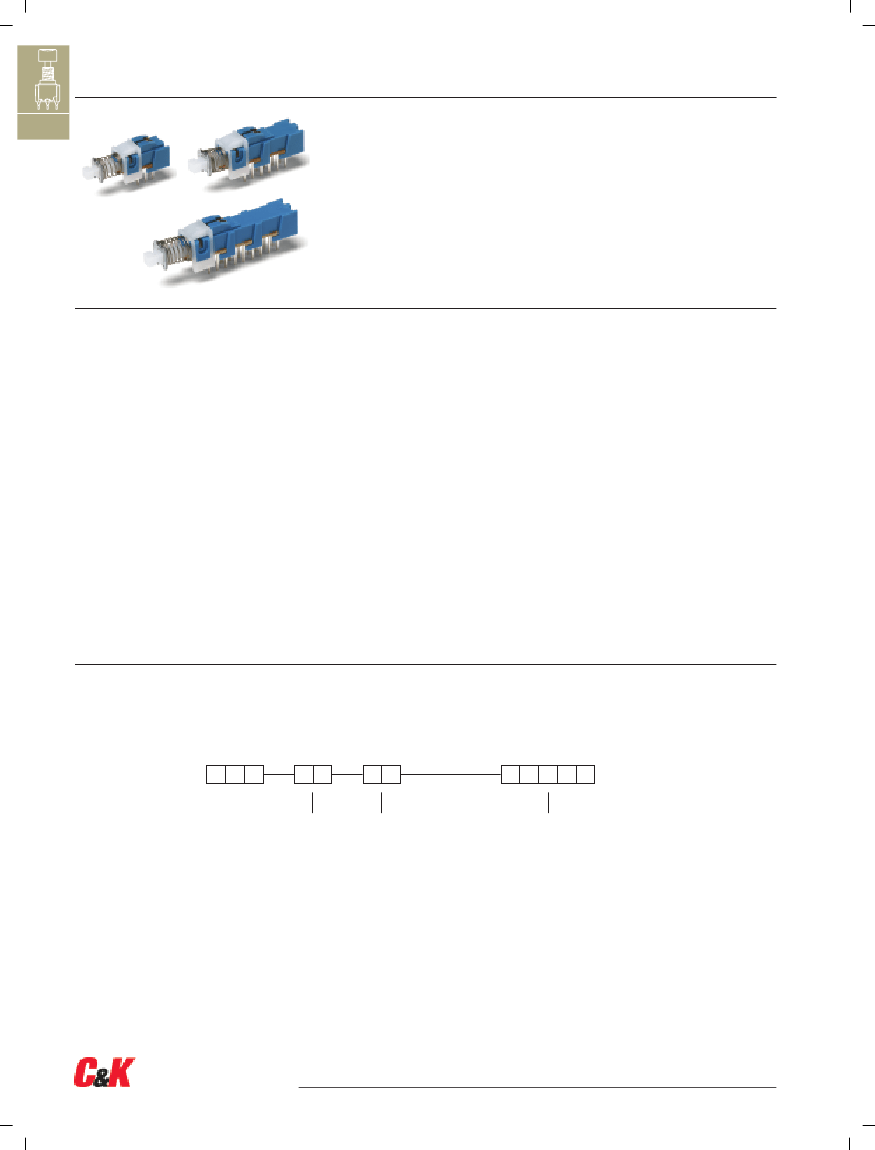

PHA Series

Short Stroke Pushbutton Switches

Pushbutton

Features/Benefits

•

Momentary or latching action

•

Low cost, reliable contact design

•

2, 4 & 6 pole configurations

•

Sealed contacts

•

Optional buttons

•

RoHS compliant

Typical Applications

•

Computers and peripherals

•

Instrumentation and

measurement equipment

•

Non-power, on-off

switch applications

Specifications

SWITCHING POWER MAX.: 3 W DC

SWITCHING VOLTAGE MAX.: 30 V DC

SWITCHING CURRENT MAX.: 100 mA DC

DIELECTRIC STRENGTH (50 Hz/1 min.): 500 V between open

contacts. 1500 V between chassis and contacts.

OPERATING LIFE: Impulse/momentary (OA):

104 operations.

Latching (EE):

^10

4 operations

CONTACT RESISTANCE: New:

%20

mΩ

After 105 operations:

%40

mΩ

INSULATION RESISTANCE:

^10

Ω

CAPACITANCE:

%1.5

CONTACT BOUNCE:

Operating speed 200 mm/s (7.87 inch/s)

TOTAL TRAVEL/LATCHING TRAVEL: 2.5mm/1.5mm

(.0984 inch/.0591 inch)

OPERATING FORCE:

2U: 170cN±50cN (170 grams±50 grams)

4U: 230cN±70cN (230 grams±70 grams)

6U: 300cN±100cN (300 grams±100 grams)

SEALING: Sealed contacts.

Materials

FIXED TERMINAL: Brass, silver plated.

MOVABLE CONTACT: Phosphor bronze, silver plated.

SWITCH BODY: PPE

ACTUATOR: POM

STANDOFF CLIP: POM

RETURN SPRING: Music wire.

RETURN SPRING RETAINER: Carbon steel, tin plated.

DETENT SPRING PLATE: Phosphor bronze.

DETENT SPRING: Stainless steel.

BASE: Laminated phenolic.

TERMINAL SEAL: Epoxy.

NOTE:

All models are RoHS compliant and compatible.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown

and described on pages A-85 thru A-87. For additional options not shown in catalog, consult Customer Service Center.

Switch

P H A

Button

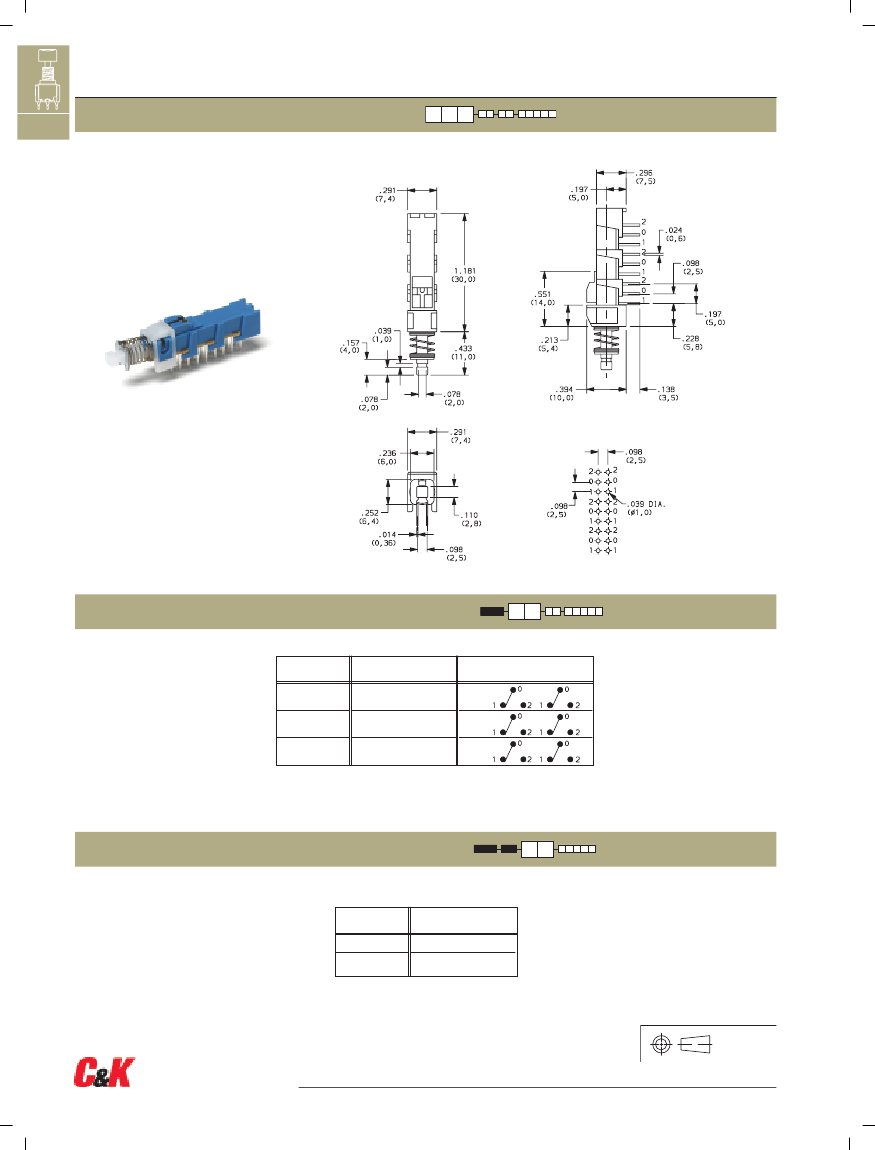

Contact Arrangement

2 Changeovers

4 Changeovers

6 Changeovers

Mechanical Function

Momentary

Push-push

Indexed

G001A

Black

G001G

Gray

G001I

Ivory

G001R

Red

Rectangular

G002A

Black

G002G

Gray

G0021

Ivory

G002R

Red

Round

G003A

G003G

G0031

G003R

Square

G004A

G004G

G0041

G004R

Black

Gray

Ivory

Red

Black

Gray

Ivory

Red

BUTTON REMOVAL

A button of a push-push switch should only be removed in the “OFF” non-latching position.

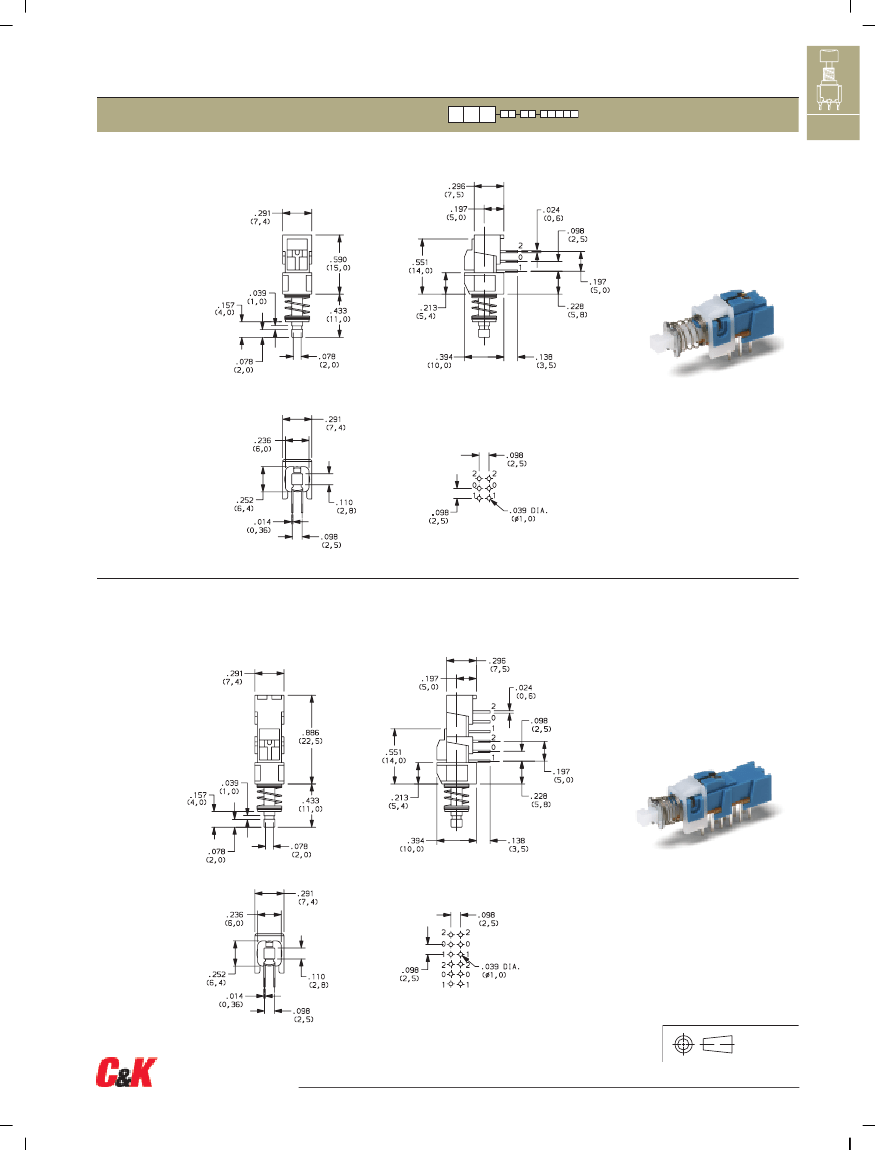

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

A–84

www.ck-components.com
