222428-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 222428-1

222428-1: DescriptionCABLE TERMINATED, FEMALE, BNC CONNECTOR, TWIST ON, JACK; CategoryThe connector The connector; File Size3MB，34 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

222428-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	222428-1	-	-	View	Buy Now

222428-1 Overview

CABLE TERMINATED, FEMALE, BNC CONNECTOR, TWIST ON, JACK

222428-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	APPLICABLE CABLES: RG59/U; RG59A/U; RG59B/U, INSERTION LOSS MAX AT 3 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	ACETAL
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	TWIST ON
Base Number Matches	1

Preview

Download Datasheet

View All

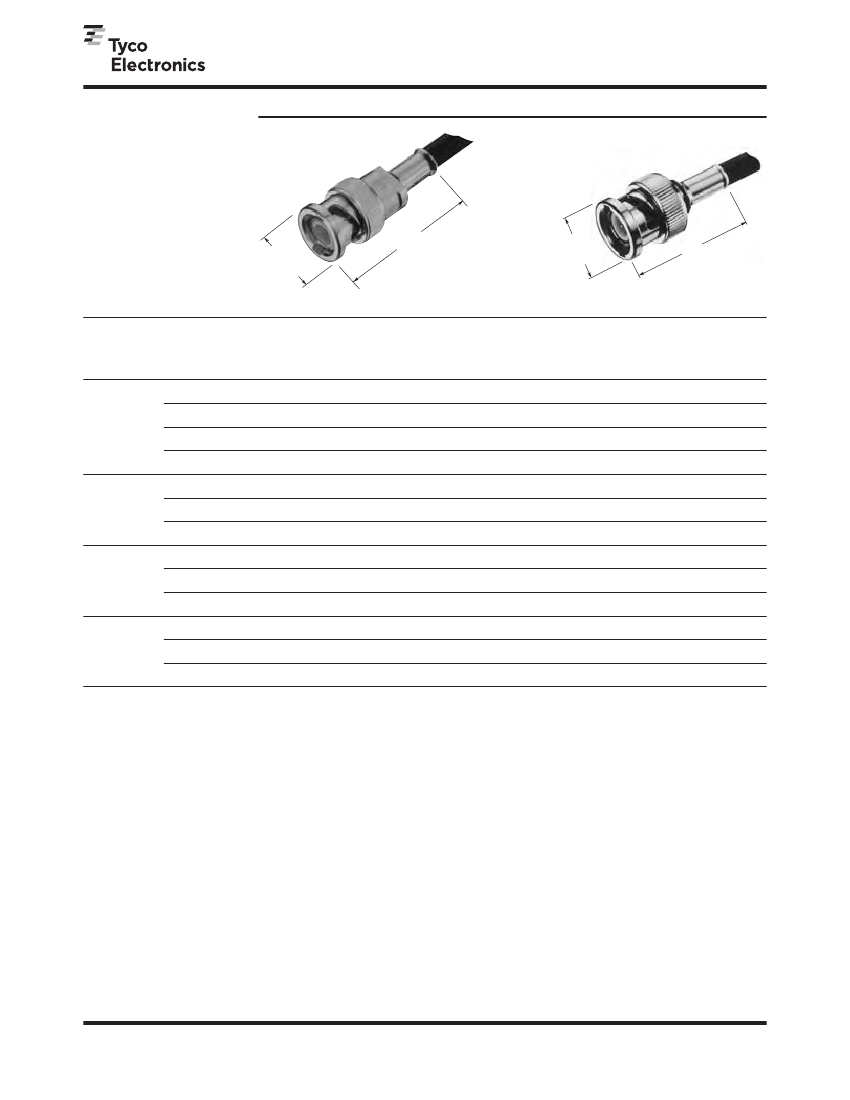

RF Coax Connectors

BNC Connectors (50 ohm/75 ohm)

Product Facts

■

Bayonet lock coupling for

quick connect/disconnect

Various connectors available

in 50 and 75 ohm versions

Fully intermateable with

comparable BNC UG/U

connectors

Full range of Hex Crimp

and O Crimp Products for

common coaxial cables.

Low VSWR

Single crimp connectors

offer one crimping operation

for fast application

Twist-on connectors require

no special tooling for

application to the cable

Field serviceable (Category

A) connectors qualified to

MIL-C-39012

Field replaceable (Category

C) plugs with captivated

center contact

Field replaceable plugs can

be terminated with industry

standard tooling

Tarnish resistant Nickel

finish available

Choice of different dielectrics

Listed under the Component

Program of Underwriters

Laboratories Inc.,

File No. E81956

■

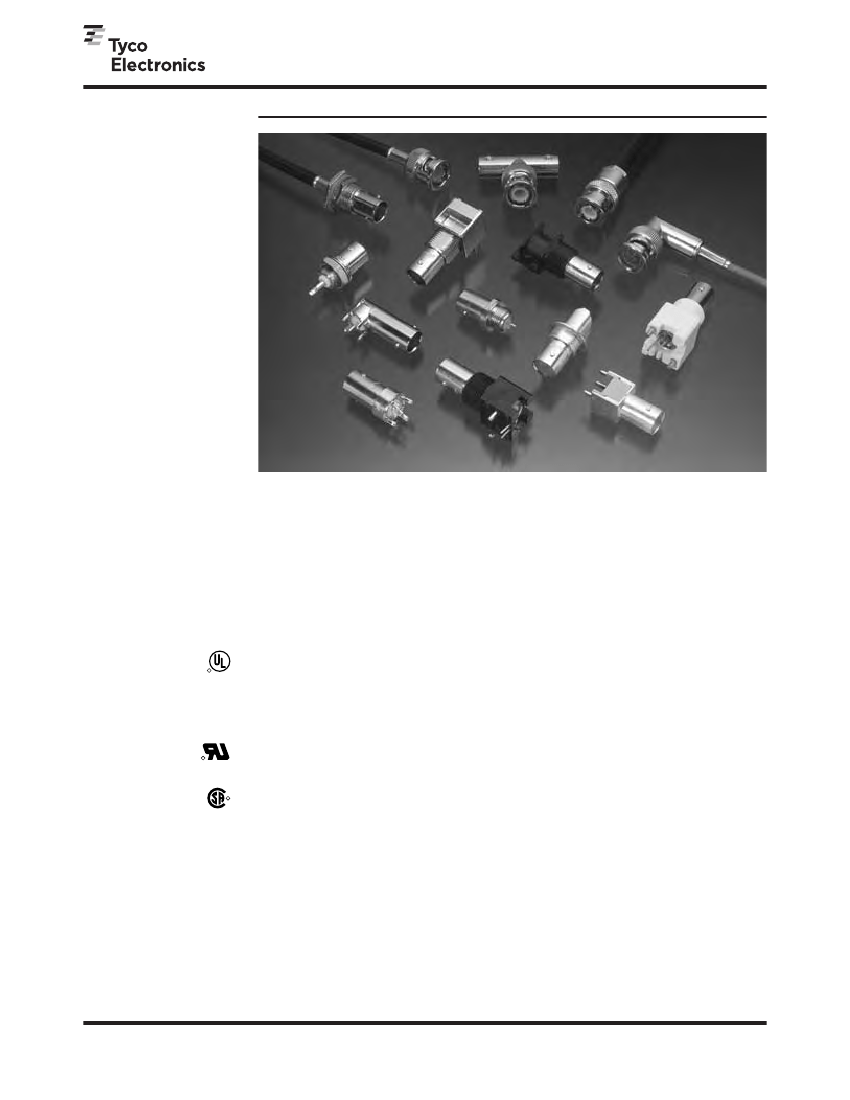

The Tyco Electronics BNC

RF connector family with

bayonet locking coupling

provides highly reliable,

quick connect/disconnect

coaxial connections.

Exclusive single and

O crimp terminations allow

positive insulation grip

and require no soldering,

providing terminations at

a very low overall applied

cost.

Available in both 50 and 75

ohm versions, these con-

■

PC Board soldered

connectors are recognized

under the Component

Program of Underwriters

Laboratories Inc.,

File No. E81956

nectors feature numerous

styles including cable plugs

and jacks, adapters and

printed circuit board con-

nectors. In addition to a

variety of crimp type termi-

nations, connectors are fur-

nished in field replaceable

and twist-on styles. These

connectors accept a wide

range of coaxial cables and

are intermateable with

industry standard connec-

tors designed to MIL-C-

39012 specifications.

Tyco Electronics can also

supply low cost alternatives

with an extensive commer-

cial type product line. A

lower cost consumer series

product offers the capability

to supply center contacts in

strip form and allow for auto-

mated center contact crimp

technology. All connectors

are designed around the

mil-specifications, but utilize

low-cost materials, offering

comparable mechanical

and electrical performance.

■

Certified by Canadian

Standards

Association

File No. LR 7189

222428-1 Related Products

	222428-1	TPS51518_15	5413588-2	5413588-9	415796-1	5415046-1	2225NPO152JT3AT	5221402-2	VFTX250-GFG-FREQ	1-5413588-0
Description	CABLE TERMINATED, FEMALE, BNC CONNECTOR, TWIST ON, JACK	Single-Phase, D-CAP™ and D-CAP2™ Controller with 2-Bit Flexible VID Control	BNC RTANG HEX CRMP PLUG 75 OHM	BNC RTANG HEX CRMP PLUG 75 OHM	MALE-MALE, RF STRAIGHT ADAPTER, PLUG-PLUG	PANEL MOUNT, BOARD TERMINATED, FEMALE, BNC CONNECTOR, SOLDER, JACK	Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.0015uF, Surface Mount, 2225, CHIP	PLUG,RTANG,75 OHM,COML BNC	Clipped Sine Output Oscillator, 10MHz Min, 52MHz Max, ROHS COMPLIANT, SMD, 4 PIN	PLUG,R/A HEX CRIMP 75 OHM BNC
Is it Rohs certified?	conform to	-	conform to	conform to	incompatible	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknow	-	compli	compliant	unknown	compliant	compliant	compliant	unknown	compliant
Body/casing type	JACK	-	PLUG	PLUG	PLUG-PLUG	JACK	-	PLUG	-	PLUG
Characteristic impedance	50 Ω	-	75 Ω	75 Ω	50 Ω	50 Ω	-	75 Ω	-	75 Ω
Connector type	RF BNC CONNECTOR	-	RF BNC CONNECTOR	RF BNC CONNECTOR	RF CONNECTOR ADAPTER	RF BNC CONNECTOR	-	RF BNC CONNECTOR	-	RF BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED
Contact point gender	FEMALE	-	MALE	-	MALE-MALE	FEMALE	-	MALE	-	MALE
Contact material	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED
Coupling type	BAYONET	-	BAYONET	-	BAYONET	BAYONET	-	BAYONET	-	BAYONET
DIN compliance	NO	-	NO	-	NO	NO	-	NO	-	NO
Filter function	NO	-	NO	-	NO	NO	-	NO	-	NO
IEC compliance	NO	-	NO	-	NO	NO	-	NO	-	NO
MIL compliance	NO	-	NO	-	NO	NO	-	NO	-	NO
Installation method	STRAIGHT	-	RIGHT ANGLE	RIGHT ANGLE	-	RIGHT ANGLE	-	RIGHT ANGLE	-	RIGHT ANGLE
Installation type	CABLE	-	CABLE	CABLE	-	BOARD	-	CABLE	-	CABLE
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	-	GENERAL PURPOSE
Panel mounting	NO	-	NO	-	NO	YES	-	NO	-	NO
Termination type	TWIST ON	-	CRIMP	CRIMP	-	SOLDER	-	CRIMP	-	CRIMP
Base Number Matches	1	-	1	1	1	1	-	1	-	-
Is it lead-free?	-	-	-	Lead free	Contains lead	Lead free	Lead free	Lead free	Lead free	-
