86HF20

Description
85 A, 200 V, SILICON, RECTIFIER DIODE, DO-203AB
CategoryDiscrete semiconductor    diode
File Size137KB,8 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Download Datasheet Parametric View All

86HF20 Overview

85 A, 200 V, SILICON, RECTIFIER DIODE, DO-203AB

86HF20 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerInternational Rectifier ( Infineon )
Parts packaging codeDO-5
package instructionO-MUPM-H1
Contacts1
Reach Compliance Codecompli
ECCN codeEAR99
applicationGENERAL PURPOSE
Shell connectionCATHODE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.2 V
JEDEC-95 codeDO-203AB
JESD-30 codeO-MUPM-H1
JESD-609 codee0
Maximum non-repetitive peak forward current1800 A
Number of components1
Phase1
Number of terminals1
Maximum operating temperature180 °C
Maximum output current85 A
Package body materialMETAL
Package shapeROUND
Package formPOST/STUD MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage200 V
surface mountNO
Terminal surfaceTIN LEAD
Terminal formHIGH CURRENT CABLE
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

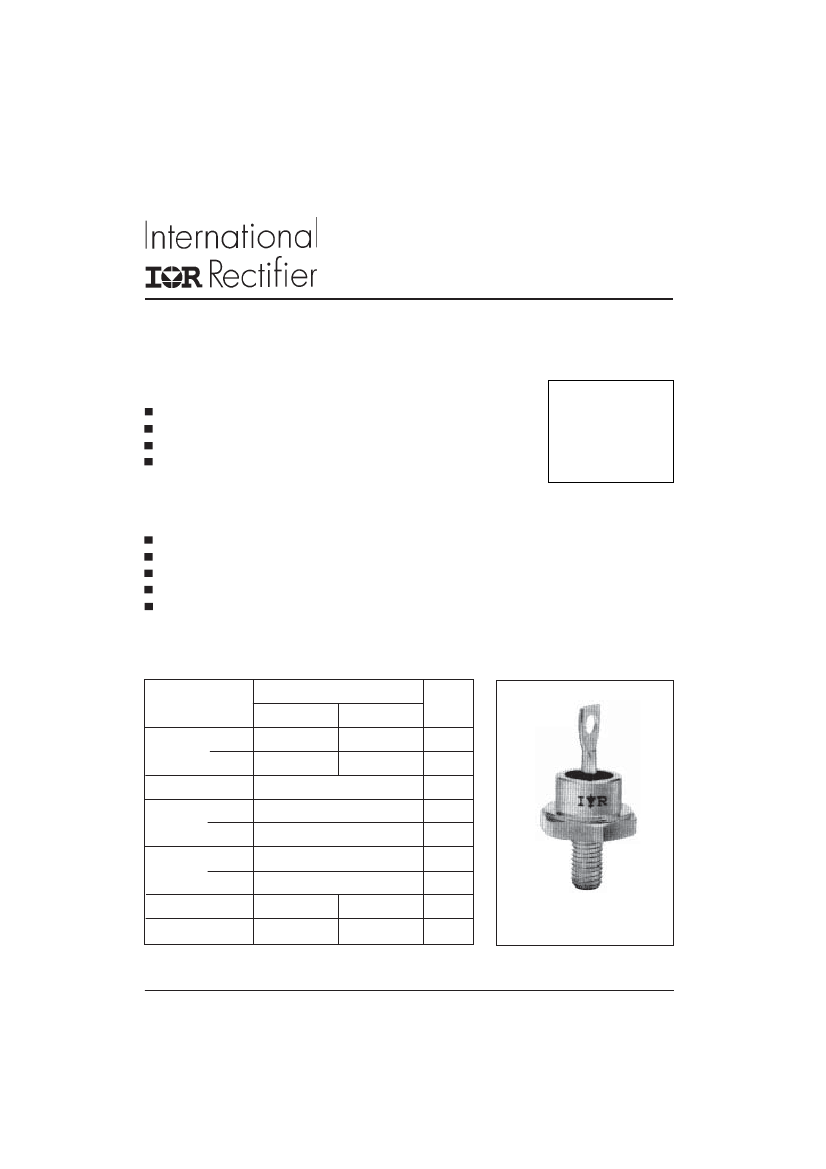

Bulletin I20203 rev. C 03/04
85HF(R) SERIES
STANDARD RECOVERY DIODES
Stud Version
Features
High surge current capability
Stud cathode and stud anode version
Leaded version available
Types up to 1600V V
RRM
85 A
Typical Applications
Battery charges
Converters
Power supplies
Machine tool controls
Welding
Major Ratings and Characteristics
85HF(R)
Parameters
I
F(AV)
@ T
C
I
F(RMS)
I
FSM
@ 50Hz
@ 60Hz
I
2
t
@ 50Hz
@ 60Hz
V
RRM
T
J
range
range
100 to 1200
- 65 to 180
10 to 120
85
140
133
1700
1800
14500
13500
140 , 160
85
110
Units
A
°C
A
A
A
A
2
s
A
2
s
1400 , 1600
- 65 to 150
V
°C
case style

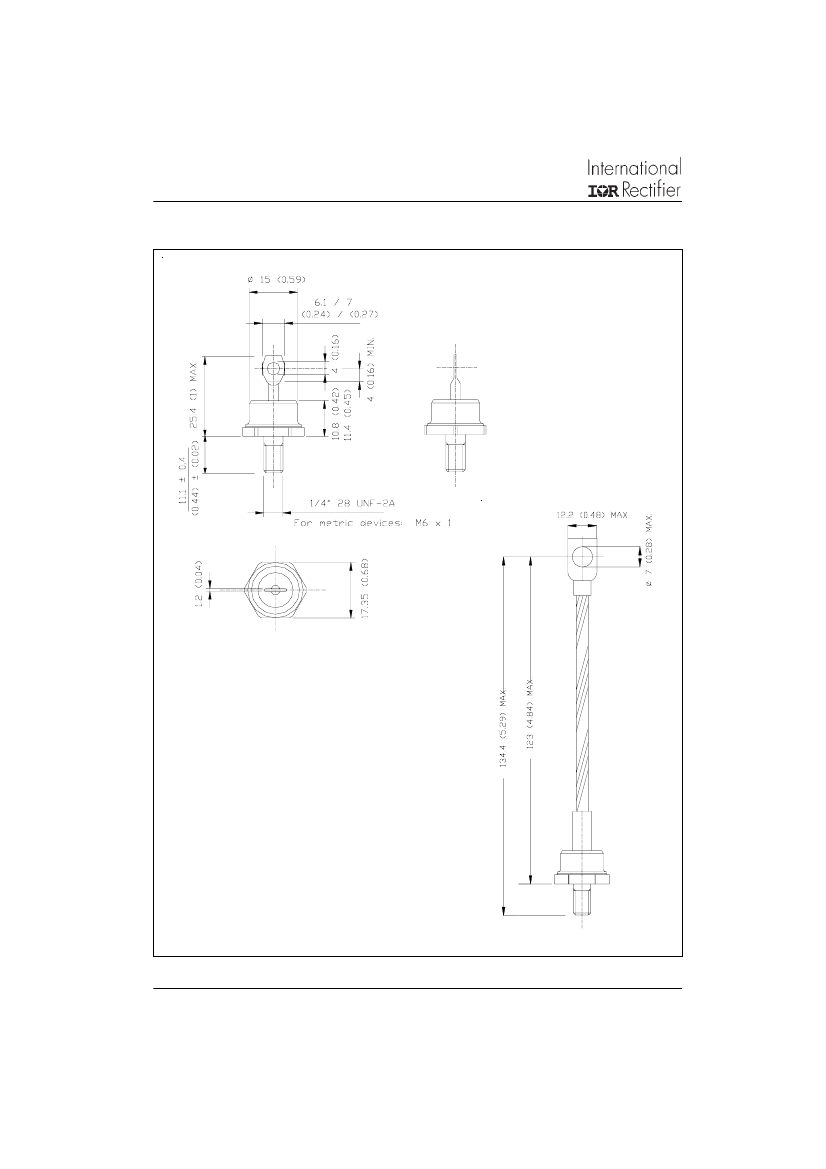

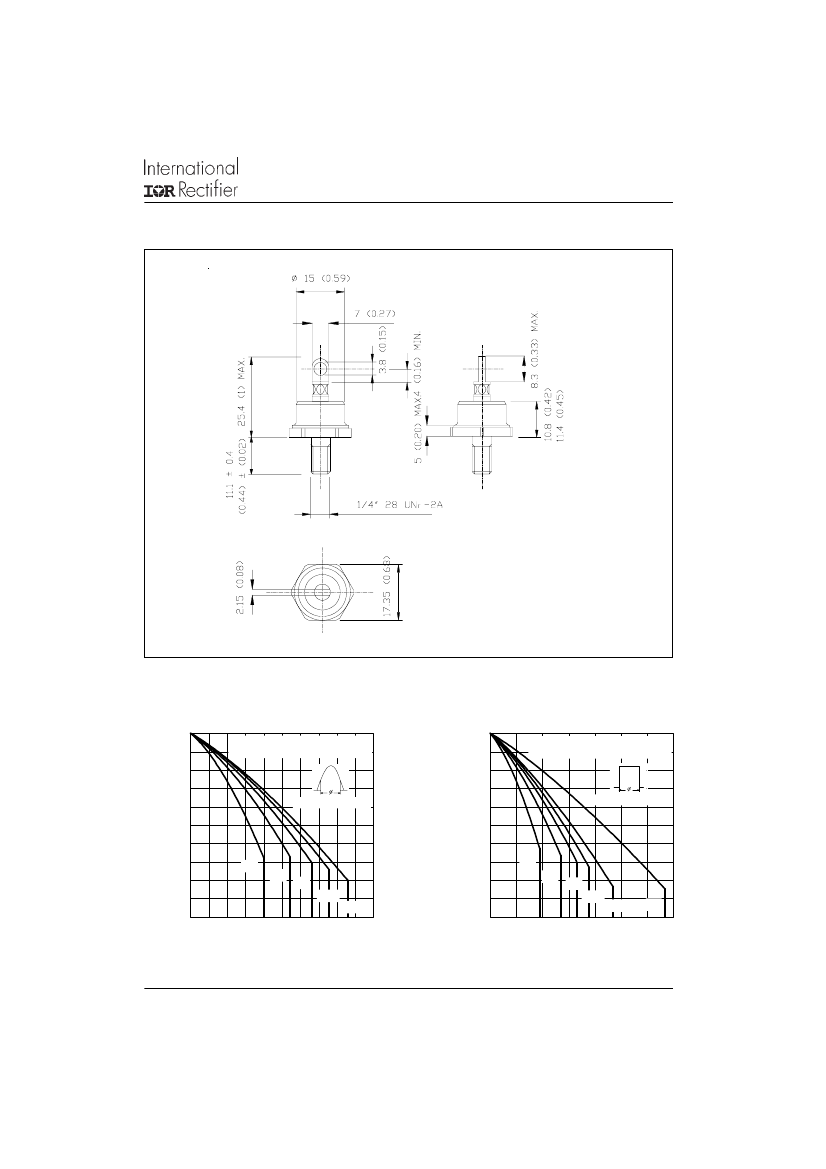

DO-203AB (DO-5)
