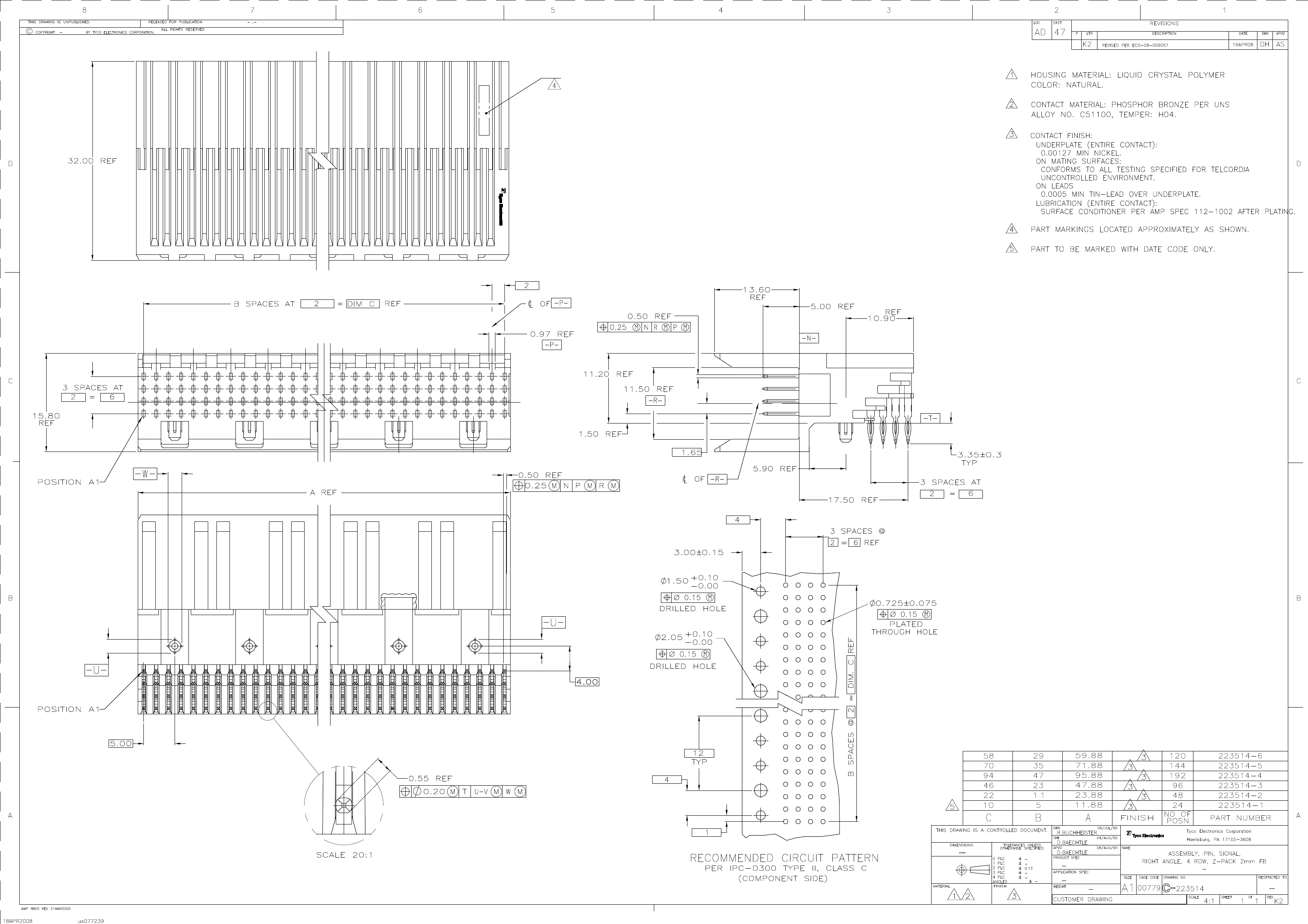

120 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Objectid | 1418102807 |
| Reach Compliance Code | unknown |
| YTEOL | 0 |
| Other features | Z-PACK |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD FLASH OVER PALLADIUM NICKEL |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| MIL compliance | NO |
| Mixed contacts | NO |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| Number of rows loaded | 4 |
| Options | GENERAL PURPOSE |
| Terminal pitch | 2 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 120 |
| UL Flammability Code | 94V-0 |
| 223514-6 | 223514-4 | 223514-5 | B16WS | 223514-3 | |
|---|---|---|---|---|---|
| Description | 120 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT | 192 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT | HEADER CONNECTOR,PCB MNT,RECEPT,144 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL | 60 Volts Forward Current - 1.0 Ampere | 96 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT |
| Is it Rohs certified? | conform to | incompatible | incompatible | - | incompatible |
| Reach Compliance Code | unknown | compli | unknow | - | unknown |
| Other features | Z-PACK | Z-PACK | LOCATING POST, MATE PIN=0.197" | - | Z-PACK |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | - | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD FLASH OVER PALLADIUM NICKEL | GOLD FLASH OVER PALLADIUM NICKEL | AU-PD-NI ON NI | - | NOT SPECIFIED |
| Contact point gender | MALE | MALE | MALE | - | MALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | - | PHOSPHOR BRONZE |
| DIN compliance | NO | NO | - | - | NO |
| Filter function | NO | NO | - | - | NO |
| IEC compliance | NO | NO | - | - | NO |
| MIL compliance | NO | NO | - | - | NO |
| Mixed contacts | NO | NO | - | - | NO |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | - | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | - | BOARD |
| Number of connectors | ONE | ONE | ONE | - | ONE |
| Number of rows loaded | 4 | 4 | 4 | - | 4 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | - | - | GENERAL PURPOSE |
| Terminal pitch | 2 mm | 2 mm | 2.0066 mm | - | 2 mm |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT | - | PRESS FIT |
| Total number of contacts | 120 | 192 | 144 | - | 96 |
| UL Flammability Code | 94V-0 | 94V-0 | - | - | 94V-0 |
| Board mount options | - | EDGE MOUNT | EDGE MOUNT | - | EDGE MOUNT |
| body width | - | 0.622 inch | 0.622 inch | - | 0.622 inch |
| subject depth | - | 1.26 inch | 1.26 inch | - | 1.26 inch |
| body length | - | 3.775 inch | 2.83 inch | - | 1.885 inch |
| Body/casing type | - | RECEPTACLE | RECEPTACLE | - | RECEPTACLE |
| contact mode | - | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| Contact style | - | SQ PIN-SKT | SQ PIN-SKT | - | SQ PIN-SKT |
| Durability | - | 250 Cycles | 250 Cycles | - | 250 Cycles |
| maximum insertion force | - | .695 N | .695 N | - | .695 N |
| insulator material | - | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | - | LIQUID CRYSTAL POLYMER (LCP) |
| Manufacturer's serial number | - | 223514 | 223514 | - | 223514 |
| Plug contact pitch | - | 0.079 inch | 0.079 inch | - | 0.079 inch |
| Match contact row spacing | - | 0.079 inch | 0.079 inch | - | 0.079 inch |
| PCB row number | - | 4 | 4 | - | 4 |
| Maximum operating temperature | - | 125 °C | 125 °C | - | 125 °C |
| Minimum operating temperature | - | -55 °C | -55 °C | - | -55 °C |
| PCB contact pattern | - | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| PCB contact row spacing | - | 2.0066 mm | 2.0066 mm | - | 2.0066 mm |
| Plating thickness | - | FLASH inch | FLASH inch | - | FLASH inch |
| polarization key | - | POLARIZED HOUSING | POLARIZED HOUSING | - | POLARIZED HOUSING |
| Rated current (signal) | - | 1 A | 1 A | - | 1 A |
| Guideline | - | UL, CSA | UL, CSA | - | UL, CSA |
| reliability | - | COMMERCIAL | COMMERCIAL | - | COMMERCIAL |
| Terminal length | - | 0.132 inch | 0.132 inch | - | 0.132 inch |
| Evacuation force-minimum value | - | .1112 N | .1112 N | - | .1112 N |
