8000-0-00-15-00-00-03-0 Overview

PCB Terminal

8000-0-00-15-00-00-03-0 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMill-Max
Reach Compliance Codecompliant
ECCN codeEAR99
Manufacturer's serial number8000-0
terminal genderFEMALE
Terminal and terminal strip typesPCB TERMINAL

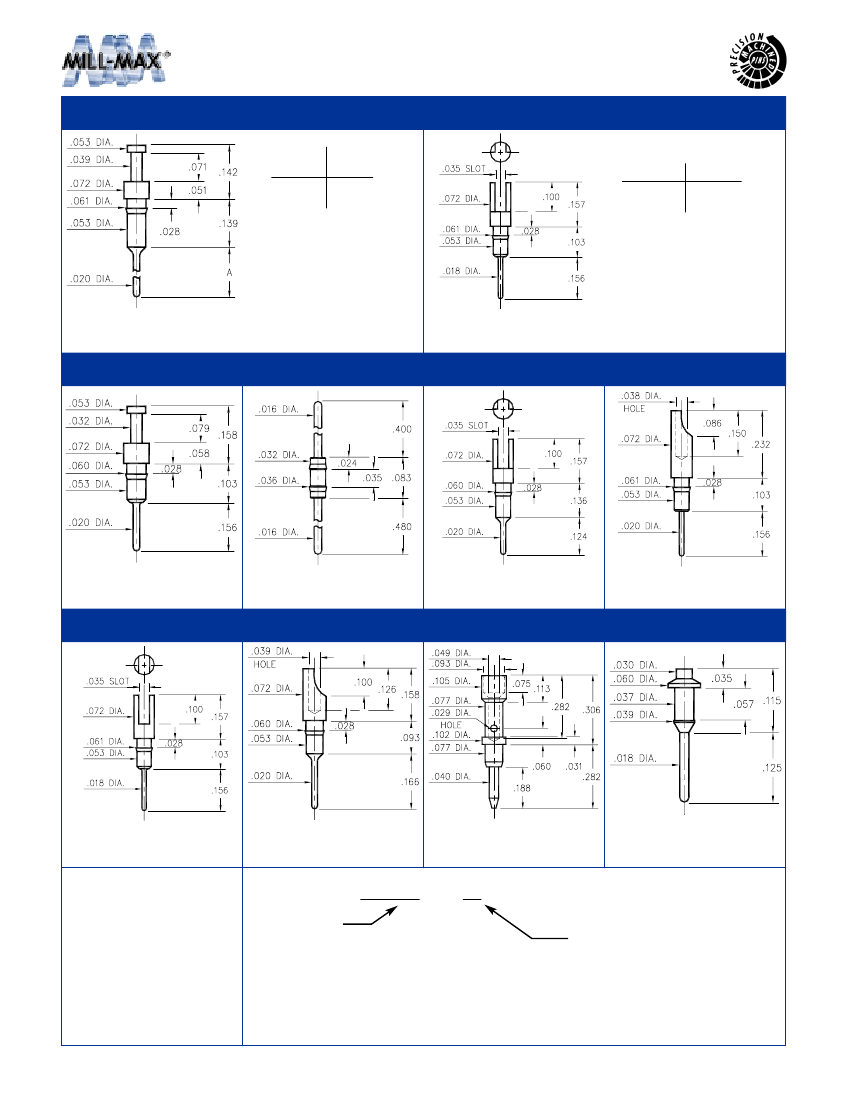

PRINTED CIRCUIT PINS
3408
Basic Part
Number
Pin Length
A
0270/0282
3408-1
3408-2
.121
.181
Basic Part
Number
0270-0
0282-0
Pin
Material
Ph Br 544 (B2)
Brass 360
3408-X-00-XX-00-00-03-0
Press-fit in .057 mounting hole
02XX-0-01-XX-00-00-03-0
Press-fit in .057 mounting hole
0700
8006
0265
0275
0700-0-00-XX-00-00-03-0
Press-fit in .057 mounting hole
8006-0-00-XX-00-00-03-0
Press-fit in .034 mounting hole
0265-0-01-XX-00-00-03-0
Press-fit in .057 mounting hole
0275-0-01-XX-00-00-03-0
Press-fit in .057 mounting hole
Pin material is Ph. Br. 544 (B2)
0272
8000
3603
9976
0272-0-01-XX-00-00-03-0
Press-fit in .057 mounting hole
8000-0-00-XX-00-00-03-0
Press-fit in .057 mounting hole
3603-0-07-XX-00-00-08-0
Annealed
#20 Crimp barrel
9976-0-00-XX-00-00-03-0
Press-fit in .038 mounting hole
SPECIFICATIONS
PIN MATERIAL:
Brass Alloy 360, 1/2 Hard
(Except where noted)
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - 0X - XX - 00 - 00 - 0X - 0
BASIC PART #
SPECIFY PIN FINISH:
01
200µ"
TIN/LEAD OVER
NICKEL
15
10µ"
GOLD OVER
NICKEL
21
20µ"
GOLD OVER
NICKEL
34
50µ"
GOLD OVER
NICKEL
Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
174

8000-0-00-15-00-00-03-0 Related Products

8000-0-00-15-00-00-03-0 8000-0-00-01-00-00-03-0 8000-0-00-21-00-00-03-0 8000-0-00-34-00-00-03-0
Description PCB Terminal PCB Terminal PCB Terminal PCB Terminal
Is it lead-free? Lead free Contains lead Lead free Lead free
Is it Rohs certified? conform to incompatible conform to conform to
Reach Compliance Code compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99
Manufacturer's serial number 8000-0 8000-0 8000-0 8000-0
terminal gender FEMALE FEMALE FEMALE FEMALE
Terminal and terminal strip types PCB TERMINAL PCB TERMINAL PCB TERMINAL PCB TERMINAL
Base Number Matches - 1 1 1
