53265-0220 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53265-0220

53265-0220: DescriptionBoard Connector, 2 Contact(s), Male, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size49KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

53265-0220 Overview

Board Connector, 2 Contact(s), Male, Solder Terminal, Receptacle,

53265-0220 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TRAY PACKAGING
body width	0.299 inch
subject depth	0.413 inch
body length	0.496 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	9.7856 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.276 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	6 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	7 mm
Termination type	SOLDER
Total number of contacts	2
Evacuation force-minimum value	.5004 N

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 8 circuits

Phosphor Bronze or Brass contact

Guide slots facilitate mating

Reference Information

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980

Mates With: 51067

Designed In: Millimeters

Mating Dimensions

53265/51067/50217

H=16.5mm W=9.4mm

Electrical

Voltage: 250V

Current: 53265-XX10—5.0A

53265-XX20—6.0A

Contact Resistance: 10m

Ω

max.

Dielectric Withstanding Voltage: 1500V AC/1 min.

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: Glass-filled PBTP

Contact: 53265-XX10—Phosphor Bronze

53265-XX20—Brass

Plating: Tin

Operating Temperature: -40 to +105

7.00mm (.276") Pitch

Wire-to-Board

Header

53265

Vertical

3.00 to 7.92mm (.118 to .312") Pitch

D-93

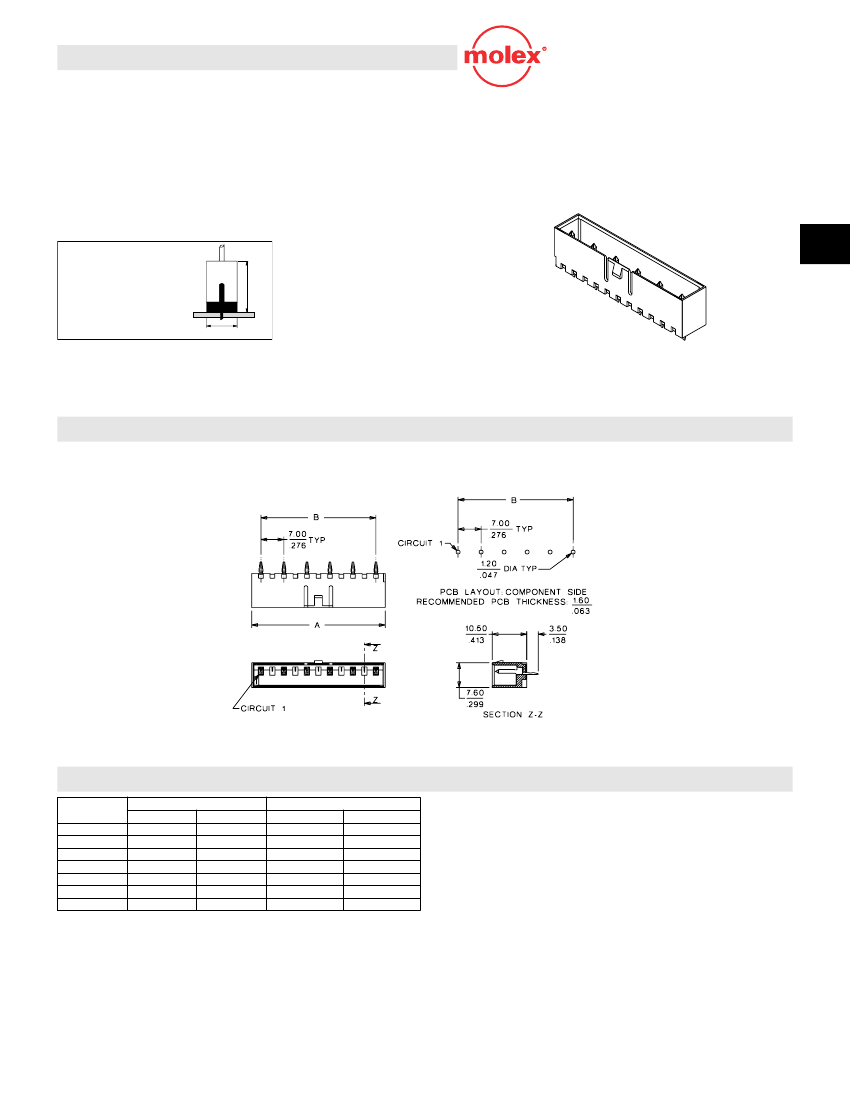

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

Phosphor Bronze

Brass

53265-0210

53265-0220

53265-0310

53265-0320

53265-0410

53265-0420

53265-0510

53265-0520

53265-0610

53265-0620

53265-0710

53265-0720

53265-0810

53265-0820

Dimension

12.60

19.60

26.60

33.60

40.60

47.60

54.60

(.496)

(.772)

(1.047)

(1.323)

(1.598)

(1.874)

(2.150)

7.00

14.00

21.00

28.00

35.00

42.00

49.00

(.276)

(.551)

(.827)

(1.102)

(1.378)

(1.654)

(1.929)

MX01
