PLL1000A
9939 Via Pasar • San Diego, CA 92126
TEL (858) 621-2700 FAX (858) 621-2722

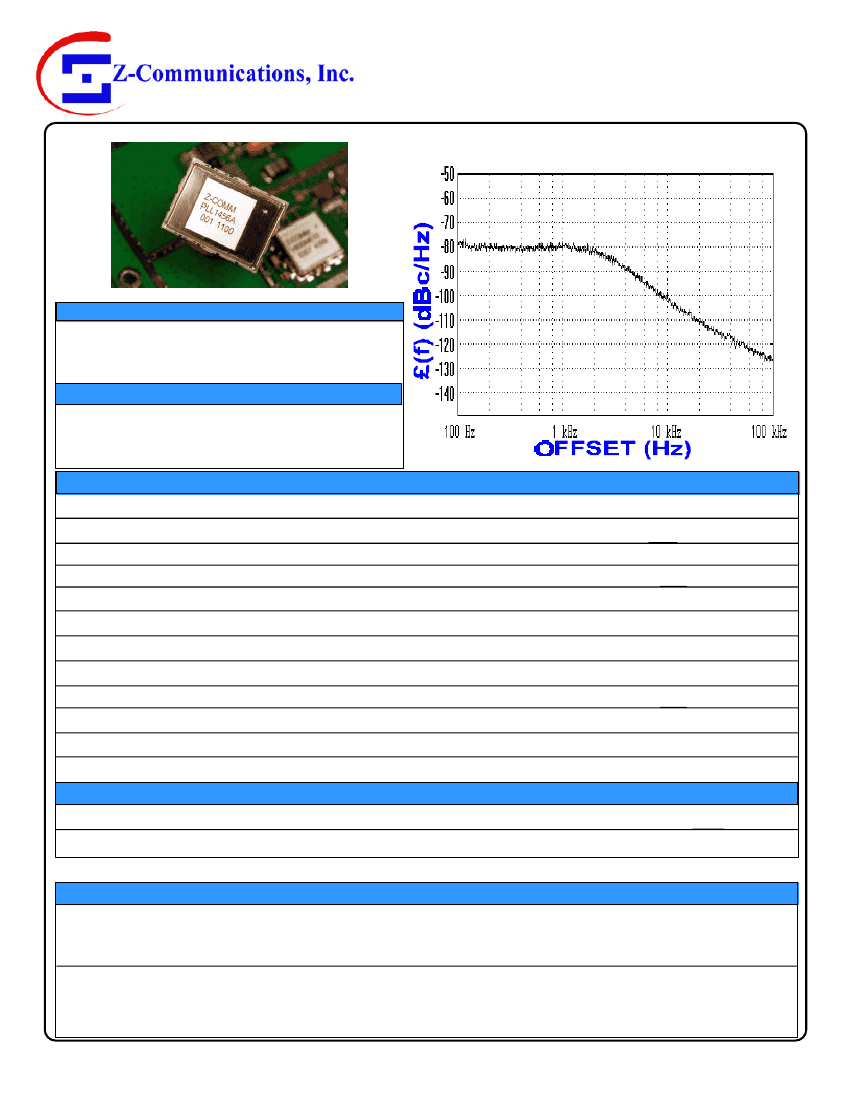

PHASE LOCKED LOOP
Rev
A
PHASE NOISE (1 Hz BW, typical)
FEATURES
• Frequency Range:
988 - 1028 MHz
• Step Size:
1000 KHz
• PLL - Style Package
APPLICATIONS
• Basestations
• Mobile Radios
• Satellite Communications
PERFORMANCE SPECIFICATIONS
Frequency Range
RMS Phase Error (100 Hz - 100 KHz)
Harmonic Suppression (2nd, typ.)
Sideband Spurs (typ.)
Power Output
Load Impedance
Step Size
Charge Pump Output Current
Switching Speed (typ., adjacent channel)
Startup Lock Time (typ.)
Operating Temperature Range
Package Style
VALUE
988
-
1028
0.75
-20
-70
0±2
50
1000
LOW
2
5
-40 to +85
PLL
UNITS
MHz
°
dBc
dBc
dBm
Ω
KHz
mSec
mSec
°C
POWER SUPPLY REQUIREMENTS
Supply Voltage (Vcc, nom.)
Supply Current (Icc, typ.)
5
32
APPLICATION NOTES
Vdc
mA
All specifications are typical unless otherwise noted and subject to change without notice.
•
AN-107 : How to Solder Z-COMM VCOs / PLLs
•
AN-200 : Mounting and Grounding of Z-COMM PLLs
•
AN-201 : PLL Fundamentals
AN-202 : PLL Functional Description
NOTES:
Reference Oscillator Signal: 5 MHz<
f
osc
<40 MHz
© Z-Communications, Inc.
Page 1
All rights reserved
LOW COST - HIGH PERFORMANCE
PHASE LOCKED LOOP
PLL OUTPUT SPECTRUM
PLL1000A
PAGE 2
POWER
FREQUENCY OFFSET (KHz)
POWER CURVE, typ.
3
2.5
2
25
1.5
°c
1
988
992
996
1000
1004
1008
1012
1016
1020
1028

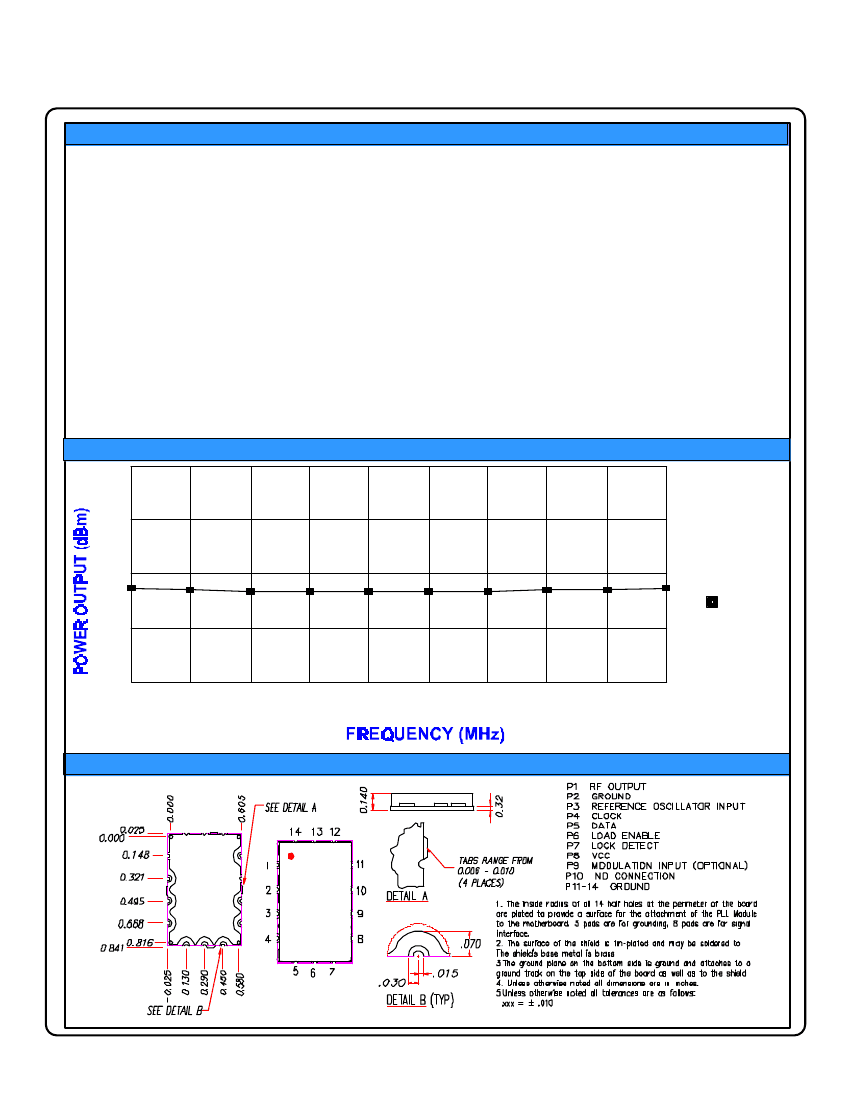

PHYSICAL DIMENSIONS
SIDE VIEW
BOTTOM VIEW
TOP VIEW
© Z-Communications, Inc.
Page 2
Printed in the U.S.A.
