N8086 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> N8086

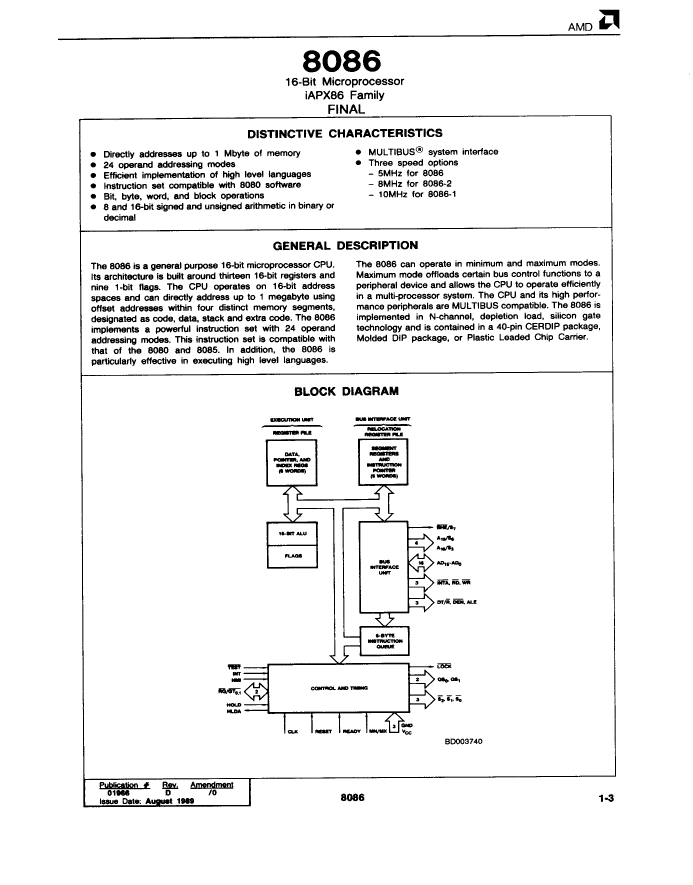

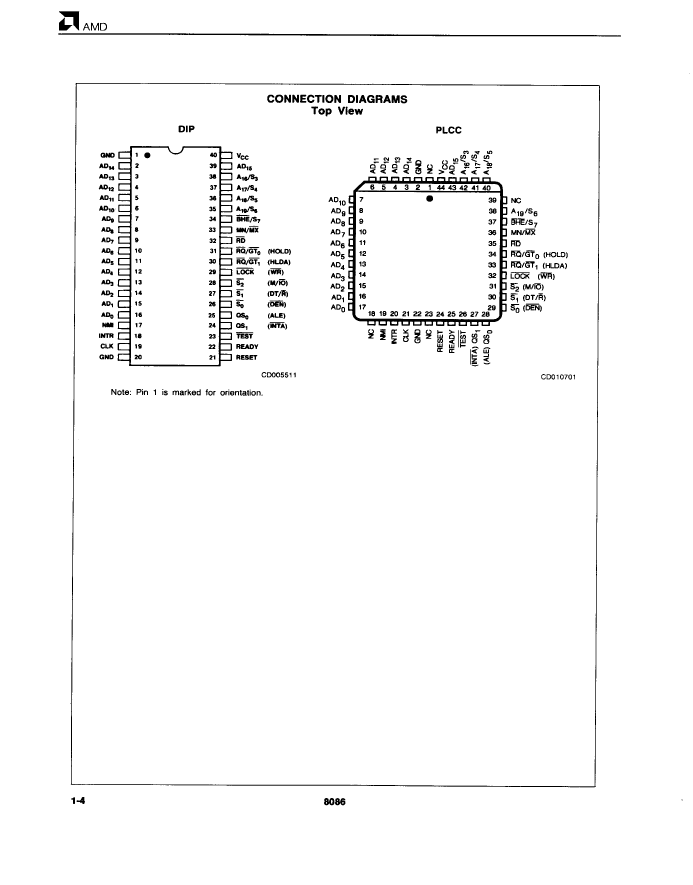

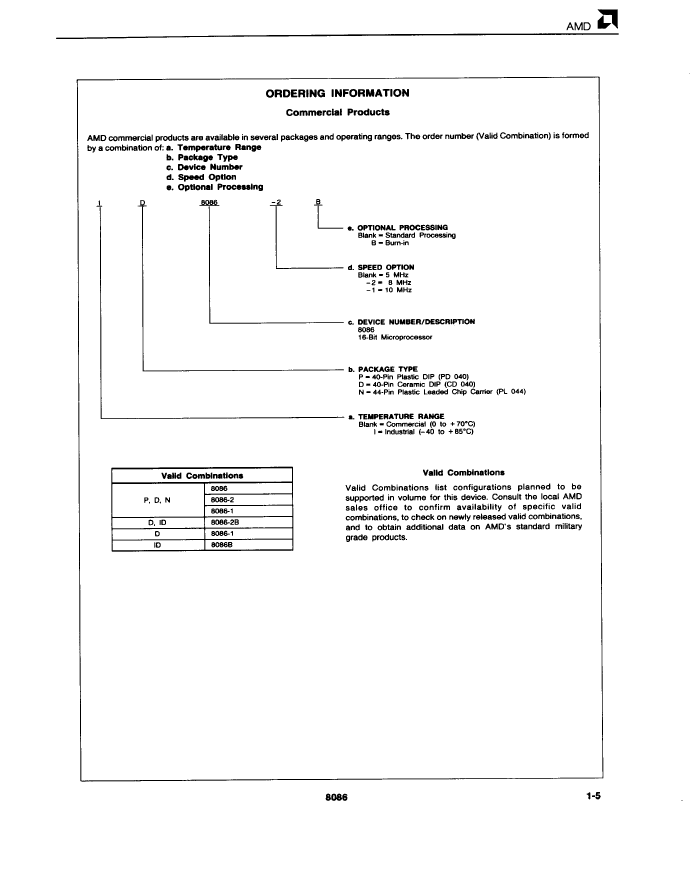

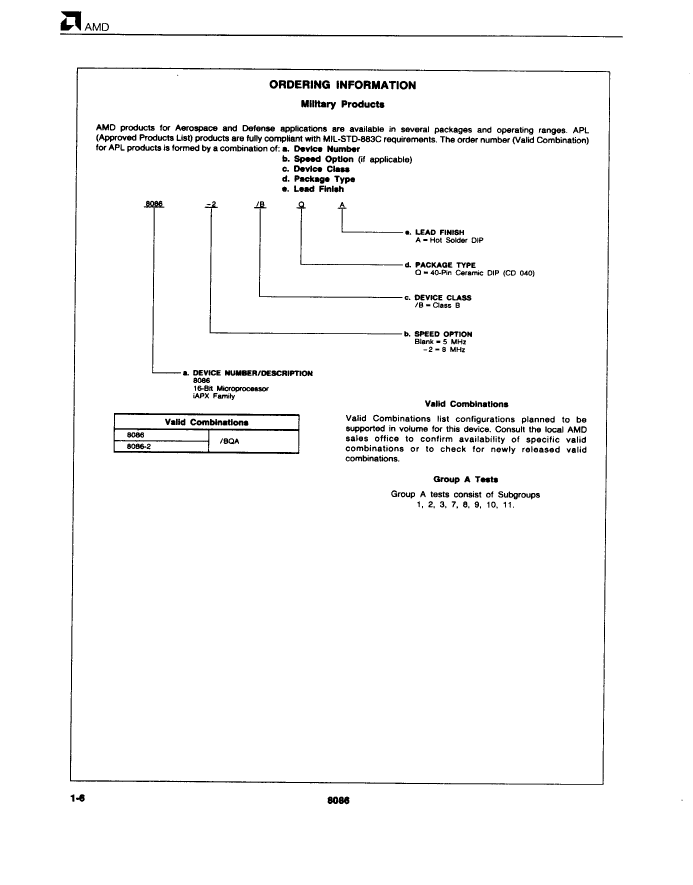

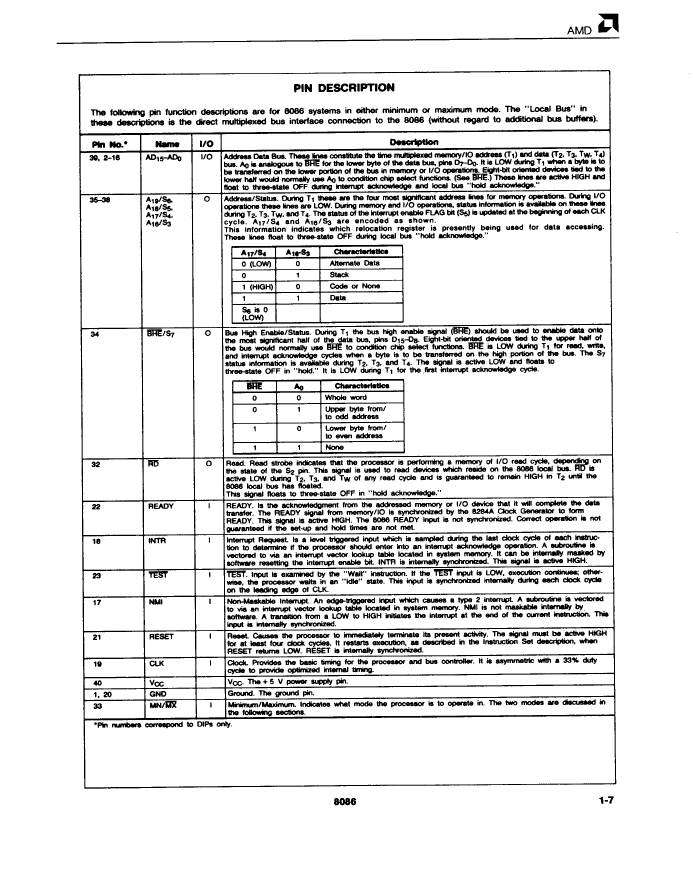

N8086: DescriptionMicroprocessor, 16-Bit, 5MHz, NMOS, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size975KB，31 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

N8086 Overview

Microprocessor, 16-Bit, 5MHz, NMOS, PQCC44, PLASTIC, LCC-44

N8086 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	LCC
package instruction	QCCJ, LDCC44,.7SQ
Contacts	44
Reach Compliance Code	unknown
Address bus width	20
bit size	16
boundary scan	NO
maximum clock frequency	5 MHz
External data bus width	16
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
length	16.5862 mm
low power mode	NO
Number of DMA channels
Number of external interrupt devices	2
Number of serial I/Os
Number of terminals	44
On-chip data RAM width
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.57 mm
speed	5 MHz
Maximum slew rate	340 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	NMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

Preview

Download Datasheet

View All

N8086 Related Products

	N8086	ID8086-2B	P8086-2	P8086	P8086-1
Description	Microprocessor, 16-Bit, 5MHz, NMOS, PQCC44, PLASTIC, LCC-44	Microprocessor, 16-Bit, 8MHz, NMOS, CDIP40, CERAMIC, DIP-40	Microprocessor, 16-Bit, 8MHz, NMOS, PDIP40, PLASTIC, DIP-40	Microprocessor, 16-Bit, 5MHz, NMOS, PDIP40, PLASTIC, DIP-40	Microprocessor, 16-Bit, 10MHz, NMOS, PDIP40, PLASTIC, DIP-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	AMD	AMD	AMD	AMD	AMD
Parts packaging code	LCC	DIP	DIP	DIP	DIP
package instruction	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6
Contacts	44	40	40	40	40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
Address bus width	20	-	20	20	20
bit size	16	-	16	16	16
boundary scan	NO	-	NO	NO	NO
maximum clock frequency	5 MHz	-	8 MHz	5 MHz	10 MHz
External data bus width	16	-	16	16	16
Format	FIXED POINT	-	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	-	NO	NO	NO
JESD-30 code	S-PQCC-J44	-	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40
JESD-609 code	e0	-	e0	e0	e0
length	16.5862 mm	-	52.324 mm	52.324 mm	52.324 mm
low power mode	NO	-	NO	NO	NO
Number of external interrupt devices	2	-	2	2	2
Number of terminals	44	-	40	40	40
Maximum operating temperature	70 °C	-	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	-	DIP	DIP	DIP
Encapsulate equivalent code	LDCC44,.7SQ	-	DIP40,.6	DIP40,.6	DIP40,.6
Package shape	SQUARE	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	-	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	-	5 V	5 V	5 V
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	-	5.715 mm	5.715 mm	5.715 mm
speed	5 MHz	-	8 MHz	5 MHz	10 MHz
Maximum slew rate	340 mA	-	340 mA	340 mA	340 mA
Maximum supply voltage	5.5 V	-	5.25 V	5.5 V	5.25 V
Minimum supply voltage	4.5 V	-	4.75 V	4.5 V	4.75 V
Nominal supply voltage	5 V	-	5 V	5 V	5 V
surface mount	YES	-	NO	NO	NO
technology	NMOS	-	NMOS	NMOS	NMOS
Temperature level	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	-	2.54 mm	2.54 mm	2.54 mm
Terminal location	QUAD	-	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	16.5862 mm	-	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	-	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
