BE25S-01SP1-02.5-04-0152

Description
Interconnection Device, ROHS COMPLIANT
CategoryThe connector    The connector
File Size2MB,2 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Environmental Compliance
Download Datasheet Parametric View All

BE25S-01SP1-02.5-04-0152 Overview

Interconnection Device, ROHS COMPLIANT

BE25S-01SP1-02.5-04-0152 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSAMTEC
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Connector typeINTERCONNECTION DEVICE

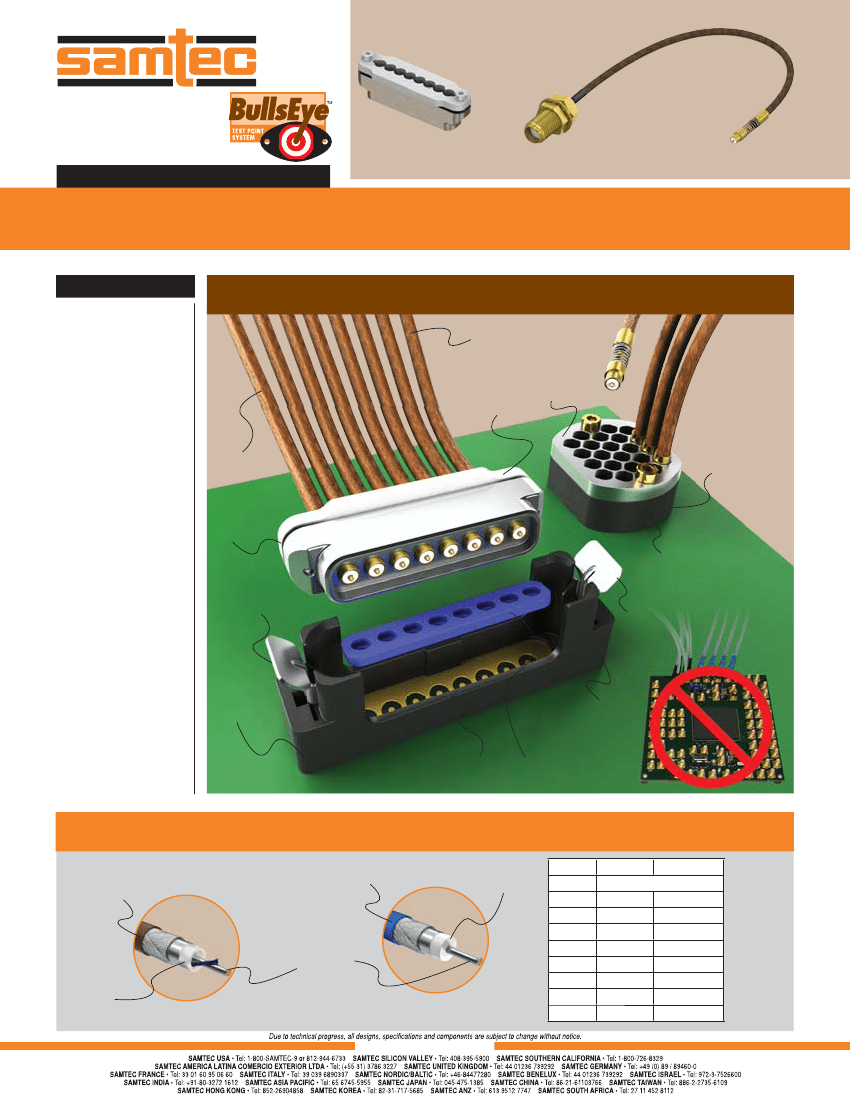

F-210-2
CRH–08
BE25M–01BJ1–02.5–02–0305

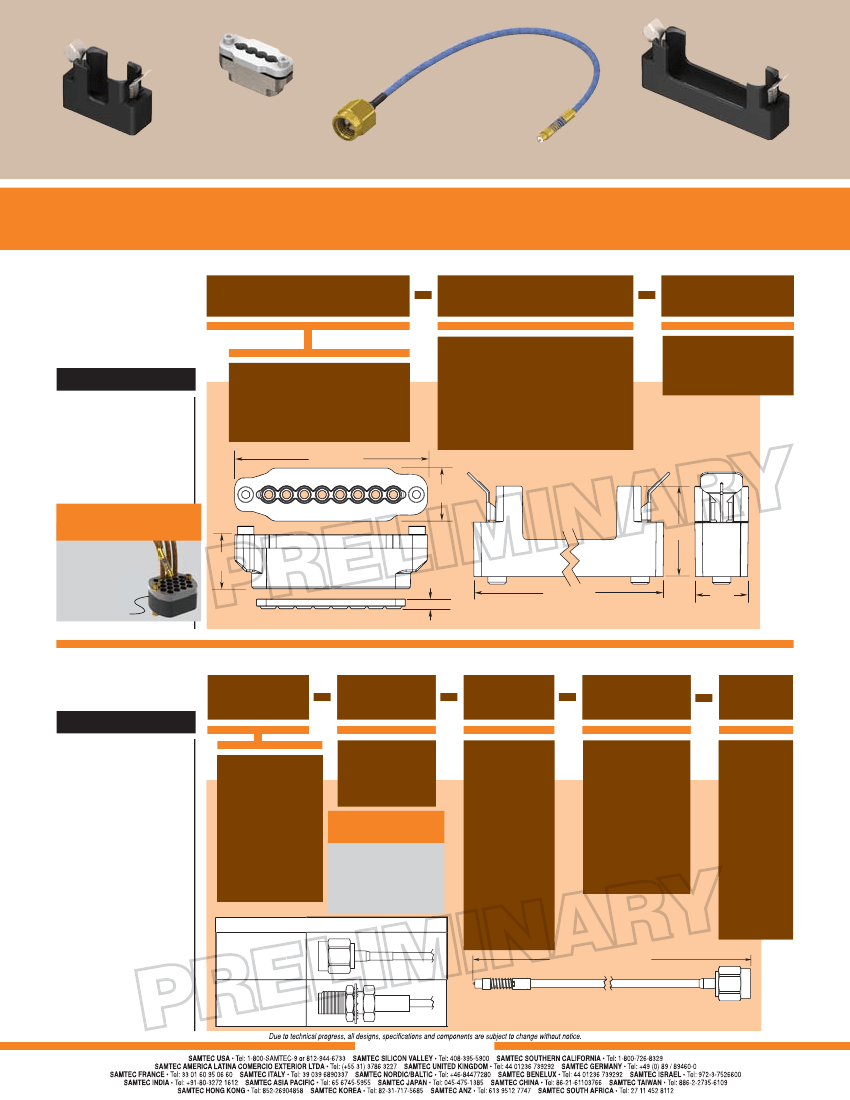

CRH, CRM, BE25M, BE25S SERIES
HIGH PERFORMANCE TEST SYSTEMS
FEATURES
Lower production costs
by moving most of the
interface costs to the lab
tool/cable
SMA performance for
10% of the cost
Compression interface
to the board
Bayonet mechanical
latch for easy on/off
Probe cable adaptor
connects to existing
instrument cables via
SMA termination
Test boards available
for performance
verification. Contact
bullseye@samtec.com
ALLOWS FOR SMALLER BOARD, FEWER LAYERS!
BE25M or
BE25S Series
BAR Series,
22 positions
standard
High Density
Custom
pin counts
available
Field
replaceable
CRH
Series
4:1 density vs. SMA,
1:1 density to SMP at
10% of the cost
Quick
connect/
disconnect
Rugged
latching
Low cost
PCB
interface
CRM
Series
Flourosilicone-based
conductive elastomer
provides excellent
grounding
Eliminates mating
and de-mating problems
(Note: Shown with BE25M cable assembly. Order separately.)
MICROWAVE CABLE PERFORMANCE
9mm
bend radius
9mm
bend radius
Rugged solid
dielectric
construction
CCA-25M
Frequency
1 GHz
2 GHz
4 GHz
0.85
1.21
1.75
2.58
3.22
3.73
4.06
4.18
MWC-2550-01
0.86
1.20
1.70
2.49
3.13
3.60
3.87
4.06
Attenuation (dB/m)
High
performance,
air enhanced
dielectric
25 AWG, silver plated
copper conductor
8 GHz
12 GHz
16 GHz
MWC-2550-01
18 GHz
20 GHz
CCA-25M
(Cable for BE25M & BAR)
(Cable for BE25S)
WWW.SAMTEC.COM
