PDL02-24S19

Description
Analog Circuit,
CategoryAnalog mixed-signal IC    The signal circuit
File Size115KB,2 Pages
ManufacturerPower Mate Tech
Download Datasheet Parametric View All

PDL02-24S19 Overview

Analog Circuit,

PDL02-24S19 Parametric

Parameter NameAttribute value
MakerPower Mate Tech
Reach Compliance Codecompliant

PDL02-24S19 Preview

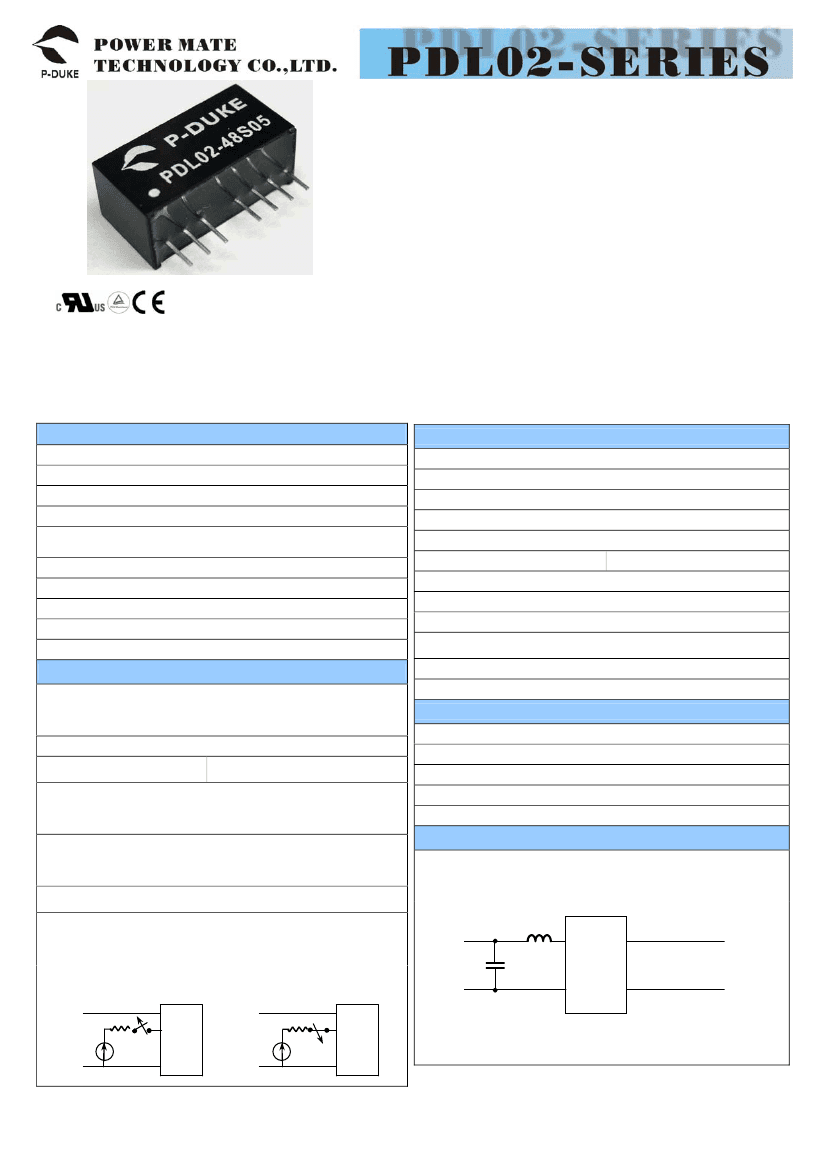

SINGLE AND DUAL OUTPUT
SIP PACKAGE, 0.86 x 0.36x 0.44 INCH
NO EXTERNAL INPUT AND OUTPUT CAPACITOR NEEDED
2:1 WIDE INPUT VOLTAGE RANGE
LOW RIPPLE & NOISE
UL94-V0 CASE POTTING MATERIALS
INPUT TO OUTPUT ISOLATION UP TO 1KVdc
CONTINUOUS SHORT CIRCUIT PROTECTION
EXTERNAL ON/OFF CONTROL
UL193009
TUV R50066485
CB JPTUV-011477
CE MARK
The PDL02 series offer 2 watts of output power from a 21.8 x 9.2 x 11.1 mm package
without derating to 85
ºC
and without external input/output capacitors. The PDL02
series have 2:1 wide input voltage of 4.5-9, 9-18, 18-36 and 36-75VDC and features
1000VDC of isolation, short-circuit protection. All models are particularly suited to
telecommunications, industrial, mobile telecom and test equipment applications.

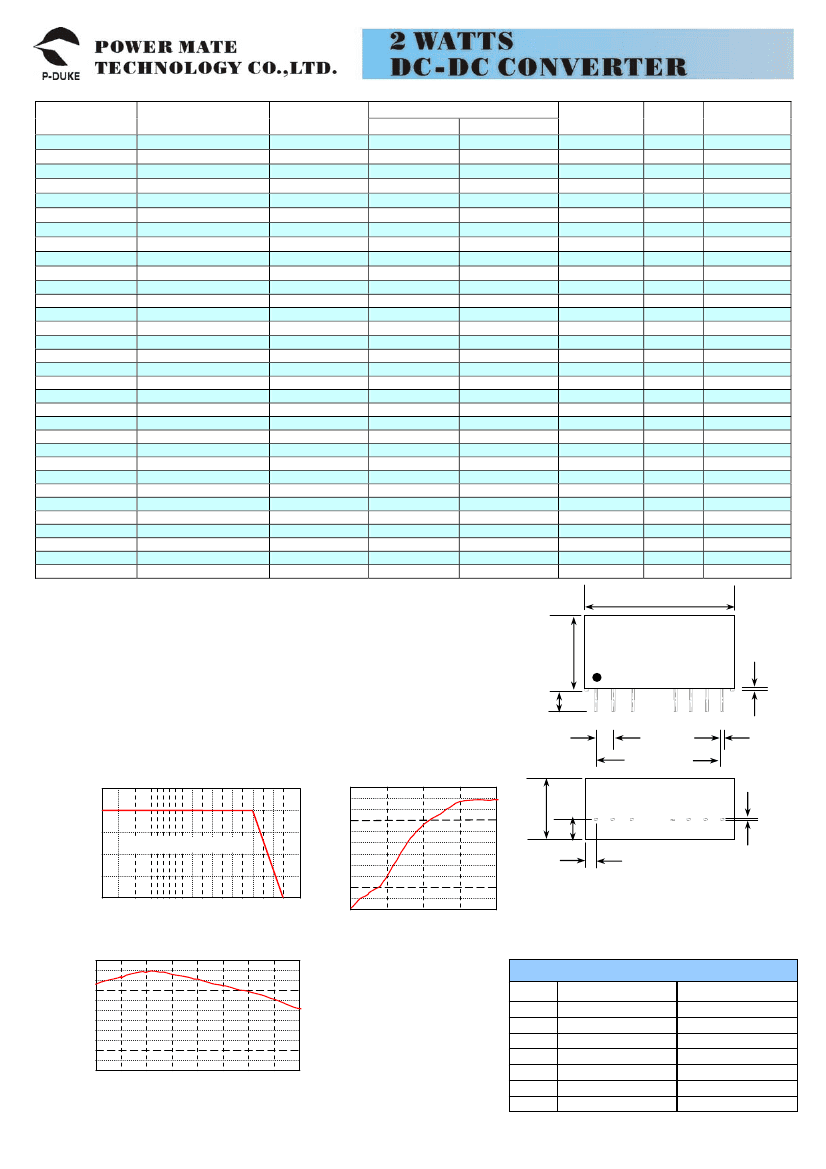

T E C H N I C A L S P E C I F I C AT I O N
OUTPUT SPECIFICATIONS
Output power
Voltage accuracy
Minimum load (Note 1)
Line regulation
LL to HL at Full Load
Full load and nominal Vin
All specifications are typical at nominal input, full load and 25ºC otherwise noted
GENERAL SPECIFICATIONS
2 Watts max Efficiency
± 1% Isolation voltage
10% of FL Isolation resistance
9
See table
1000VDC, min
10 ohms, min
± 0.5% Isolation capacitance
300pF, max
25% to 100% FL
Single
± 0.75% Switching frequency
Full load to minimum load
100KHz,min
Load regulation
± 1%
Dual
Approvals and standard
IEC60950-1, UL60950-1, EN60950-1
Cross regulation (Dual) Asymmetrical load 25%/100% FL
±5%
Case material
Non-conductive black plastic
Ripple and noise
20MHz bandwidth
50mVp-p
Base material
None
±0.1%
/ ºC, max
Temperature coefficient
Potting material
Silicon (UL94-V0)
Transient response recovery time 25% load step change
500uS typ
0.86 X 0.36 X 0.44 Inch
Short circuit protection
Continuous, automatics recovery Dimensions
(21.8 X 9.2 X 11.1 mm)
INPUT SPECIFICATIONS
5V nominal input
12V nominal input
24V nominal input
48V nominal input
Weight
4.8g (0.17oz)
6
5.107 x 10 hrs
4.5 – 9VDC MTBF (Note 3)
9 – 18VDC
Input voltage range
18 – 36VDC
ENVIRONMENTAL SPECIFICATIONS
36 – 75VDC Operating temperature range
-40ºC to +85ºC
Input filter
Capacitor type
Storage temperature range
-55ºC to +105ºC
5V/ms,max
Input voltage variation
dv/dt
MIL-STD-810D
(Complies) Thermal shock
5V input
15VDC
Vibration
10~55Hz, 10G, 30minutes along X,Y and Z
Input surge voltage
12V input
36VDC
100mS max
24V input
50VDC Relative humidity
5% to 95% RH
48V input
100VDC
Input reflected ripple
5V input (100uF)
400mAp-p max
EMC CHARACTERISTICS
There is an external
12V input (100uF)
150mAp-p max Meet EN55022 classes B recommend circuit 5V input
100uF & 10uH
capacitor at input (Note 2) 24V input (10uF)
380mAp-p max with external L-C filter at input
12V input 100uF & 10uH
48V input (10uF)
170mAp-p max (Note 4)
24V input 10uF & 120uH
Nominal Vin and
Power up
1mS typ
48V input 10uF & 120uH
Start up time
constant resistive load Remote ON/OFF
1mS typ
Open or high impedance EMC external circuit
Remote ON/OFF
DC-DC ON
Control pin applied current
DC-DC OFF
+
+
4 ~ 8mA max(via 1KΩ)
DC-DC
Remote off input current Nominal input
1mA max
Output
Input
Converter
Application circuit
DC-DC ON
+Input
6mA current
Source
-Input
1KΩ
+Input
Ctrl
6mA current
Source
-Input
DC-DC OFF
1KΩ
Ctrl
-
-
Model
Number
PDL02-05S33
PDL02-05S05
PDL02-05S09
PDL02-05S12
PDL02-05S15
PDL02-05D05
PDL02-05D12
PDL02-05D15
PDL02-12S33
PDL02-12S05
PDL02-12S09
PDL02-12S12
PDL02-12S15
PDL02-12D05
PDL02-12D12
PDL02-12D15
PDL02-24S33
PDL02-24S05
PDL02-24S09
PDL02-24S12
PDL02-24S15
PDL02-24D05
PDL02-24D12
PDL02-24D15
PDL02-48S33
PDL02-48S05
PDL02-48S09
PDL02-48S12
PDL02-48S15
PDL02-48D05
PDL02-48D12
PDL02-48D15
Input
Range
4.5 – 9 VDC
4.5 – 9 VDC
4.5 – 9 VDC
4.5 – 9 VDC
4.5 – 9 VDC
4.5 – 9 VDC
4.5 – 9 VDC
4.5 – 9 VDC
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
18 – 36 VDC
18 – 36 VDC
18 – 36 VDC
18 – 36 VDC
18 – 36 VDC
18 – 36 VDC
18 – 36 VDC
18 – 36 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
Output
Voltage
3.3 VDC
5 VDC
9 VDC
12 VDC
15 VDC
±5 VDC
±12 VDC
±15 VDC
3.3 VDC
5 VDC
9 VDC
12 VDC
15 VDC
±5 VDC
±12 VDC
±15 VDC
3.3 VDC
5 VDC
9 VDC
12 VDC
15 VDC
±5 VDC
±12 VDC
±15 VDC
3.3 VDC
5 VDC
9 VDC
12 VDC
15 VDC
±5 VDC
±12 VDC
±15 VDC
Output Current
Min Load
Full Load
50mA
40mA
22mA
17mA
13mA
±20mA
±8mA
±7mA
50mA
40mA
22mA
17mA
13mA
±20mA
±8mA
±7mA
50mA
40mA
22mA
17mA
13mA
±20mA
±8mA
±7mA
50mA
40mA
22mA
17mA
13mA
±20mA
±8mA
±7mA
500mA
400mA
222mA
167mA
134mA
±200mA
±83mA
±67mA
500mA
400mA
222mA
167mA
134mA
±200mA
±83mA
±67mA
500mA
400mA
222mA
167mA
134mA
±200mA
±83mA
±67mA
500mA
400mA
222mA
167mA
134mA
±200mA
±83mA
±67mA
Input
(5)
Current
540mA
615mA
596mA
588mA
582mA
645mA
595mA
598mA
202mA
234mA
222mA
219mA
220mA
242mA
224mA
226mA
102mA
115mA
109mA
109mA
108mA
117mA
112mA
110mA
52mA
60mA
56mA
55mA
55mA
62mA
57mA
57mA
Eff
(6)
(%)
65
69
71
72
73
66
71
71
72
75
79
80
80
73
78
78
71
76
80
80
81
75
78
80
70
74
78
80
79
75
77
77
0.86(21.80)
Capacitor
(7)
Load max
2200uF
1000uF
470uF
170uF
110uF
±470uF
±100uF
±47uF
2200uF
1000uF
470uF
170uF
110uF
±470uF
±100uF
±47uF
2200uF
1000uF
470uF
170uF
110uF
±470uF
±100uF
±47uF
2200uF
1000uF
470uF
170uF
110uF
±470uF
±100uF
±47uF
Note
1.The PDL02 series required a minimum 10% loading at the output to maintain specified
regulation. Operation under no-load condition will not damage these devices, however
they may not meet all listed specification.
2.It will not damage the device without inserting external input capacitors. There is a
smaller reflected ripple current when put a capacitor at input. The capacitor
0.44
recommended use“CHEMICON” LXZ series or equivalent for 05 & 12Vin.
(11.10)
Use “CHEMICON” KMF series or equivalent for 24 & 48Vin.
3.BELLCORE TR-NWT-000332. Case: 50% Stress, Temperature at 40ºC. (Ground fixed
and controlled environment).
0.16
4.The PDL02 series meet EN55022 class A with a filter at input. The filter capacitor
(4.10)±0.5
recommended is same as note2.
5.Maximum value at nominal input voltage and full load.
0.10(2
.
54)
6.Typical value at nominal input voltage and full load.
7.Test by minimum Vin and constant resistive load.
PDL02-48S33
Efficiency VS Output load
PDL02-48S33 Derating Curve
100
75
50
25
0
-40 -25 -10 0
50 60
70
80
90 100
72
71
70
69
68
67
66
65
60
55
50
0.1
0.2
0.3
0.4
0.5
FRONT VIEW
0.02
(0.50)
1
2
3
5 6 7 8
0.02
(0.50)±0.05
0.70(17.78)
OUTPUT POWER (%)
EFFICIENCY (%)
0.36
(9.20)
0.13
(3.20)
BOTTOM VIEW
Nature convection
0.08
(2.01)±0.5
.0.01
(0.32)
Rectangular pin
AMBIENT TEMPERATURE (ºC)
PDL02-48S33
EFFICIENCY (%)
72
71
70
69
68
67
66
65
60
55
50
36
40
45
50
55
60
65
70
75
OUTPUT LOAD (A)
Efficiency VS Input voltage
ALL DIMENSIONS IN INCHES(mm)
TOLERANCE:X.XX±0.02(X.X±0.5)
X.XXX±0.01(X.XX±0.25)
PIN PITCH TOLERANCE
±0.02(0.5)
PIN CONNECTION
PIN
1
2
3
5
6
7
8
SINGLE
- INPUT
+ INPUT
CTRL
NC
+ OUTPUT
- OUTPUT
NC
DUAL OUTPOUT
- INPUT
+ INPUT
CTRL
NC
+ OUTPUT
COM
- OUTPUT
INPUT VOLTAGE (V)
