PJ3842BCS

Description
Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, PDSO8, PLASTIC, SOP-8
CategoryPower/power management    The power supply circuit
File Size373KB,15 Pages
ManufacturerPromax-Johnton Electronic Corporation
Download Datasheet Parametric View All

PJ3842BCS Overview

Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, PDSO8, PLASTIC, SOP-8

PJ3842BCS Parametric

Parameter NameAttribute value
MakerPromax-Johnton Electronic Corporation
Parts packaging codeSOIC
package instructionSOP,
Contacts8
Reach Compliance Codeunknown
ECCN codeEAR99
Analog Integrated Circuits - Other TypesSWITCHING CONTROLLER
control modeCURRENT-MODE
Control TechnologyPULSE WIDTH MODULATION
Maximum input voltage30 V
Minimum input voltage12 V
Nominal input voltage15 V
JESD-30 codeR-PDSO-G8
length4.9 mm
Number of functions1
Number of terminals8
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
Maximum output current1 A
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Certification statusNot Qualified
Maximum seat height1.75 mm
surface mountYES
Switch configurationSINGLE
Maximum switching frequency500 kHz
Temperature levelOTHER
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
width3.9 mm

PJ3842BCS Preview

PJ3842B
High Performance Current Mode Controller
T
he PJ3842B series is high performance fixed frequency
current mode controllers. This is specifi cally designed
Also included are protective features consisting of input
and reference undervoltage lockouts each with hysteresis,
cycle-by -cycle current limiting , programmable output
deadtime, and a latch for single pulse metering.
This device is available in 8-pin dual-in-line plastic
packages as well as the 8-pin plastic surface mount (SOP-8).
The SOP-8 package has separate power and ground pins fo r
the totem pole output stage.
The PJ3842B has UVLO thresholds of 16V (on) and
10V (off), ideally suited for off-line conv erters.
fo r Off-Line and DC-to-DC convert er applications offering
the designer a cost effective solution with minimal external
components.This integrated circuits
feature a trimmed
oscillator for precis e duty cycle control, a temperature
compensated reference, high gain error amplifier, current
sensing comparator,and a high current totem pole output
ideally suited for driving a power MOSFET.
FEATURES
Trimmed Oscillator Discharge Current for Precise Duty
Cycle Control
Current Mode Operation to 500KHz
Automatic Feed Forward Compensation
Latching PWM for Cycle-By-Cycl e Current Limiting
Internally
Lockout
High Current Totem Pole Output
Input Undervoltage Lockout with Hystersis
Low Start-Up and Operating Current
Trimmed
Reference
with
Undervoltag e
DIP-8
SOP-8
P in: 1. Compensation
2. Voltage Feedback
3. Current Sense
4. R
T
/C
T
5
. Gnd
6. Output
7. Vcc
8. Vref
ORDERING INFORMATION
Device
PJ3842BCD
PJ3842BCS
Operating Temperature
-20℃ TO +85℃
Package
DIP-8
SOP-8

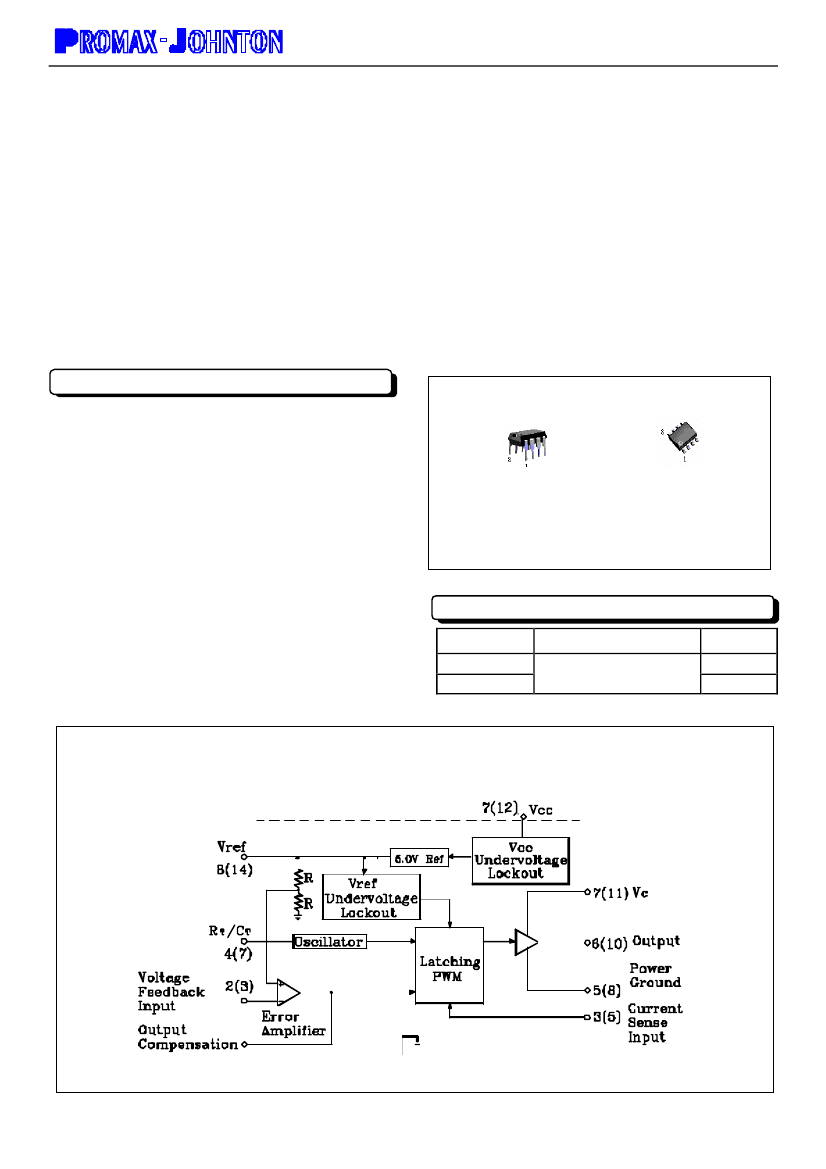

SIMPLIFIED BLOCK DIAGRAM
The document contains information on a new product.Specifications and information herein are subject to change without notice.
1-15
2002/01.ver.A
PJ3842B
High Performance Current Mode Controller
MAXIMUM RATING
Rating
Total Power Supply and Zener Current
Output Current Source or Sink (Note 1)
Output Energy (Capacitive Load per Cycle)
Current Sense and Voltage Feedback Inputs
Error Amp Output Sink Current
Power Dissipation and Thermal Characteristics
Plastic Dip
Maximum Power Dissipation @ T
A
=25℃
Thermal Resistance Junction to Air
Plastic Dip
Maximum Power Dissipation @ T
A
=25℃
Thermal Resistance Junction to Air
Operating Junction Temperature
Operature Ambient Temperature
Storage Temperature Range
Symbol
(I
CC
+I
Z
)
Io
W
Vin
Io
Value
30
1.0
5.0
-0.3 to +5.5
10
Unit
mA
A
μJ
V
mA
P
D
R
θJA
P
D
R
θJA
T
J
T
A
Tstg
862
145
1.25
100
+150
0 to +70
-65 to +150
mW
℃/W
W
℃/W
ELECTRICAL CHARACT ERISTICS
(V
CC
= 15V (Note 2), R
T
=10K, C
T
=3.3nF, T
A
=T
low
to T
high
(Note 3)
u
nless otherwise
PJ3842B
Typ
5.0
2.0
3.0
0.2
-
50
5.0
-85
Characteristic
Symbol
Min
Max
5.0
20
25
-
5.18
-
-
180
Unit
V
mV
mV
mV/℃
V
µV
mV
mA
KHz
REFERENCE SECTION
Reference Output Voltage (Io=1.0mA,T
J
= 25℃)
Vref
5.0
Line Regulation (V
CC
=12V to 25V)
Regline
-
Load Regulation (Io =1.0mA to 20mA)
Regload
-
Temperature Stability
Ts
-
Total Output Variation over Line,Load ,and Temperature
Vref
4.82
Output Noise Voltage (f = 10Hz to 10kHz, T
J
=25℃)
Vn
-
Long Term Stability ( T
A
=125.℃ for 1000 Hours)
S
-
Output Short Circuit Current
Isc
-30
OSCILLATOR SECTION
Frequency
Fosc
T
J
=25℃
47
T
A
=T
low
to T
high
46
Frequency Change with Voltage (V
CC
=12V to 25V)
Δfos
c/ΔV
-
Frequency Change with Temperature
Δfos
c/ΔT
-
T
A
=T
low
to T
high
Oscillator Voltage Swing ( Peak-to-Peak)
Vosc
-
Discharge Current (Vosc=2.0V)
Idischg
T
J
=25℃
7.5
T
A
=T
low
to T
high
7.2
Note: 1. Maximum Package power dissipation limits must be observed.
2. Adjust V
CC
above the Start-Up threshold before setting to 15V.
3. Low duty cycle pulse technique are used during test to maintain junction temperature as
T
low
= -20℃
T
high
= +85℃
4. This parameter is measured at the latch trip point with V
FB
= 0V.
ΔV
Output Compensation
5. Comparator gain is defined as : Av =
ΔV
Current Sense Input
52
-
0.2
5.0
1.6
8.4
-
57
60
1.0
-
-
9.3
9.5
%
%
V
mA
close to ambient as possible.
2-15
2002/01.ver.A
PJ3842B
High Performance Current Mode Controller
ELECTRICAL CHARACT ERISTICS
(V
CC
=15V(Note 2) , R
T
=10K C
T
=3.3nF T
A
=T
low
to T
high
( Note 3) unless otherwise
Characteristic
ERROR AMPLIFIER SECTION
Voltage Feedback Input (Vo=2.5V)
Input Bias Current (V
FB
=5.0V)
Open-Loop Voltage Gain (Vo=2.0V to 4.0V)
Unity Gain Bandwidth (T
J
=25℃)
Power Supply Rejection Radio (V
CC
=12V to 25V)
Output Current
Sink (Vo=1.1V, V
FB
=2.7V)
Source ( Vo=5.0V, V
FB
=2.3V)
Output Voltage Swing
High State (R
L
=15K to ground, V
FB
=2.3V)
Low State (R
L
=15K to Vref, V
FB
=2.7V)
CURRENT SENSE SECTION
Current Sense Input Voltage Gain (Note 4&5)
Maximum Current Sense Input Threshold(Note 4)
Power Supply Rejection Radio
V
CC
=12V to 25V,Note 4
Input Bias Current
Propagation Delay(Current Sense Input to Output)
OUTPUT SECTION
Output Voltage
Low State (Isink=20mA)
(Isink=200mA)
High State (Isource=20mA)
(Isource=200mA)
Output Voltage with UVLO Activated
V
CC
=6.0V,Isink=1.0mA
Output Voltage Rise Time (C
L
=1.0nF,T
J
=25℃)
Output Voltage Fall Time (C
L
=1.0nF,T
J
=25℃)
UNDERVOLTAGE LOCKOUT SECTION
Start-Up Threshold
PJ3842B
Minimum Operating Voltage After Turn-On
PJ3842B
PWM SECTION
Duty Cycle
Maximum
Minimum
TOTAL DEVICE
Power Supply Current
Start-Up, V
CC
= 14V
Operating (Note 2)
Power Supply Zener Voltage (I
CC
=25mA)
Av
V
th
P
SRR
I
IB
t
PLH(IN/OUT)
2.85
0.9
-
-
-
3.0
1.0
70
-2.0
150
3.15
1.1
-
-10
300
V/V
V
dB
μΑ
ns
V
V
OL
V
OH
V
OL
(UVLO)
tr
tf
Vth
14.5
V
CC(min)
8.5
10
11.5
%
DCmax
DCmin
I
CC
-
-
30
0.25
12
36
0.5
17
-
94
-
96
-
-
0
mA
16
17.5
V
-
-
13
12
-
-
-
0.1
1.6
13.5
13.4
0.1
50
50
0.4
2.2
-
-
1.1
150
150
V
FB
I
IB
A
VOL
BW
PSRR
I
sink
I
Source
V
OH
V
OL
2.42
-
65
0.7
60
2.0
-0.5
5.0
-
2.5
-0.1
90
1.0
70
12
-1.0
6.2
0.8
2.58
-2.0
-
-
-
-
-
V
-
1.1
V
μΑ
dB
MHz
dB
mA
Symbol
Min
PJ3842B
Typ
Unit
Max
V
ns
ns
V
Vz
V
3-15
2002/01.ver.A
PJ3842B
High Performance Current Mode Controller

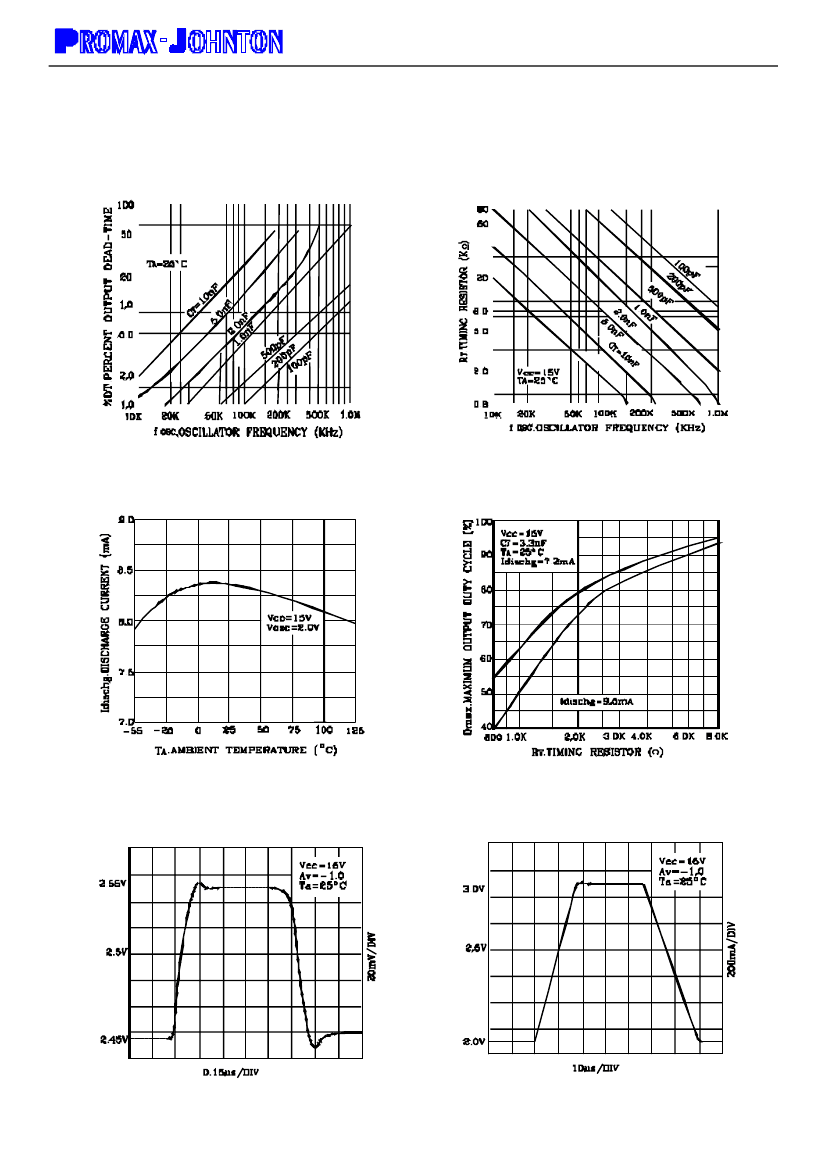

FIGURE 1- OUTPUT DEAD TIME versus
OSCILLATOR FREQ UENCY
FIGURE 2- TIMING RESISTOR versus
OSCILLATOR FREQ UENCY
FIGURE 3-OSCILLATOR DISCHARGE CURRENT
versus TEMPERATURE
FIGURE 4-MAXIMUM OUTPUT DUTY CYCLE
versus TIMING RESISTOR
FIGURE 5-ERROR AMP SMALL SIGNAL
TRANSIENT RESPONSE
FIGURE 6-ERROR AMP LARGE SIGNAL
TRANSIENT RESPONSE
4-15
2002/01.ver.A
PJ3842B
High Performance Current Mode Controller

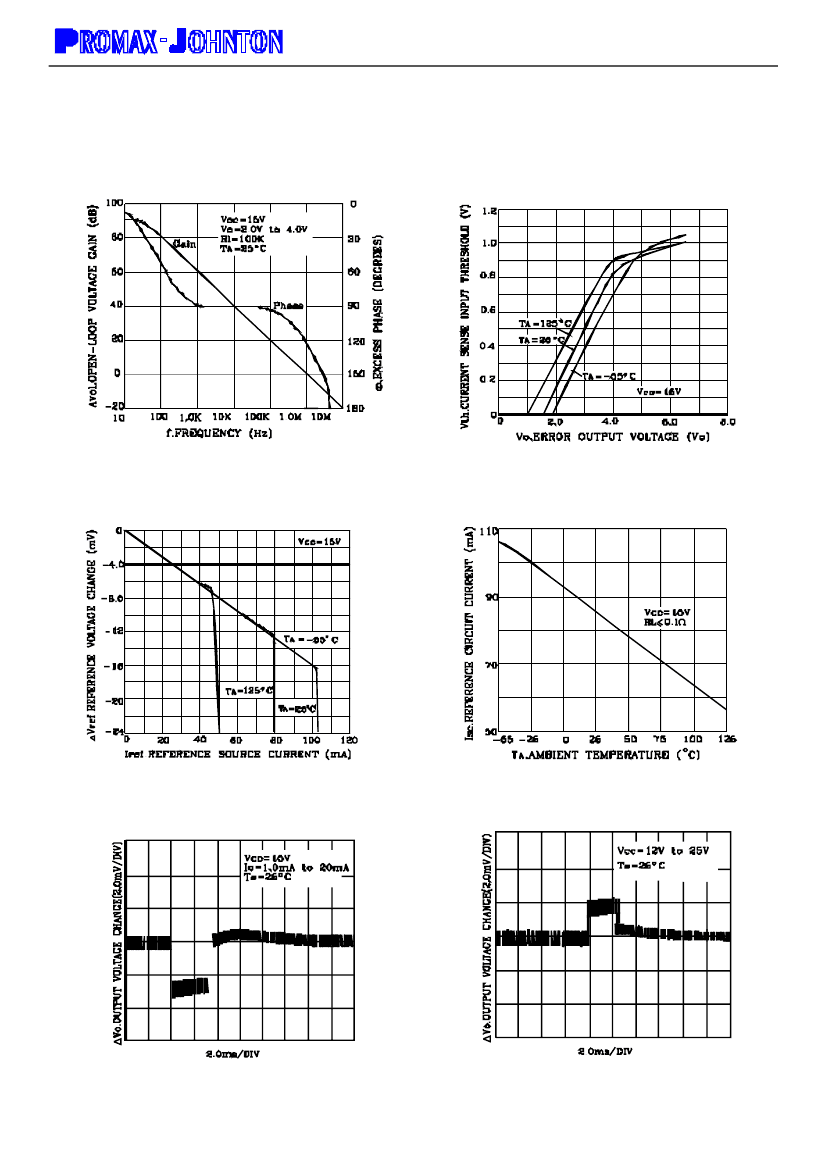

FIGURE 7-ERROR AMP OPEN-LOOP GAIN AND
PHASE versus FREQ UENCY
FIGURE 8-CURRENT SENSE INPUT THRESHOLD
versus ERROR AMP OUTPUT VOLTAGE
FIGURE 9-REFERENCE VOLTAGE CHANGE
versus SOURCE CURRENT
FIGURE 10-REFERENCE SHORT CIRCUIT
CURRENT versus TEMPERATURE
FIGURE 11- REFERENCE LOAD REGULATION
FIGURE 12-REFERENCE LINE REGULATION
5-15
2002/01.ver.A
