3-172681-0

Description
10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size103KB,3 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance

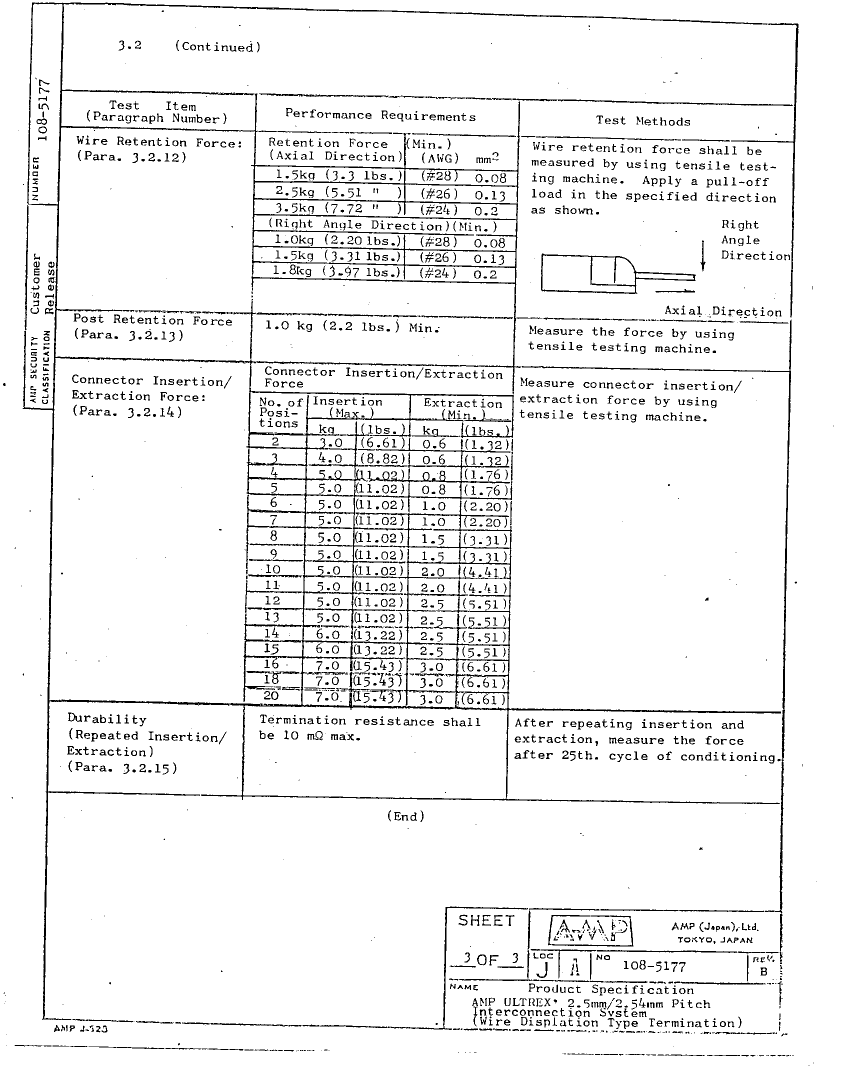

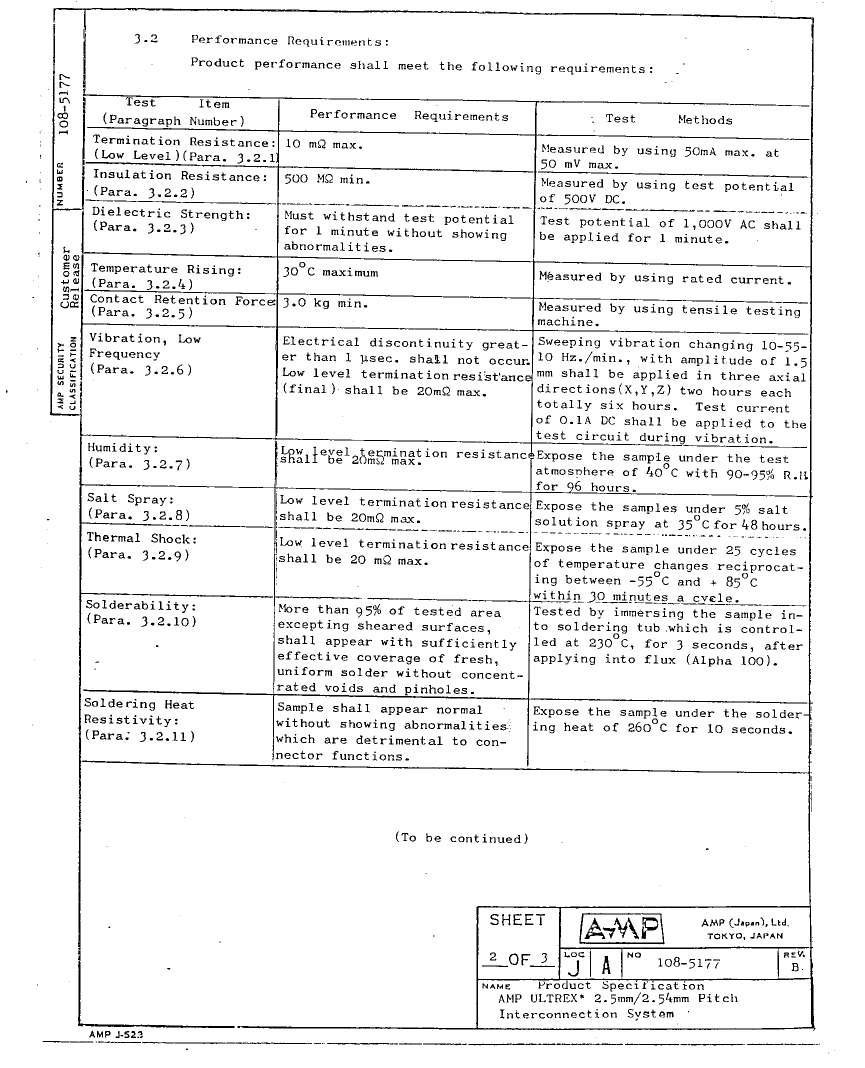

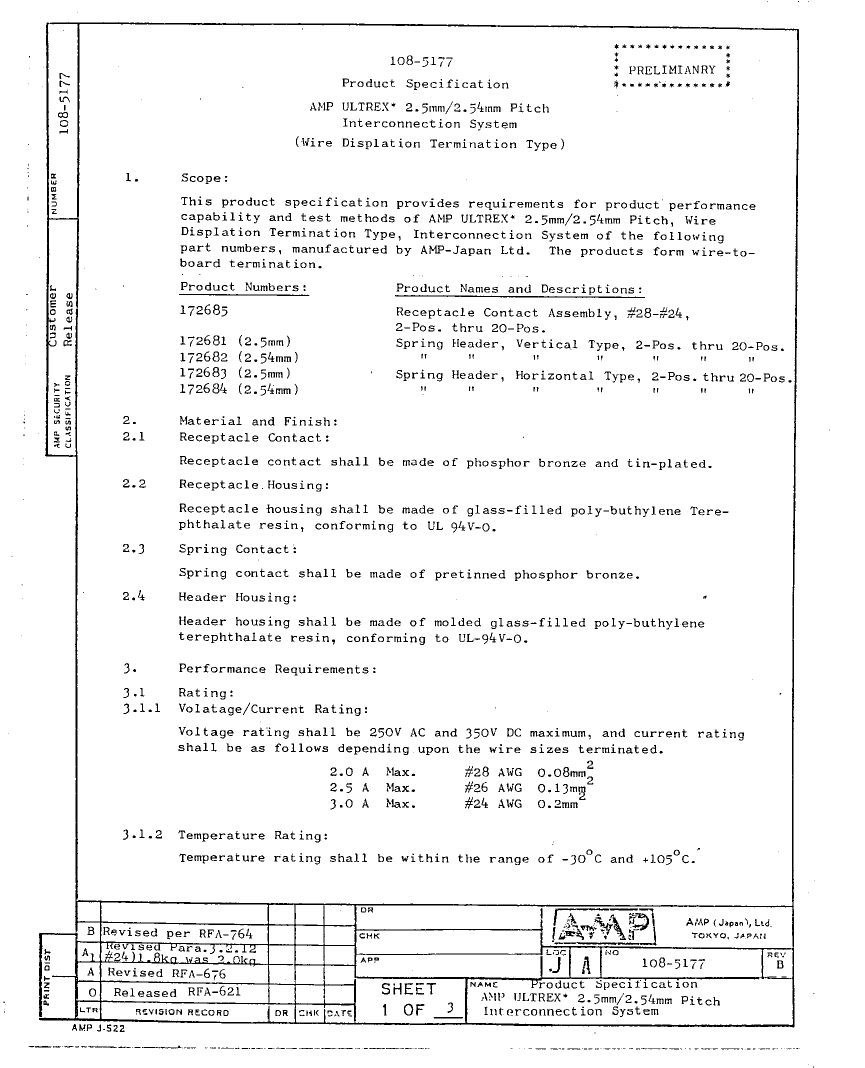

Download Datasheet Parametric Compare View All

3-172681-0 Overview

10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

3-172681-0 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1483088955
Reach Compliance Codeunknown
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number172681
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch2.5 mm
Termination typeSOLDER
Total number of contacts10
UL Flammability Code94V-0

3-172681-0 Related Products

3-172681-0 172685-4 1-172685-5 VSM-06-20-200-30-03-G VSM-06-20-200-50-02-G 177-710-2-51GP0J7-18LCG 177-710-2-51GP4K5-18MDG 177-710-2-51GP4K7-18SNG 6-172681-9 177-710-2-51GS4K5-18FCN
Description 10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER 4 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, RECEPTACLE 15 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, RECEPTACLE Board Connector Board Connector Cable Assembly, 30AWG, Cable Assembly, 24AWG, Cable Assembly, 24AWG, 9 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER Cable Assembly, 24AWG,
Reach Compliance Code unknown compliant unknown compliant compliant compliant compliant compliant unknown unknown
Is it Rohs certified? conform to conform to conform to - - conform to conform to conform to conform to -
Objectid 1483088955 - - 1316123051 1316123063 7004898201 7004898923 7004899125 - 7004900970
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD STACKING CONNECTOR BOARD STACKING CONNECTOR - - - BOARD CONNECTOR -
Contact point gender MALE FEMALE FEMALE MALE MALE - - - MALE -
DIN compliance NO NO NO - - NO NO NO NO NO
Filter function NO NO NO NO NO - - - NO -
IEC compliance NO NO NO - - NO NO NO NO NO
MIL compliance NO NO NO - - YES YES YES NO YES
Mixed contacts NO NO NO NO NO - - - NO -
Installation type BOARD CABLE CABLE BOARD BOARD - - - BOARD -
Number of rows loaded 1 1 1 6 6 - - - 1 -
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE - - - GENERAL PURPOSE -
Terminal pitch 2.5 mm 2.5 mm 2.5 mm 1.27 mm 1.27 mm - - - 2.5 mm -
Termination type SOLDER IDC IDC SOLDER SOLDER - - - SOLDER -
Total number of contacts 10 4 15 120 120 - - - 9 -
Other features - AMP ULTREX AMP ULTREX - - STANDARD: MIL-DTL-83513, EMI SHIELDED STANDARD: MIL-DTL-83513 STANDARD: MIL-DTL-83513 - STANDARD: MIL-DTL-83513, EMI SHIELDED
YTEOL - - - 8.75 8.75 8.75 8.23 8 - 9.35
insulator material - - - GLASS FILLED LIQUID CRYSTAL POLYMER GLASS FILLED LIQUID CRYSTAL POLYMER CROSSLINKED ETHYLENE-TETRAFLUOROETHYLENE POLYTETRAFLUOROETHYLENE POLYTETRAFLUOROETHYLENE - POLYTETRAFLUOROETHYLENE
Maximum operating temperature - - - 125 °C 125 °C 150 °C 150 °C 150 °C - 150 °C
Minimum operating temperature - - - -25 °C -25 °C -55 °C -55 °C -55 °C - -55 °C
